Raynesys Outdoor Grill Cart - Instruction Manual

pengenalan

The Raynesys Outdoor Grill Cart is a versatile and robust solution for all your outdoor cooking needs. Designed for universal compatibility, it seamlessly integrates with various grills, including 22"/17" Blackstone griddle stands, Ninja grills, Ooni pizza ovens, tabletop grills, and propane grills. Its portable and foldable design, coupled with a high weight capacity, makes it ideal for backyard barbecues, camping trips, and other outdoor culinary adventures.

Ciri-ciri Utama:

• Keserasian Universal: Fits various grills and griddles.
• 3-Tier Large Space: Features a 31x17 inch countertop, an expansion table, dual-tier storage rack, side storage box, bottle opener, paper towel holder, and trash bag hanger.
• Kukuh & Stabil: Constructed from high-strength iron with a full-body metal paint process and triangular support structure, supporting up to 440 lbs.
• Mudah Alih & Boleh Dilipat: Collapses to a compact size for easy transport and storage, with a sturdy handle for carrying.
• Easy Mobility & Secure Locking: Equipped with 4x 360° swivel wheels with locking mechanisms for stable cooking.

Arahan Persediaan

Follow these steps to assemble your Raynesys Outdoor Grill Cart. For a visual guide, please refer to the assembly video below.

1. Buka Pembungkusan Komponen: Carefully remove all parts from the packaging. Verify that all components listed in the parts diagram are present.
2. Buka Bingkai Utama: Place the folded cart on a flat, stable surface. Gently unfold the main frame until the legs are extended.
3. Secure Connecting Rods: Straighten the four connecting rods that support the main structure. Ensure they are properly aligned and locked into place.
4. Install Storage Racks: Insert the mesh grid board into the designated slots for the upper storage tier. Secure it with the provided long screws. Then, install the solid bottom board for the lower storage tier, securing it with wing nuts.
5. Lampirkan Pemegang: Install the curved handle on the left side of the cart (near the bottle opener) using the provided screws.
6. Install Gas Bottle Hook: Attach the gas bottle hook to the side of the cart as shown in the diagram.
7. Install Extension Board: Secure the extension board on the right side of the cart using wing nuts. Hang the accessory hooks on the underside of the extension board.
8. Unfold and Attach Spice Rack: Unfold the spice rack and hang it on the side of the grill cart without the handle.
9. Install Tissue Holder and Trash Bag Holder: Attach the tissue holder and trash bag holder to their respective positions.
10. Position Heat-Insulating Mat: Place the non-slip heat-insulating mat on the main countertop surface.

Assembly Visual Guide:

Image: The grill cart folded into a compact size, being carried by hand and stored in a car trunk, demonstrating its portability.

Imej: A terperinci view of the grill cart highlighting its dimensions and various weight capacities for different sections, including the 440 lbs total capacity.

Arahan Operasi

The Raynesys Outdoor Grill Cart is designed for ease of use and maximum functionality during your outdoor cooking sessions.

Using the Cart:

• penempatan: Position the grill cart on a flat, stable surface. Ensure the locking mechanisms on the 360° swivel wheels are engaged to prevent movement during use.
• Grill Placement: Place your grill, griddle, or pizza oven on the main countertop, ideally on the provided non-slip heat-insulating mat to protect the surface and stabilize the appliance.
• Jadual Sambungan: Utilize the extension table for additional prep space, holding ingredients, or serving.
• Storan: Use the dual-tier storage racks for plates, bowls, and other cooking essentials. The side storage box is perfect for utensils, spices, and condiments.
• Aksesori: Hang grilling tools on the hooks, use the paper towel holder for easy access to wipes, and attach a trash bag to the designated hanger for convenient waste disposal. The built-in bottle opener is ready for use.
• Mobiliti: To move the cart, disengage the wheel locks and use the curved handle to push or pull it to your desired location. Re-engage the locks once positioned.

Beroperasiview:

Image: A visual breakdown of the grill cart's multifunctional design, showcasing the detachable spice rack, extension board, non-slip heat-insulating mat, tissue holder, bottle opener, gas cylinder hook, and garbage bag holder.

Image: Demonstrates the grill cart's universal fit, showing it with a 17"/22" Blackstone griddle, Ooni pizza oven, Ninja grill, and other standard grills.

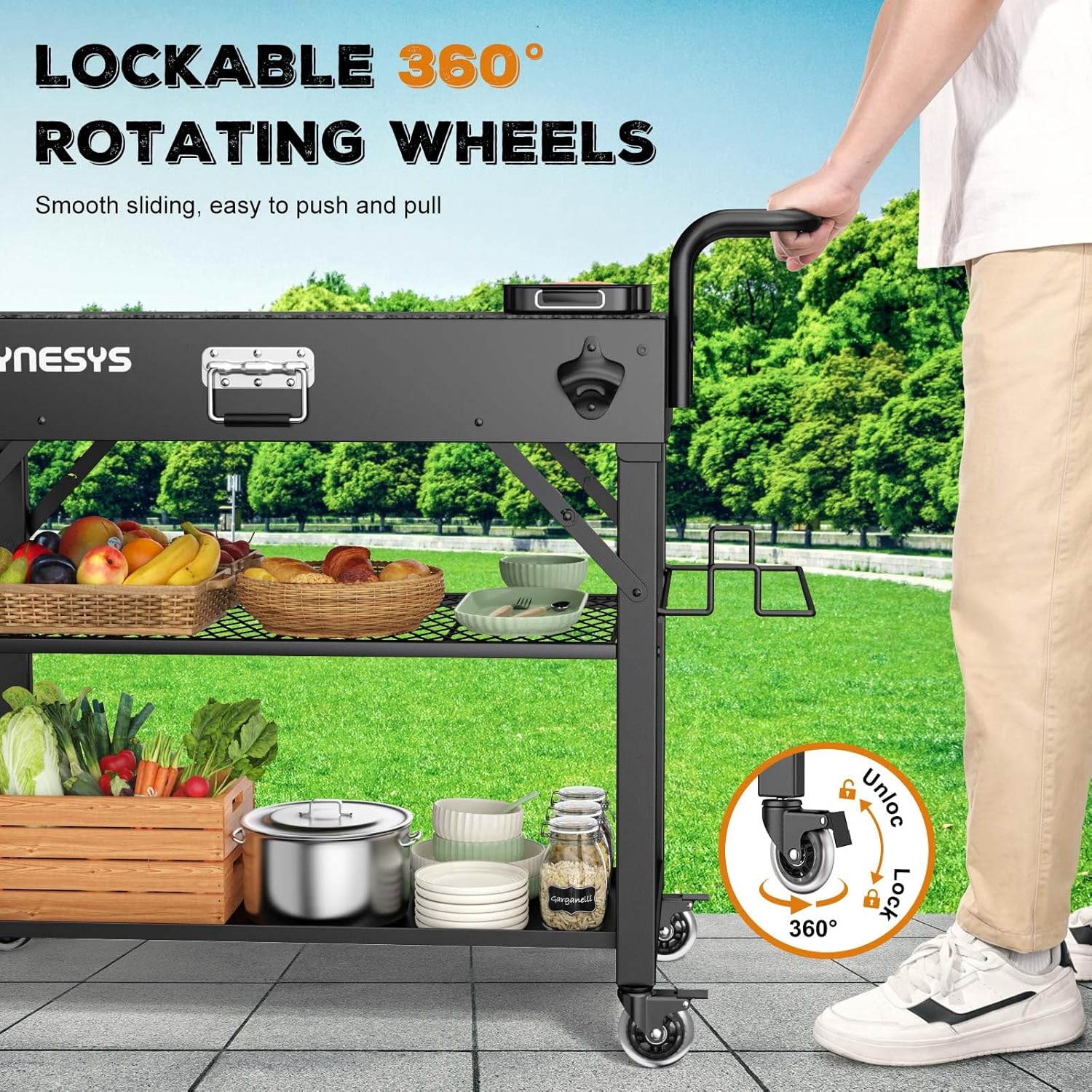

Imej: Dari dekat view of the 360° swivel wheels, highlighting their smooth movement and the locking mechanism for secure placement.

Penyelenggaraan

Proper maintenance will ensure the longevity and optimal performance of your Raynesys Outdoor Grill Cart.

• Pembersihan: Lap semua permukaan dengan iklanamp cloth after each use. For stubborn stains, use a mild soap solution and rinse thoroughly. Avoid abrasive cleaners that could damage the metal paint finish.
• Pencegahan Karat: Although made from rust-resistant iron, it is recommended to store the cart in a dry, covered area when not in use, especially during inclement weather.
• Penjagaan Roda: Periodically check the wheels for debris and ensure they rotate smoothly. Lubricate if necessary.
• Pengikat: Regularly inspect all screws and wing nuts to ensure they are tight. Re-tighten as needed to maintain stability.

Menyelesaikan masalah

If you encounter any issues with your grill cart, refer to the following common troubleshooting tips:

• Cart is Wobbly: Ensure all connecting rods are fully straightened and secured. Check that all screws and wing nuts are tightened. Verify that the wheel locking mechanisms are engaged if you intend for the cart to remain stationary.
• Kesukaran Melipat/Membuka: Ensure no components are obstructing the folding mechanism. Check for any bent parts that might hinder smooth operation.
• Roda Tidak Bergolek Dengan Lancar: Inspect wheels for trapped debris (e.g., grass, dirt). Clean the wheels and axles. If necessary, apply a small amount of lubricant to the wheel bearings.
• Accessories Not Staying in Place: Ensure hooks and racks are correctly installed and seated firmly in their designated slots.

Spesifikasi

Waranti dan Sokongan

For warranty information, product support, or to purchase replacement parts, please refer to the manufacturer's official website or contact their customer service directly. Details can typically be found on the product packaging or the manufacturer's dedicated support page.
