oraolo Portable Bluetooth Speaker BS11 User Manual

pengenalan

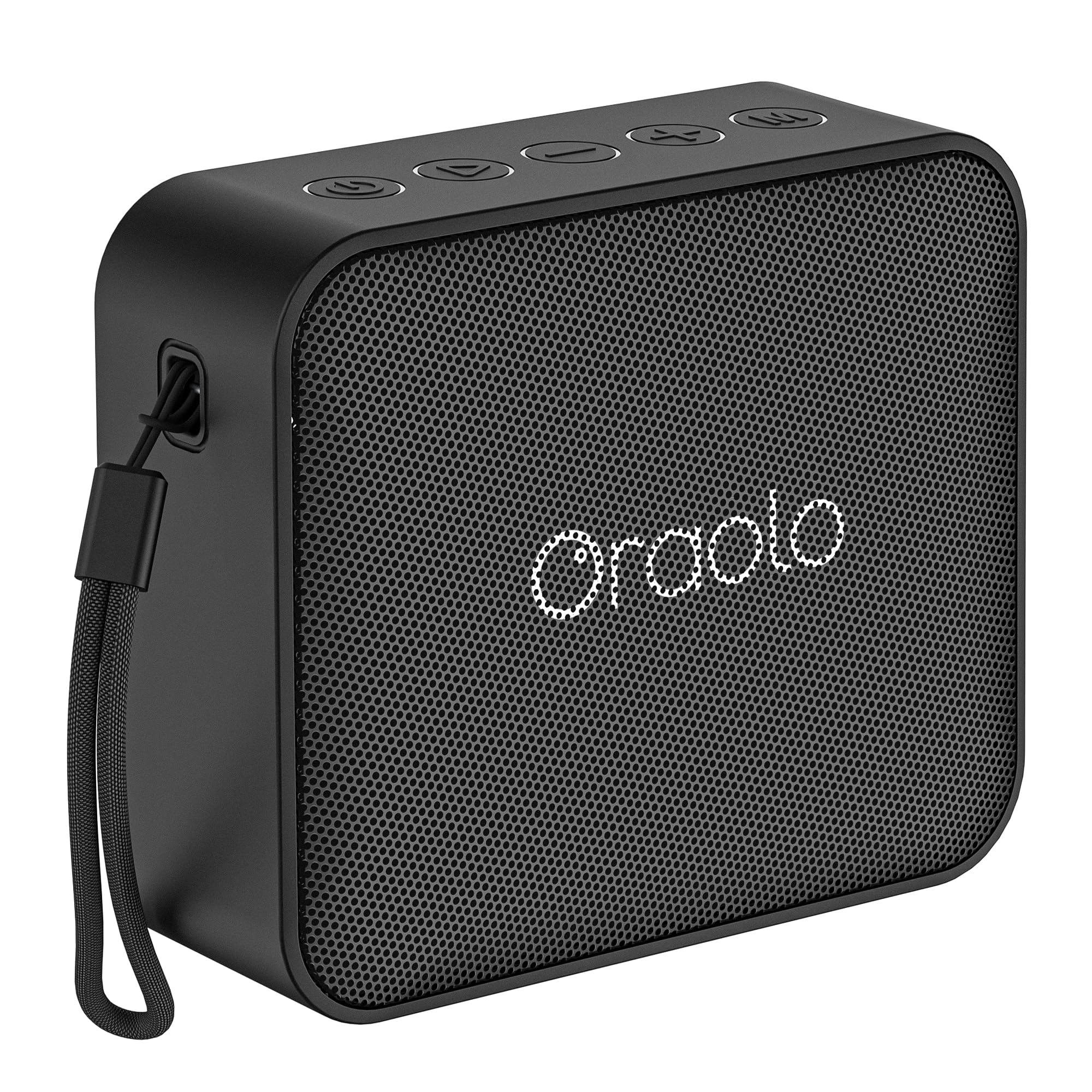

Imej: Depan yang jelas view of the oraolo BS11 portable Bluetooth speaker, showcasing its compact design and mesh grille.

Thank you for choosing the oraolo Portable Bluetooth Speaker BS11. This manual provides essential information for setting up, operating, and maintaining your speaker. Please read it carefully before use to ensure optimal performance and longevity of your device.

The oraolo BS11 is a compact, IPX7 waterproof portable Bluetooth speaker designed for both indoor and outdoor use, offering powerful 15W sound and convenient stereo pairing capabilities.

Produk Selesaiview

Kandungan Pakej

• oraolo Portable Bluetooth Speaker BS11
• Kabel Pengecasan USB Jenis-C
• Manual Arahan

Komponen dan Kawalan Pembesar Suara

Biasakan diri anda dengan butang dan port pembesar suara:

Imej: Terperinci view of the oraolo BS11 speaker, highlighting its various controls and ports. From left to right on the top panel: Power On/Off, Play/Pause, Volume Down/Previous Track, Volume Up/Next Track, Connection Mode Selection. On the side panel, under a protective flap: Charging Indicator, Type-C Charging Port, TF Card Slot, and AUX Input. The image also indicates dimensions: 8 cm height, 10 cm depth, 4 cm width, and a weight of 226g.

1. Butang Hidup / Mati: Press and hold for approximately 3 seconds to power the speaker on or off.
2. Butang Main/Jeda: Tekan untuk memainkan atau menjeda audio.
3. Volume - / Previous Track Button: Press to decrease volume. Press and hold for the previous track.
4. Volume + / Next Track Button: Press to increase volume. Press and hold for the next track.
5. Connection Mode Selection Button: Press to cycle through available input modes (Bluetooth, AUX, TF Card).
6. Penunjuk Pengecasan: Lampu LED menunjukkan status pengecasan.
7. Port Pengecasan Jenis-C: For connecting the USB Type-C charging cable.
8. Slot Kad TF: For inserting a TF (MicroSD) card with audio files.
9. Input AUX: Untuk menyambungkan peranti audio luaran melalui kabel audio 3.5mm.

Persediaan

1. Mengisi Speaker

Before first use, fully charge the speaker. Connect the provided USB Type-C cable to the speaker's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will show the charging status and turn off or change color when fully charged.

2. Hidupkan/Mati Kuasa

• Untuk Menghidupkan: Press and hold the Power On/Off button for approximately 3 seconds. You will hear an audible prompt.
• Untuk Mematikan: Press and hold the Power On/Off button for approximately 3 seconds. You will hear an audible prompt.

3. Berpasangan Bluetooth

When powered on, the speaker will automatically enter Bluetooth pairing mode if no other mode is selected. The Bluetooth indicator light will flash.

1. Ensure the speaker is powered on and in Bluetooth pairing mode.
2. Pada peranti anda (telefon pintar, tablet, dll.), dayakan Bluetooth dan cari peranti yang tersedia.
3. Select "oraolo BS11" from the list of devices.
4. Sebaik sahaja dipasangkan, pembesar suara akan mengeluarkan pengesahan yang boleh didengar dan lampu penunjuk Bluetooth akan berhenti berkelip dan kekal kukuh.

Pembesar suara akan menyambung semula secara automatik ke peranti pasangan terakhir apabila dihidupkan, jika peranti berada dalam julat dan Bluetooth didayakan.

4. Gandingan True Wireless Stereo (TWS).

For an enhanced stereo experience, you can pair two oraolo BS11 speakers together.

Imej: This image demonstrates the True Wireless Stereo (TWS) functionality, showing two oraolo BS11 speakers positioned to the left and right of a smartphone, creating a wider soundstage for music playback. The text "Audio Stereo Senza Fili" (Wireless Stereo Audio) and "Doppio suono, doppio divertimento" (Double sound, double fun) emphasize the feature.

1. Ensure both oraolo BS11 speakers are powered on and not connected to any Bluetooth device.
2. On one of the speakers (this will be the primary speaker), press and hold the Connection Mode Selection button for approximately 3 seconds until you hear a pairing tone.
3. Kedua-dua pembesar suara akan mencari dan bersambung secara automatik antara satu sama lain. Sebaik sahaja disambungkan, anda akan mendengar nada pengesahan.
4. Now, on your device, enable Bluetooth and search for "oraolo BS11". Connect to this single entry.
5. Kedua-dua pembesar suara kini akan memainkan audio dalam stereo.

To disconnect TWS, press and hold the Connection Mode Selection button on either speaker again.

5. Mod AUX

To use the speaker with a non-Bluetooth device:

1. Sambungkan satu hujung kabel audio 3.5mm (tidak disertakan) ke port input AUX pembesar suara.
2. Sambungkan hujung satu lagi ke bicu output audio peranti anda.
3. Press the Connection Mode Selection button on the speaker until it enters AUX mode.
4. Audio kini akan dimainkan melalui pembesar suara daripada peranti anda yang disambungkan.

6. Mod Kad TF

Untuk memainkan muzik terus daripada kad TF (MicroSD):

1. Insert a TF card (with supported audio files) into the TF card slot.
2. Press the Connection Mode Selection button on the speaker until it enters TF Card mode.
3. The speaker will automatically start playing music from the card.

Mengendalikan Speaker

Kawalan Asas

• Main/Jeda: Tekan butang Main/Jeda.
• Kelantangan: Tekan butang Volume +.
• Perlahankan suara: Tekan butang Kelantangan -.
• Lagu Seterusnya: Tekan dan tahan butang Kelantangan +.
• Trek Sebelumnya: Tekan dan tahan butang Kelantangan -.

Penyelenggaraan

Pembersihan

Lap pembesar suara dengan lembut, damp cloth. Do not use abrasive cleaners or solvents. Ensure all port covers are securely closed before cleaning with water.

Rintangan Air (IPX7)

Imej: The oraolo BS11 speaker is shown partially submerged in clear water, with bubbles around it, emphasizing its IPX7 waterproof capability. The text "IPX7 Impermeabile" (IPX7 Waterproof) and "Pronto per ogni avventura" (Ready for any adventure) highlight its durability for outdoor and wet environments.

The oraolo BS11 speaker is rated IPX7 waterproof, meaning it can be immersed in water up to 1 meter (3 feet) for up to 30 minutes. To maintain its waterproof integrity:

• Ensure the rubber flap covering the charging port, TF card slot, and AUX input is securely closed before exposing the speaker to water.
• Do not expose the speaker to salt water or other chemicals. If exposed, rinse with fresh water and dry thoroughly.
• Avoid prolonged immersion or use in extreme water conditions.

Penyimpanan

Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, charge the battery periodically to maintain its health.

Menyelesaikan masalah

Spesifikasi

Imej: Pertunjukan kolajasing the portability and versatility of the oraolo BS11 speaker. It depicts individuals enjoying music with the speaker during hiking, relaxing on a boat, cycling, and holding it casually, emphasizing its "Easy to Carry" feature for various adventures.

Imej: The oraolo BS11 speaker is shown on a wooden table in an outdoor setting, with a visual overlay indicating "Fino a 7 ore di musica continua" (Up to 7 hours of continuous music). This highlights the speaker's battery life for extended listening sessions.

Waranti dan Sokongan

oraolo products are designed and manufactured to the highest quality standards. For warranty information and customer support, please refer to the warranty card included in your package or visit the official oraolo webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.

If you encounter any issues not covered in this manual, please contact oraolo customer support for assistance.
