ELENKER Upright Walker Instruction Manual

1. Lebihview

The ELENKER Upright Walker is designed to provide stable and comfortable mobility support for seniors and adults. It features an upright design to promote better posture, adjustable padded armrests, a comfortable seat with a backrest, and a convenient folding mechanism for storage and transport.

Figure 1: Fully assembled ELENKER Upright Walker.

Ciri-ciri Utama:

• Adjustable Padded Armrests: Designed to keep forearms at a natural level, reducing strain on shoulders and back.
• 10-inch Front Wheels: Solid PVC wheels for smooth maneuvering and durability on various terrains.
• Ergonomic Hand Brakes: Push forward to slow or stop, ensuring stability and security.
• Comfortable Seat with Backrest: Breathable mesh seat (18"L x 10"D x 24"H) and durable backrest for resting.
• Reka Bentuk Lipat: Easy assembly without tools and compact size for storage and transportation.
• Aksesori: Includes a detachable polyester storage bag and a cane holder.

2. Persediaan dan Pemasangan

The ELENKER Upright Walker is designed for easy, tool-free assembly. Follow these steps to prepare your walker for use.

2.1 Membuka Walker

1. Tanggalkan walker dari pembungkusannya dengan berhati-hati.
2. Letakkan walker di atas permukaan yang rata dan stabil.
3. Pull the sides of the frame outwards until the walker is fully extended and locks into place. Ensure all locking mechanisms are engaged.

2.2 Melaraskan Ketinggian Tempat Letak Tangan

The height of the padded armrests is adjustable to suit your comfort and maintain an upright posture.

1. Locate the height adjustment pins or levers on the armrest supports.
2. Press the pin or release the lever and slide the armrest up or down to your desired height.
3. Ensure the armrests are at a height that allows you to stand straight with your forearms comfortably resting on the pads, and your elbows slightly bent.
4. Release the pin or lock the lever to secure the armrest in position. Repeat for the other armrest, ensuring both are at the same height.

2.3 Memasang Aksesori

The walker comes with a detachable storage bag and a cane holder.

• Beg simpanan: Attach the polyester storage bag to the designated hooks or loops under the seat. Ensure it is securely fastened.
• Cane Holder: Secure the cane holder to the side of the walker frame as instructed in the packaging.

Figure 2: Walker with attached storage bag and cane holder.

3. Arahan Operasi

Proper operation ensures safety and maximizes the benefits of your ELENKER Upright Walker.

3.1 Walking with the Upright Walker

1. Stand upright with your forearms resting comfortably on the padded armrests.
2. Maintain a straight posture, looking forward.
3. Push the walker forward a short distance, then step forward with one foot, followed by the other.
4. Ensure the walker remains stable and all four wheels are on the ground during movement.

3.2 Menggunakan Brek

The walker is equipped with ergonomic hand brakes for slowing down and stopping.

• Untuk Memperlahankan atau Berhenti: Gently squeeze the hand brake levers towards the handles.
• To Lock the Brakes (Parking Brake): Push the hand brake levers forward until they click into the locked position. This is essential when sitting on the seat or when the walker needs to remain stationary.
• To Release the Brakes: Pull the hand brake levers back towards the handles.

Figure 3: Engaging the parking brake by pushing the lever forward.

3.3 Menggunakan Tempat Duduk

The built-in seat allows for convenient resting during use.

1. Pastikan alat bantu jalan berada di atas permukaan yang rata dan stabil.
2. Always engage the parking brakes by pushing the hand brake levers forward until they lock. This prevents the walker from moving while you sit down or stand up.
3. Carefully turn around and sit on the breathable mesh seat, using the backrest for support.
4. When ready to stand, use the sit-to-stand handles for assistance, ensuring the brakes remain locked until you are fully upright and stable.

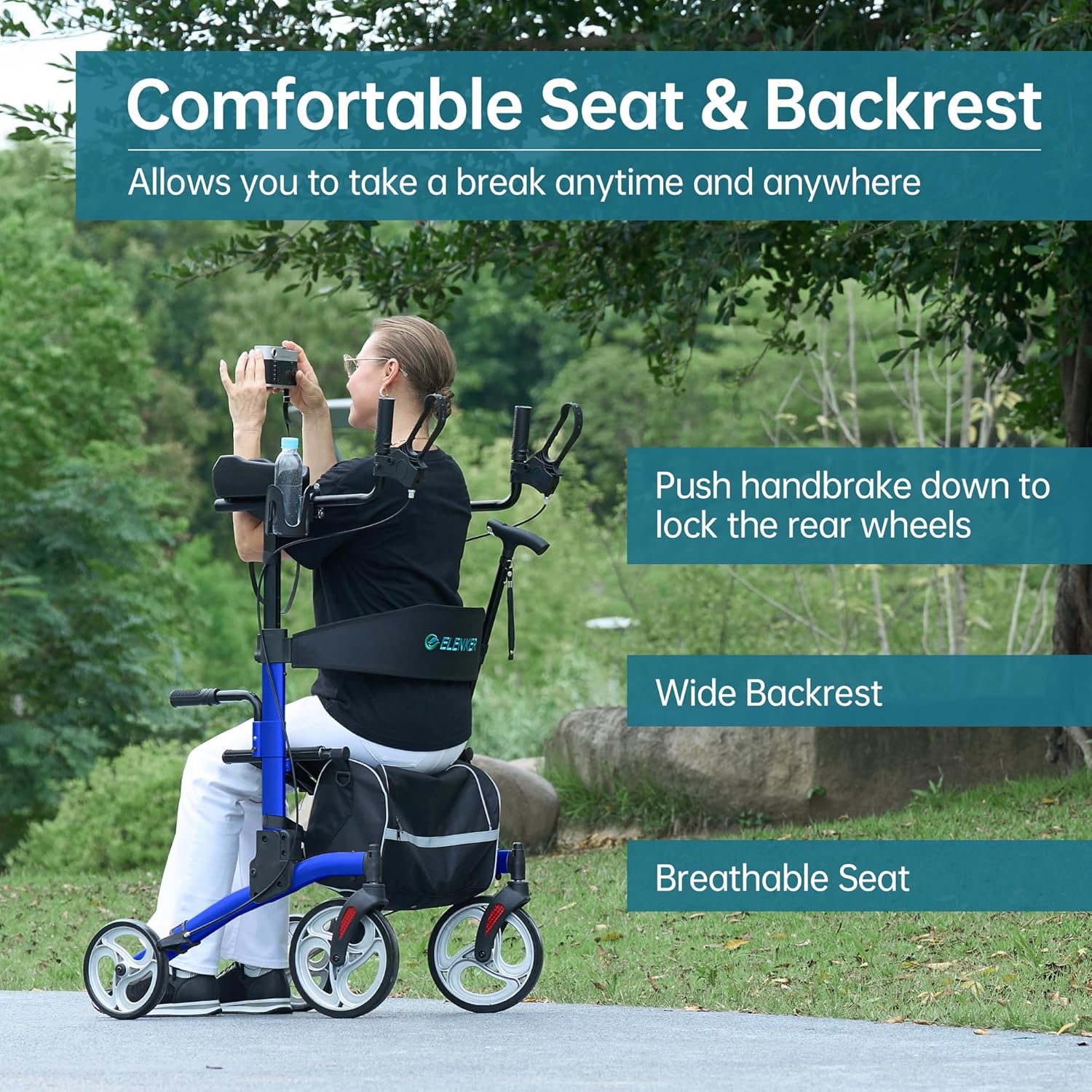

Figure 4: Using the comfortable seat and backrest.

Figure 5: Sit-to-stand handles for easier transitions.

3.4 Lipatan untuk Penyimpanan dan Pengangkutan

The walker can be easily folded for compact storage or transportation.

1. Ensure the storage bag and any other accessories are removed or secured.
2. Locate the folding mechanism, typically a strap or lever on the seat.
3. Pull the strap upwards or engage the lever to initiate the folding action.
4. Gently push the sides of the walker inwards until it is fully folded.
5. Secure any locking clips to keep the walker in its folded position.

Figure 6: Walker folded for compact storage and transportation.

4. Penyelenggaraan dan Penjagaan

Penyelenggaraan berkala memastikan jangka hayat dan operasi walker anda yang selamat.

• Pembersihan: Lap bingkai dan komponen dengan iklanamp kain dan sabun lembut. Elakkan pembersih yang kasar.
• Pemeriksaan Roda: Periodically check the wheels for wear and tear. Ensure they rotate freely and are free of debris.
• Pemeriksaan Brek: Regularly test the brakes to ensure they engage and disengage properly. Adjust if necessary (refer to specific adjustment instructions if provided with the product, or consult a professional).
• Pengikat: Check all screws, bolts, and locking mechanisms to ensure they are tight and secure.
• Storan: Simpan walker di tempat yang kering dan bersih, jauh daripada suhu yang melampau.

5. Penyelesaian masalah

This section addresses common issues you might encounter with your upright walker.

6. Spesifikasi Produk

7. Waranti dan Sokongan

7.1 Perkhidmatan dan Sokongan

ELENKER products are 100% tested before leaving the factory. For any questions or assistance, please contact customer service. Friendly email customer service is available 24 hours a day.

7.2 Penafian Undang-undang

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is a mobility aid and should be used as directed by a healthcare professional if applicable.
