Manual Pengguna Papan Kekunci Mekanikal Wayarles MCHOSE G75 Pro

1. Pengenalan

The MCHOSE G75 Pro is a versatile 75% layout wireless mechanical keyboard designed for optimal performance and user experience. It features a gasket-mounted structure with 5 layers of sound and shock-absorbing dampening, vibrant RGB backlighting, and tri-mode connectivity (2.4GHz wireless, Bluetooth, and wired USB-C). The keyboard also supports hot-swappable switches, allowing for easy customization and maintenance.

2. Kandungan Pakej

Sila sahkan bahawa semua item terdapat dalam pakej anda:

• MCHOSE G75 Pro Wireless Mechanical Keyboard
• Kabel USB-C ke USB-A
• Penerima Tanpa Wayar 2.4GHz
• Penarik Kekunci
• Manual Pengguna (dokumen ini)

3. Produk Lebihview

The MCHOSE G75 Pro features a compact 75% layout, which includes function keys, arrow keys, and a navigation cluster, while minimizing desk space. Its robust construction incorporates a gasket-mounted design for a flexible and comfortable typing feel.

Image: The MCHOSE G75 Pro keyboard showcasing its compact 75% layout.

Internally, the keyboard utilizes a 5-layer dampening system, including Poron foam, IXPE foam, and a PET film, to enhance typing acoustics and reduce vibrations, providing a satisfying sound profile.

Image: Diagram illustrating the 5-layer gasket-mounted dampening structure of the keyboard.

The keyboard offers flexible connectivity options through a mode switch located on the side, allowing seamless transitions between wired, 2.4GHz wireless, and Bluetooth modes.

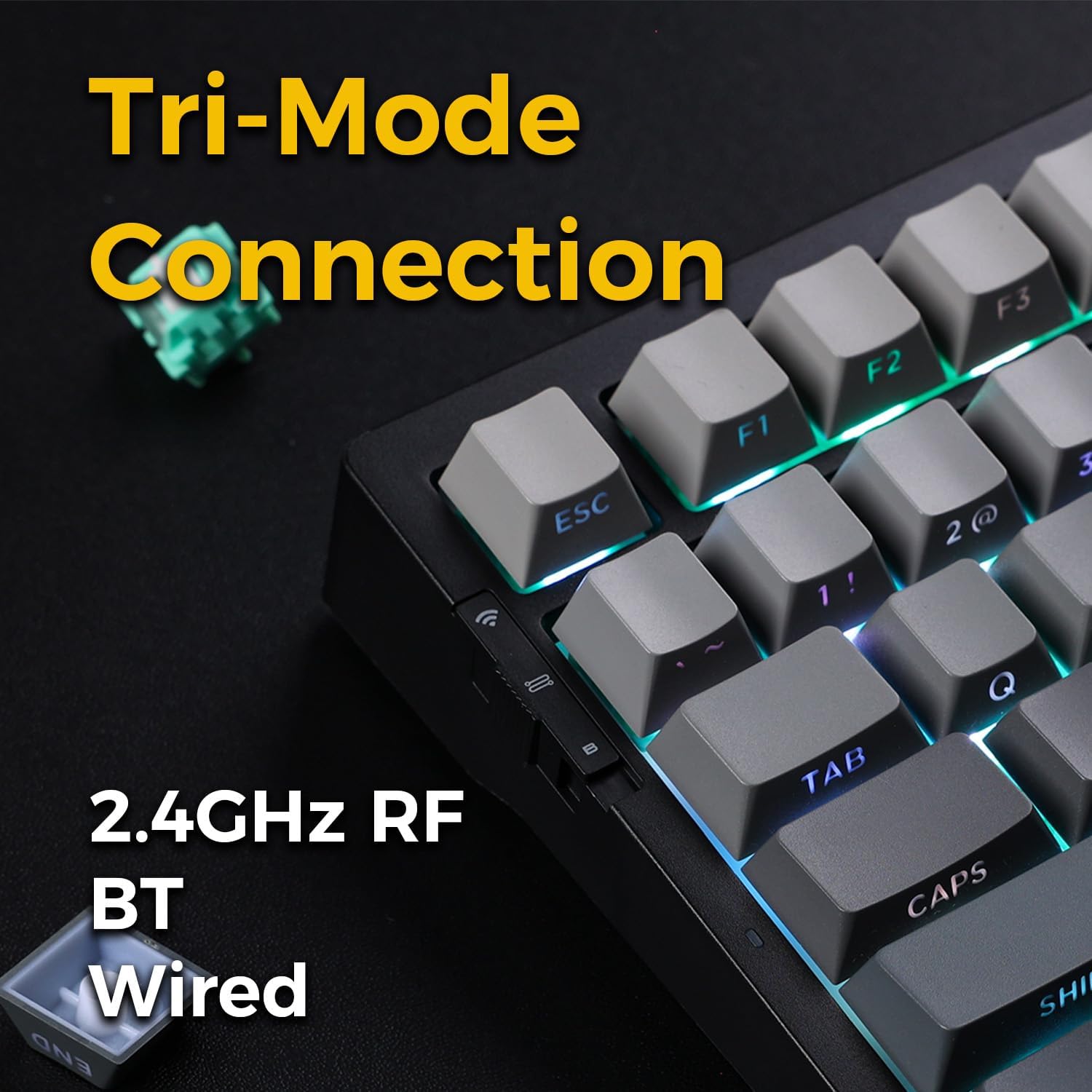

Image: Close-up of the tri-mode connection switch and USB-C port on the keyboard's side.

4. Persediaan

4.1 Pengecasan Awal

Before first use, connect the keyboard to a USB power source using the provided USB-C cable. The keyboard is equipped with 2 Lithium Polymer batteries. A full charge ensures optimal wireless performance.

4.2 Mod Kesambungan

The MCHOSE G75 Pro supports three connection modes: Wired, 2.4GHz Wireless, and Bluetooth. Use the switch on the side of the keyboard to select your desired mode.

4.2.1 Sambungan Berwayar

1. Set the mode switch on the keyboard to the 'Wired' position.
2. Connect the USB-C end of the cable to the keyboard and the USB-A end to your computer.
3. Papan kekunci akan dikenali secara automatik oleh sistem pengendalian anda.

4.2.2 Sambungan Wayarles 2.4GHz

1. Set the mode switch on the keyboard to the '2.4G' position.
2. Insert the 2.4GHz wireless receiver into an available USB port on your computer.
3. The keyboard should connect automatically. If not, press and hold the Fn key + the 2.4G key (usually indicated by a wireless icon) for 3 seconds to initiate pairing.

4.2.3 Sambungan Bluetooth

1. Set the mode switch on the keyboard to the 'BT' position.
2. Pada komputer atau peranti anda, dayakan Bluetooth dan cari peranti baharu.
3. Pada papan kekunci, tekan dan tahan fn+1, fn+2, atau fn+3 for 3 seconds to enter pairing mode for one of the three available Bluetooth channels. The indicator light will flash rapidly.
4. Select 'MCHOSE G75 Pro' from the list of available devices on your computer.
5. Setelah dipasangkan, lampu penunjuk akan berhenti berkelip. Anda boleh bertukar antara peranti Bluetooth yang dipasangkan dengan menekan fn+1, fn+2, atau fn+3 secara ringkas.

5. Arahan Operasi

5.1 Fungsi Utama

The MCHOSE G75 Pro utilizes an Fn (Function) key for accessing secondary key functions, including multimedia controls, lighting adjustments, and system shortcuts. Refer to the keycap legends for specific Fn combinations.

Common Fn Key Combinations:

• Fn+F1-F12: Access multimedia controls or system functions (e.g., volume, play/pause, brightness).
• Fn + Kekunci Anak Panah: Adjust RGB lighting effects (e.g., brightness, speed, direction).
• Fn + Backspace: Delete.
• Fn + Menang: Lock/Unlock Windows key.

5.2 Lampu latar RGB

The keyboard features customizable RGB backlighting with south-facing LEDs for enhanced visibility and compatibility with various keycap profiles. You can adjust lighting modes, colors, and brightness.

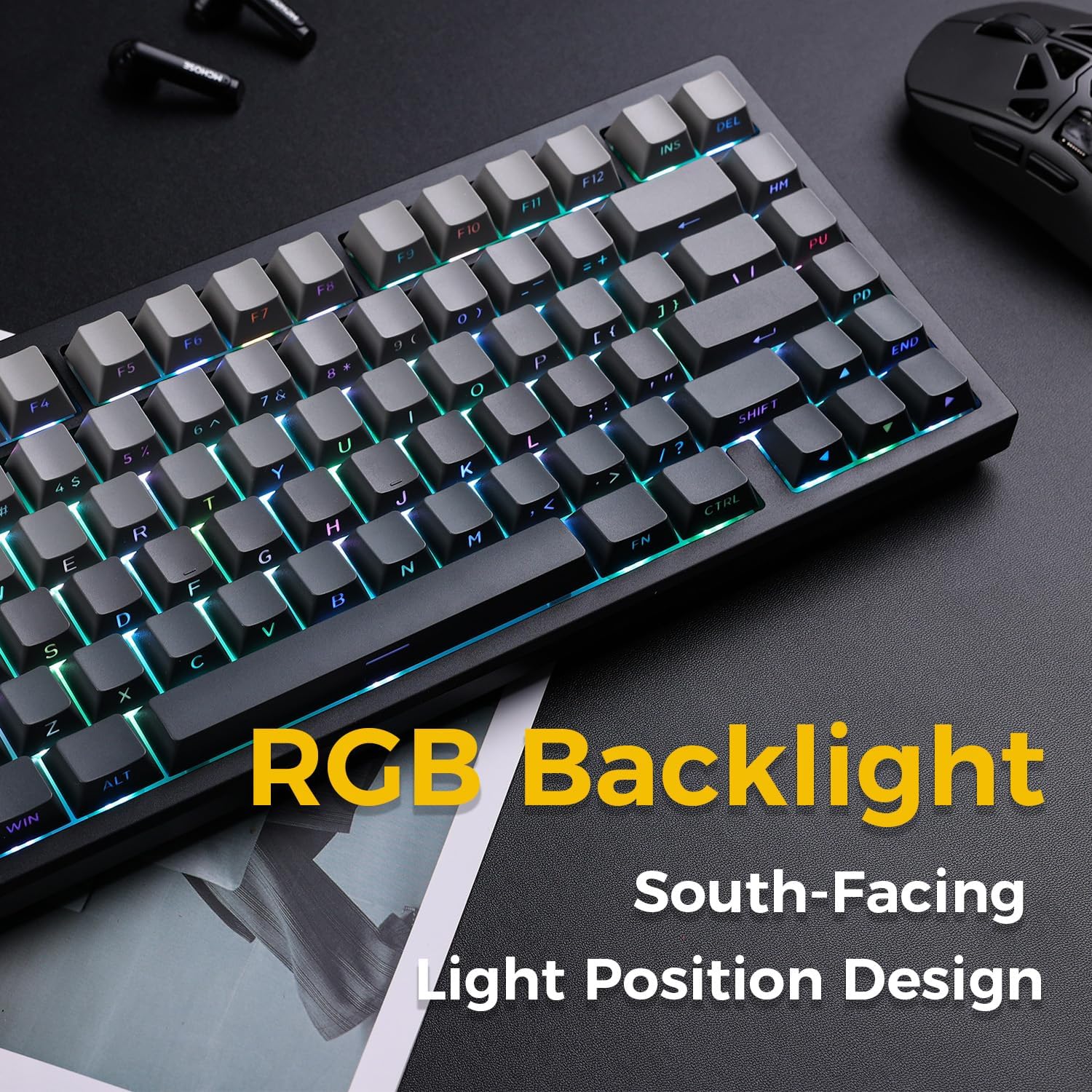

Image: The MCHOSE G75 Pro keyboard displaying its vibrant RGB backlighting.

Adjusting RGB Effects:

• Fn + \|: Kitar melalui pelbagai kesan pencahayaan.
• Fn +: Decrease lighting speed.
• Fn + >: Increase lighting speed.
• Fn + Anak Panah Atas: Tingkatkan kecerahan.
• Fn + Anak Panah Bawah: Decrease brightness.

5.3 Suis Boleh Tukar Panas

The MCHOSE G75 Pro is equipped with hot-swappable sockets, allowing you to easily change mechanical switches without soldering. This feature enables customization of typing feel and sound.

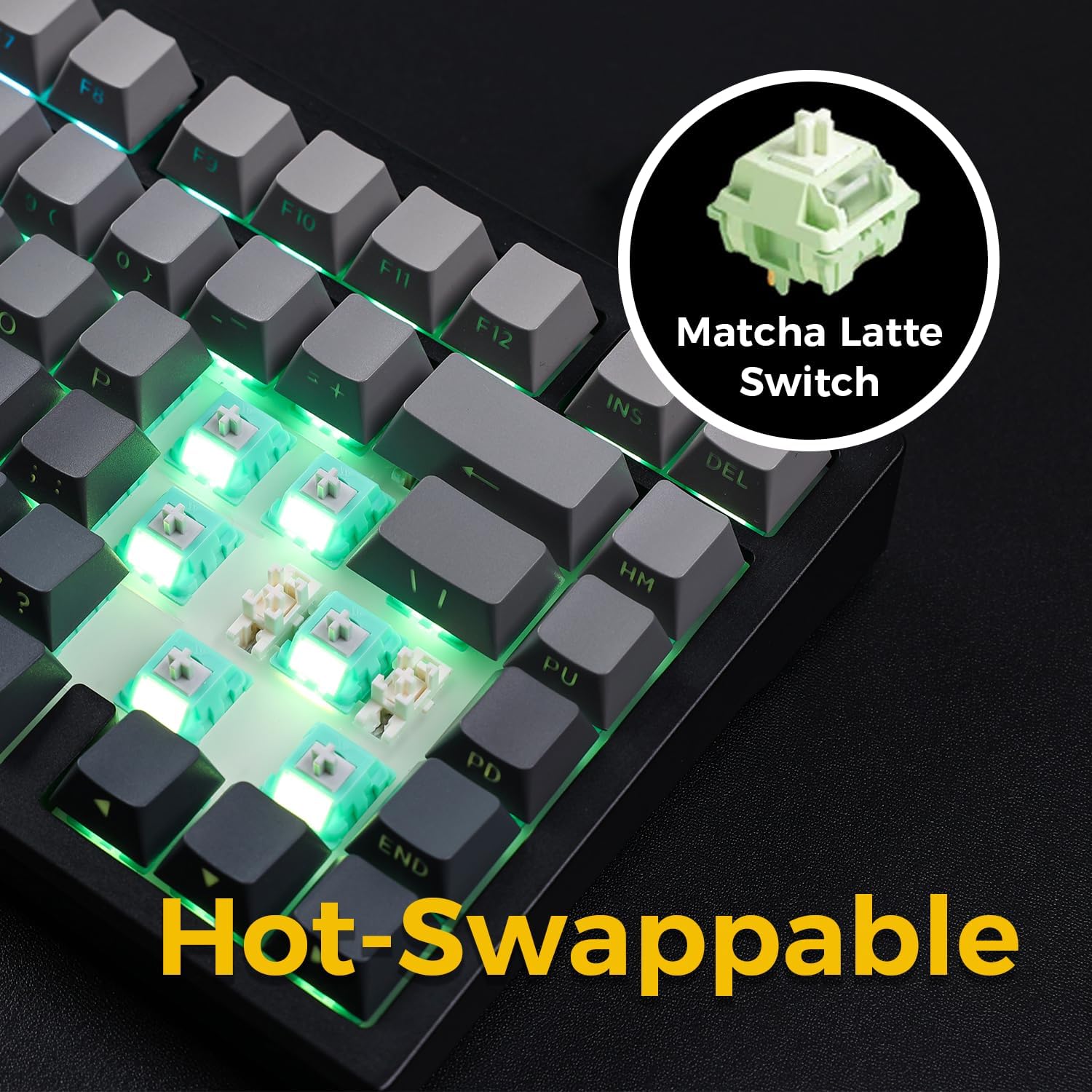

Image: The keyboard with several keycaps and switches removed, demonstrating the hot-swappable feature.

Spesifikasi Suis:

The keyboard may come with Matcha Latte Switch V2 or Cabbage Tofu Switch V2, depending on the variant.

• Matcha Latte Switch V2:
  Operating Force: 45±8gf
  Pre Travel: 2.0±0.4mm
  Total Travel: 3.6±0.2mm
• Cabbage Tofu Switch V2:
  Operating Force: 45±5gf
  Pra-perjalanan: 1.9±0.3mm
  Travel distance: 4.0±0.5mm

6. Penyelenggaraan

6.1 Pembersihan

Untuk mengekalkan rupa dan fungsi papan kekunci:

• Putuskan sambungan papan kekunci daripada komputer anda sebelum membersihkan.
• Gunakan kain lembut dan tidak berbulu sedikit dampdicairkan dengan air atau larutan pembersih lembut untuk mengelap penutup kekunci danasing.
• For dust and debris between keycaps, use compressed air or the provided keycap puller to remove keycaps and clean thoroughly.
• Elakkan menggunakan bahan kimia yang keras atau bahan yang melelas.

6.2 Penggantian Kekunci dan Suis

The included keycap puller can be used to carefully remove keycaps. For switch replacement, use a switch puller (not included unless specified) to gently remove the existing switch. Align the new 3-pin or 5-pin mechanical switch with the hot-swap socket and press firmly until it clicks into place. Ensure pins are not bent during installation.

7. Penyelesaian masalah

7.1 Papan Kekunci Tidak Bertindak Balas

• Pastikan papan kekunci dicas dengan secukupnya.
• Check the mode switch to confirm it is set to the correct connection type (Wired, 2.4G, or BT).
• Untuk sambungan berwayar, cuba port atau kabel USB yang berbeza.
• For 2.4GHz wireless, ensure the receiver is securely plugged in and try re-pairing (Fn + 2.4G key).
• For Bluetooth, ensure Bluetooth is enabled on your device and try re-pairing (Fn + 1/2/3).
• Mulakan semula komputer anda.

7.2 Lampu Latar RGB Tidak Berfungsi/Tidak Betul

• Pastikan papan kekunci dihidupkan.
• Use Fn key combinations (e.g., Fn + Up/Down Arrow) to adjust brightness.
• Cycle through lighting effects using Fn + \|.
• If specific keys are not lighting up, check if the switch is properly seated or if the LED is damaged.

7.3 Software Compatibility (Windows/macOS)

While the keyboard functions plug-and-play, some advanced customization may require dedicated software. Please note that official software might have limited language support or compatibility issues, particularly with macOS. For optimal functionality, ensure you have the latest drivers or software from the MCHOSE official webtapak jika ada.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information and technical support, please refer to the official MCHOSE webtapak atau hubungi peruncit anda. Simpan resit pembelian anda untuk tuntutan waranti.
