HITBOX HBT250P AC/DC TIG Welder and HT-111 Welding Helmet User Manual

1. Pengenalan

This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your HITBOX HBT250P AC/DC TIG Welder and HT-111 Welding Helmet. Please read this manual thoroughly before using the equipment to ensure proper function and safety.

Figure 1.1: The HITBOX HBT250P AC/DC TIG Welder and HT-111 Welding Helmet. This image displays the complete welding setup, including the orange and black TIG welder unit, the TIG torch, ground clamp, and the black auto-darkening welding helmet.

2. Maklumat Keselamatan

AMARAN: Kimpalan boleh berbahaya. Sentiasa patuhi langkah berjaga-jaga keselamatan untuk mencegah kecederaan atau kematian.

• Kejutan elektrik: Can kill. Do not touch live electrical parts. Wear dry gloves and protective clothing. Insulate yourself from work and ground.
• Asap dan Gas: Boleh membahayakan kesihatan anda. Jauhkan kepala anda daripada asap. Gunakan pengudaraan atau ekzos untuk mengeluarkan asap dari zon pernafasan.
• Sinar Arka: Can burn eyes and skin. Wear a welding helmet with a proper shade filter to protect your eyes and face. Wear appropriate clothing to protect your skin.
• Kebakaran dan Letupan: Percikan api kimpalan boleh menyebabkan kebakaran atau letupan. Jauhkan bahan mudah terbakar dari kawasan kimpalan. Sediakan alat pemadam api berdekatan.
• Bahagian Panas: Can cause severe burns. Allow hot parts to cool before handling.
• bunyi bising: Excessive noise can damage hearing. Wear ear protection.

3. Produk Lebihview

3.1. HITBOX HBT250P AC/DC TIG Welder

The HBT250P is an inverter-based arc welding power source designed for AC/DC TIG welding and Stick (MMA) welding. It features advanced waveforms, 2T/4T mode, and pulse controls, allowing for precise customization of welding parameters.

Rajah 3.1: Depan view of the HITBOX HBT250P AC/DC TIG Welder. This image shows the welder's front panel with various connectors for the TIG torch, ground clamp, and gas input, along with the main control panel.

Ciri Panel Kawalan:

Rajah 3.2: Terperinci view of the HBT250P Welder control panel. This image highlights the digital display, mode selection buttons (MMA, TIG, AC, DC, Pulse), and the mechanical gear knob for parameter adjustment, along with a diagram illustrating TIG welding waveform settings.

• Paparan Digital: Menunjukkan parameter kimpalan semasa.
• Mechanical Gear Knob: For precise adjustment of settings.
• Butang Pemilihan Mod:
• MMA (Stick Welding)
• TIG (Tungsten Inert Gas Welding)
• AC (Alternating Current for Aluminum)
• DC (Direct Current for Steel, Stainless Steel)
• Pulse (Pulsed TIG welding)
• 2T/4T Mode: Torch trigger control options.
• Parameter Adjustments: Up Slope, Peak Amps, Base Amps, Down Slope, AC Frequency, AC Balance, Pulse Frequency, Pulse Duty Cycle.

3.2. HT-111 Welding Helmet

The HT-111 Welding Helmet is designed for comfort and protection during welding operations. It features auto-darkening technology, real color view, and is ultra-lightweight.

Figure 3.3: The HT-111 Welding Helmet highlighting its lightweight design and wide vision area. This image shows the helmet from a side profile, emphasizing its minimal weight (0.86 lbs) and the 150-degree rotation capability of the visor.

Ciri-ciri topi keledar:

Figure 3.4: Lens specifications of the HT-111 Welding Helmet. This image details the internal components and controls of the helmet's auto-darkening lens, including the TEST button, Low Battery Light, Sensitivity Knob, Delay Time Knob, Lithium Battery, Solar Cell, and Arc Sensors.

• Auto-Darkening Lens: Automatically adjusts shade level upon arc strike.
• Real Color Technology: Provides higher clarity and a more natural view.
• Sensitiviti boleh laras: Controls how quickly the lens reacts to light.
• Masa Lengah Boleh Laras: Controls how long the lens stays dark after welding stops.
• Shade Control Knob: DIN 4/9-13 for various welding processes.
• Sumber Kuasa: Solar cell with lithium battery backup.
• Kelas Optik: 1/1/1/2 for superior optical clarity.

4. Persediaan

4.1. Welder Setup (HBT250P)

1. penempatan: Place the welder on a stable, level surface with adequate ventilation. Ensure clear space around the machine for airflow.
2. Sambungan Kuasa: Connect the welder to a suitable power supply according to the specifications. Ensure the power outlet is properly grounded.
3. Sambungan Gas: Connect your inert gas cylinder (e.g., Argon for TIG welding) to the gas inlet on the welder using a gas hose and regulator. Ensure all connections are tight to prevent leaks.
4. TIG Torch Connection: Connect the TIG torch to the appropriate port on the front panel. Ensure the gas line and power cable are securely attached.
5. Tanah Clamp Sambungan: Sambungkan tanah clamp cable to the ground terminal on the welder. Attach the ground clamp dengan selamat pada benda kerja atau meja kimpalan, memastikan sentuhan elektrik yang baik.
6. Pemasangan Elektrod: Insert the appropriate tungsten electrode into the TIG torch collet and tighten.

4.2. Welding Helmet Setup (HT-111)

1. Headgear Adjustment: Adjust the headgear straps to ensure a comfortable and secure fit. The helmet should sit firmly on your head without being too tight or loose.
2. Lens Protection Film: Remove any protective films from the inside and outside of the auto-darkening lens.
3. Ujian Fungsi: Press the 'TEST' button on the lens cartridge to verify the auto-darkening function. The lens should momentarily darken and then return to its clear state. If it does not, check the battery or expose the solar cells to light.

5. Arahan Operasi

5.1. Welder Operation (HBT250P)

1. Hidupkan kuasa: Turn on the main power switch on the welder. The digital display will illuminate.
2. Pilih Mod Kimpalan: Use the mode selection buttons to choose between MMA (Stick) or TIG welding.
3. Select Current Type (TIG): For TIG welding, select AC for aluminum or DC for steel, stainless steel, and other metals.
4. Laraskan Parameter: Use the mechanical gear knob and corresponding buttons to set welding parameters such as:
• Amppemadaman: Set the desired welding current based on material thickness and type.
• Pulse (Optional): If using pulse, adjust Peak Amps, Base Amps, Pulse Frequency, and Pulse Duty Cycle. Pulse helps control heat input and improve bead appearance.
• AC Frequency (AC TIG): Adjust for arc cone width and penetration. Higher frequency narrows the arc.
• AC Balance (AC TIG): Adjust for cleaning action on aluminum. Higher balance provides more cleaning.
• Up Slope/Down Slope: Kawal ramp-up dan ramp-down of current at the start and end of the weld.
• 2T/4T Mode:
• 2T (Dua Sentuhan): Press and hold the torch trigger to start the arc; release to stop.
• 4T (Empat Sentuhan): Press and release to start; press and release again to stop. Useful for long welds.
5. Aliran Gas: Open the gas cylinder valve and adjust the regulator to the recommended gas flow rate for your welding application.
6. Mulakan Kimpalan: With all safety precautions in place and helmet on, initiate the arc according to your selected mode and torch trigger setting.

Gambar 5.1: Lebihview of the HBT250P's 6-in-1 TIG Welder capabilities. This image illustrates the various welding modes supported, including AC Pulsed TIG, DC Pulsed TIG, AC HF TIG, DC HF TIG, MMA (Stick), and AC Square Waveform, demonstrating its versatility.

5.2. Welding Helmet Operation (HT-111)

1. Pelarasan Lorek: Rotate the external shade control knob to select the appropriate shade level (DIN 4/9-13) for your welding process. Refer to welding safety standards for recommended shades.
2. Pelarasan Sensitiviti: Use the internal sensitivity dial to adjust how sensitive the lens is to the welding arc. Higher sensitivity means it will darken with less light.
3. Delay Time Adjustment: Use the internal delay time dial to set how long the lens remains dark after the arc extinguishes. A longer delay is useful for high amperage welding or tack welding to prevent eye fatigue.
4. Mod Kisar: Some helmets have a 'Grind' mode (often a fixed shade 4). If available, switch to this mode for grinding operations to prevent the lens from darkening. Ensure you switch back to a welding shade before striking an arc.

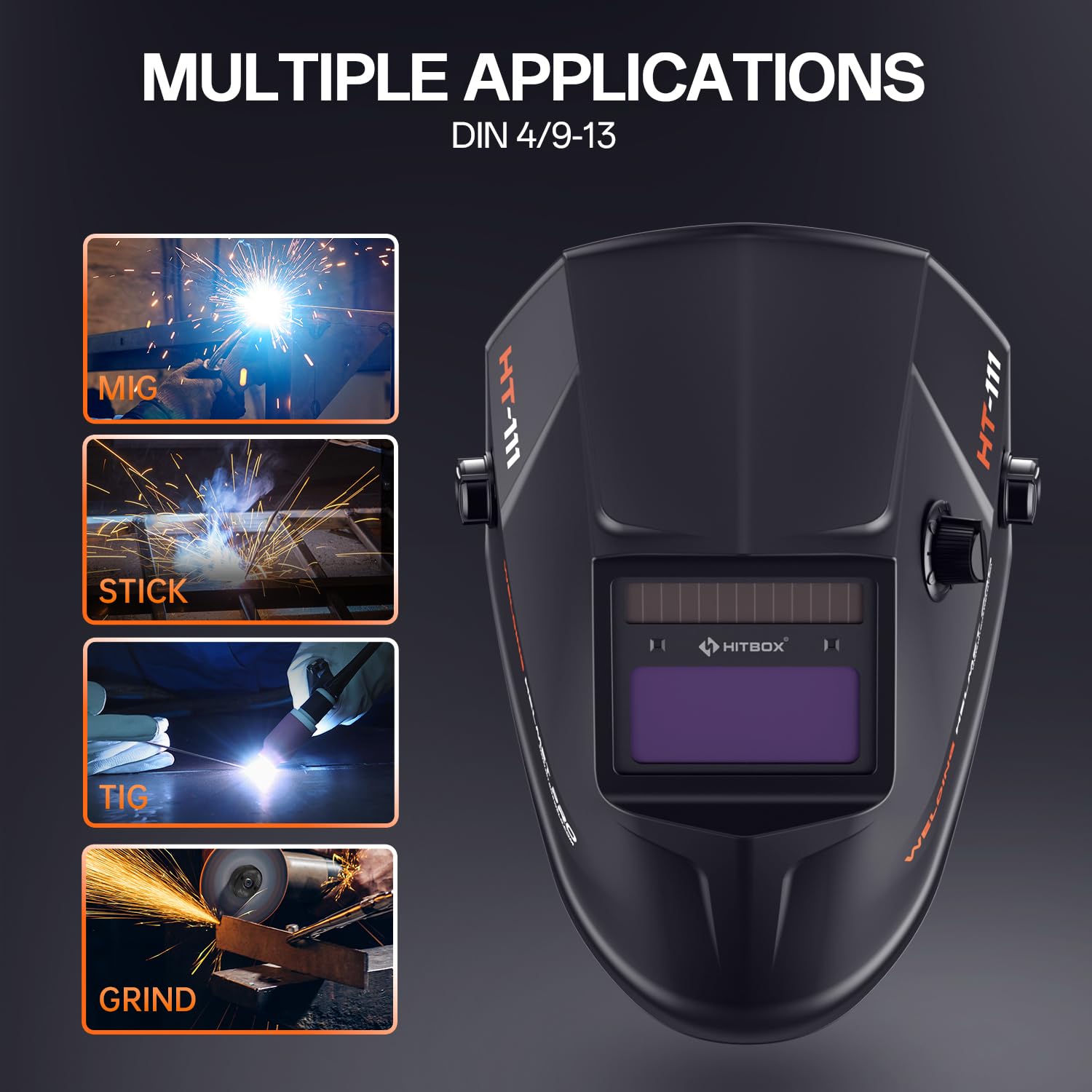

Figure 5.2: The HT-111 Welding Helmet's multiple application capabilities. This image shows the helmet alongside icons representing MIG, Stick, TIG welding, and Grinding, indicating its suitability for various tasks.

Figure 5.3: Comparison of Real Color Technology in the HT-111 Welding Helmet. This image visually contrasts the view through a standard welding lens (green tint) versus the HT-111's real color lens, demonstrating improved clarity and natural color perception.

6. Penyelenggaraan

6.1. Welder Maintenance

• Pembersihan: Regularly clean the exterior of the welder with a dry, soft cloth. Keep the ventilation openings free from dust and debris. Use compressed air to blow out internal dust periodically, ensuring the machine is unplugged.
• Pemeriksaan Kabel: Inspect all welding cables, torch, and ground clamp for cuts, cracks, or loose connections before each use. Replace damaged cables immediately.
• Sambungan Gas: Check gas hoses and fittings for leaks regularly.
• Storan: Store the welder in a dry, clean environment, away from excessive dust, moisture, and extreme temperatures.

6.2. Welding Helmet Maintenance

• Pembersihan Kanta: Clean the auto-darkening lens and outer/inner protective plates with a soft, clean cloth and a mild soap solution. Do not use abrasive cleaners or solvents.
• Protective Plates: Replace scratched or damaged outer and inner protective plates immediately to maintain clear vision and protect the auto-darkening filter.
• Pemeriksaan Bateri: Periodically check the battery status (if applicable) or ensure the solar cells are exposed to light to keep the internal battery charged.
• Tudung kepala: Inspect the headgear for wear and tear. Replace if damaged to ensure proper fit and protection.
• Storan: Store the helmet in a protective bag or case to prevent scratches and damage to the lens.

7. Penyelesaian masalah

8. Spesifikasi

8.1. HITBOX HBT250P AC/DC TIG Welder

• model: HBT250P
• Proses Kimpalan: AC TIG, DC TIG, MMA (Stick)
• Input Voltage: (Typically 110V/220V or 220V, refer to product label for exact range)
• Julat arus keluaran: (Specific range, e.g., 10-250A, refer to product label)
• Kitaran Tugas: (Specific percentage at max amps, refer to product label)
• penyejukan: Disejukkan Kipas
• ciri-ciri: Pulse Control, 2T/4T Mode, AC Frequency Control, AC Balance Control

8.2. HT-111 Welding Helmet

• model: HT-111
• Kelas Optik: 1/1/1/2
• ViewKawasan: Approximately 3.66" x 1.69" (9.3cm x 4.3cm)
• Keadaan Cahaya: DIN 4
• Keadaan Gelap: DIN 9-13 (Adjustable)
• Masa Bertukar: 1/30000s (from light to dark)
• Masa Kelewatan: Boleh laras
• Sensitiviti: Boleh laras
• Bekalan Kuasa: Solar Cell + Lithium Battery
• Berat: Kira-kira 0.86 lbs

9. Waranti dan Sokongan

HITBOX provides reliable welding products and is committed to customer satisfaction. If you encounter any quality problems with your product, please contact HITBOX customer service. They promise to arrange an immediate replacement or a 100% refund for quality-related issues.

For support, please refer to the contact information provided with your purchase or visit the official HITBOX webtapak.
