Sorbus 5-Tier Wall Shelf Unit with Hooks (Model WD-TH5-WH) Instruction Manual

1. Produk Lebihview

This manual provides comprehensive instructions for the assembly, installation, and proper use of your Sorbus 5-Tier Wall Shelf Unit with Hooks, Model WD-TH5-WH. This vertical column shelving unit is designed to maximize space and enhance organization in various rooms, including bathrooms, bedrooms, and living rooms. It features five shelves for display and storage, along with two integrated hooks for hanging items.

Please read this manual thoroughly before beginning assembly or installation to ensure safe and correct usage.

2. Maklumat Keselamatan Penting

• Had Berat: Jangan melebihi had berat maksimum 22 pounds per shelf. Overloading can compromise the unit's stability and lead to damage or injury.
• Pemasangan selamat: Ensure the shelf is securely mounted to the wall using only the provided reinforced hardware. Improper installation can result in the unit falling.
• Bahan Dinding: Verify that the wall material is suitable for mounting this type of shelving unit. If unsure, consult a professional.
• Kanak-kanak dan Haiwan Kesayangan: Keep children and pets away from the unit during assembly and installation. Do not allow them to climb on or hang from the installed shelf.
• Pemeriksaan biasa: Periksa semua perkakasan dan sambungan pemasangan secara berkala untuk memastikan ia kekal ketat dan selamat.

3. Kandungan Pakej

Before starting assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer service.

• 1x Pemutar Skru
• Jangkar Dinding 2x
• 13x Skru
• 10x Wood Dowels
• 5x Shelf Boards
• 2x Panel Sisi
• 2x Improved Connecting Plates
• 2x Cangkuk

Rajah 1: All components for assembly, including hardware and shelf pieces.

4. Arahan Perhimpunan

Minimal assembly is required. Follow these steps carefully:

1. Sediakan Komponen: Lay out all shelf boards, side panels, wood dowels, and screws on a clean, flat surface.
2. Attach Shelf Boards: Insert the wood dowels into the pre-drilled holes on the side panels. Align the shelf boards with the dowels and gently press them into place.
3. Selamat dengan Skru: Use the provided screws and screwdriver to firmly attach the shelf boards to the side panels. Ensure all connections are tight and secure.
4. Install Connecting Plates: Attach the improved connecting plates to the designated areas on the back of the unit to reinforce the structure.
5. Pasang Cangkuk: Secure the two hooks to the bottom shelf panel using the smaller screws.

Rajah 2: Step-by-step visual assembly guide.

5. Pemasangan Dinding

The shelf unit is designed for wall-mounted installation. Use the reinforced hardware for added support.

1. Pilih Lokasi: Select a suitable wall location, ensuring it is free from electrical wires or plumbing.
2. Tandakan Titik Penggerudian: Hold the assembled shelf unit against the wall at the desired height. Use a pencil to mark the drilling points for the wall anchors through the mounting holes on the unit. Use a level to ensure marks are straight.
3. Gerudi Lubang Juruterbang: Drill pilot holes at the marked locations. The size of the drill bit should match the recommended size for the provided wall anchors.
4. Masukkan Sauh: Insert the wall anchors into the drilled pilot holes. Tap gently with a hammer if necessary until they are flush with the wall surface.
5. Rak Pemasangan: Align the mounting holes of the shelf unit with the installed wall anchors. Insert the remaining screws through the shelf's mounting holes and into the anchors. Tighten all screws firmly until the unit is secure against the wall. Do not overtighten.

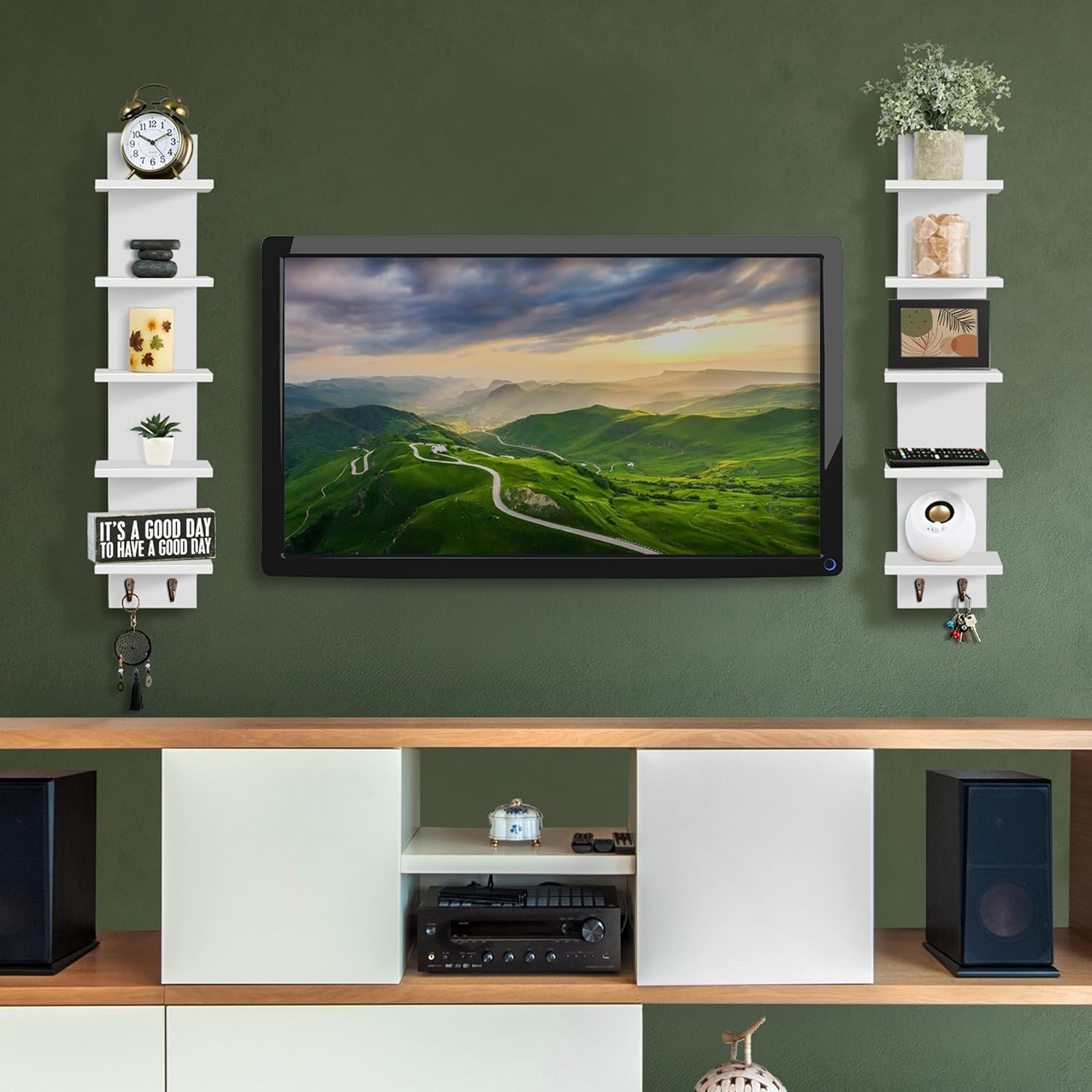

Rajah 3: Example of the shelf unit installed in a living room.

6. Pengendalian dan Penggunaan

Your Sorbus 5-Tier Wall Shelf Unit is now ready for use. It provides versatile storage and display options.

• Penggunaan Rak: Utilize the five shelves for displaying decorative items, small plants, books, toiletries, or other lightweight objects.
• Hook Use: The two integrated hooks at the bottom are suitable for hanging keys, small towels, or other lightweight accessories.
• Pengagihan Berat: Always distribute the weight evenly across the shelves. Avoid placing all heavy items on a single shelf or concentrated in one area.
• Elakkan beban berlebihan: Never exceed the stated weight limit of 22 pounds per shelf.

Rajah 4: Shelf unit used for bathroom storage.

7. Penjagaan dan Penyelenggaraan

To ensure the longevity and appearance of your shelf unit, follow these simple maintenance guidelines:

• Pembersihan: Wipe the shelf unit clean with a soft, damp kain. Untuk tanda degil, larutan sabun lembut boleh digunakan, diikuti dengan mengelap dengan kain bersih,amp cloth and then drying thoroughly.
• Elakkan Bahan Kimia Keras: Do not use abrasive cleaners, harsh chemicals, or solvents, as these can damage the lacquered finish.
• Berhabuk: Regularly dust the shelves with a dry, soft cloth to prevent buildup.
• Kelembapan: Avoid prolonged exposure to excessive moisture. If used in a bathroom, ensure good ventilation.

8. Penyelesaian masalah

If you encounter any issues with your Sorbus 5-Tier Wall Shelf Unit, consider the following common solutions:

• Shelf Feels Unstable:
  • Re-check all screw connections to ensure they are tight.
  • Verify that the wall anchors are properly seated and suitable for your wall type.
  • Ensure the unit is not overloaded beyond the 22-pound per shelf limit.
• Kesukaran dengan Perhimpunan:
  • Review the assembly instructions and diagrams carefully.
  • Pastikan anda menggunakan perkakasan yang betul untuk setiap langkah.
• Bahagian yang Rosak: If any parts were damaged upon arrival, do not attempt to assemble the unit. Contact customer service for replacement parts.

If issues persist after attempting these solutions, please contact Sorbus customer support.

9. Spesifikasi Produk

Rajah 5: Detailed dimensions of the shelf unit.

10. Waranti dan Sokongan

For specific warranty information regarding your Sorbus 5-Tier Wall Shelf Unit, please refer to the product packaging or the official Sorbus webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.

If you require further assistance, have questions about assembly, installation, or product functionality, please contact Sorbus customer service. Contact details can typically be found on the product packaging or the manufacturer's webtapak.
