This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your PURPLE LEAF Louvered Pergola 14' x 20'. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

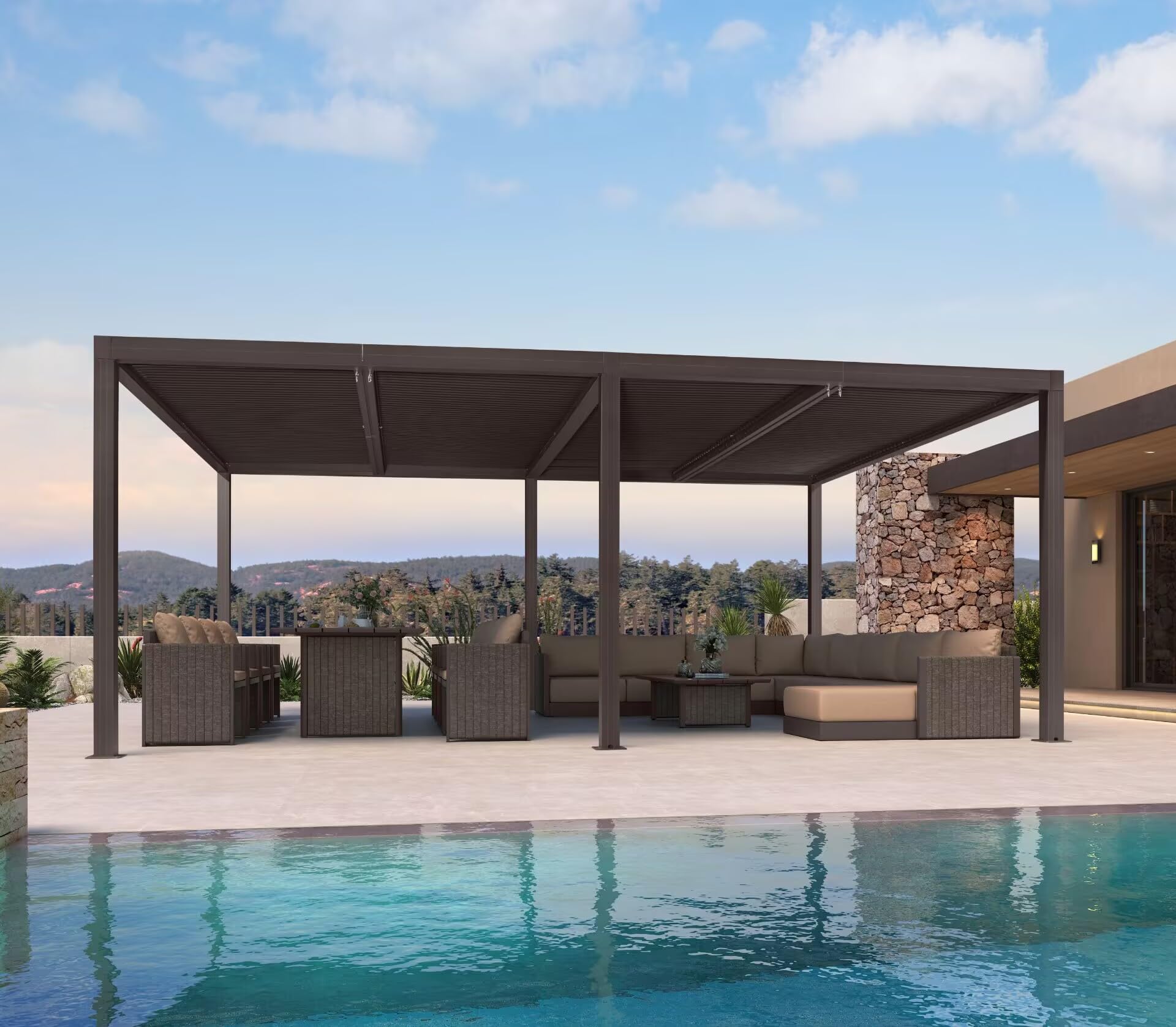

Image: The PURPLE LEAF Louvered Pergola 14' x 20' providing shade over an outdoor seating area.
Maklumat Keselamatan
Adhere to the following safety guidelines during assembly and use:
- Sentiasa ikut arahan pemasangan dengan teliti.
- Secure the pergola to a stable foundation to prevent tipping in windy conditions.
- Be cautious of the hidden water gutter design to avoid tripping hazards.
- Keep the area around the pergola clear of debris to prevent fire hazards.
- In high wind conditions (e.g., 60 mph or higher), it is recommended to open the louvers to reduce wind resistance.
Persediaan dan Perhimpunan
Assembly of the PURPLE LEAF Louvered Pergola is required. While the process is designed to be straightforward, having at least two people for assembly is highly recommended, especially for lifting and connecting beams. It is advisable to allocate sufficient time for assembly, which can typically be completed within one day under favorable conditions.
Senarai Semak Pra Perhimpunan:
- Buka bungkusan dan Periksa: Carefully unpack all components and inspect them for any damage or missing parts. Contact customer service immediately if any issues are found.
- Alat yang Diperlukan: Ensure you have all necessary tools as specified in the included assembly guide.
- Kosongkan Ruang Kerja: Prepare a clear, level area for assembly. The pergola comes in multiple large, heavy boxes, so ensure ample space for delivery and unpacking.
- Asas: Plan for securing the pergola to a stable and level foundation.
Image: Detailed dimensions and structural layout of the pergola.
Key Structural Features:
- Reinforced Construction: The pergola features a durable aluminum framework with three improved larger beams, designed to withstand winds up to 60 mph.
- Wider Frame: The columns are 4.33" x 4.33", providing enhanced stability compared to standard frames.
Imej: View of the three stronger supportive beams integrated into the pergola's roof structure.
Image: Visual comparison highlighting the wider 4.33" x 4.33" frame columns of the PURPLE LEAF pergola for increased stability.
Arahan Operasi
Your PURPLE LEAF Louvered Pergola is equipped with adjustable louvers and an integrated water gutter system for optimal outdoor comfort and functionality.
Adjustable Louvers:
- The pergola features four independent adjustable louver roofs, allowing you to customize the shade and light in different areas of your patio.
- Louvers can be adjusted from 0° (fully open) to 90° (fully closed) using the provided crank mechanism.
- To adjust, insert the crank into the designated hook and rotate to open or close the louvers. You can choose to open all four sections, close them completely, or adjust individual sections as desired.
Imej: A terperinci view of the pergola's adjustable louvers, illustrating their range of motion from 0 to 90 degrees.
Image: An overhead diagram illustrating the four independent louver roof sections, allowing for customized shade control.
Hidden Water Gutter System:
- The advanced integrated drainage system efficiently diverts rainwater from the louvers into the posts in four directions.
- Water then flows through the posts and exits at the base, preventing accumulation on the roof.
- Ensure the drainage exits at the base of the posts remain clear of debris for proper function.
Image: A diagram illustrating the hidden water gutter system, showing how rainwater is collected from the louvers and channeled through the posts to the ground.
Penyelenggaraan
Regular maintenance will ensure the longevity and optimal performance of your PURPLE LEAF Louvered Pergola.
- Pembersihan: Clean the aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Sistem Talang: Regularly inspect and clear the hidden water gutter system and post drainage exits of any leaves, dirt, or debris to prevent blockages and ensure proper water runoff.
- Mekanisme Louver: The louver operation should remain smooth. If you notice any stiffness, ensure no debris is obstructing the mechanism.
- Pemeriksaan Bingkai: Periksa semua bolt dan sambungan secara berkala untuk memastikan ia kekal ketat.
- Sifat Bahan: The pergola is constructed from premium aluminum, which is rust-resistant, durable, scratch-resistant, slip-resistant, and fade-resistant, minimizing the need for extensive material-specific treatments.
Menyelesaikan masalah
Bahagian ini membincangkan isu biasa yang mungkin anda hadapi dengan pergola anda.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Water accumulation on roof / Gutter leaks | Blocked gutter system or extreme torrential downpour exceeding system capacity. | Clear any debris from the gutter system and drainage exits. For extreme downpours, some overflow may occur; consider applying waterproof marine tape to interior gutter joints during assembly for added protection. |
| Pergola instability in wind | Louvers are closed during high winds; improper anchoring. | Always open louvers in high wind conditions (above 60 mph) to reduce wind resistance. Ensure the pergola is securely anchored to a stable foundation as per assembly instructions. |
| Difficulty adjusting louvers | Obstruction in the louver mechanism; mechanism requires cleaning. | Inspect the louver tracks and mechanism for any debris (leaves, dirt) and remove them. Clean the mechanism with a damp kain jika perlu. |
| Bahagian yang hilang atau rosak semasa penghantaran | Kerosakan penghantaran atau kesilapan pembungkusan. | Immediately contact PURPLE LEAF customer service with details and photos of the issue. They are known for prompt and helpful support. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | DAUN UNGU |
| Model | Louvered Pergola 14' x 20' |
| bahan | aluminium |
| Bahan Bingkai | aluminium |
| warna | Gangsa |
| Dimensi Produk (L x W x H) | 235.91" x 170.16" x 94.32" |
| Luas Lantai | 280 Kaki Persegi |
| Tahap Ketahanan Air | Tahan Air |
| Perlindungan Cahaya Ultraviolet | 95% |
| Perhimpunan Diperlukan | ya |
| Rintangan Angin | Withstands up to 60 mph winds (with louvers open) |
Waranti dan Sokongan
Waranti: The PURPLE LEAF Louvered Pergola comes with a 1-year warranty for frame construction, covering manufacturing defects.
Sokongan Pelanggan: For any questions regarding assembly, missing parts, or product issues, please contact PURPLE LEAF customer service. They are committed to providing excellent support and assistance.
Note: PURPLE LEAF does not offer installation services. Any installation services mentioned on the order page are provided by third parties.
