pengenalan
Thank you for choosing the OQIMAX Wireless Refrigerator Thermometer. This device provides real-time temperature monitoring for your refrigerator and freezer compartments, helping you maintain optimal food storage conditions. It features a clear LCD display, adjustable alarms, and historical temperature recording. Please read this manual carefully before use to ensure proper operation and longevity of your device.
Kandungan Pakej
- 1 x Temperature Station (Main Unit)
- 1 x Freezer Sensor
- 1 x Refrigerator Sensor
- 1 x Manual Pengguna
The package includes the main display unit, two remote sensors (one for freezer, one for refrigerator), and the instruction manual.
Ciri-ciri Produk
- Skrin LCD HD: A 3.7-inch display clearly shows real-time temperatures, MAX/MIN values, and alarm indicators.
- Pemantauan Dwi-Saluran: Simultaneously monitors temperatures for both freezer and refrigerator compartments.
- Adjustable Upper/Lower Limit Alarms: Set custom temperature ranges. Alarms activate with flashing icons and audible alerts if temperatures exceed or fall below the set limits. Features a 2-minute delay to prevent false alarms from temporary door openings.
- MAX/MIN Temperature Record: Records maximum and minimum temperature values for the last 24 hours or all-time, allowing you to track temperature fluctuations. These records can be cleared.
- Fungsi lampu latar: Untuk mudah viewing in low-light conditions. The backlight automatically turns off after 10 seconds to conserve battery life.
- Suis °C/°F: Beralih antara unit suhu Celsius dan Fahrenheit dengan mudah.
- Pemasangan Mudah: The main unit can be placed upright or hung. Sensors come with hooks for convenient placement inside compartments.
- IPX4 Splash-proof Sensors: Designed to withstand splashes from any direction.
Berakhirview of the main features including dual-channel monitoring, temperature unit switch, historical records, alarms, backlight, and detachable hooks for sensors.
Persediaan
1. Pemasangan Bateri
- Unit Utama: Open the battery compartment on the back of the main unit. Insert 3 x AAA (LR03) 1.5V batteries, ensuring correct polarity. Close the compartment.
- Penderia: Open the battery compartment on each remote sensor. Insert 2 x AAA (LR03) 1.5V batteries into each sensor, ensuring correct polarity. Close the compartments.
2. Pairing the Sensors
- After installing batteries in the main unit, the freezer and refrigerator signal icons will flash, indicating it is ready to receive external signals.
- For each sensor, press the TX button (located inside the battery compartment or on the back) for immediate signal transmission. The main unit will display the temperature from the sensor once paired.
- If pairing does not occur immediately, wait for approximately 30 seconds for the detection cycle to complete. If still unsuccessful, long-press the RF/- button on the main unit to re-pair.
3. Peletakan Sensor
- Place the freezer sensor (labeled "FREEZER") inside your freezer compartment.
- Place the refrigerator sensor (labeled "REFRIGERATOR") inside your refrigerator compartment.
- Both sensors are equipped with hooks for easy hanging on shelves or racks, optimizing space.
- Position the main unit outside the refrigerator/freezer in a convenient location where you can easily read the display. It can stand upright or be hung.
Illustration of battery installation and placement options for the main unit and sensors.
Example of main unit placement on the refrigerator exterior and a sensor placed inside.
Arahan Operasi
Paparan Lebihview
Understanding the information displayed on the main unit's LCD screen.
- The top left shows the current freezer temperature.
- The top right shows the current refrigerator temperature.
- Below each current temperature, the MIN and MAX recorded temperatures are displayed.
- Alarm icons (bell with ON/OFF) indicate alarm status for each compartment.
Fungsi Butang
| Butang | Fungsi Tekan Pendek | Fungsi Tekan Lama |
|---|---|---|
| FREEZE SET | Toggle freezer alarm ON/OFF. | Set freezer alarm temperature. |
| CLE/+ | Select between 24-hour and All-time historical modes. | Clear historical MAX/MIN records. |
| RF/- | Display the set alarm value. | Re-pair sensors. |
| COOL SET | Toggle refrigerator alarm ON/OFF. | Set refrigerator alarm temperature. |
| ° C / ° F | Tukar antara Celsius (°C) dan Fahrenheit (°F). | T/A |
Menetapkan Penggera
- Freezer Alarm: Tekan lama FREEZE SET button. The freezer alarm temperature will start flashing. Use the CLE/+ dan RF/- buttons to adjust the desired upper and lower limits. Short press FREEZE SET sekali lagi untuk mengesahkan dan keluar dari mod tetapan.
- Refrigerator Alarm: Tekan lama COOL SET button. The refrigerator alarm temperature will start flashing. Use the CLE/+ dan RF/- buttons to adjust the desired upper and lower limits. Short press COOL SET sekali lagi untuk mengesahkan dan keluar dari mod tetapan.
- To activate/deactivate an alarm, short press the corresponding FREEZE SET or COOL SET button. An "ON" or "OFF" indicator will appear next to the alarm icon.
- Nota: Alarms have a 2-minute delay to prevent false triggers from brief temperature changes (e.g., opening the door).

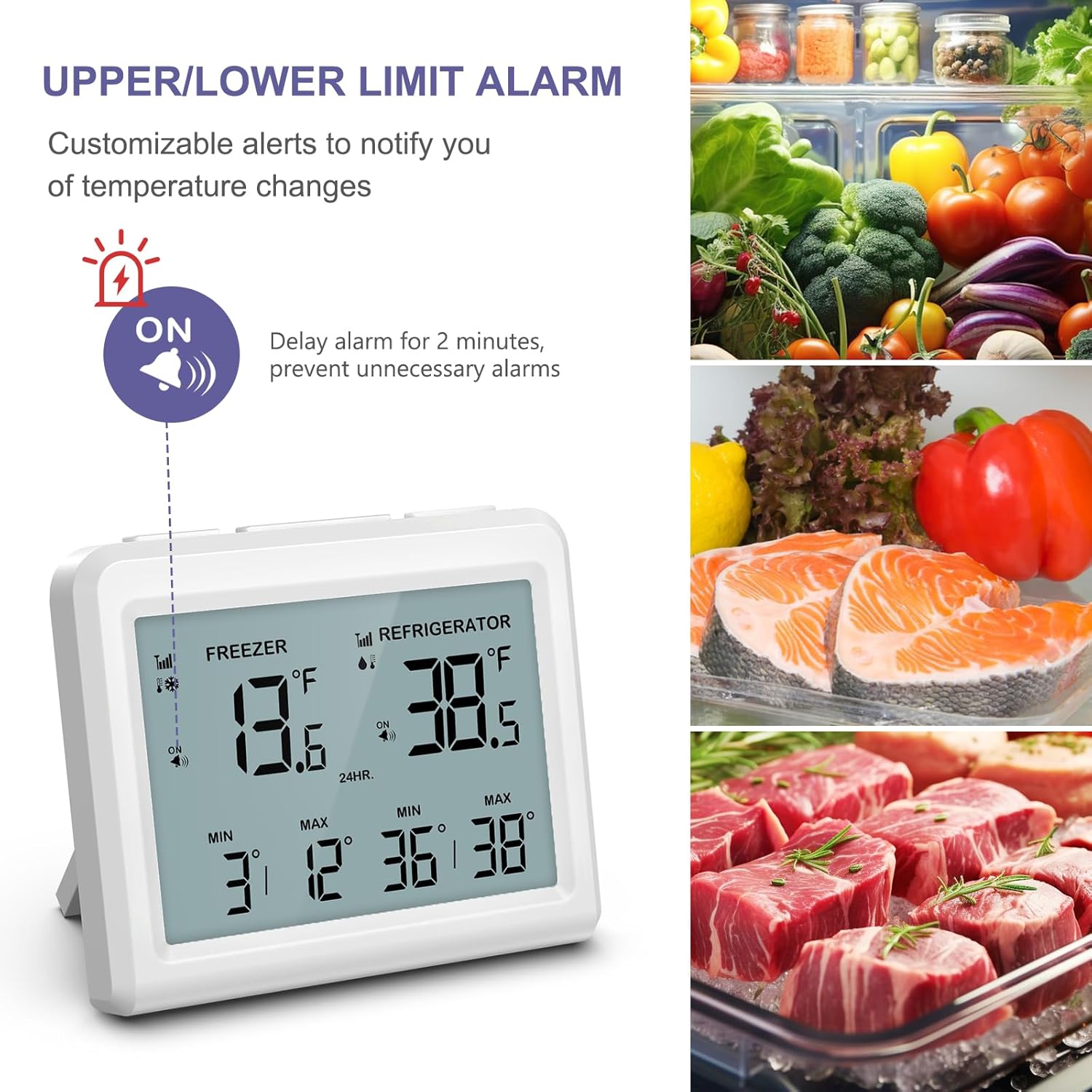

The display indicates when an alarm is active and the temperature is outside the set limits.
Viewing and Clearing MAX/MIN Records
- Tekan pendek CLE/+ button to cycle between 24-hour and All-time MAX/MIN records.
- To clear the displayed historical records, long press the CLE/+ butang.
Lampu latar
The backlight automatically activates when a button is pressed and turns off after 10 seconds of inactivity to save power.
Penyelenggaraan
Penggantian Bateri
When the battery indicator appears on the display, replace the batteries in the main unit or the respective sensor. Always use new AAA (LR03) 1.5V batteries and ensure correct polarity.
Pembersihan
Lap unit utama dan sensor dengan kain lembut,amp cloth. Do not use abrasive cleaners or immerse the main unit in water. The sensors are IPX4 splash-proof but should not be submerged.
Penyimpanan
If storing the device for an extended period, remove all batteries to prevent leakage and damage.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada paparan pada unit utama. | Bateri mati atau tidak dipasang dengan betul. | Replace batteries (3xAAA) in the main unit, ensuring correct polarity. |
| Sensor temperature not displayed or shows "--". |
|
|
| Penggera berbunyi dengan kerap. | Alarm limits set too close to operating temperature, or frequent door openings. | Adjust alarm limits to a wider range. Remember the 2-minute delay helps prevent false alarms. |
| Bacaan suhu tidak tepat. | Sensor placed too close to cooling vents or heat sources. | Relocate the sensor to a more central area within the compartment, away from direct airflow or heat. |
Spesifikasi
| Dimensi Unit Utama | 9.5 x 8 x 2 cm (3.75 x 3.15 x 0.79 inci) |
| Kuasa Unit Utama | 3 x AAA (LR03) 1.5V batteries (not included) |
| Dimensi Sensor | 6 x 7.5 x 2 cm (2.36 x 2.95 x 0.79 inci) |
| Sensor Hook Length | 3 cm (1.2 inci) |
| Kuasa Sensor | 2 x AAA (LR03) 1.5V batteries per sensor (not included) |
| Julat Pengukuran Suhu | -40°C ~ 37.7°C (-40°F ~ 100°F) |
| Freezer Alarm Setting Range | -40°C ~ 0°C (-40°F ~ 32°F) |
| Refrigerator Alarm Setting Range | 0°C ~ 15°C (32°F ~ 59°F) |
| Ketepatan Suhu | ± 1°C (± 1.8°F) |
| Resolusi | 0.1°C (0.1°F) |
| Gred Perlindungan | IPX4 (Splash-proof from all directions) |
| Kekerapan Penghantaran | 433 MHz |
| Julat Tanpa Wayar | Up to 80m / 26 ft (in open field) |
| Data Transmission Cycle | Setiap 30 saat |
| Masa Kelewatan Penggera | 2 minit |
Detailed dimensions of the main unit and remote sensors.
Waranti dan Sokongan
OQIMAX products are designed for reliability and performance. For any questions, technical support, or warranty inquiries, please contact your retailer or OQIMAX customer service through the contact information provided at the point of purchase. Please retain your proof of purchase for warranty claims.
