Philips SFL2202 Rechargeable LED Flashlight User Manual

1. Pengenalan

Thank you for choosing the Philips SFL2202 Rechargeable LED Flashlight. This manual provides essential information for the safe and efficient use of your device. Please read it thoroughly before operation and retain it for future reference.

The Philips SFL2202 flashlight highlighting its IPX7 waterproof rating, 1500 lumens brightness, 9-hour illumination, lightweight and portable design, and tactical switch.

2. Maklumat Keselamatan

• Jangan lihat terus ke arah lampu LED. Cahaya yang kuat boleh menyebabkan gangguan penglihatan sementara atau kerosakan mata.
• Jauhkan lampu suluh daripada kanak-kanak.
• Do not disassemble, modify, or attempt to repair the flashlight yourself. Contact qualified service personnel for repairs.
• Gunakan hanya kabel USB yang disediakan atau kabel yang diperakui untuk pengecasan.
• Elakkan daripada mendedahkan lampu suluh kepada suhu yang melampau atau cahaya matahari langsung untuk tempoh yang lama.
• Buang bateri mengikut peraturan tempatan. Jangan bakar.

3. Kandungan Pakej

Pastikan semua item ada dalam pakej:

• Philips SFL2202 LED Flashlight
• Kabel Pengecas USB
• Manual Pengguna (dokumen ini)

4. Produk Lebihview

The Philips SFL2202 is a compact and powerful rechargeable LED flashlight designed for various applications, including outdoor activities and emergencies. It features a durable aluminum alloy body and multiple lighting modes.

This image illustrates the compact and lightweight design of the Philips SFL2202 flashlight, measuring 124mm in length and weighing 155g, making it easy to carry in a pocket.

The Philips SFL2202 flashlight being used in rainy conditions, showcasing its IPX7 waterproof capability, which allows it to withstand harsh weather.

A terperinci view of the Philips SFL2202's 20W LED light source, highlighting its high-density, high-quality lamp beads for efficient and long-lasting illumination.

5. Persediaan

5.1 Mengecas Lampu Suluh

1. Cari port pengecasan USB Jenis-C pada lampu suluh.
2. Connect the provided USB charging cable to the flashlight's Type-C port.
3. Sambungkan hujung kabel USB yang satu lagi ke sumber kuasa USB yang serasi (cth., penyesuai dinding, port USB komputer, bank kuasa).
4. The battery indicator light will show the charging status: green (over 50%), orange (10%-50%), red (under 10%).
5. Charging typically takes approximately 5.5 hours (with a 5V=1A input).
6. Setelah dicas sepenuhnya, cabut kabel pengecasan.

The Philips SFL2202 flashlight connected to a power source via its Type-C charging port, indicating direct charging and compatibility with various charging devices.

An illustration of the Philips SFL2202's 3000 mAh battery, emphasizing its capacity for up to 9 hours of illumination.

6. Arahan Operasi

6.1 Kuasa Hidup/Mati dan Pemilihan Mod

The Philips SFL2202 features a tactical tail switch for operation.

• Untuk Menghidupkan/Mematikan: Press the tail switch firmly until it clicks.
• Untuk Mod Kitaran: With the flashlight on, lightly press the tail switch (without clicking) to cycle through the four lighting modes: High Brightness, Low Brightness, Strobe, and SOS.

6.2 Continuous Dimming

The flashlight supports continuous dimming for precise brightness control.

• Untuk Menyelaraskan Kecerahan: After turning on the flashlight, press and hold the power button. The light will gradually increase or decrease in brightness. Release the button when the desired brightness level is reached.

This image shows the continuous dimming function of the Philips SFL2202 flashlight, allowing for easy adjustment of light intensity. It explains to press and hold the power button to adjust brightness.

7. Penyelenggaraan

• Pembersihan: Lap lampu suluh dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
• Storan: Store the flashlight in a cool, dry place when not in use. If storing for extended periods, charge the battery every 3-6 months to maintain its lifespan.
• Tahan Air: While the flashlight is IPX7 waterproof, ensure the charging port cover is securely closed before exposing it to water.

8. Penyelesaian masalah

9. Spesifikasi

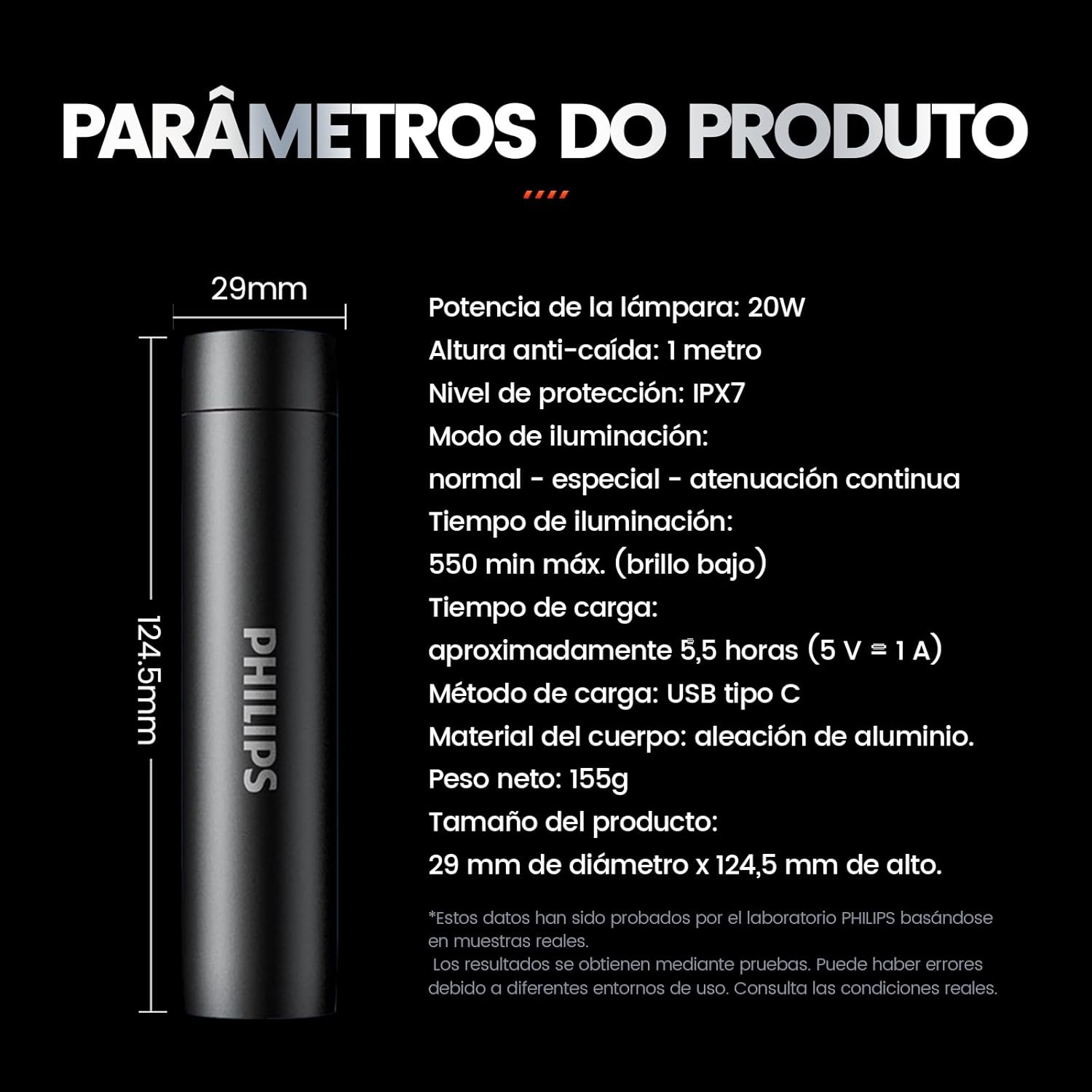

A diagram detailing the product parameters of the Philips SFL2202 flashlight, including its dimensions (29mm diameter x 124.5mm height) and other technical specifications.

10. Waranti dan Sokongan

Untuk maklumat waranti dan sokongan pelanggan, sila rujuk kad waranti yang disertakan bersama produk anda atau lawati Philips rasmi webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.

If you encounter any issues not covered in this manual, please contact Philips customer service for assistance.
