1. Pengenalan dan Lebihview
The VECYS Model BYCZ581 is an advanced 3-in-1 appliance designed to provide hot water, cold water, and ice cubes from a single unit. This versatile dispenser is suitable for various environments, including homes and offices, offering convenience and efficiency for your hydration needs.
Rajah 1: Depan view of the VECYS 3-in-1 Water Dispenser.
Its integrated ice maker can produce up to 27 pounds of ice daily, with a batch of 9 bullet-shaped ice cubes ready every 6-8 minutes. The unit features a high-performance compressor for efficient operation and includes a child safety lock for hot water dispensing, ensuring safe use.
Figure 2: Illustration of the 3-in-1 dispensing capabilities: hot water, cold water, and ice cubes.
2. Langkah-langkah Keselamatan
- Always place the dispenser on a firm, level surface to prevent tipping.
- Pastikan pengudaraan yang mencukupi di sekeliling unit. Jangan sekat lubang udara.
- Jauhkan perkakas daripada cahaya matahari langsung dan sumber haba.
- The hot water dispenser is equipped with a child safety lock. Always engage this lock when not in use to prevent accidental scalding.
- This appliance is not a freezer; ice cubes will melt over time, especially in warmer ambient temperatures.
- Jangan rendam perkakas, kord, atau palam ke dalam air atau cecair lain.
- Cabut plag dispenser sebelum membersihkan atau melakukan sebarang penyelenggaraan.
Figure 3: The child safety lock mechanism for hot water dispensing.
3. Persediaan
- Membongkar: Keluarkan dispenser daripada pembungkusannya dengan berhati-hati. Periksa sebarang kerosakan.
- penempatan: Position the unit on a flat, stable, and dry surface. Ensure there is at least 4 inches of clearance from walls for proper ventilation.
- Pembersihan Awal: Before first use, clean the water tanks and ice bin. It is recommended to dispense and discard a few cups of water from each tap (hot, cold, and room temperature) to flush the system.
- Pemasangan Botol Air: Place a standard 3 or 5-gallon water bottle securely onto the top loading receptacle. Ensure the bottle is properly seated to prevent leaks.
- Sambungan Kuasa: Palamkan kord kuasa ke salur keluar elektrik yang dibumikan.
4. Arahan Operasi
The VECYS BYCZ581 offers hot, cold, and room temperature water dispensing, along with integrated ice making.
Video 1: Demonstration of the VECYS 3-in-1 Water Dispenser's features, including ice making and water dispensing.
- Hidupkan kuasa: Press the main power button (usually indicated by a power symbol) to turn on the unit. Indicator lights will illuminate.
- Pemberian Air Panas: To dispense hot water, first disengage the child safety lock (refer to the specific mechanism on your unit, often a button or lever near the hot water tap). Then, press the hot water dispensing button/lever.
- Pengeluaran Air Sejuk: Press the cold water dispensing button/lever. Allow a few minutes for the water to chill after initial setup or bottle change.
- Room Temperature Water Dispensing: Press the room temperature water dispensing button/lever.
- Pembuatan Ais: Press the dedicated ice making button. The unit will begin its ice production cycle, typically producing 9 ice cubes in 6-8 minutes. The ice bin is located at the bottom of the unit.
Figure 4: Details on the ice making speed and daily capacity of the dispenser.
Figure 5: The integrated nightlight feature for low-light visibility.
5. Penyelenggaraan
- Pembersihan tetap: Periodically clean the exterior of the dispenser with a soft, damp kain.
- Dulang Drip: The drip tray should be emptied and cleaned regularly to prevent overflow and bacterial growth. Simply lift it up and wash with mild soap and water.
- Ice Bin: The built-in ice bin should be cleaned periodically. Remove any remaining ice and wash the bin with mild soap and water. Ensure it is completely dry before replacing.
- Pembersihan Tangki Air: For thorough cleaning, refer to the detailed instructions in the full product manual for sanitizing the internal water tanks. This typically involves draining the tanks and using a food-grade sanitizing solution.
- Gegelung pemeluwap: Keep the condenser coils at the back of the unit clean and free of dust to ensure efficient cooling. Use a soft brush or vacuum cleaner.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada air yang dikeluarkan. | Water bottle empty or not properly seated. | Replace water bottle or reseat it correctly. |
| Air tidak cukup panas/sejuk. | Unit recently plugged in or hot/cold function not activated. | Allow 15-30 minutes for water to reach desired temperature. Ensure hot/cold switches are on. |
| Pembuat ais tidak menghasilkan ais. | Ice making function not activated or water tank empty. | Press the ice making button. Ensure water bottle is full. |
| "FAULT" indicator light is on. | System error or low water level. | Check water level. If issue persists, unplug the unit for 5 minutes and plug back in. Contact customer support if the fault continues. |
7. Spesifikasi
- Jenama: VECYS
- Nombor Model: BYCZ581
- warna: Hitam
- Bahan: plastik
- kapasiti: Compatible with 3 or 5 Gallon Bottles
- Dimensi Produk: 15.4"D x 14.2"W x 44.7"H
- gaya: moden
- Jenis Pemasangan: Freestanding
- Lokasi Akses: Atas
- Sumber Kuasa: Elektrik Bertali
- Daily Ice Making Capacity: Up to 27 LBS (under 77°F ambient temperature)
- Kitaran Pengeluaran Ais: 9 ice cubes every 6-8 minutes

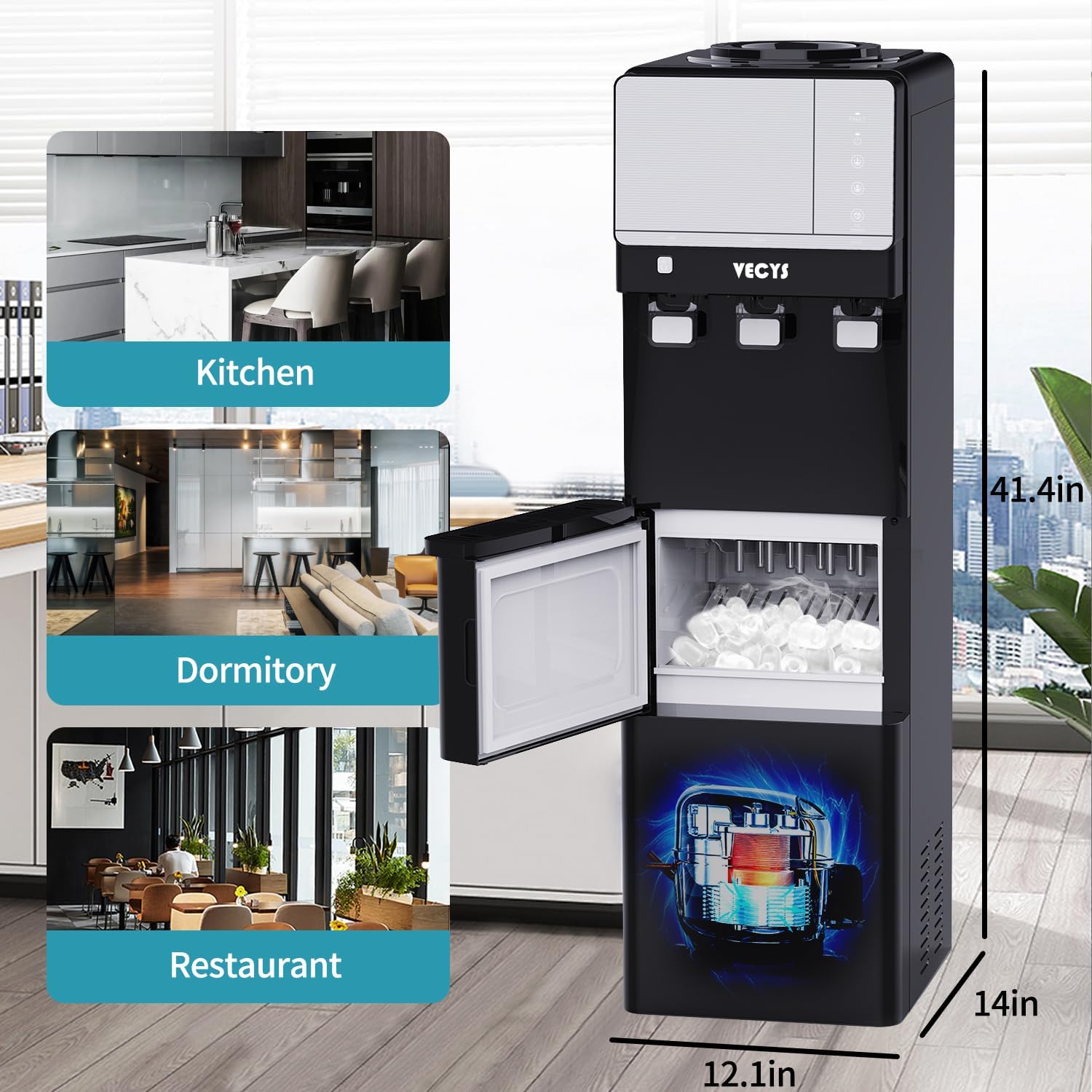

Figure 6: Product dimensions and suggested placement in various settings.
8. Waranti dan Sokongan
VECYS is committed to customer satisfaction. If you encounter any quality issues with your VECYS Hot and Cold Water Dispenser with Ice Maker within satu tahun of purchase, we will provide a brand-new replacement instead of repair.
For any questions, concerns, or support needs, please contact VECYS customer service. Refer to your product packaging or the official VECYS webtapak untuk maklumat hubungan.
