Impex Espresso Coffee Maker

1. Maklumat Keselamatan Penting

Please read this instruction manual carefully before using the Impex IECM 2002 Espresso Coffee Maker. Keep this manual for future reference. Incorrect operation may result in damage to the appliance or personal injury.

• Sentiasa pastikan perkakas disambungkan ke soket kuasa yang dibumikan dengan volum yang betultage (220-240V~50/60Hz).
• Jangan rendamkan perkakas, kord kuasa, atau palamkan ke dalam air atau sebarang cecair lain.
• Keep the appliance out of reach of children. Close supervision is necessary when the appliance is used near children.
• Avoid touching hot surfaces. Use handles or knobs. Steam can cause severe burns.
• Unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool before adding or removing parts.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Gunakan hanya aksesori yang disyorkan oleh pengilang.

2. Produk Lebihview dan Komponen

Familiarize yourself with the parts of your Impex IECM 2002 Espresso Coffee Maker before first use.

Image: Impex IECM 2002 Espresso Coffee Maker, showcasing its sleek design and key features like the 20-bar pressure pump, 1400W power, 15-second quick heating, 1.7L water tank, heavy & rigid PF handle, and 3 preset programs.

• Panel Kawalan: Buttons for single shot, double shot, and steam function.
• Steam Knob: Controls steam release for frothing milk.
• Tangki Air: Removable 1.7-liter capacity tank.
• Penapis Porta: Menampung kopi kisar untuk membancuh. Termasuk penapis pukulan tunggal dan berganda.
• Tongkat Stim: Untuk susu berbuih.
• Dulang Drip: Removable tray with stainless steel grid to collect spills.
• Plat Pemanasan Cawan: Terletak di atas mesin untuk memastikan cawan sentiasa panas.

3. Persediaan

3.1 Membongkar dan Pembersihan Awal

1. Tanggalkan semua bahan pembungkusan dan label promosi daripada pembuat kopi.
2. Lap bahagian luar mesin dengan iklanamp kain.
3. Wash the water tank, portafilter, filter baskets, and drip tray with warm, soapy water. Rinse thoroughly and dry.

3.2 Mengisi Tangki Air

Imej: Sisi view of the Impex IECM 2002 Espresso Coffee Maker, clearly showing the transparent 1.7-liter removable water tank at the back.

1. Tanggalkan tangki air dari bahagian belakang mesin.
2. Fill the tank with fresh, cold water up to the 'MAX' level indicator. Do not exceed the maximum fill line.
3. Letakkan tangki air kembali ke kedudukannya, pastikan ia diletakkan dengan betul.

3.3 Penggunaan Pertama / Menyapu Mesin

Before brewing coffee or frothing milk for the first time, or if the machine has not been used for a long period, it is essential to prime the system.

1. Pastikan tangki air diisi.
2. Place a large cup under the portafilter and another under the steam wand.
3. Plug in the machine. The power indicator light will illuminate.
4. Press the single shot button. Water will start to flow through the portafilter. Let it run for about 30 seconds, then press the button again to stop.
5. Turn the steam knob to the steam position. Let steam release for about 30 seconds, then turn the knob back to the off position.
6. The machine is now primed and ready for use.

4. Arahan Operasi

4.1 Membuat Espresso

Image: The Impex IECM 2002 Espresso Coffee Maker actively brewing two shots of espresso into glass cups, highlighting its brewing capability.

1. Sediakan serbuk kopi: Use freshly ground coffee, preferably a fine grind suitable for espresso.
2. Isi Penapis Porta: Choose the single or double shot filter basket and place it into the portafilter. Fill the basket with ground coffee.
3. Tamp Kopi: Gunakan tamper to press the coffee grounds firmly and evenly. Wipe any excess coffee from the rim.
4. Lampirkan Portafilter: Insert the portafilter into the group head and turn it to the right until it is securely locked.
5. Tempat Cawan: Place one or two espresso cups on the drip tray, directly under the portafilter spouts.
6. Brew Espresso: Press the single shot or double shot button on the control panel. The machine will begin brewing. The 15-second quick heating ensures minimal wait time.
7. Hentikan Pembuatan Bir: The machine has preset programs for single and double shots. It will automatically stop when the desired volume is reached. You can also manually stop it by pressing the button again.
8. Buang Penapis Portabel: Carefully remove the portafilter by turning it to the left. Be cautious as it will be hot. Discard the used coffee grounds.

4.2 Steaming Milk for Cappuccinos and Lattes

Image: Close-up of the Impex IECM 2002 Espresso Coffee Maker's portafilter and steam wand, with a list of features including the heavy & rigid PF handle, which is essential for steaming.

1. Sediakan Susu: Isikan periuk buih keluli tahan karat dengan susu sejuk (tenusu atau bukan tenusu) sehingga tepat di bawah muncung.
2. Aktifkan Steam: Tekan butang stim pada panel kawalan. Tunggu sehingga lampu penunjuk stim menyala dengan stabil, menunjukkan mesin telah mencapai suhu pengukus.
3. Bersihkan Tongkat Stim: Briefly turn the steam knob to release any condensed water from the wand into an empty cup, then turn it off.
4. Susu Buih: Immerse the tip of the steam wand just below the surface of the milk. Turn the steam knob to release steam. Move the pitcher up and down slowly to create foam.
5. Berhenti mengukus: Once the milk has reached the desired temperature and texture, turn the steam knob off and remove the pitcher.
6. Tongkat Stim Bersih: Segera lap tongkat wap dengan iklanamp cloth to remove any milk residue. Briefly purge steam again to clear the internal parts.

5. Penyelenggaraan dan Pembersihan

Pembersihan dan penyelenggaraan yang kerap akan memastikan jangka hayat dan prestasi optimum mesin espresso anda.

5.1 Pembersihan Harian

• Dulang Drip: Empty and clean the 250ml drip tray after each use or when the indicator shows it's full. Wash with warm, soapy water.
• Penapis Portabel dan Bakul Penapis: After each use, remove the portafilter, discard coffee grounds, and rinse the portafilter and filter baskets under warm water.
• Tongkat Stim: As mentioned in the operating instructions, wipe and purge the steam wand immediately after each use to prevent milk residue buildup.
• Luaran: Lap bahagian luar mesin dengan lembut, damp kain. Jangan gunakan pembersih yang melelas atau pad penyental.

5.2 Penyahkelasan

Over time, mineral deposits (limescale) can build up in the machine, affecting performance. Descale your machine every 2-3 months, or more frequently if you have hard water.

1. Sediakan penyelesaian penyahkerak mengikut arahan pengilang penyahkerak, atau gunakan campuran cuka putih dan air (nisbah 1:1).
2. Isikan tangki air dengan larutan penyahkerak.
3. Letakkan bekas besar di bawah portafilter dan satu lagi di bawah tongkat stim.
4. Run several cycles of brewing and steaming, allowing the solution to flow through the machine.
5. After using all the descaling solution, rinse the water tank and fill it with fresh water.
6. Run several cycles with fresh water to thoroughly rinse out any descaling solution.

6. Penyelesaian masalah

If you encounter issues with your Impex IECM 2002, refer to the table below for common problems and solutions.

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

7. Spesifikasi

Technical details for the Impex IECM 2002 Espresso Coffee Maker.

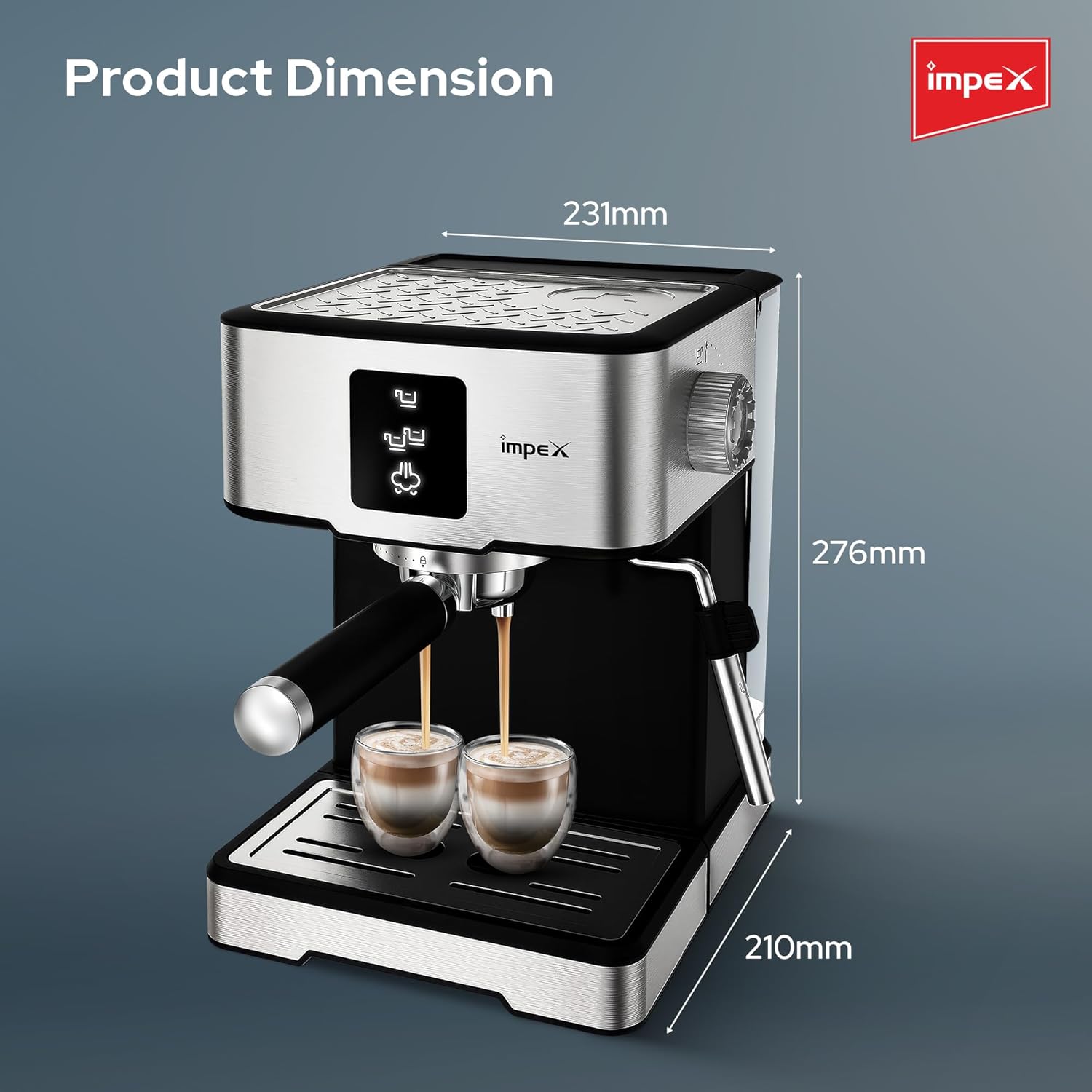

Imej: Depan view of the Impex IECM 2002 Espresso Coffee Maker with key dimensions (width, depth, height) clearly indicated in millimeters.

8. Waranti dan Sokongan

The Impex IECM 2002 Espresso Coffee Maker comes with a Waranti 2 tahun dari tarikh pembelian, meliputi kecacatan pembuatan di bawah penggunaan biasa.

For warranty claims, technical support, or any questions not covered in this manual, please contact Impex customer service. Keep your proof of purchase for warranty validation.

For further assistance, please visit the official Impex webtapak atau hubungi pengedar tempatan anda.
