Manual Pengguna Sistem Panduan Pelancongan Tanpa Wayar Retekess T130U

1. Pengenalan

The Retekess T130U Wireless Tour Guide System is designed to provide clear, stable audio communication for various group activities such as guided tours, simultaneous interpretation, factory visits, and assistive listening. This system features a U-band transmission for strong penetration and minimal interference, ensuring a reliable connection over long distances. Its lightweight and portable design, coupled with long-lasting battery life and user-friendly controls, makes it an efficient solution for managing group audio.

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Retekess T130U system.

2. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• Owner's manual (1)
• Tour guide transmitter (2)
• Tour guide receiver (32)
• Lavalier microphone (2)
• Headsets microphone (2)
• Tour guide system lanyard (34)
• 32-slot charging box (1)
• D-shaped tour guide headsets (32)

Image: Visual representation of the items included in the Retekess T130U package.

3. Produk Lebihview

3.1 Transmitter (T130U)

The transmitter is the central unit for broadcasting audio. It features a lightweight design (71g/0.16lb) and intuitive controls for easy operation. It includes a microphone input and an AUX input for external audio sources.

3.2 Receiver (T130U)

The receivers are designed for individual listeners, offering a comfortable and portable experience (38g/0.08lb). Each receiver has individual volume controls and is compatible with D-shaped headsets for comfortable wear.

Image: Demonstrates the lightweight and portable design of the T130U transmitter and receiver units.

Image: Highlights the one-key pairing, mute, and shutdown functions on the transmitter.

Image: Shows the comfortable D-shaped headsets designed for extended wear.

4. Persediaan

4.1 Mengecas Unit

The system includes a 32-slot charging box for convenient batch charging of multiple receivers and transmitters. Individual units can also be charged via USB.

• Pemancar: Connect the transmitter to the charging box or a USB power source using the provided cable. A full charge provides approximately 10 hours of operation.
• Penerima: Place receivers in the charging box or connect individually via USB. A full charge provides approximately 40 hours of operation.

Image: Illustrates the 32-slot charging box for simultaneous charging of multiple units.

Image: Shows a unit being used while charging, indicating simultaneous operation and charging is supported.

4.2 Connecting Microphones and Headsets

• Pemancar: Plug the lavalier microphone or headset microphone into the MIC port on the transmitter.
• Penerima: Plug the D-shaped headset into the headphone jack on the receiver.

Image: Displays different microphone options for the transmitter, including lavalier and headset microphones.

4.3 Menghidupkan/Mematikan

• Untuk Menghidupkan: Press and hold the power button on the transmitter or receiver for approximately 1 second.
• Untuk Mematikan: Tekan dan tahan butang kuasa selama lebih kurang 2 saat.

5. Arahan Operasi

5.1 Penggandingan Automatik

The T130U system supports automatic pairing for quick setup.

1. Pastikan kedua-dua pemancar dan penerima dihidupkan.
2. On the transmitter, press the 'M' button and the 'Play/Pause' button simultaneously. Release the 'M' button after power on, then release the 'Play/Pause' button. The ID number and antenna icon will flash, indicating pairing status.
3. On the receiver, press the 'Rewind' and 'Fast Forward' buttons simultaneously. After power on, release the 'Fast Forward' button, then release the 'Rewind' button when the ID number '00' appears.
4. The transmitter and receiver will automatically pair. A successful pairing is indicated by a stable signal icon on both devices.

5.2 Manual Channel Search/Setting

If automatic pairing is not desired or fails, channels can be set manually.

1. On the transmitter, use the left/right arrow buttons to select the desired channel ID.
2. On the receiver, use the left/right arrow buttons to manually search for the transmitter's channel.
3. Once the receiver displays the same channel ID as the transmitter, the connection is established.

5.3 Pelarasan Kelantangan

Each receiver unit has independent volume controls. Use the 'VOL+' and 'VOL-' buttons on the receiver to adjust the listening volume to a comfortable level.

5.4 Fungsi Redam

The transmitter features a one-key mute function. Press the mute button on the transmitter to temporarily stop audio transmission to all connected receivers.

5.5 Input Audio Luaran

The transmitter includes a 3.5mm AUX input, allowing you to connect external audio devices (e.g., smartphone, MP3 player) to broadcast pre-recorded messages or music to the receivers.

Image: Shows the 3.5mm AUX input on the transmitter for connecting external audio sources.

5.6 Automatikan

To conserve battery life, receivers are equipped with a smart auto shut-off feature. If no signal is received from the transmitter for 20 minutes, the receiver will automatically power off.

Image: Illustrates the auto power-off feature of the receiver after 20 minutes of no signal.

5.7 Channel Switching (European and American)

The T130U system supports switching between European and American channel frequencies to comply with regional regulations and optimize performance.

6. Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the units. Avoid using harsh chemicals or abrasive cleaners.
• Storan: Store the system in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, ensure units are fully charged before storage and periodically recharged to maintain battery health.
• Penjagaan Bateri: Avoid fully discharging the batteries frequently. Recharge units promptly when the low battery indicator appears.

7. Penyelesaian masalah

• Tiada Bunyi/Kualiti Bunyi Lemah:
  • Pastikan kedua-dua pemancar dan penerima dihidupkan dan dicas sepenuhnya.
  • Verify that the transmitter and receiver are on the same channel.
  • Check headset connection to the receiver and microphone connection to the transmitter.
  • Adjust volume levels on both the transmitter and receiver.
  • Ensure units are within the 200m unobstructed working range. Obstacles can reduce range.
• Kegagalan Berpasangan:
  • Repeat the automatic pairing process carefully.
  • Attempt manual channel setting if automatic pairing consistently fails.
  • Pastikan tiada peranti wayarles lain menyebabkan gangguan pada frekuensi yang sama.
• Hayat Bateri Pendek:
  • Pastikan unit dicas sepenuhnya sebelum digunakan.
  • Verify the auto shut-off feature is functioning correctly.
  • Prestasi bateri mungkin merosot dari semasa ke semasa dengan penggunaan yang meluas.

8. Spesifikasi

Image: Illustrates the 200-meter unobstructed working distance of the T130U system.

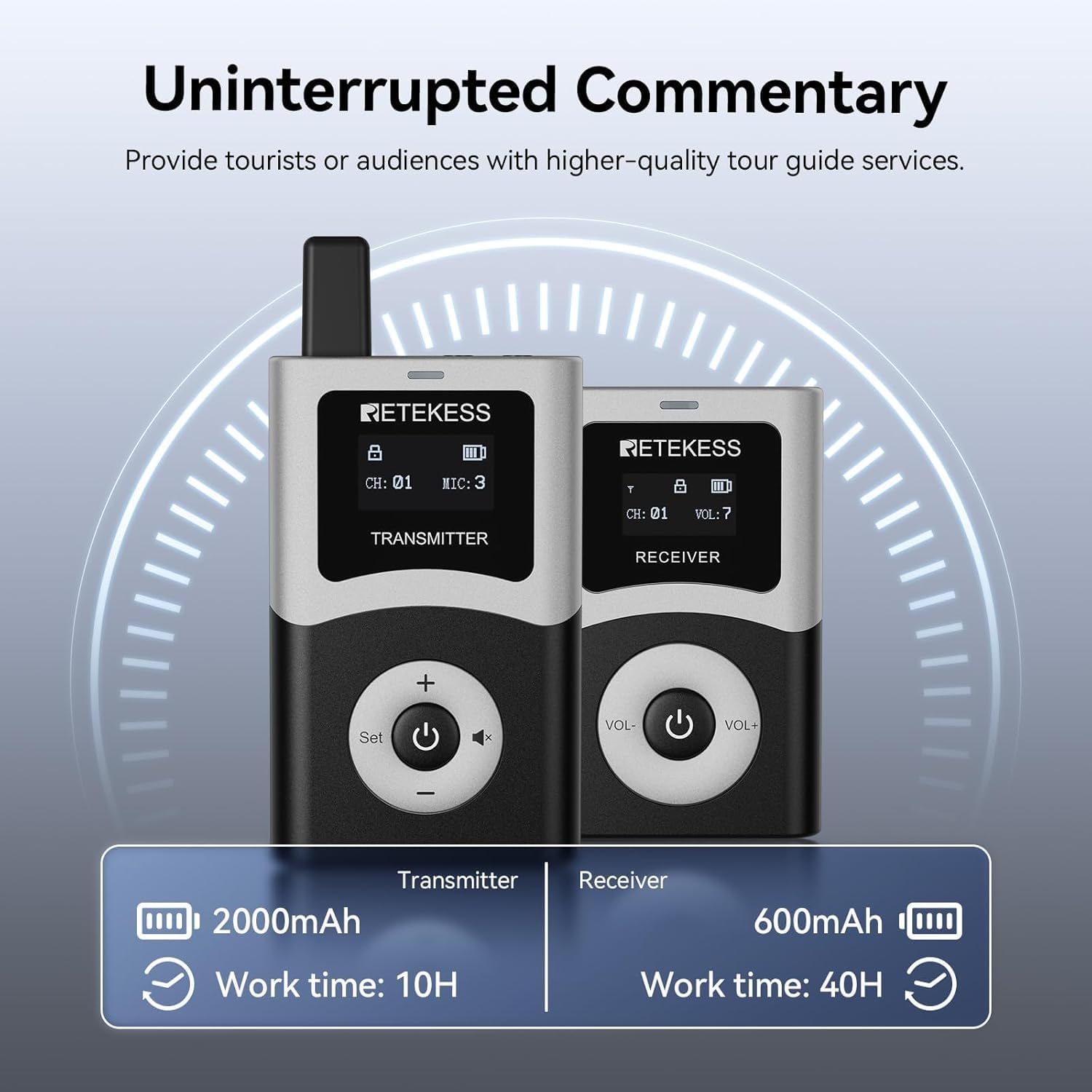

Image: Highlights the long battery life of the transmitter (10H) and receiver (40H).

9. Waranti dan Sokongan

The Retekess T130U Wireless Tour Guide System comes with a Jaminan 12 bulan. For any inquiries, technical assistance, or support, please contact our customer service. We offer Sokongan pelanggan 24 jam untuk memastikan kepuasan anda.
