1. Pengenalan
Thank you for choosing the SYNCWIRE Portable Tire Inflator SW2004. This device is designed for convenient and efficient inflation of various items, including car tires, motorcycle tires, bicycle tires, and sports balls. It features a powerful 150 PSI maximum pressure, an extra-large LCD display, and multiple inflation modes for ease of use. Please read this manual thoroughly before operation to ensure safe and proper use.
2. Maklumat Keselamatan
- Jauhkan peranti daripada kanak-kanak.
- Jangan kendalikan inflator dalam keadaan basah atau berhampiran cecair atau gas mudah terbakar.
- Ensure the inflation hose is securely connected to the valve stem before starting inflation.
- Do not over-inflate. Always refer to the recommended pressure for your item.
- Monitor the inflation process to prevent damage from over-inflation.
- The device may become warm during prolonged use. Allow it to cool down if necessary.
- Gunakan hanya aksesori dan kabel pengecas yang disediakan.
- Jangan buka atau ubah suai peranti.
3. Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
Image: Contents of the SYNCWIRE Portable Tire Inflator SW2004 package, showing the air pump, 50cm air hose, nozzle for air pillow, nozzle for swimming ring, four car tire valve caps, ball needle, DC 12V cable, USB Type-C cable, nozzle for bike, and storage bag.
- Portable Inflatable Air Pump
- Air Hose (50cm)
- Nozzle for Air Pillow
- Nozzle for Swimming Ring
- Four Car Tire Valve Caps
- Jarum Bola
- Kord Kuasa DC 12V
- Kabel Pengecasan USB Jenis-C
- Nozzle for Bike
- Beg Simpanan
4. Ciri-ciri Produk
- Paparan LCD Lebih Besar: Features dual pressure readings (real-time and preset) for clear visibility in various lighting conditions.
- Pelbagai Mod Inflasi: Pre-set modes for cars, motorcycles, bicycles, balls, and a customizable setting.
- Pemadaman Automatik: Stops inflation automatically once the designated pressure is reached.
- Sumber Kuasa Dwi: Operates wirelessly with a built-in battery or via a DC 12V car cigarette lighter port.
- Bateri Berkapasiti Tinggi: Bateri 7800mAh untuk penggunaan yang berpanjangan.
- Aksesori yang disertakan: Comes with various nozzle adapters and four aluminum alloy tire valve caps.
Image: The extra-large digital screen displays both real-time and preset pressure values, along with battery status and unit indicators (PSI, BAR, KPA, Kg/cm²).

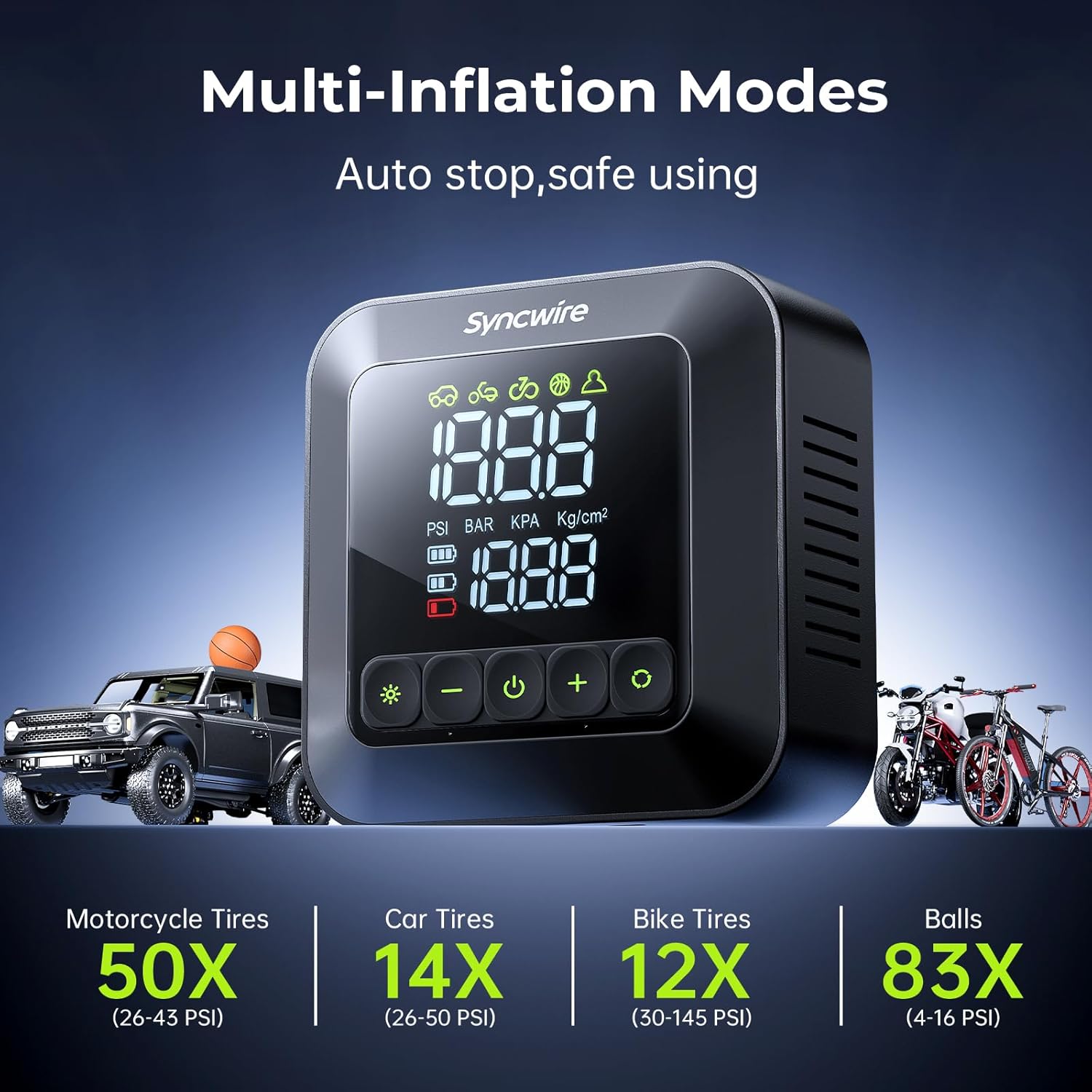

Image: The inflator features multiple pre-set inflation modes for various items, including motorcycle tires, car tires, bike tires, and balls, ensuring auto-stop for safe usage.
Image: The device supports two inflation methods: corded operation using the DC 12V car power outlet and cordless operation using its internal battery.
Image: The inflator is equipped with a 7800mAh battery, offering a 4-hour charging time and up to 365 days of standby, meeting various inflation needs.
Image: The product includes four high-quality aluminum alloy tire valve caps, serving as a convenient replacement for lost original caps.
5. Persediaan
- Caj Permulaan: Before first use, fully charge the inflator using the provided USB Type-C cable and a compatible USB power adapter (not included). The battery indicator on the LCD will show charging status.
- Pasangkan Hos Udara: Screw the air hose securely onto the inflator's air outlet.
- Pilih muncung: Choose the appropriate nozzle adapter for the item you intend to inflate and attach it to the other end of the air hose.
6. Arahan Operasi
- Hidupkan kuasa: Tekan dan tahan butang kuasa (U) to turn on the inflator. The LCD display will illuminate.
- Pilih Mod: Tekan butang mod (※) to cycle through the pre-set inflation modes: Car, Motorcycle, Bicycle, Ball, and Custom. Each mode has a default pressure range.
- Tetapkan Tekanan Sasaran:
- In a pre-set mode, the bottom value on the LCD shows the preset pressure. Use the '+' and '-' buttons to adjust this value.
- For quick adjustment, long-press the '+' or '-' buttons.
- In Custom mode, you can set any desired pressure within the device's operating range.
- To change pressure units (PSI, KPA, BAR, KG/CM²), press the unit button (usually integrated with the mode button or a separate button, refer to display icons).
- Sambung ke Injap: Securely attach the nozzle adapter to the valve stem of the item to be inflated. The top value on the LCD will display the current real-time pressure.
- Mulakan Inflasi: Tekan butang kuasa (U) to begin inflation. The inflator will automatically stop once the preset target pressure is reached.
- Hentikan Inflasi: To manually stop inflation, press the power button (U) lagi.
- Putuskan sambungan: Once inflation is complete, carefully disconnect the nozzle from the valve stem. Some air may escape during disconnection, which is normal.
- Matikan: Tekan dan tahan butang kuasa (U) to turn off the inflator.
Using DC 12V Power
If the built-in battery is low or depleted, you can power the inflator directly from your vehicle's 12V cigarette lighter socket:
- Connect the provided DC 12V power cord to the inflator's DC input port.
- Plug the other end of the DC 12V power cord into your car's cigarette lighter socket.
- Proceed with inflation as described above. The device will draw power directly from the car.
Image: The inflator demonstrates efficient performance, capable of inflating a 215/55 R17 tire from 28 PSI to 36 PSI in approximately 27 seconds.
7. Penyelenggaraan
- Pembersihan: Lap bahagian luar inflator dengan lembut, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
- Storan: Simpan inflator dan aksesorinya di dalam beg simpanan yang disediakan di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
- Penjagaan Bateri: For optimal battery life, charge the device at least once every three months if not in regular use.
8. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Inflator tidak dihidupkan. | Bateri lemah atau tiada kuasa. | Charge the battery using the Type-C cable or connect to a 12V DC power source. |
| Inflasi perlahan atau tidak berfungsi. | Hose not securely connected; incorrect nozzle; leak in hose/valve. | Ensure hose and nozzle are tightly connected. Check for leaks. |
| Peranti berhenti sebelum mencapai tekanan sasaran. | Battery low; internal overheating protection activated. | Recharge the battery. Allow the device to cool down if it has been running for a long time. |
| Bacaan tekanan yang tidak tepat. | Valve connection not secure. | Ensure the nozzle is fully and securely attached to the valve stem. |
9. Spesifikasi
| Spesifikasi | Nilai |
|---|---|
| Jenama | SYNCWIRE |
| Nama Model | Syncwire Inflate 280 |
| Nombor Model Item | SW2004 |
| Tekanan Operasi Maksimum | 150 PSI |
| Voltage | 12 Volt |
| Sumber Kuasa | Battery and DC operated (12 volts) |
| Tahap Kebisingan | 60 Desibel |
| Kapasiti Aliran Udara | 40 Liter Seminit (LPM) |
| Berat Barang | 839 g |
| Dimensi Produk | 13L x 13W x 6.4H Sentimeter |
| bahan | High quality, durable |
| Ciri Khas | Automatic Shut-Off, Cordless, Portable, Pressure Detection, Quick Inflation |
10. Waranti dan Sokongan
SYNCWIRE products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your Portable Tire Inflator SW2004, please refer to the contact information provided on the product packaging or visit the official SYNCWIRE webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
