1. Pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Bio Bidet BB2000 Electric Bidet Toilet Seat. Please read this manual thoroughly before installation and use to ensure proper function and safety.

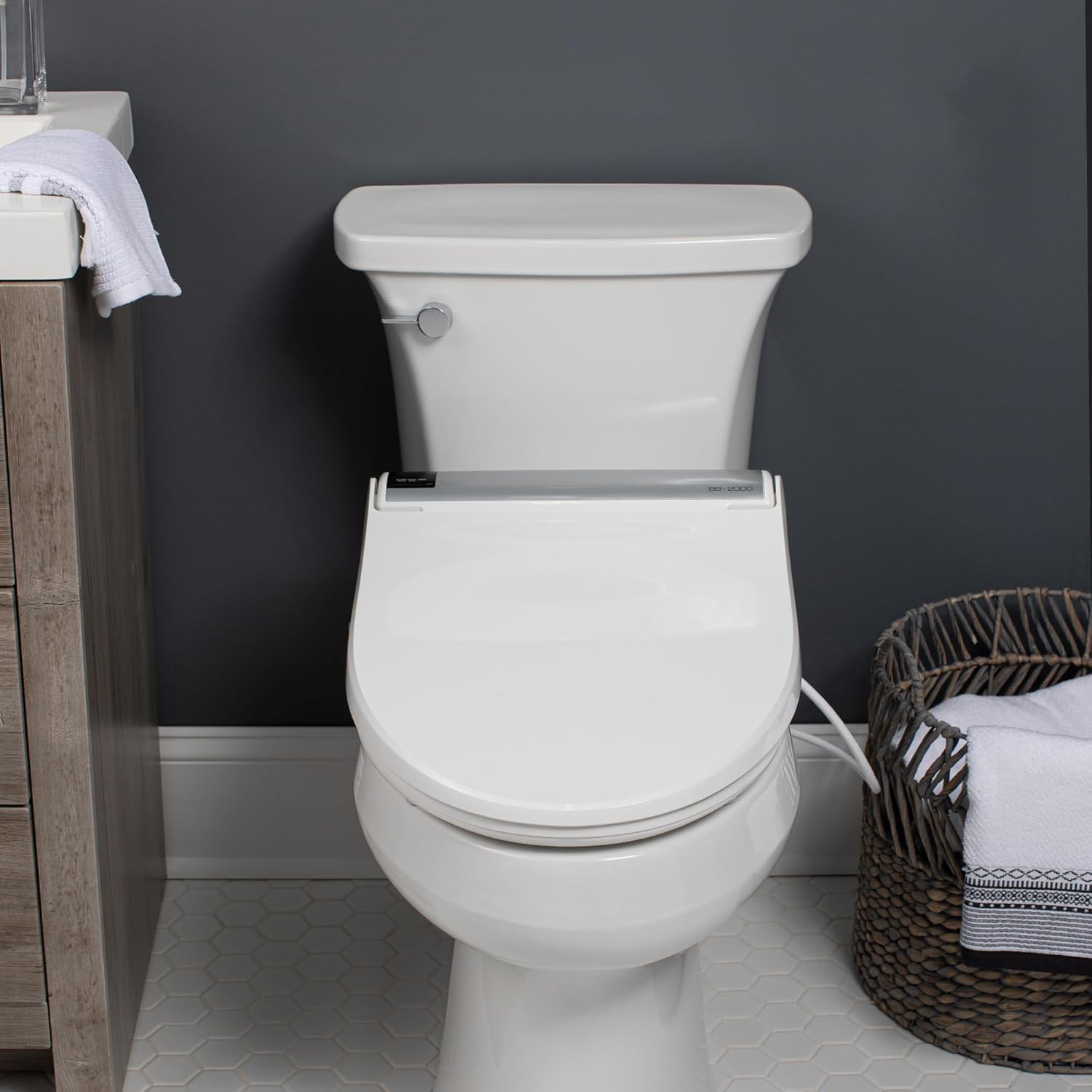

Image 1.1: The Bio Bidet BB2000 Electric Bidet Toilet Seat and its wireless remote control.
2. Arahan Keselamatan Penting
To reduce the risk of burns, electrocution, fire, or injury to persons, please observe the following safety precautions:
- Ensure the bidet is connected to a properly grounded outlet.
- Do not immerse the bidet or its electrical components in water.
- Unplug the bidet before cleaning or servicing.
- Do not allow children to operate the bidet without supervision.
- Avoid using abrasive cleaners or harsh chemicals on the bidet surface.
- This product requires an electrical outlet for all features to function.
3. Kandungan Pakej
Sahkan bahawa semua komponen terdapat dalam pakej:
- Bio Bidet BB2000 Electric Bidet Toilet Seat (Elongated)
- Wireless Remote Control (Black)
- T-Adapter Valve
- Hos Air
- Bidet Connectors
- Mounting Plate and Hardware (Bolts, Washers, Nuts)
- Remote Wall Mount
Note: Batteries for the remote control are not included and must be purchased separately.
4. Panduan Pemasangan
The Bio Bidet BB2000 is designed for easy DIY installation. No plumber is typically required. Ensure you have access to a standard electrical outlet near the toilet.
4.1 Semakan Pra-Pemasangan
- Confirm your toilet is an elongated type. The BB2000 is designed for elongated toilets.
- Ensure a grounded electrical outlet (GFCI recommended) is within reach of the bidet's power cord.
- Turn off the water supply to your toilet.
4.2 Langkah Pemasangan
- Turn off the water shut-off valve: Locate the water supply valve behind your toilet and turn it clockwise until the water flow stops. Flush the toilet to drain the tank.
- Remove your existing toilet seat: Unscrew the bolts holding your current toilet seat in place and remove the seat and lid.
- Install the catch plate and slide the bidet seat on: Place the mounting plate over the toilet bowl holes. Insert the bolts through the plate and secure them from underneath with washers and nuts. Slide the bidet seat onto the mounting plate until it clicks into place.
- Connect the toilet and bidet hoses: Install the T-adapter valve between the toilet tank fill valve and the water supply line. Connect the bidet hose from the T-adapter to the bidet seat's water inlet.
- Plug the power cord into a GFCI outlet: Once all water connections are secure, plug the bidet's power cord into a grounded electrical outlet.
- Turn on the water supply: Slowly open the water shut-off valve and check for any leaks.
Image 4.1: Illustrated guide for DIY installation of the bidet seat, showing components like bolts, catch plate, T-valve, and hose connections.
Image 4.2: The BB2000 is designed for elongated toilets and requires a standard electrical outlet.
5. Arahan Operasi
The Bio Bidet BB2000 features a range of functions controlled by the wireless remote. Ensure batteries are installed in the remote control.
Image 5.1: The wireless remote control for the BB2000, detailing buttons for various functions.
5.1 Ciri dan Fungsi Utama
- Tempat duduk yang dipanaskan: The seat provides adjustable warmth for comfort. Use the remote to select low, medium, or high temperature settings. The smart sensor ensures functions only activate when seated.
- Adjustable Washes:
- Basuh Belakang: Untuk pembersihan posterior.
- Basuh Depan: Untuk pembersihan kewanitaan.
- Cuci Vortex: A stronger, more focused wash.
- Pengering Udara Suam: After cleansing, activate the integrated warm air dryer for a gentle and comfortable drying experience.
- Cahaya Malam: A soothing night light illuminates the bowl, providing visibility in the dark without needing to turn on bright bathroom lights.
- Penyahbau: An integrated deodorizer helps neutralize odors, maintaining a fresh bathroom environment.
- Nozzle Oscillation & Pulsation: Enhance the wash experience with oscillating (moving back and forth) and pulsating (rhythmic water flow) functions.
- Mod jimat tenaga: Activate this mode to conserve energy when the bidet is not in active use.
Imej 5.2: Selesaiview of the bidet seat's integrated features.
Image 5.3: Details on the adjustable wash functions and the 3-in-1 stainless steel nozzle.
6. Penyelenggaraan dan Pembersihan
Regular cleaning ensures optimal performance and hygiene of your Bio Bidet BB2000.
6.1 Pembersihan Am
- Unplug the unit: Always unplug the bidet from the electrical outlet before cleaning.
- Luaran: Lap permukaan luar dengan lembut, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, bleach, or abrasive pads, as these can damage the finish.
- muncung: The stainless steel nozzle is self-cleaning. For additional cleaning, gently pull out the nozzle and wipe it with a soft cloth. Do not use excessive force.
- Penapis: Periodically check the water inlet filter for debris and clean if necessary. Refer to the full user guide for detailed filter cleaning instructions.
6.2 Penyimpanan Jangka Panjang
If the bidet will not be used for an extended period, or if there is a risk of freezing temperatures, it is recommended to drain the water from the unit. Consult the full user manual for detailed draining procedures.
7. Penyelesaian masalah
If you encounter issues with your Bio Bidet BB2000, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada semburan air | Water supply valve closed; bidet not plugged in; seat sensor not activated. | Open water supply valve; ensure power cord is plugged into a live outlet; ensure you are properly seated on the bidet. |
| No heat (seat/water) | Power saving mode active; temperature setting too low; unit not receiving power. | Deactivate power saving mode; adjust temperature settings on remote; check power connection. |
| Alat kawalan jauh tidak berfungsi | Bateri mati; jauh di luar julat; halangan. | Replace batteries; ensure remote is pointed towards the bidet; remove any obstructions. |
| Kebocoran air | Loose connections; damaged hose/seal. | Tighten all water connections; inspect hoses and seals for damage and replace if necessary. Turn off water supply immediately. |
For further assistance, please refer to the full user guide or contact Bio Bidet customer support.
8. Spesifikasi Produk
| Ciri | Perincian |
|---|---|
| Nombor Model | BB2000E BLK |
| Jenama | Bio Bidet |
| taip | Tempat Duduk Tandas Bidet Elektrik |
| Saiz | memanjang |
| warna | putih |
| bahan | plastik |
| Gaya | Black Remote |
| Dimensi Produk (L x W) | 20.9" x 15.43" |
| Berat Barang | 15 paun |
| UPC | 850029179924 |
| Komponen yang Disertakan | Bidet, One Black Remote |
| Bateri Diperlukan | Yes (for remote, not included) |
| Sumber Kuasa | Electric (GFCI outlet recommended) |
Image 8.1: Product dimensions for the elongated BB2000 model.
9. Waranti dan Sokongan
9.1 Maklumat Waranti
The Bio Bidet BB2000 Electric Bidet Toilet Seat includes a Waranti terhad 3 tahun. This warranty covers manufacturing defects and ensures the product is free from defects in material and workmanship under normal use and service.
For full details regarding warranty coverage, terms, and conditions, please refer to the official warranty document:
9.2 Sokongan Pelanggan
If you have any questions, require technical assistance, or need to report an issue, please contact Bio Bidet customer support. Contact information can typically be found on the manufacturer's official website or within the full user guide.
