DreamSky Wooden Digital Alarm Clock (Model DS2208) User Manual

1. Pengenalan

Thank you for choosing the DreamSky Wooden Digital Alarm Clock, Model DS2208. This clock combines modern design with essential features to enhance your daily routine. With its large, easy-to-read display, adjustable brightness, and customizable alarm volume, it is designed for convenience and reliability. Please read this manual carefully to ensure proper setup and operation.

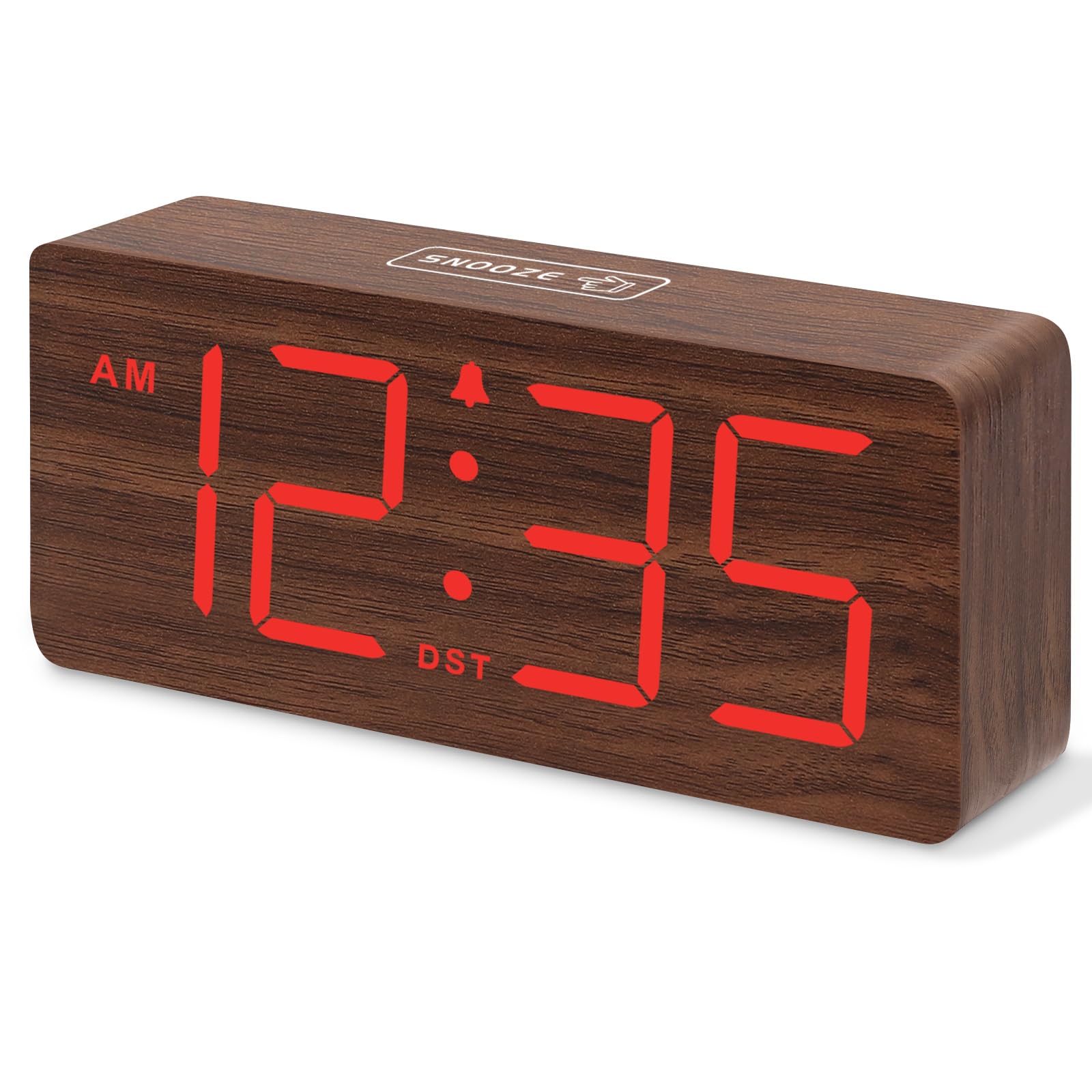

Rajah 1: DreamSky Wooden Digital Alarm Clock (Red)

2. Ciri-ciri Produk

• Paparan Digital Besar: Features 1.8-inch bold numbers for easy readability across the room.
• 6 Dimmable Brightness Levels: Adjust the display brightness from off to bright, suitable for day and night use.
• 5 Adjustable Alarm Volume Levels: Customize alarm volume from 70dB to 105dB, catering to both light and heavy sleepers.
• Fungsi Tunda: Provides an extra 9 minutes of rest after the alarm sounds.
• Plug-in Power with Battery Backup: Primarily powered by an included adapter, with battery backup (batteries not included) to maintain time settings and trigger alarms during power outages.
• DST and 12/24 Hour Format: Easy one-click switching for Daylight Saving Time and between 12-hour and 24-hour time formats.
• Modern Wooden Design: An elegant and space-saving design that complements various home and office decors.

3. Kandungan Pakej

Sila semak pakej untuk item berikut:

• DreamSky Wooden Digital Alarm Clock (Model DS2208)
• Penyesuai Kuasa 5V/1.2A
• Manual Pengguna (dokumen ini)

4. Arahan Persediaan

4.1 Menghidupkan Jam

The DreamSky alarm clock is designed to be continuously powered by the included 5V/1.2A power adapter. For stable operation and continuous display, always keep the clock plugged into a power outlet.

Rajah 2: Clock powered by electricity.

4.2 Sandaran Bateri

Untuk sandaran semasa kuasa outages, insert 2 AAA batteries (not supplied) into the battery compartment located on the back of the clock. The battery backup ensures that alarm settings are saved and the alarm will still function, though the display will not be lit to conserve power.

Rajah 3: Battery backup functionality.

4.3 Kawalan Ke Atasview

The control buttons are located on the back panel of the clock. Familiarize yourself with these buttons for easy operation:

Rajah 4: Rear panel controls and power input.

4.4 Menetapkan Masa

1. Tekan dan tahan butang MASA DITETAPKAN butang selama 2 saat untuk memasuki mod tetapan masa. Digit jam akan berkelip.
2. Gunakan + or - butang untuk melaraskan jam.
3. Tekan MASA DITETAPKAN sekali lagi untuk mengesahkan jam dan beralih ke tetapan minit. Digit minit akan berkelip.
4. Gunakan + or - butang untuk melaraskan minit.
5. Tekan MASA DITETAPKAN to save the time and exit setting mode.

4.5 Menetapkan Penggera

1. Tekan dan tahan butang SET ALARM butang selama 2 saat. Angka jam penggera akan berkelip.
2. Gunakan + or - butang untuk melaraskan jam penggera.
3. Tekan SET ALARM again to confirm the alarm hour and move to alarm minute setting. The minute digits will flash.
4. Gunakan + or - butang untuk melaraskan minit penggera.
5. Tekan SET ALARM to save the alarm time. The alarm icon will appear on the display, indicating the alarm is active.

4.6 Format 12/24 Jam

To switch between 12-hour (AM/PM) and 24-hour (military) time formats, simply press the 12/24HR butang.

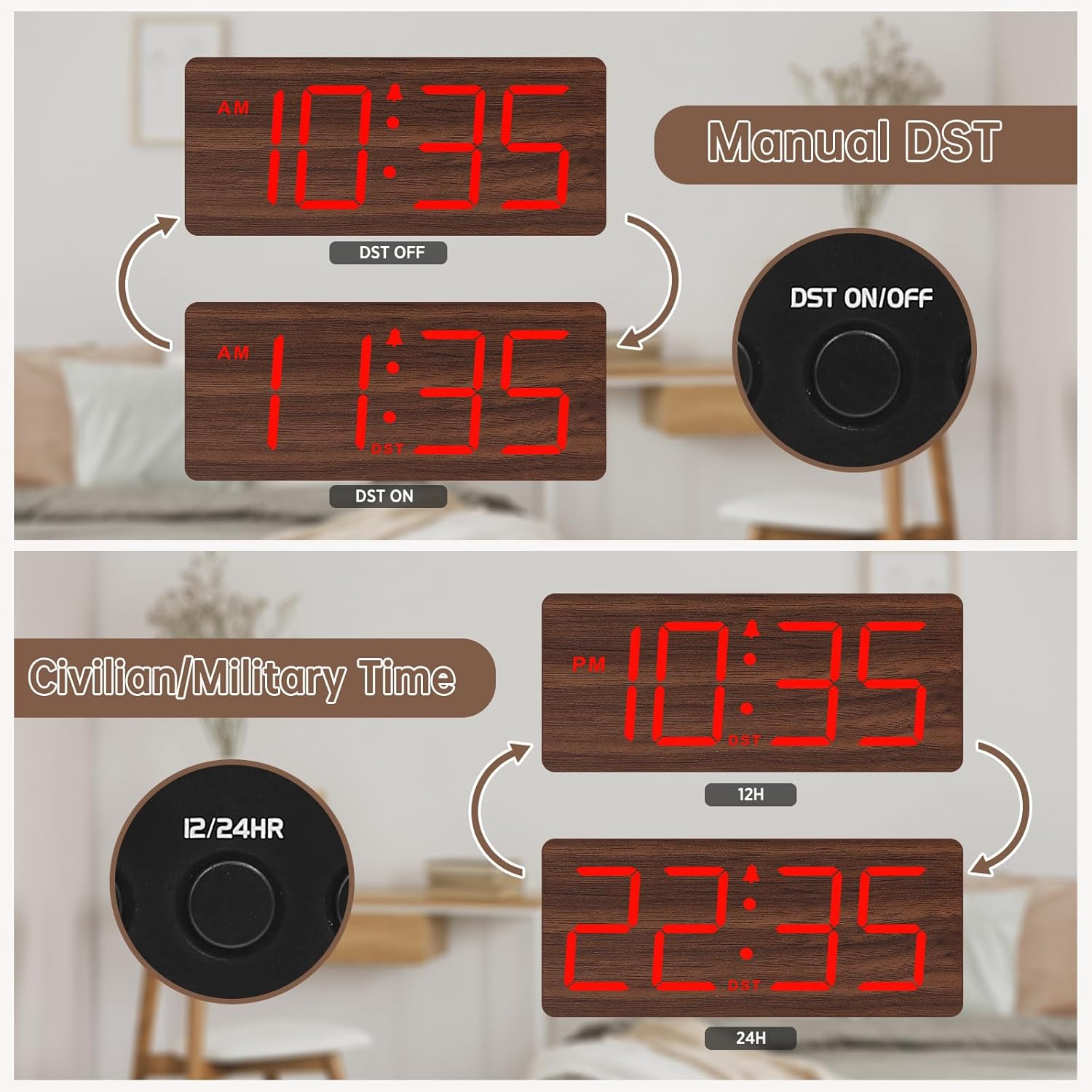

Rajah 5: Manual DST and 12/24 Hour Time Switch.

4.7 Waktu Penjimatan Siang (DST)

To activate or deactivate Daylight Saving Time, press the DST HIDUP / MATI button. The display will adjust by one hour forward or backward, and a 'DST' indicator will appear or disappear.

4.8 Melaraskan Kecerahan Paparan

The clock offers 6 levels of display brightness (L1 to L5, plus OFF). Press the DIMMER button repeatedly to cycle through the brightness levels. Select a level that is comfortable for your environment, from bright during the day to dim or off at night.

Rajah 6: Adjustable Display Brightness Levels.

4.9 Melaraskan Kelantangan Penggera

The alarm volume can be adjusted to 5 different levels (V1 to V5). Use the VOL+ dan vol- buttons to set your preferred alarm volume. This feature is ideal for heavy sleepers who need a louder alarm or for light sleepers who prefer a softer tone.

Rajah 7: 5 Adjustable Alarm Volume Levels.

5. Arahan Operasi

5.1 Fungsi Tunda

Apabila penggera berbunyi, tekan besar MENGEJUTKAN button on the top of the clock to temporarily silence the alarm for 9 minutes. The alarm will sound again after the snooze period ends.

5.2 Menghidupkan/Mematikan Penggera

Untuk menghidupkan atau mematikan penggera, tekan HIDUP/MATI button. The alarm icon on the display will indicate whether the alarm is currently active.

6. Penyelenggaraan

To maintain your DreamSky Wooden Digital Alarm Clock:

• Lap jam dengan kain lembut dan kering.
• Elakkan menggunakan pembersih atau pelarut yang kasar.
• Keep the clock away from direct sunlight, extreme temperatures, and moisture.

7. Penyelesaian masalah

• Display not lit: Ensure the power adapter is securely plugged into both the clock and a working power outlet. If using battery backup, the display will not light up to conserve power.
• Penggera tidak berbunyi: Check if the alarm is set and the alarm icon is visible on the display. Ensure the alarm volume is not set to the lowest level (V1) or muted.
• Masa yang salah: Re-enter time setting mode and adjust the time as described in Section 4.4. If using battery backup, ensure batteries are fresh.

8. Spesifikasi

9. Video Produk Rasmi

10. Waranti dan Sokongan

DreamSky products are designed for durability and performance. For any questions, technical support, or warranty inquiries, please contact DreamSky customer support at: info@dreamsky4u.com.
