pengenalan
This manual provides instructions for the safe and efficient operation of your Fyrome 6-Layer Food Dehydrator. This appliance is designed for dehydrating various foods such as fruits, vegetables, meats, and herbs, as well as for preparing pet treats. Please read this manual thoroughly before first use and retain it for future reference.
Imej: Depan view of the Fyrome 6-Layer Food Dehydrator, showcasing its design and digital control panel.
Arahan Keselamatan Penting
Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa diikuti untuk mengurangkan risiko kebakaran, kejutan elektrik dan/atau kecederaan kepada orang, termasuk yang berikut:
- Baca semua arahan sebelum menggunakan perkakas.
- Jangan sentuh permukaan panas. Gunakan pemegang atau tombol.
- Untuk melindungi daripada renjatan elektrik, jangan rendam kord, palam atau perkakas di dalam air atau cecair lain.
- Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
- Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian.
- Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
- Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh menyebabkan kecederaan.
- Jangan gunakan di luar rumah.
- Jangan biarkan kord tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
- Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
- Sentiasa pasangkan plag pada perkakas terlebih dahulu, kemudian pasangkan kord ke dalam salur keluar dinding. Untuk memutuskan sambungan, matikan mana-mana kawalan kepada "mati", kemudian tanggalkan palam dari alur keluar dinding.
- Jangan gunakan perkakas untuk kegunaan selain daripada yang dimaksudkan.
- Pastikan perkakas diletakkan di atas permukaan yang stabil dan tahan haba.
- Do not block the heat dissipation holes during operation.
Senarai Bahagian
The Fyrome Food Dehydrator includes the following components:
- 1 x Dehydrator Base Unit with Control Panel
- 6 x Removable Drying Trays (PP and PS material)
- 1 x Top Lid
- 1 x Kuasa Kuasa

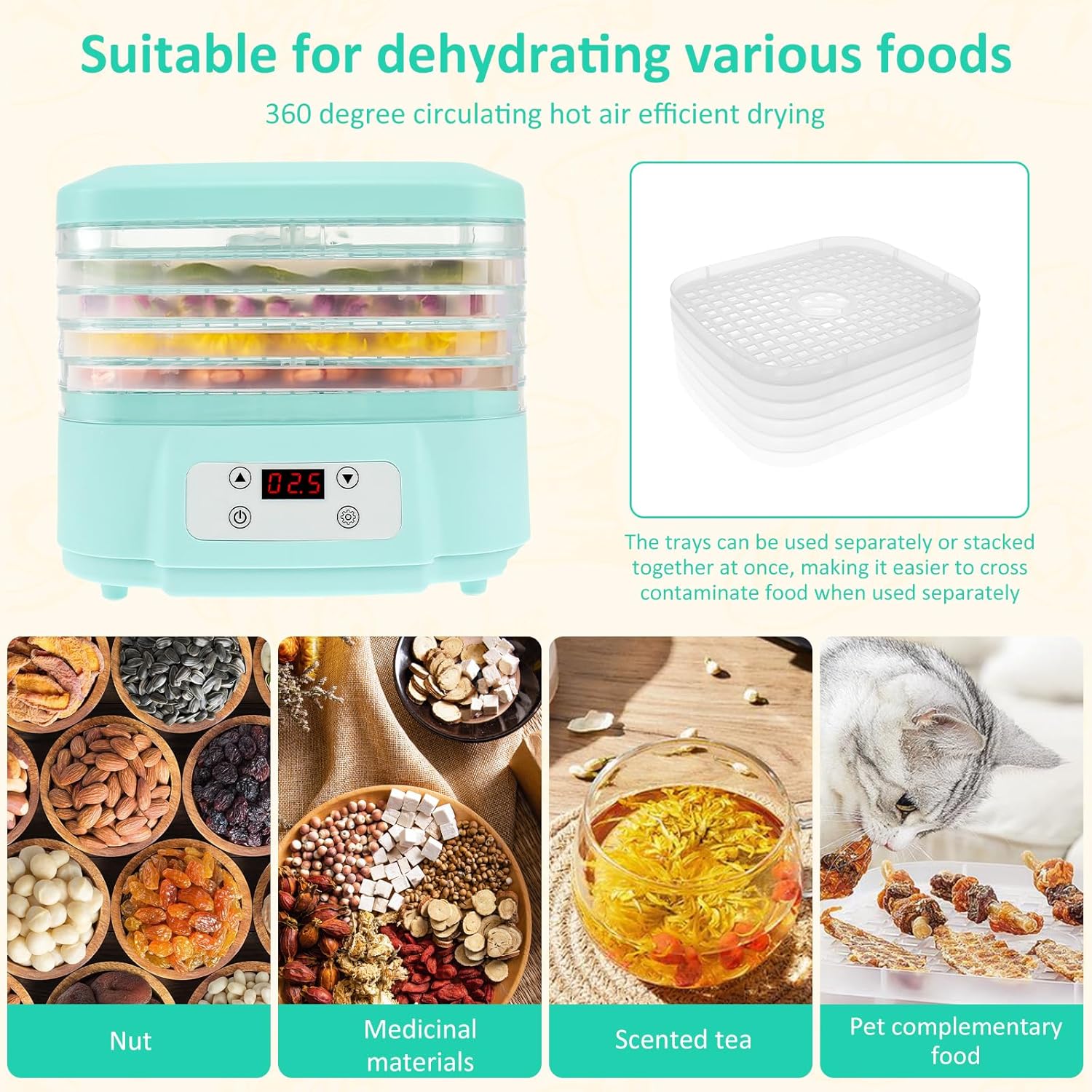

Image: The dehydrator unit with its six removable trays displayed, highlighting the stackable design.
Persediaan
- Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
- Bersih: Before first use, wash the drying trays and lid in warm, soapy water. Rinse thoroughly and dry completely. Wipe the base unit with a damp kain. Jangan rendam unit asas dalam air.
- Berhimpun: Place the base unit on a stable, flat, and heat-resistant surface. Stack the desired number of drying trays onto the base unit. Ensure the trays are properly aligned. Place the lid on top of the uppermost tray.
- Sambungkan Kuasa: Palamkan kord kuasa ke soket elektrik 110V standard.
Image: The dehydrator unit with its attached power cord, ready for connection to an electrical outlet.
Arahan Operasi
Ikuti langkah-langkah ini untuk mengeringkan makanan anda:
- Menyediakan makanan: Wash, peel, and slice your ingredients evenly. For best results, ensure slices are uniform in thickness.
- Muatkan Dulang: Arrange the prepared food in a single layer on the drying trays. Do not overlap food items to allow for proper airflow.
- Set Temperature and Timer:
- Press the power button to turn on the dehydrator.
- Use the temperature control buttons (up/down arrows) to set the desired drying temperature between 35°C and 80°C.
- Use the timer control buttons to set the drying duration from 1 to 24 hours.
- Mulakan Dehidrasi: The dehydrator will begin operating once the settings are confirmed. The 360° rotating hot air technology ensures even heat distribution for uniform drying.
- Monitor and Check: Periodically check the food's dryness. Drying times vary based on food type, thickness, and moisture content.
- Selesai: Once the desired dryness is achieved, turn off the dehydrator and unplug it. Allow the food to cool completely before storing.
Image: A visual guide illustrating the three main steps of using the dehydrator: preparing ingredients, setting controls, and the final dried product.
Recommended Drying Temperatures and Times
The following are general guidelines. Adjust as needed based on your specific ingredients and desired dryness.
- Dried Fruits: 60-70°C
- Dried Vegetables: 50-60°C
- Dried Meats (Jerky): 70-80°C
- Floral Teas: 55-60°C
- Medicinal Herbs: 35-40°C
- Kacang: 60-70°C
Image: The dehydrator's temperature range (35-80°C) is highlighted, along with visual examples and recommended drying temperatures for various food types.
Image: Diagram showing the 360-degree rotating hot air technology within the dehydrator, ensuring even heat distribution.
Penyelenggaraan dan Pembersihan
Regular cleaning and maintenance will ensure the longevity and optimal performance of your dehydrator.
- Cabut plag: Sentiasa cabut palam penyahhidrat daripada salur keluar kuasa dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
- Dulang dan Penutup Bersih: The drying trays and lid can be washed in warm, soapy water. Rinse thoroughly and dry completely. These parts are not dishwasher safe.
- Unit Pangkalan Bersih: Lap bahagian luar unit asas dengan iklanamp cloth. For stubborn stains, use a mild detergent. Do not immerse the base unit in water or any other liquid.
- Storan: Simpan dehidrator di tempat yang bersih dan kering apabila tidak digunakan.
The heat dissipation holes at the base should be kept clear of obstructions to maintain optimal conditions and prevent overheating.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Dehidrator tidak dihidupkan. | Tidak dipasang; soket kuasa rosak; kord kuasa rosak. | Ensure the power cord is securely plugged into a working outlet. Check the power cord for damage. |
| Makanan tidak kering sekata. | Food slices are too thick or uneven; trays overloaded; insufficient airflow. | Ensure food is sliced uniformly. Do not overload trays; arrange food in a single layer. Rotate trays during the drying process if necessary. |
| Mesin pengering terlalu bising. | Normal operating sound; unit not on a flat surface. | Ensure the unit is on a stable, flat surface. If noise is excessive or unusual, contact customer support. |
| Pengeringan mengambil masa terlalu lama. | Temperature set too low; food too moist or thick; high humidity in environment. | Increase the temperature setting. Ensure food is prepared correctly. Consider drying in a less humid environment. |
Spesifikasi
| Jenama | Fyrome |
| Nombor Model | 1 |
| bahan | Food Grade PP, PS |
| Bilangan Dulang | 6 |
| Voltage | 110V |
| kuasa | 200W |
| Julat Suhu | 35°C hingga 80°C |
| Julat Masa | 1 hingga 24 jam |
| Dimensi (L x W x H) | 25.3 cm x 24 cm x 22 cm (9.96 in x 9.45 in x 8.66 in) |
| Saiz Grid | Kira-kira 28 cm x 20 cm |
| Berat Barang | 4.09 paun |
| Mesin basuh pinggan mangkuk selamat | No (Trays and Lid) |
Image: Diagram illustrating the physical dimensions of the dehydrator unit.
Waranti dan Sokongan
Specific warranty information is not provided in the product details. For warranty claims, technical support, or any inquiries regarding your Fyrome Food Dehydrator, please contact the seller or manufacturer directly through your purchase platform.
Please refer to your purchase documentation for contact details or visit the official Fyrome webtapak jika ada.
