SOOPYK Automatic Bottleless Water and Ice Dispenser User Manual

1. Pengenalan

Thank you for choosing the SOOPYK Automatic Bottleless Water and Ice Dispenser. This appliance is designed to provide convenient access to cold water and ice directly from your water line. It features automatic ice making, a 2-in-1 design for both ice and water dispensing, and intuitive touch screen controls. This manual provides essential information for the safe and efficient operation of your new dispenser.

Figure 1.1: The SOOPYK Automatic Bottleless Water and Ice Dispenser, shown with included accessories like the water line, connector, and ice scoop.

2. Maklumat Keselamatan Penting

Sila baca semua arahan dengan teliti sebelum menggunakan perkakas. Simpan manual ini untuk rujukan masa hadapan.

• Upon receiving the water dispenser, keep the machine upright for at least 24 jam before its first use. This allows refrigerants to settle properly.
• This appliance is designed for cold water and room temperature water dispensing only. It tidak provide hot water.
• The ice maker function produces ice cubes and stores them in an internal bin. It tidak keep ice frozen indefinitely; ice will melt over time and be re-made.
• This unit is bottleless and requires a direct connection to a water line. It is tidak sesuai for 5-gallon water bottles and cannot be filled manually.
• This dispenser tidak include or require internal filters. Ensure your water source is potable.
• Sentiasa pastikan perkakas diletakkan pada permukaan yang stabil dan rata.
• Jangan kendalikan perkakas dengan kabel atau palam kuasa yang rosak.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• SOOPYK Automatic Bottleless Water and Ice Dispenser
• Water Line (approximately 118 inches)
• Pita Teflon
• Water Line Connector (Switch Faucet)
• Manual Pengguna (dokumen ini)

Rajah 3.1: Belakang view of the dispenser showing the power cord, outlet line, and inlet line connections, along with the included water line, connector, and teflon tape.

4. Persediaan

1. penempatan: Place the dispenser on a stable, level countertop surface, ensuring adequate ventilation around the unit.
2. Siaga Awal: After unpacking, allow the unit to stand upright for 24 jam before plugging it in. This is crucial for the compressor's longevity.
3. Sambungan Talian Air:
   • Locate a potable water source with a standard water line connection.
   • Use the provided teflon tape on the threads of your water source connection.
   • Connect the included water line to the water source using the provided water line connector (switch faucet).
   • Connect the other end of the water line to the 'Inlet Line' port at the back of the dispenser. Ensure all connections are secure to prevent leaks.


   Figure 4.1: Diagram illustrating the connection of the water line from a faucet to the dispenser's inlet.

4. Sambungan Kuasa: Once the water line is securely connected and the 24-hour standby period is complete, plug the power cord into a grounded electrical outlet. The power indicator light will illuminate.

5. Arahan Operasi

The dispenser features an intuitive touch screen control panel for all functions.

Figure 5.1: Close-up of the touch screen control panel, showing indicator lights and function buttons.

Panel Kawalan Terlaluview:

• Butang Kuasa (⑂): Menghidupkan / mematikan unit.
• Ice Indicator (🧊): Indicates ice making status.
• Cold Water Indicator (💧): Indicates cold water cooling status.
• Add Water Indicator (🧴): Illuminates if there is an issue with water supply (e.g., low pressure, no connection).
• Water Cooling Button (💧 with circle): Press to activate/deactivate cold water cooling. Indicator blinks while cooling, stays solid when ready.
• Make Ice Button (🧊 with circle): Press to activate/deactivate ice making. Indicator blinks while making ice, stays solid when ice bin is full.
• Ice Fill Button (🧊 with arrow): Press to dispense ice.
• Water Fill Button (💧 with arrow): Press to dispense water (cold or room temperature, depending on cooling function status).

Fungsi Operasi:

1. To Make Ice:
   • Tekan ke Buat Ais button. The ice making indicator will blink.
   • The unit will begin producing bullet-shaped ice. It can make 9 pieces per cycle, with a cycle time of approximately 7 minutes.
   • When the ice storage bin is full (capacity up to 0.65 lbs), the ice making indicator will stay solid, and the machine will pause ice production.
   • To stop ice making, press the Buat Ais butang lagi.

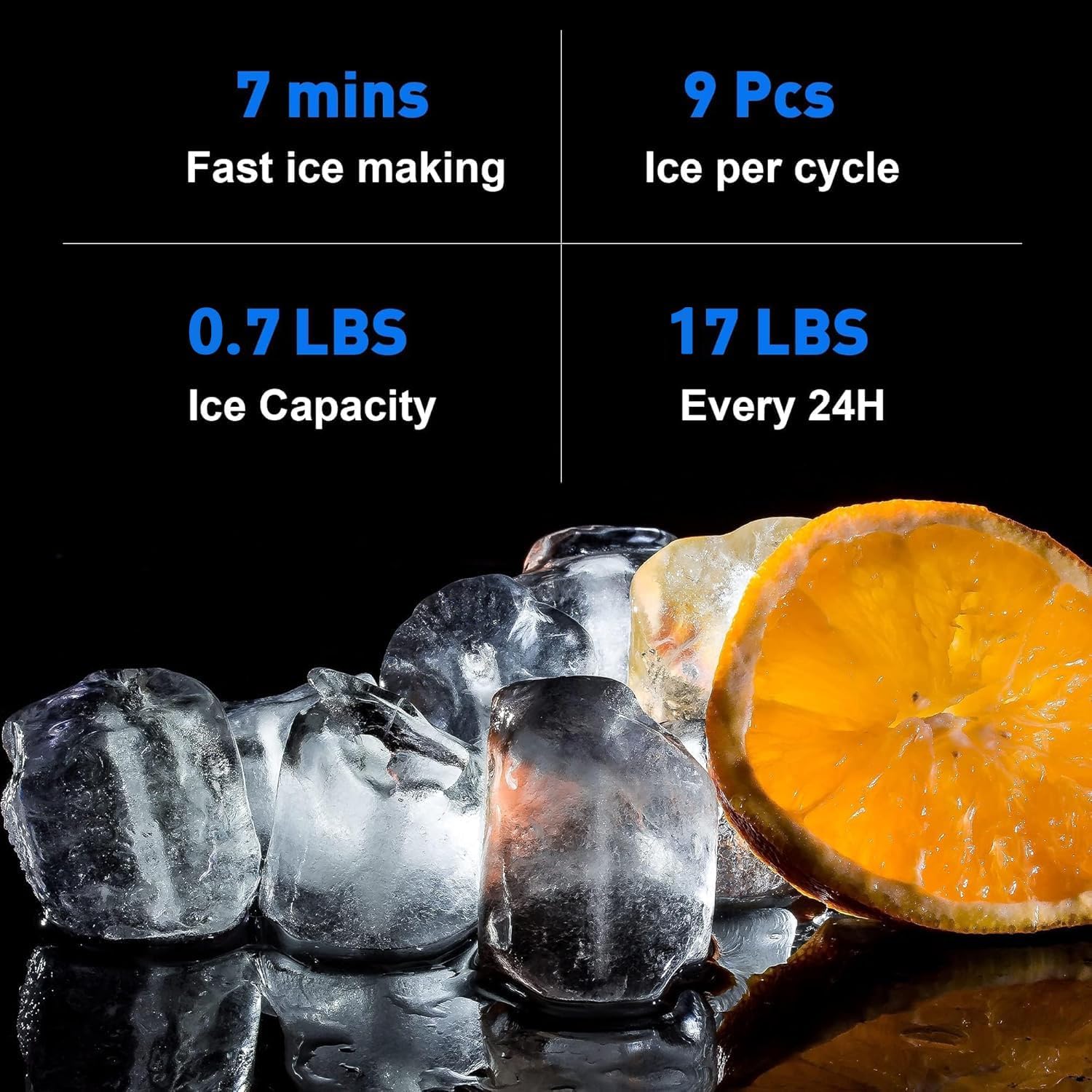

   Figure 5.2: Display showing ice making capabilities: 7 minutes per cycle, 9 pieces per cycle, 0.7 lbs ice capacity, and 17 lbs daily production.

2. Untuk Mengeluarkan Ais:
   • Place a glass or container under the ice outlet.
   • Tekan ke Isi Ais button. Ice will be dispensed into your container.


   Figure 5.3: The dispenser actively dropping ice cubes into a glass placed below the outlet.

3. To Get Cold Water:
   • Tekan ke Penyejukan Air button. The cold water indicator will blink while the water is cooling.
   • Once the water reaches the desired cold temperature, the indicator will stay solid.
   • Place a glass or container under the water outlet.
   • Tekan ke Isi Air button to dispense cold water.
   • To turn off the cooling function, press the Penyejukan Air butang lagi.
4. To Get Room Temperature Water:
   • Memastikan Penyejukan Air function is turned off (indicator light is off).
   • Place a glass or container under the water outlet.
   • Tekan ke Isi Air button to dispense room temperature water.

6. Penyelenggaraan

Regular cleaning and maintenance will ensure the longevity and optimal performance of your dispenser.

Membersihkan Dulang Titisan:

• The drip tray is located at the base of the dispensing area and collects any spills or condensation.
• To remove, gently pull the drip tray forward.
• Kosongkan sebarang air yang terkumpul dan basuh dulang dengan sabun lembut dan air suam.
• Bilas dengan teliti dan keringkan sebelum dipasang semula.

Figure 6.1: Image showing the removable drip tray being pulled out from the dispenser for cleaning.

Pembersihan Am:

• Lap bahagian luar dispenser dengan kain lembutamp kain. Jangan gunakan pembersih atau pelarut yang melelas.
• For internal cleaning, refer to the troubleshooting section for draining the unit if necessary.

7. Penyelesaian masalah

If you encounter issues with your dispenser, refer to the following common problems and solutions:

8. Spesifikasi

Figure 8.1: Diagram illustrating the dimensions of the SOOPYK dispenser.

9. Waranti dan Sokongan

SOOPYK is committed to providing quality products and customer satisfaction. If you encounter any problems with your water cooler, please do not hesitate to contact us. We aim to reply to all inquiries within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official SOOPYK brand store online.
