Tomofree K7PRO 3-Wheel Electric Scooter User Manual

1. Maklumat Keselamatan Penting

Please read this manual carefully before operating your K7PRO electric scooter. Failure to follow the instructions and safety warnings could result in serious injury or damage to the scooter.

• Sentiasa memakai topi keledar dan peralatan keselamatan yang sesuai (pelapik lutut, pelapik siku) semasa menunggang.
• Pastikan semua bolt dan pengikat diketatkan sebelum setiap tunggangan.
• Check brake functionality before each use.
• Do not ride in wet conditions, heavy rain, or through puddles. The scooter is IPX7 rated for water resistance, but prolonged exposure to water should be avoided.
• Patuhi undang-undang dan peraturan lalu lintas tempatan.
• Jangan melebihi had berat maksimum 220 lbs (100 kg).
• Jauhkan tangan dan kaki daripada bahagian yang bergerak.
• Avoid riding on steep inclines exceeding 20 degrees.

2. Produk Lebihview

The Tomofree K7PRO is a lightweight, folding 3-wheel electric scooter designed for adults and seniors, offering stability and ease of use. It features a powerful 400W motor, a 36V 7.5Ah battery, and a reverse function for enhanced maneuverability.

Ciri-ciri Utama:

• Reka Bentuk Lipat Padat: Easily folds for storage and transport.
• 3-Wheel Stability: Provides a stable and secure riding experience.
• Fungsi terbalik: Allows for easy backing up in tight spaces.
• Mod Kelajuan Berbilang: Three adjustable speed settings (2/6/15 mph).
• Long Range Battery: Up to 15 miles on a single charge.
• Pembinaan Tahan Lama: Made from 98% Aviation-Grade Aluminum Alloy.
• 10-inch City Tires: Designed for stable performance on various urban terrains.

Gambarajah Komponen:

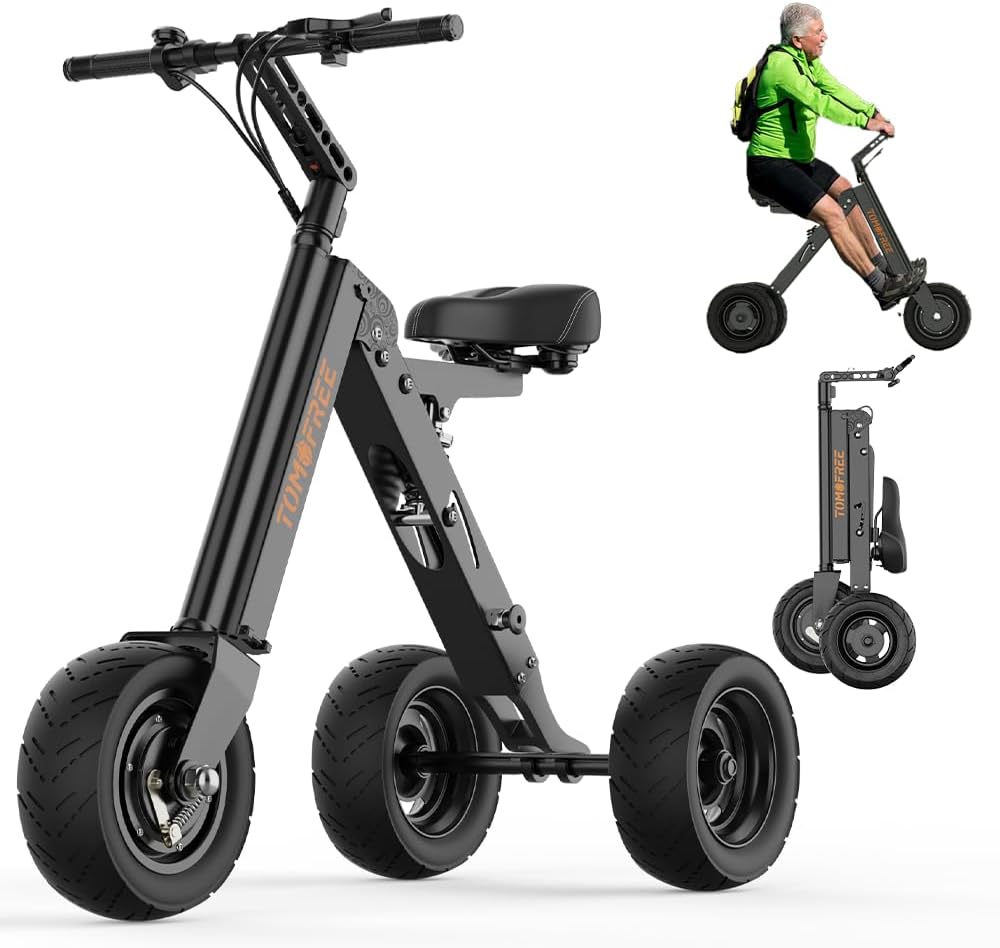

Figure 2.1: K7PRO Electric Scooter Overview

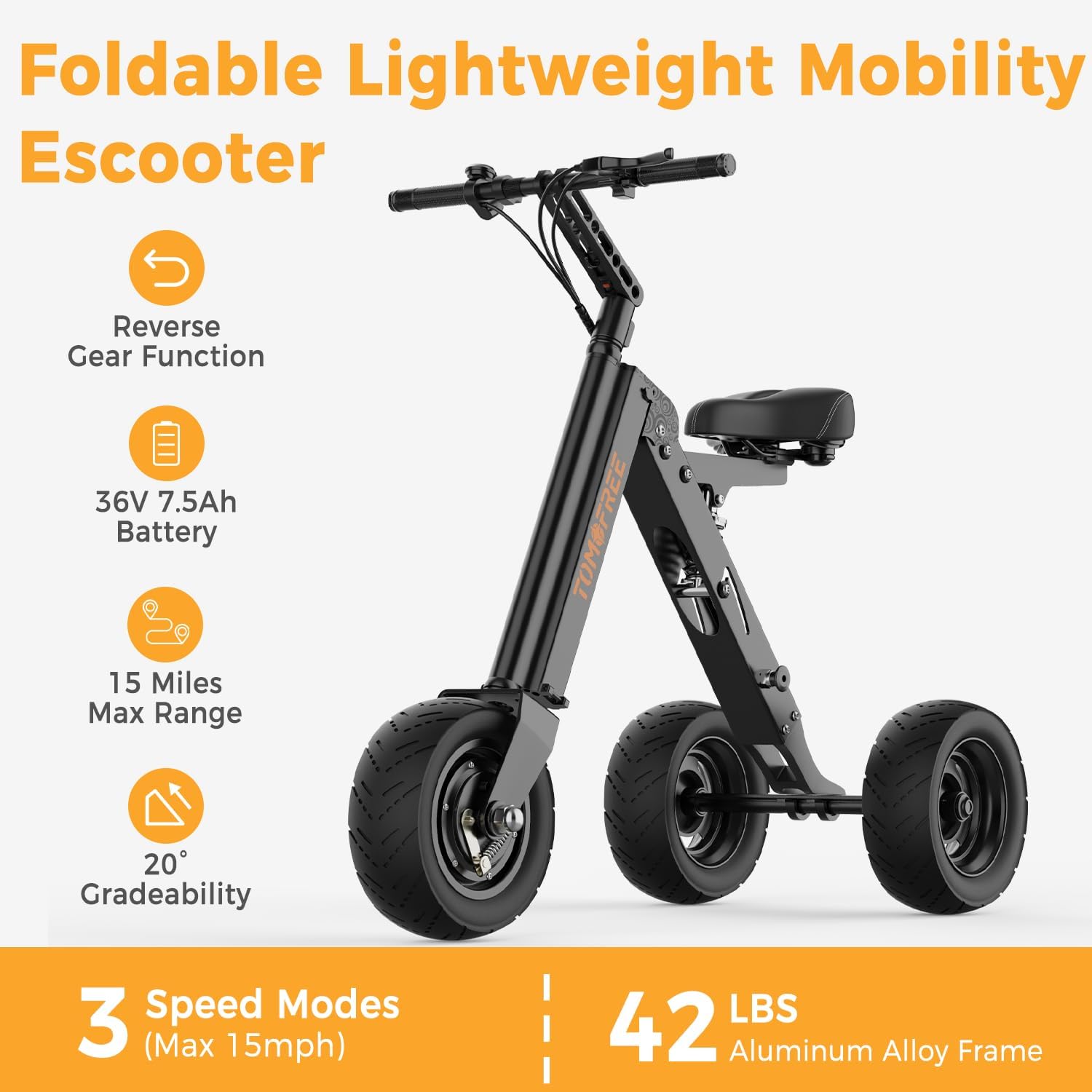

Figure 2.2: K7PRO Key Features

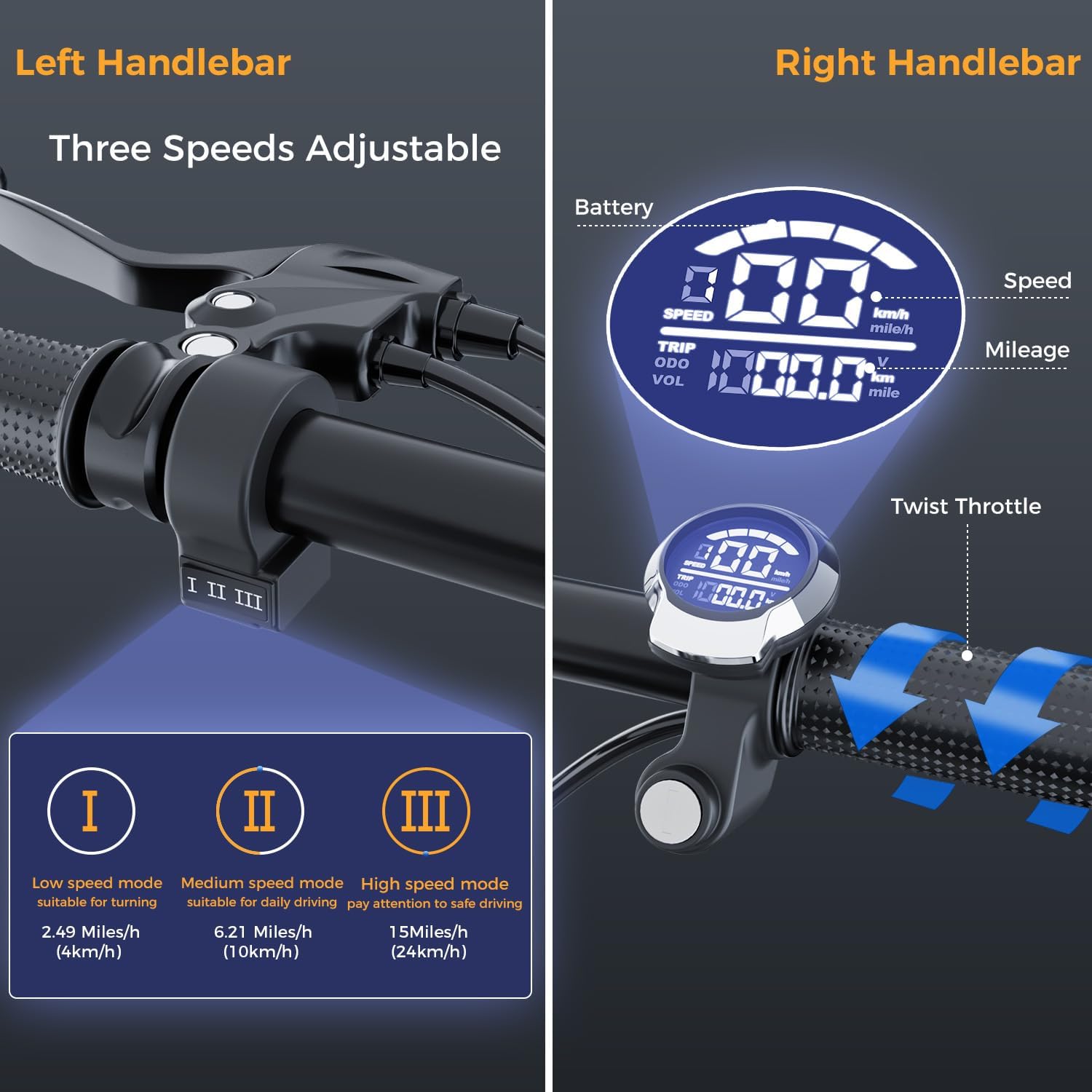

Figure 2.3: Handlebar Controls and Display

3. Persediaan dan Persediaan Awal

3.1 Membongkar

Keluarkan semua komponen dari pembungkusan dengan berhati-hati. Sahkan bahawa semua item yang disertakan ada:

• K7 Pro Escooter
• Escooter Keys
• Kunci Bateri
• Kotak Toolkit
• Pengecas
• Manual Pengguna (dokumen ini)

3.2 Perhimpunan

The K7PRO comes mostly pre-assembled but requires a few steps to prepare for use. Refer to the following steps and the folding diagram:

1. Unfold the Seat: Raise the seat to its upright position and ensure it locks securely.
2. Buka Bingkai: Release the folding buckle and extend the main frame until it locks into place.
3. Unfold the Handlebar: Push the handlebar buckle upward and raise the handlebar to its riding position, ensuring it clicks into place.
4. Laraskan Ketinggian Hendal: If adjustable, set the handlebar to a comfortable height for riding.

Figure 3.1: Easy Folding Mechanism

3.3 Caj Bateri Permulaan

Before first use, fully charge the scooter's battery. The charging time is approximately 4-5 hours.

• Cari port pengecasan pada skuter.
• Sambungkan pengecas ke port pengecasan skuter, kemudian palamkan pengecas ke soket dinding standard.
• Lampu penunjuk pengecas biasanya akan menunjukkan merah semasa mengecas dan bertukar hijau apabila dicas penuh.
• Jangan cas bateri secara berlebihan. Putuskan sambungan pengecas setelah pengecasan selesai.

4. Arahan Operasi

4.1 Menghidupkan/Mematikan

• Insert the key into the ignition and turn it to the 'ON' position to power on the scooter.
• To power off, turn the key to the 'OFF' position and remove it.

4.2 Mod Kelajuan

The K7PRO offers three speed modes, selectable via the button on the left handlebar:

• Mode I (Low Speed): Approximately 2 mph (4 km/h). Suitable for turning and navigating tight spaces.
• Mode II (Medium Speed): Approximately 6 mph (10 km/h). Ideal for daily driving.
• Mode III (High Speed): Approximately 15 mph (24 km/h). For maximum speed, pay attention to safe driving conditions.

4.3 Pecutan dan Brek

• Pecutan: Use the twist throttle on the right handlebar to control your speed. Twist it towards you to accelerate.
• Brek: The scooter is equipped with a front drum brake. Squeeze the brake lever on the handlebar to slow down or stop. Apply brakes smoothly to avoid sudden stops.

4.4 Reverse Function

The K7PRO features a reverse gear for easy maneuvering:

• To engage reverse, press the 'R' button on the control panel. The display will indicate reverse mode.
• Twist the throttle gently to move backward.
• To switch back to forward motion, press the 'D' button.

Figure 4.1: Rider on K7PRO Scooter

Video 4.1: Official demonstration of the K7PRO 3-Wheel Electric Scooter, showcasing its features and a rider in motion.

5. Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your K7PRO scooter.

5.1 Penjagaan Bateri

• Cas bateri secara berkala, walaupun tidak digunakan, untuk mengekalkan kesihatannya.
• Elakkan daripada menghabiskan bateri sepenuhnya sebelum mengecas semula.
• Simpan skuter di tempat yang sejuk dan kering apabila tidak digunakan, jauh daripada cahaya matahari langsung dan suhu yang melampau.

5.2 Penyelenggaraan Tayar

• Periksa tekanan tayar secara kerap dan tiup ke PSI yang disyorkan (rujuk dinding sisi tayar untuk butiran).
• Periksa tayar untuk haus, pancit atau kerosakan. Gantikan jika perlu.

5.3 Pembersihan

• Lap skuter dengan iklanamp kain. Jangan gunakan pancutan air tekanan tinggi atau rendam skuter di dalam air.
• Elakkan menggunakan pembersih atau pelarut yang kasar yang boleh merosakkan kemasan.

5.4 Pemeriksaan Brek

• Periodically check the brake lever for proper tension and responsiveness.
• Ensure the brake pads are not excessively worn. Consult a professional for brake adjustments or replacements if needed.

6. Penyelesaian masalah

This section addresses common issues you might encounter with your K7PRO scooter.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Tomofree customer support.

7. Spesifikasi

8. Waranti dan Sokongan

8.1 Maklumat Waranti

The Tomofree K7PRO electric scooter comes with a Waranti terhad 1 tahun from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

For warranty claims, please retain your proof of purchase.

8.2 Sokongan Pelanggan

For any questions, technical assistance, or warranty inquiries, please contact Tomofree customer support:

• e-mel: info@tomofree.com
• Phone (SMS Only): + 1- (910) -382-1273

When contacting support, please provide your order number and a detailed description of the issue.

Figure 8.1: Tomofree Customer Support Information
