pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Kohler Tellin Multifunction Handshower. Designed for versatility and durability, this handshower offers multiple spray experiences and features a convenient magnetic docking system. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- Mandian Tangan
- Dok Magnet
- 72" (1829 mm) Hose
- Pita Pengedap

Figure 1: Included components of the Kohler Tellin Multifunction Handshower package.
Persediaan dan Pemasangan
The Kohler Tellin Handshower is designed for simple, tool-free DIY installation. Follow these general steps:
- Remove your existing showerhead.
- Apply sealant tape (provided) to the threads of the shower arm.
- Screw the magnetic docking system onto the shower arm.
- Attach the 72-inch hose to the magnetic dock and the handshower.
- Ensure all connections are hand-tight and leak-free.
For detailed visual instructions, refer to the installation guide included in your product packaging.

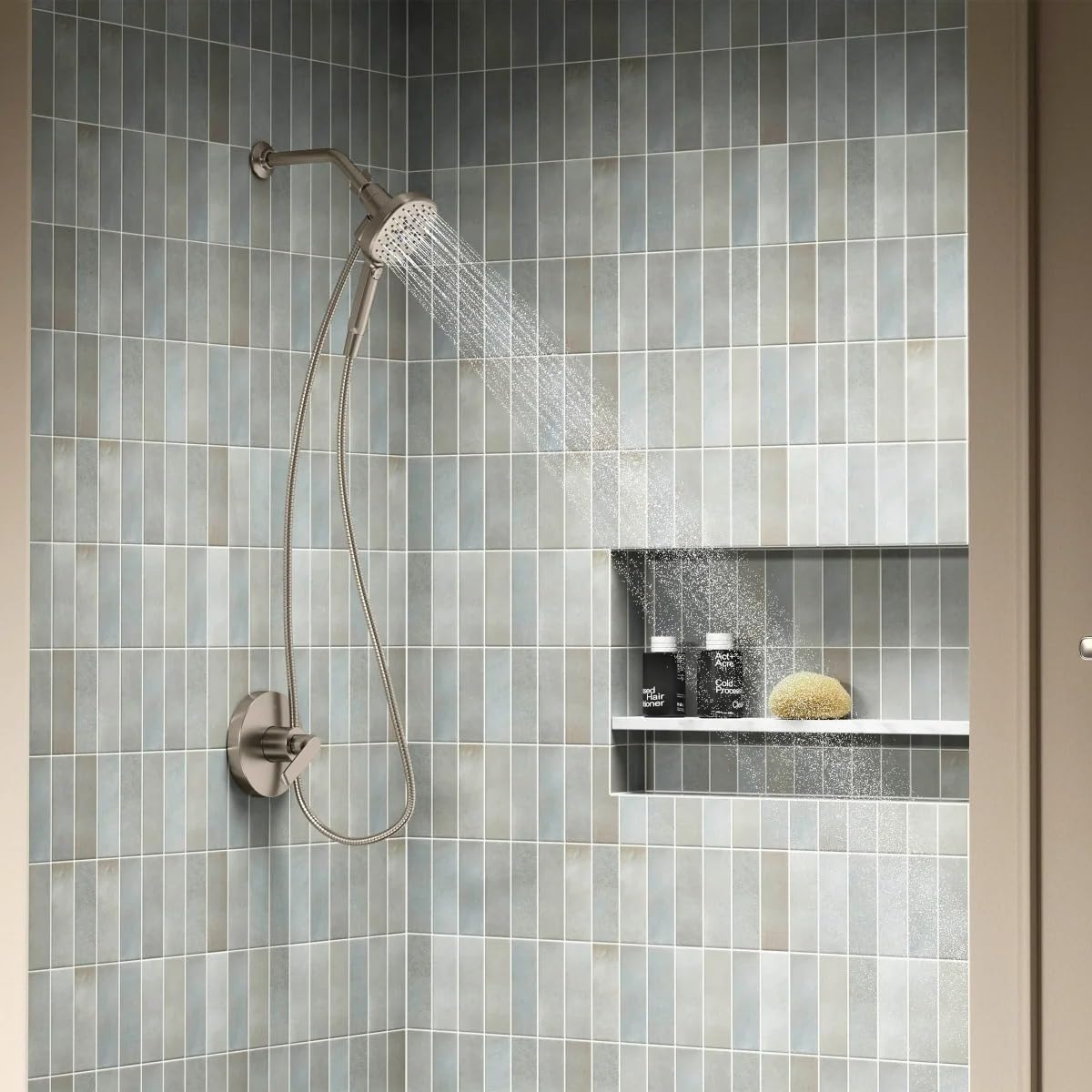

Figure 2: The Kohler Tellin Handshower installed, showing the magnetic dock and flexible hose.
Arahan Operasi
Your Tellin Multifunction Handshower offers five distinct spray experiences, easily selectable with a thumb button:
- Liputan Penuh: An encompassing spray for everyday rinsing.
- Powerful Massage: A focused, invigorating stream to target sore muscles.
- Intense Rinse: A forceful spray for thorough rinsing of soap from hair.
- Gentle Mist: A soft, superfine water droplet spray for a restorative experience.
- Ciri Jeda: Temporarily pauses water flow to conserve water while lathering, shaving, or shampooing.
To switch between spray modes, simply press the thumb button located on the handshower handle. The magnetic docking system allows for secure placement and easy retrieval of the handshower.

Figure 3: Activating spray modes using the thumb button on the handshower.

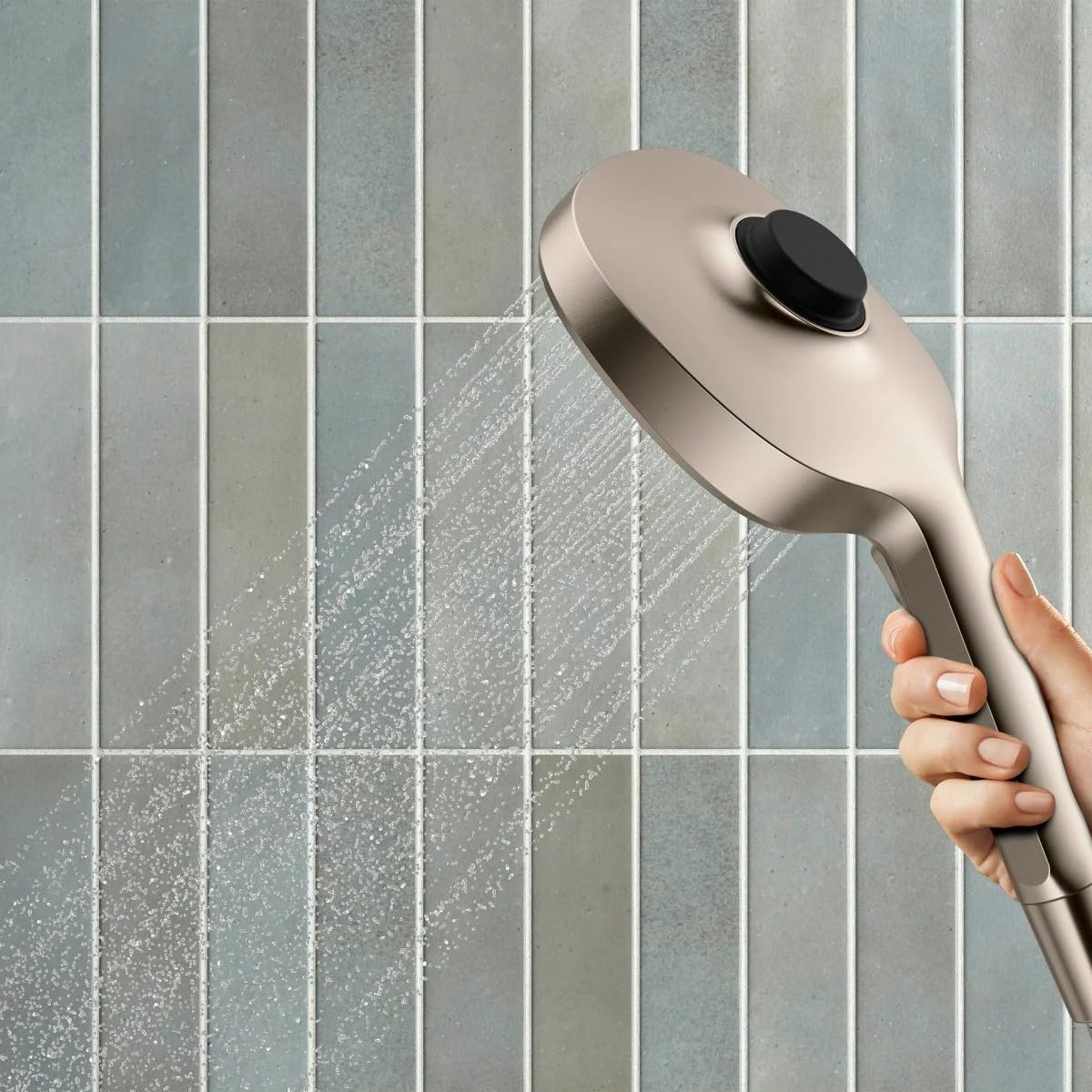

Figure 4: The handshower in operation, showcasing the water flow.
Penyelenggaraan
To maintain the appearance and performance of your Kohler Tellin Handshower:
- Pembersihan: The MasterClean sprayface is designed to resist mineral buildup. Simply wipe the sprayface with your finger or a soft cloth to remove any deposits.
- Selesaikan Penjagaan: The Brushed Nickel finish features ScratchShield technology for enhanced durability and Spot Repel to resist fingerprints, smudges, and water spots. Clean with a soft, damp cloth and avoid abrasive cleaners, solvents, or polishing agents, as these can damage the finish.
- Pemeriksaan hos: Periodically check the 72-inch hose for any signs of wear or damage. Replace if necessary.
Menyelesaikan masalah
If you experience issues with your handshower, consider the following common solutions:
- Tekanan Air Rendah: Ensure the main water supply is fully open. Check for any kinks in the hose. The handshower has a 1.75 gpm flow rate, which is standard for water efficiency.
- Sambungan Bocor: Tighten all connections by hand. If leaks persist, reapply sealant tape to the threads and reassemble.
- Pengumpulan Mineral: If spray nozzles are clogged, gently rub the MasterClean sprayface with your finger or a soft brush to dislodge mineral deposits.
If problems persist, contact Kohler customer support for assistance.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Kohler |
| Nombor Model | R34308-G |
| Gaya | moden |
| bentuk | bujur |
| bahan | Nikel Berus |
| Jenis Selesai | Disikat |
| Jenis Pemasangan | Dipasang di Dinding |
| warna | Nikel Berus |
| Dimensi Produk | 9.1" L x 4.13" W |
| Bilangan Tetapan | 5 |
| Kadar Aliran | 1.75 GPM (6.6 lpm) maximum at 80 psi (5.5 bar) |
| Panjang Hos | 72 Inci (1829 mm) |
| Berat Barang | 2.29 paun |
Waranti dan Sokongan
The Kohler Tellin Multifunction Handshower is backed by a Lifetime Limited Warranty, ensuring quality and performance. For warranty claims, technical support, or replacement parts, please visit the official Kohler website or contact their customer service department. Retain your proof of purchase for warranty validation.
Untuk maklumat lanjut, layari: www.kohler.com
