1. Pengenalan
This manual provides essential information for the safe and efficient operation of your Equator Compact RV-Marine-Offgrid Convertible Refrigerator-Freezer, Model RF 1216. Please read these instructions thoroughly before installation and use, and retain them for future reference. This appliance is designed for versatile use in various environments, including RVs, marine vessels, and off-grid homes.
Image 1.1: The Equator RF 1216 is suitable for various compact living spaces, including RVs, marine environments, tiny homes, and off-grid residences.
2. Maklumat Keselamatan
To prevent personal injury or property damage, observe all safety precautions. This section outlines critical safety guidelines.
Keselamatan Am
- Baca semua arahan sebelum menggunakan perkakas.
- Pastikan perkakas dibumikan dengan betul.
- Jangan simpan bahan letupan seperti tin aerosol dengan bahan dorong mudah terbakar di dalam perkakas ini.
- Pastikan bukaan pengudaraan bersih daripada halangan.
- Jangan gunakan peranti mekanikal atau cara lain untuk mempercepatkan proses penyahbekuan, selain daripada yang disyorkan oleh pengilang.
- Jangan rosakkan litar penyejuk.
- Jangan gunakan peralatan elektrik di dalam petak penyimpanan makanan perkakas, melainkan ia daripada jenis yang disyorkan oleh pengilang.
Keselamatan Elektrik
- This appliance operates on 12V DC and 110V AC. Ensure the correct power source is used.
- When connecting to 110V AC, the 14.5V AC/DC adapter (ACA 14110, sold separately) is required. Do not attempt to connect directly to 110V AC without this adapter.
- Lindungi kord kuasa daripada berjalan atau tersepit.
- Cabut plag perkakas sebelum membersihkan atau melakukan penyelenggaraan.
3. Produk Lebihview
The Equator RF 1216 is a compact, convertible refrigerator-freezer designed for flexibility and efficiency in small spaces. It features a 1.6 cubic feet capacity and can operate on both 12V DC and 110V AC power.
Ciri-ciri Utama:
- Reka Bentuk Boleh Tukar: Easily switch between refrigerator and freezer modes.
- Reka Bentuk Terbina Dalam: Space-saving and integrates seamlessly into cabinetry.
- Flush Mount & Recessed Handle: Provides a sleek, modern appearance.
- Removable Freezer and Shelf: Offers flexible interior storage configurations.
- Pintu Boleh Balik: Allows for left or right-hand opening to suit your space.
- Storan Dalaman: Includes a bottle holder, crisper drawer, and egg tray.
- Digital & Mechanical Controls: For precise temperature adjustments.
- Vol. Rendahtage Perlindungan: Safeguards the unit from power fluctuations.
- Operasi senyap: Beroperasi pada tahap hingar rendah iaitu 42 dB(A).
Imej 3.1: Depan view of the Equator RF 1216 appliance, showcasing its compact design and recessed handle.
Imej 3.2: Terperinci view of the interior compartments, highlighting the egg tray, bottle holder, and crisper drawer for organized storage.
Imej 3.3: Terbuka view of the refrigerator interior, demonstrating its capacity and organization with various items stored.
4. Persediaan dan Pemasangan
Proper installation is crucial for the performance and longevity of your appliance. This unit is designed for built-in installation.
Membongkar
- Remove all packaging materials, including tape and protective film.
- Periksa perkakas untuk sebarang kerosakan penghantaran. Laporkan sebarang kerosakan kepada peruncit anda dengan segera.
- Simpan bahan pembungkusan untuk pengangkutan pada masa hadapan jika perlu.
Lokasi dan Dimensi
Choose a location that is level, stable, and provides adequate ventilation. Ensure sufficient clearance around the unit for proper air circulation, especially at the rear.
Image 4.1: Key dimensions of the appliance, showing a height of 21 inches, depth of 19.3 inches, and width of 15 inches.
Image 4.2: A visual representation of the appliance's size in comparison to an average adult, indicating its compact footprint.
Sambungan elektrik
- The appliance can be powered by 12V DC or 110V AC.
- For 12V DC operation, connect directly to a compatible 12V power source.
- For 110V AC operation, you mesti use the Equator 14.5V AC/DC adapter (Model ACA 14110), which is sold separately. Connect the adapter to a standard 110-240V AC outlet, then connect the adapter's output to the appliance.
- Pastikan sumber kuasa memenuhi voltage keperluan perkakas.
Pemasangan Pintu Boleh Balik
The door hinges can be reversed to open from either the left or right side. Refer to the detailed diagrams in the included owner's manual for specific steps on reversing the door.
5. Arahan Operasi
Your Equator RF 1216 offers flexible temperature control and operating modes.
Panel Kawalan
The control panel is located inside the appliance and allows for digital and mechanical temperature adjustments and mode selection.
Image 5.1: The internal control panel with buttons for power, mode selection, and temperature adjustment, along with indicator lights.
Kawalan Suhu dan Mod
- Fungsi Boleh Tukar: The unit can operate as a refrigerator or a freezer. Use the control panel to select the desired function.
- Julat Suhu Peti sejuk: 41°F - 59°F (5°C - 15°C).
- Julat Suhu Penyejuk beku: -0.4°F (-18°C).
- Mod Penyejukan:
- Mod ECO: Energy-saving operation for general use.
- Mod Maks: Provides maximum cooling power.
- Mod Penyejukan Pantas: Quickly lowers the temperature to the set point.
- Adjust the temperature using the digital controls on the panel.
Vol. Rendahtage Perlindungan
The appliance is equipped with low voltage protection to prevent damage from power fluctuations, especially important in 12V DC applications. If the input voltage drops below a safe level, the unit may temporarily cease operation to protect its components.
6. Penyelenggaraan dan Penjagaan
Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat perkakas anda.
Pembersihan
- Sentiasa cabut plag perkakas sebelum membersihkan.
- Bersihkan bahagian dalam dengan kain lembut dampened with a mild detergent solution. Avoid abrasive cleaners or solvents.
- Lap bahagian luar dengan lembut, damp kain.
- Ensure the rear ventilation area is kept clean and free of dust or debris.
Menyahbeku
This appliance features automatic defrosting, minimizing the need for manual intervention. If ice buildup occurs, it will typically melt and drain automatically. For heavy ice buildup, manually defrost by unplugging the unit and allowing the ice to melt naturally. Remove the removable freezer compartment and shelf for easier cleaning and defrosting.

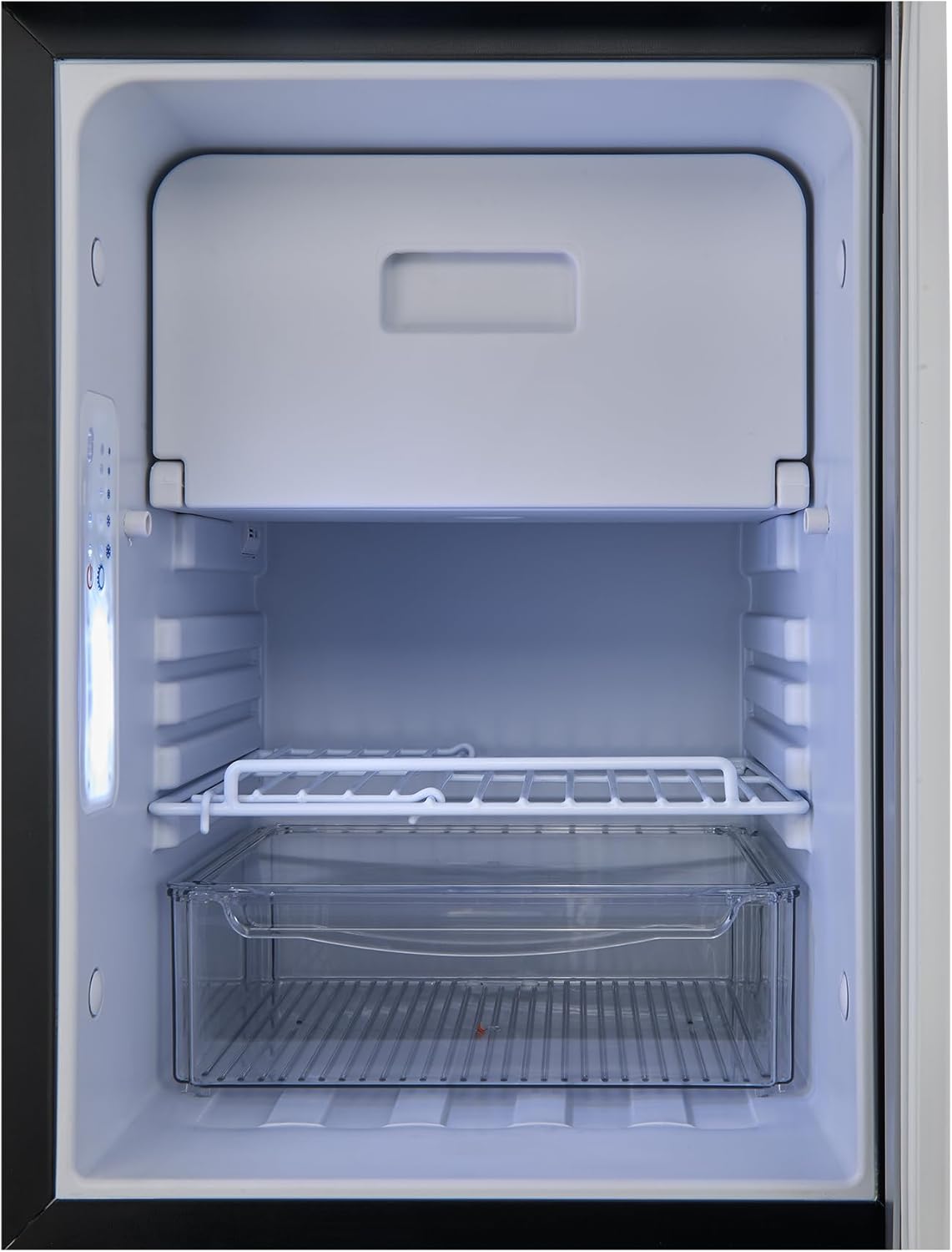

Image 6.1: The interior of the appliance, illustrating the removable freezer compartment and adjustable wire shelf for flexible storage and easy cleaning.
7. Penyelesaian masalah
If you encounter issues with your appliance, consult the following table for common problems and solutions. If the problem persists, contact customer support.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak dihidupkan | No power supply; Incorrect adapter for AC; Blown fuse/circuit breaker. | Check power connection. Ensure the 14.5V AC/DC adapter (ACA 14110, sold separately) is used for 110V AC. Check fuses/breakers. |
| Appliance is not cooling sufficiently | Temperature setting too high; Door not closed properly; Overloaded with warm items; Poor ventilation. | Adjust temperature setting. Ensure door is sealed. Allow space for air circulation. Clear ventilation openings. |
| Kebisingan yang berlebihan | Perkakas tidak aras; Barang-barang di dalam berderak; Bunyi pemampat (biasa). | Ensure appliance is on a level surface. Rearrange items. Compressor noise is normal during operation. |
| Air di lantai/dalam | Drainage hole blocked; Excessive humidity. | Clear the drainage hole. Ensure door is closed properly to minimize humidity entry. |
8. Spesifikasi
Detailed technical specifications for the Equator RF 1216.
| Ciri | Spesifikasi |
|---|---|
| Jenama | Khatulistiwa |
| Model | RF 1216 |
| Kapasiti | 1.6 Kaki Kubik |
| Kapasiti Makanan Segar Peti Sejuk | 1.4 Kaki Kubik |
| Kapasiti Penyejuk beku | 0.21 Kaki Kubik |
| Dimensi Produk (D x W x H) | 19.3 x 15 x 21 inci |
| Berat Barang | 32 paun |
| Jenis Pemasangan | Terbina Dalam |
| Voltage | 12V DC / 110V AC (with separate adapter) |
| Jenis Defrost | Automatik |
| Engsel Pintu | Boleh diterbalikkan |
| Jenis Bahan Pintu | Keluli Tahan Karat |
| warna | PERAK |
| Ciri Khas | Egg Tray, Interior Light, Reversible door, Crisper |
| Komponen yang Disertakan | Owner's manual, POWER CORD (AC/DC adapter ACA 14110 sold separately) |
9. Waranti dan Sokongan
For warranty information, please refer to the warranty card included with your product or visit the official Equator webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.
Sokongan Pelanggan
If you have questions, require technical assistance, or need to report a problem not covered in this manual, please contact Equator customer support. Contact details are typically provided in the owner's manual or on the manufacturer's webtapak.
