1. Produk Lebihview
The PURPLE LEAF 10' x 12' Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space. It features a galvanized steel double roof, a white aluminum frame, and includes curtains and netting for enhanced functionality.
Ciri-ciri Utama:
- Galvanized Steel Hardtop Roof: Rust-proof and sun-resistant, designed to withstand wind and snow loads.
- White Aluminum Frame: High-quality, white-coated aluminum frame with 3.9" thick posts for durable and stable support.
- Langsir dan Jaring: Equipped with 180G/M² PU fire-retardant curtains for sun blocking and black mesh netting for insect protection.
- Reka Bentuk Bumbung Dua Lapisan: Enhances ventilation and provides effective shade. The sloped roof facilitates rainwater drainage.
- Dimensi Luas: Measures 10'x12', offering ample room for patio furniture and outdoor entertaining.
- Cangkuk Bersepadu: Three hooks inside the gazebo support up to 20 lbs each for hanging lights or fans.

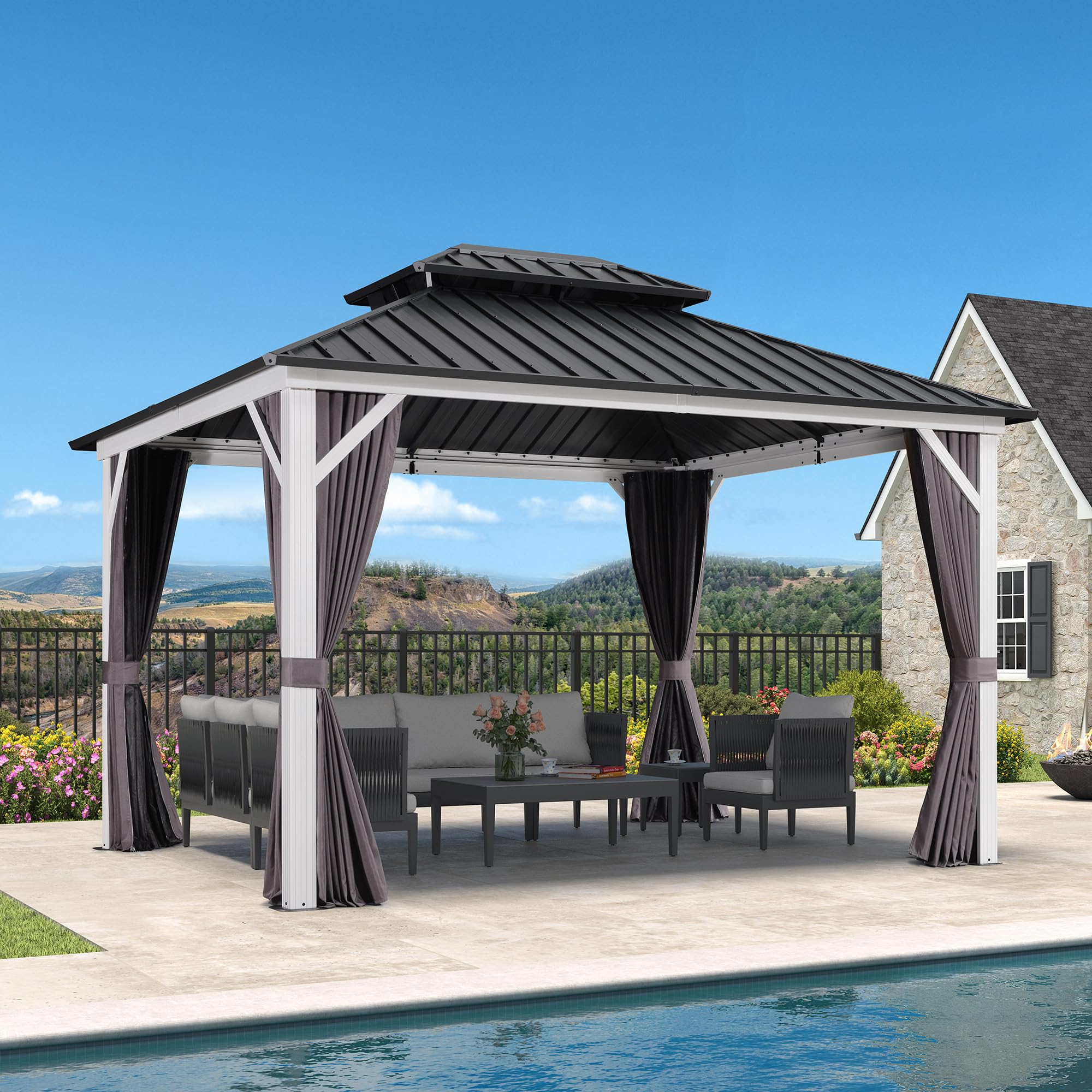

Image 1.1: The PURPLE LEAF 10' x 12' Hardtop Gazebo installed in an outdoor environment.
2. Maklumat Keselamatan
AMARAN: Always assemble and secure the gazebo to a stable foundation. Follow all assembly instructions carefully. Do not use in high winds or during severe weather conditions. Failure to follow these instructions may result in injury or damage to the product.
- Pastikan semua bahagian ada dan tidak rosak sebelum memulakan pemasangan.
- Use appropriate safety gear during assembly, such as gloves and eye protection.
- Assembly typically requires two or more people.
- Do not climb on the gazebo structure.
- Periksa gazebo secara berkala untuk sambungan yang longgar atau kerosakan.
3. Persediaan dan Pemasangan
Detailed step-by-step assembly instructions are provided in the separate assembly manual included with your product. Please refer to that manual for specific diagrams and hardware identification.
Petua Perhimpunan Agung:
- Lay out all components and organize hardware before starting. Many parts are labeled with alphabetical stickers, and hardware bags are numbered.
- Ensure you have a level and stable surface for assembly.
- The roof framing assembly may require at least three people and multiple ladders for safety and ease.
- A powered screwdriver is highly recommended for efficiency.
- Do not overtighten screws during initial assembly; tighten fully once sections are aligned.
Video Perhimpunan:
Video 3.1: Assembly guide for the PURPLE LEAF 10' x 12' Gazebo. This video demonstrates the general assembly process.
Image 3.2: Gazebo Dimensions. Refer to this diagram for overall measurements.
4. Arahan Operasi
Langsir dan Jaring:
The gazebo is equipped with both privacy curtains and insect netting. These can be operated independently to suit your needs.
- Fully Open: Tie back both curtains and netting to enjoy an optimal outdoor view and maximum airflow.
- Semi-Open: Close the netting to keep insects out while allowing air circulation. Tie back the curtains for partial privacy or shade.
- Fully Closed: Close both the curtains and netting for complete privacy, sun protection, and wind reduction.
Image 4.1: Multiple Modes of the Gazebo, illustrating open, semi-open, and closed configurations.
Cangkuk Gantung:
The three integrated hooks on the ceiling can be used to hang decorative items, fans, or lights. Each hook has a maximum weight capacity of 20 lbs.
Image 4.2: Three hanging hooks for accessories.
Optional Lighting (if applicable):
If your gazebo model includes integrated lighting, ensure it is properly connected to a power source as per the separate electrical instructions. Operate the lights using the designated switch or remote control.
Video 4.3: Demonstration of the PURPLE LEAF 10' x 12' Hardtop Gazebo with Lights, showcasing ciri-cirinya.
5. Penyelenggaraan
Penyelenggaraan yang kerap akan memanjangkan hayat dan penampilan gazebo anda.
- Membersihkan Bingkai: Wipe the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
- Membersihkan Bumbung: Periodically clean the galvanized steel roof to remove leaves, debris, and dirt. Use a soft brush or cloth and water.
- Langsir dan Jaring: Curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.
- Pemeriksaan Perkakasan: Annually check all bolts and screws to ensure they are tight. Re-tighten as necessary.
- Penjagaan Musim Sejuk: In areas with heavy snow, it is recommended to remove accumulated snow from the roof to prevent structural damage. Consider disassembling and storing the curtains and netting indoors during winter months.
6. Penyelesaian masalah
Bahagian ini menangani isu biasa yang mungkin anda hadapi dengan gazebo anda.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Pengumpulan air di atas bumbung | Debris blocking drainage, or improper roof panel installation. | Clear any debris from the roof and drainage channels. Verify roof panels are correctly installed and sealed according to the assembly manual. |
| Gazebo terasa tidak stabil | Loose connections, uneven ground, or inadequate anchoring. | Check and tighten all bolts and screws. Ensure the gazebo is installed on a level surface. Use appropriate anchoring hardware (not always included) to secure the gazebo to the ground. |
| Curtains/Netting do not slide smoothly | Dirt or debris in the tracks, or damaged runners. | Clean the curtain and netting tracks. Inspect runners for damage and replace if necessary. |
| Bahagian yang hilang semasa pemasangan | Ralat pembungkusan atau hilang semasa membuka bungkusan. | Carefully check all packaging materials. Contact PURPLE LEAF customer support with the part number from the assembly manual for assistance. |
7. Spesifikasi
- Jenama: DAUN UNGU
- model: 10' x 12' Standard Size
- Dimensi Produk: 142.87"L x 117.24"W x 113.03"H
- Bahan Bingkai: Aluminum (3.9" Width Post)
- Bahan Bumbung: Keluli tergalvani
- warna: Kelabu
- Tahap Rintangan Air: Kalis air
- Perlindungan Cahaya Ultraungu: Tahan UV
- Luas Lantai: 120 Kaki Persegi
- Perhimpunan Diperlukan: ya
8. Waranti dan Sokongan
For warranty information, please refer to the warranty card included with your product or visit the official PURPLE LEAF website. If you require assistance with assembly, missing parts, or have any questions regarding your gazebo, please contact PURPLE LEAF customer support.
Sokongan Pelanggan: Rujuk dokumentasi pembelian anda atau dokumen pengilang webtapak untuk maklumat hubungan terkini.
