Amewi Apache AH-64D CP RC Helicopter User Manual

1. Amaran Keselamatan

Perhatian: This product is not suitable for individuals under 16 years of age. Use only under the direct supervision of an adult.

• Always operate the helicopter in open areas, away from people, animals, buildings, and power lines.
• Ensure the battery is fully charged and properly installed before each flight.
• Jangan terbang dalam keadaan angin kencang atau keadaan cuaca buruk.
• Jauhkan jari, rambut dan pakaian longgar daripada bahagian yang berputar.
• Read and understand all instructions before operating the helicopter.
• The electronic fence feature prevents the model from flying too close to the pilot. Respect this safety boundary.
• In case of control error, the automatic stabilization system will assist. However, always maintain control.

2. Produk Lebihview

The Amewi Apache AH-64D is a 1:32 scale replica RC helicopter featuring advanced flight stabilization, GPS positioning, and 6G/3D flight capabilities. It is designed for both beginners and experienced pilots, offering stable flight modes and advanced acrobatic options.

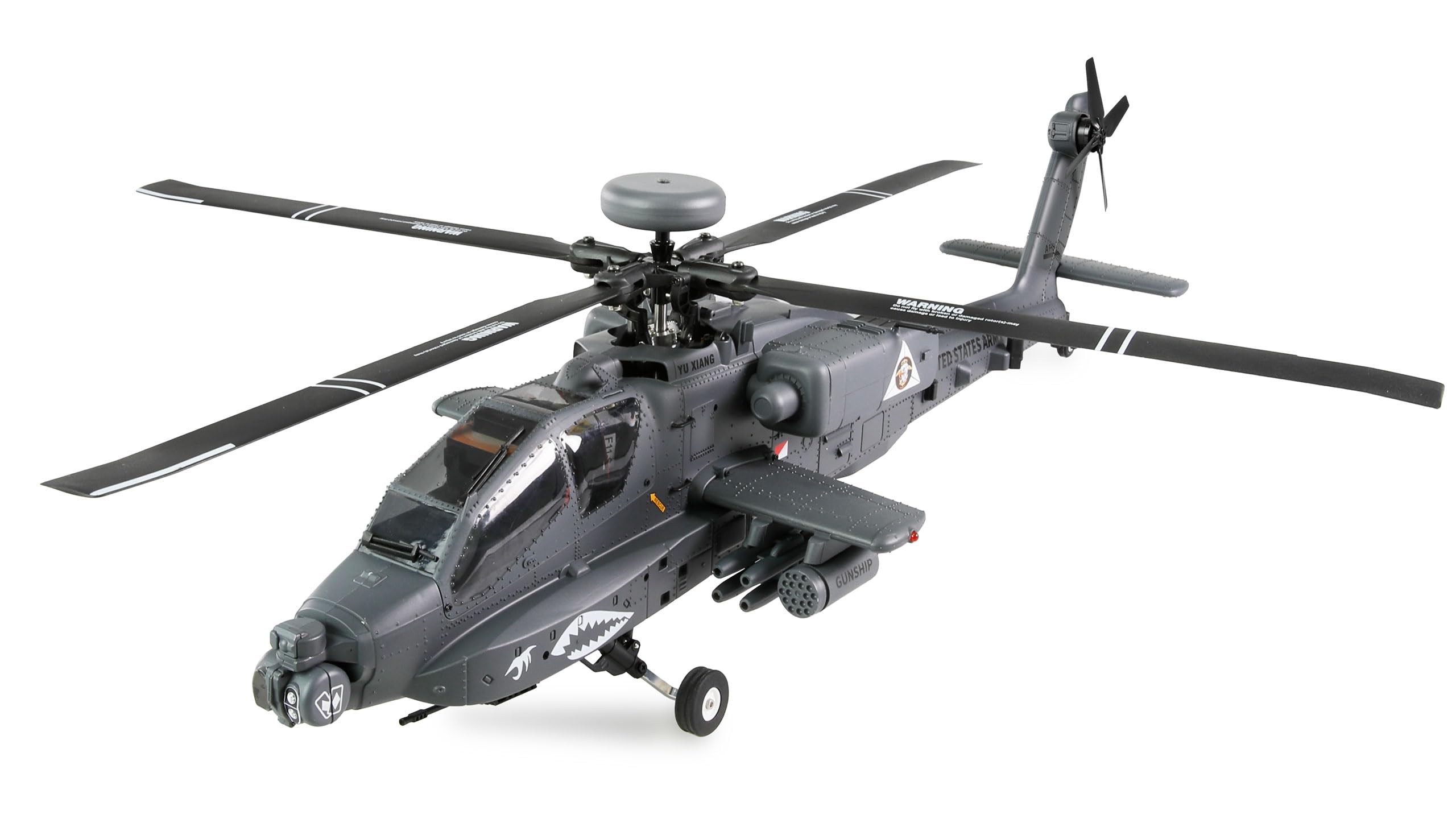

Image: The Amewi Apache AH-64D RC Helicopter with its remote control, showcasing the detailed replica design.

Ciri-ciri Utama:

• Geomagnetic GPS Positioning System: Enables stable flight, automatic take-off, return-to-home, and auto-landing functions.
• Optical Flow Sensor System: Provides smooth and controlled flight experience for all skill levels.
• Advanced Stabilization System: Significantly improves flight characteristics across all axes, enhancing safety and ease of use.
• Scale Appearance: Detailed replica with all mounting elements, chassis, and paint scheme matching the original Apache AH-64D.
• High-Efficiency Rotor System: 4-blade main and tail rotors, designed for optimal performance.
• Programmable 8-Channel 2.4 GHz Remote Control: Features bidirectional communication and real-time telemetry data display.

3. Kandungan Pakej

The Amewi Apache AH-64D CP RC Helicopter comes as a Ready-To-Fly (RTF) kit, including all necessary components for immediate operation, neatly packed in an aluminum carrying case.

Image: All components of the Amewi Apache AH-64D CP RC Helicopter kit, including the helicopter, remote control, battery, charger, and accessories, stored in the aluminum case.

Termasuk dalam Kotak:

• Amewi Apache AH-64D CP RC Helicopter Model
• 8-Channel 2.4 GHz Telemetry Remote Control
• LiPo 3S 11.1V 1800mAh 30C Battery
• 2-4S 220V Balance Charger with LiPo Charger
• Assembly Parts / Spare Blades
• User Manual (DE/EN)
• Sarung Pembawa Aluminium

Diperlukan (Tidak Termasuk):

• 4 x 1.5V AA batteries for the remote control

4. Persediaan

4.1. Mengecas Bateri Penerbangan

Before first use, fully charge the LiPo 3S 11.1V 1800mAh battery. The included balance charger ensures safe and efficient charging.

1. Connect the balance charger to a 220V power outlet.
2. Connect the LiPo battery's balance plug to the corresponding port on the charger.
3. The charging process will begin automatically. Charging time is approximately 90 minutes.
4. Once charging is complete, disconnect the battery from the charger and the charger from the power outlet.

Image: The LiPo 3S 11.1V 1800mAh flight battery for the helicopter.

Image: The 2-4S 220V balance charger and voltage pengesan.

4.2. Memasang Bateri Pemancar

Insert 4 x 1.5V AA batteries into the remote control. Ensure correct polarity.

Image: The 8-channel 2.4 GHz telemetry remote control.

4.3. Initial Setup and Binding

Refer to the detailed instructions in the included DE/EN manual for initial binding procedures and transmitter mode configuration (Mode 1 or Mode 2).

5. Arahan Operasi

The Amewi Apache AH-64D offers various flight modes and intelligent functions to enhance your flying experience.

5.1. Mod Penerbangan

• GPS Intelligent Mode: Provides stable flight characteristics, ideal for beginners and precise maneuvers. Utilizes geomagnetic GPS positioning for enhanced stability.
• Manual Mode (3D): For experienced pilots, allowing demanding 3D maneuvers and acrobatic flights.

5.2. Automatic Flight Functions

Leverage the GPS system for automated flight assistance:

• Berlepas Automatik: Initiates a smooth, controlled ascent.
• Return Home and Landing: The helicopter automatically returns to its starting point and lands safely. This function is also activated automatically if the battery reaches its capacity limit.
• Penerbangan Pekeliling: Perform automated circular flight patterns with a single button press.
• Figure-Eight Flight: Execute automated figure-eight flight patterns with a single button press.

Imej: Sisi view of the Amewi Apache AH-64D RC Helicopter, illustrating its scale design.

5.3. Telemetry Data

The 2.4 GHz remote control provides real-time telemetry data, including GPS signal strength, power levels, orientation, altitude, speed, and battery level. Monitor these parameters during flight for optimal control and safety.

6. Penyelenggaraan

6.1. Penjagaan Am

• Keep the helicopter clean and free from dust and debris.
• Inspect rotors, landing gear, and fuselage for any damage before and after each flight.
• Store the helicopter and components in the provided aluminum case to prevent damage.

6.2. Penjagaan Bateri

• Always use the recommended charger for the LiPo battery.
• Jangan cas berlebihan atau nyahcas bateri secara mendalam.
• Store LiPo batteries in a cool, dry place, away from direct sunlight and flammable materials.
• If the battery swells or shows signs of damage, discontinue use immediately and dispose of it properly.

7. Penyelesaian masalah

• Helicopter does not respond to controls:
  • Ensure both helicopter and remote control are powered on.
  • Check if the remote control batteries are charged and correctly installed.
  • Verify that the helicopter battery is fully charged and properly connected.
  • Re-bind the helicopter to the remote control as per the main manual.
• Helicopter drifts during flight:
  • Perform a calibration of the gyroscope/accelerometer as described in the main manual.
  • Ensure you are flying in GPS Intelligent Mode for maximum stability.
  • Avoid flying in windy conditions.
• Automatic Return Home/Landing not working:
  • Ensure a strong GPS signal is acquired before initiating the function.
  • Check battery level; the function may activate automatically at low battery.
• Masa penerbangan yang singkat:
  • Pastikan bateri terisi penuh sebelum setiap penerbangan.
  • Check for any obstructions or damage to rotors that might increase power consumption.
  • LiPo batteries have a limited number of charge cycles; consider replacing an old battery.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information and technical support, please refer to the documentation included with your product or visit the official Amewi webtapak. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.

Spare parts availability information is not directly provided in the product details. Please contact Amewi customer service for inquiries regarding spare parts.
