Manual Pengguna Bekalan Kuasa FSP VITA GM 850W

1. Pengenalan

The FSP VITA GM 850W Power Supply is designed to provide stable and efficient power for your computer system. Featuring 80 PLUS Gold certification, a fully modular design, and advanced protection features, it is suitable for a wide range of applications, including gaming and professional workstations. This manual provides essential information for the proper installation, operation, and maintenance of your power supply unit.

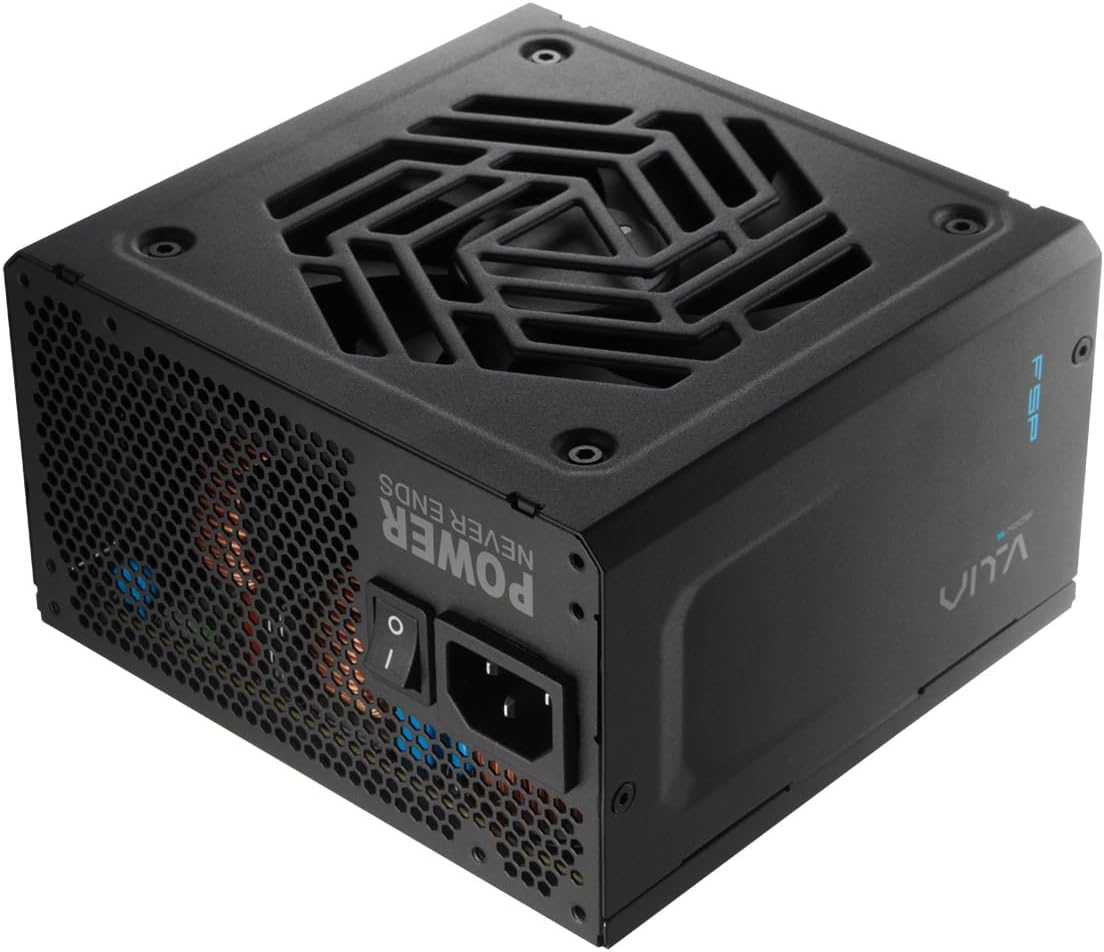

Imej 1.1: Atas-bawah view of the FSP VITA GM 850W Power Supply, showcasing its compact design and fan grill.

2. Maklumat Keselamatan

Please read and understand all safety instructions before installing or operating the power supply. Failure to do so may result in personal injury or damage to your equipment.

• Jangan buka bekalan kuasa casing. Vol tinggitages are present inside, even when the unit is unplugged. There are no user-serviceable parts inside. Opening the casing will void the warranty.
• Pasang bekalan kuasa di kawasan yang mempunyai pengudaraan yang baik, jauh dari sumber haba, cahaya matahari langsung dan kelembapan.
• Pastikan bekalan kuasa disambungkan ke salur keluar elektrik yang dibumikan.
• Use only the modular cables provided with this power supply. Using incompatible cables may cause damage to the PSU and connected components.
• Before installation or maintenance, always disconnect the AC power cord from the wall outlet.
• Avoid placing objects on top of the power supply or blocking its ventilation openings.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• FSP VITA GM 850W Power Supply Unit
• Modular Cable Set (including 12V-2x6 PCIe cable)
• Kord Kuasa AC
• Skru Pemasangan
• Manual Pengguna (dokumen ini)

4. Produk Lebihview

The FSP VITA GM 850W features a fully modular design, allowing for clean cable management and improved airflow within your PC case. Key components include the main power unit, a 120mm hydraulic bearing fan for cooling, and various modular connectors for system components.

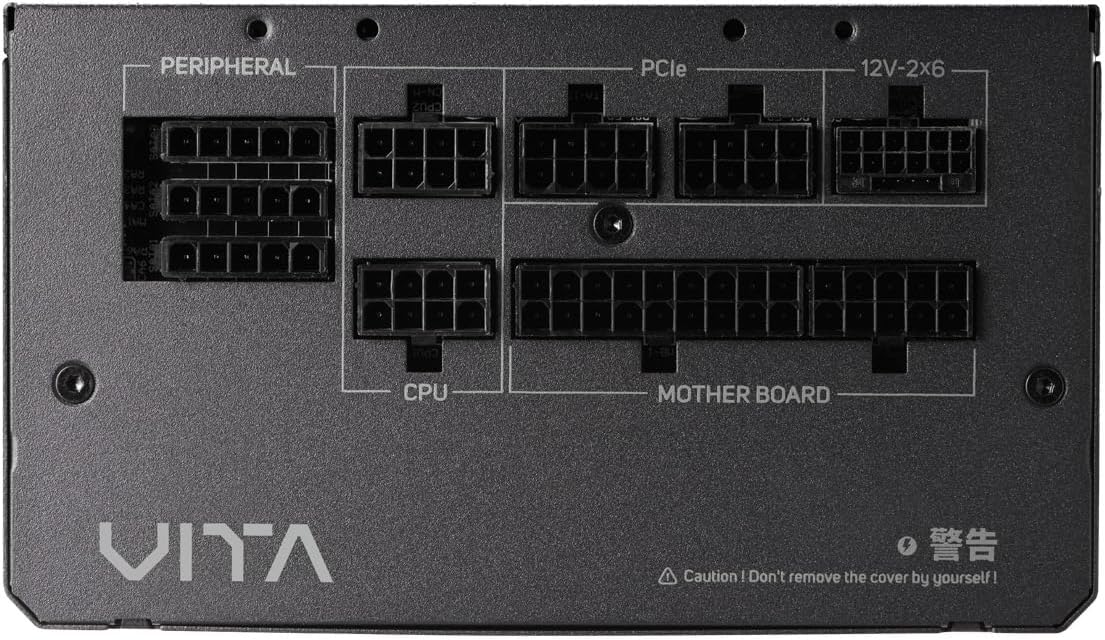

Imej 4.1: Jarak dekat view of the modular connector panel on the FSP VITA GM 850W Power Supply, showing labeled ports for Motherboard, CPU, PCIe, Peripheral, and 12V-2x6.

4.1. Modular Connectors

The power supply features clearly labeled ports for connecting various components:

• Papan induk: Main 24-pin ATX connector.
• CPU: 8-pin (4+4 pin) EPS connectors for CPU power.
• PCIe: 8-pin (6+2 pin) connectors for graphics cards.
• 12V-2x6: Dedicated 12V-2x6 connector for high-power PCIe 5.1 graphics cards.
• Persisian: Connectors for SATA and Molex devices.

Imej 4.2: Belakang view of the FSP VITA GM 850W Power Supply, showing the AC power inlet, power switch, and ventilation grille.

5. Persediaan dan Pemasangan

Follow these steps to properly install your FSP VITA GM 850W Power Supply into your computer system.

5.1. Pemasangan Fizikal

1. Pastikan komputer anda dimatikan dan dicabut daripada soket dinding.
2. Buka bekas komputer anda untuk mengakses kawasan pelekap bekalan kuasa.
3. Carefully place the FSP VITA GM 850W Power Supply into the designated bay, ensuring the fan faces the correct direction for optimal airflow (typically facing downwards if there's a bottom vent, or inwards if mounted at the top).
4. Selamatkan bekalan kuasa ke bekas menggunakan skru pelekap yang disediakan.

5.2. Sambungan Kabel

Connect the necessary modular cables to your power supply and system components. Only connect the cables you need to minimize clutter and improve airflow.

Image 5.1: Diagram illustrating the various modular cables included with the FSP VITA GM 850W Power Supply, including Motherboard, CPU, PCIe 6+2 Pin, PCIe 12V-2x6, SATA, and SATA/Molex cables, along with their approximate lengths in millimeters.

1. Connect the 24-pin ATX cable from the power supply to the motherboard.
2. Connect the 8-pin (4+4 pin) EPS cable(s) from the power supply to the CPU power connector(s) on the motherboard.
3. For graphics cards, connect the appropriate 8-pin (6+2 pin) PCIe cables or the 12V-2x6 cable (for compatible PCIe 5.1 GPUs) from the power supply to the graphics card(s).
4. Connect SATA power cables to your storage drives (HDDs, SSDs) and other SATA-powered devices.
5. Connect Molex cables to any peripheral devices that require them.
6. Ensure all cable connections are secure and properly seated.
7. Tutup casing komputer anda.
8. Sambungkan kord kuasa AC ke bekalan kuasa dan kemudian ke alur keluar dinding yang dibumikan.

6. Arahan Operasi

Once installed, operating your FSP VITA GM 850W Power Supply is straightforward.

6.1. Menghidupkan/Mematikan

1. Ensure the power switch on the rear of the power supply is in the 'ON' (I) position.
2. Tekan butang kuasa pada sarung komputer anda untuk memulakan sistem.
3. To power off, shut down your operating system normally. For complete power disconnection, switch the power supply to the 'OFF' (O) position and unplug the AC cord.

6.2. Efficiency and Fan Operation

The VITA GM 850W is 80 PLUS Gold certified, meaning it operates with over 90% efficiency at typical loads. This reduces wasted energy, heat generation, and noise. The integrated 120mm HYB fan is designed for quiet and efficient cooling, adjusting its speed based on the power supply's temperature and load to maintain optimal performance and acoustics.

Image 6.1: Graph illustrating the fan speed (RPM) and acoustic noise (dBA) of the 120mm HYB fan in the FSP VITA GM 850W Power Supply across different load percentages, demonstrating quiet operation at lower loads.

7. Penyelenggaraan

Penyelenggaraan yang betul memastikan ketahanan dan prestasi optimum bekalan kuasa anda.

• Pembersihan: Periodically clean the exterior of the power supply and its fan grille to prevent dust buildup. Use a soft, dry cloth or compressed air. Ensure the power supply is unplugged before cleaning.
• Aliran udara: Ensure that the power supply's intake and exhaust vents are not obstructed. Good airflow is crucial for efficient cooling.
• Pengurusan Kabel: Maintain tidy cable management within your PC case to promote better airflow and prevent cables from interfering with the power supply fan.

8. Penyelesaian masalah

If you encounter issues with your FSP VITA GM 850W Power Supply, refer to the following common problems and solutions.

8.1. Isu Biasa

• Tiada Kuasa:
  • Periksa sama ada kord kuasa AC disambungkan dengan selamat ke kedua-dua bekalan kuasa dan alur keluar dinding.
  • Ensure the power switch on the PSU is in the 'ON' (I) position.
  • Sahkan bahawa alur keluar dinding berfungsi dengan memasang peranti lain.
  • Check all modular cable connections to the motherboard and components.
• Ketidakstabilan Sistem/Penutupan Rawak:
  • This could indicate an overloaded system or a component issue. Ensure your system's power requirements do not exceed 850W.
  • Check for proper ventilation and ensure the power supply fan is spinning. Overheating can trigger protection mechanisms.
  • Verify all cable connections are secure.
• Bunyi Kipas Kuat:
  • Ensure the power supply's fan intake/exhaust is not obstructed.
  • Clean any dust buildup on the fan blades or grille.
  • High system load will naturally increase fan speed. If noise is excessive at low loads, contact support.

8.2. Ciri-ciri Perlindungan

The FSP VITA GM 850W Power Supply includes several protection features to safeguard your system:

• OVP (Overvoltage Perlindungan): Shuts down the PSU if output voltages exceed a safe level.
• OCP (Perlindungan Arus Lebihan): Shuts down the PSU if current on a single rail exceeds a safe level.
• OPP (Overpower Protection): Shuts down the PSU if the total power draw exceeds its maximum wattage.
• UVP (Undervoltage Perlindungan): Shuts down the PSU if output voltages drop below a safe level.
• SCP (Perlindungan Litar Pintas): Shuts down the PSU in case of a short circuit on any output rail.
• OTP (Overtemperature Protection): Shuts down the PSU if internal temperatures become too high.

Image 8.1: Diagram illustrating the comprehensive protection features of the FSP VITA GM 850W Power Supply, including OVP, OCP, OPP, NLO, OTP, SCP, UVP, and SIP.

If any of these protections are triggered, the power supply will shut down. Disconnect the AC power, check your system for faults, and then reconnect power to attempt a restart.

9. Spesifikasi

Detailed technical specifications for the FSP VITA GM 850W Power Supply:

10. Waranti

The FSP VITA GM 850W Power Supply comes with a Waranti 10 tahun from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair, or modification.

11. Sokongan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official FSP website or contact FSP customer support. You can often find FAQs, driver downloads, and contact information on the manufacturer's support pages.
