KEMMIMOTO UTV Cargo Box Instruction Manual

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your KEMMIMOTO UTV Cargo Box. This cargo box is designed to provide additional storage for Can-Am Maverick R models from 2024 to 2025. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Maklumat Keselamatan

• Always ensure the cargo box is securely mounted to the UTV before operation.
• Do not exceed the weight capacity of the cargo box or your UTV's rear rack.
• Distribute weight evenly within the cargo box to maintain vehicle stability.
• Regularly inspect all mounting hardware for tightness and wear.
• Keep the cargo box closed and latched during UTV operation to prevent contents from falling out.
• Avoid placing sharp or abrasive objects directly against the interior fabric without protection.

3. Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• KEMMIMOTO UTV Cargo Box (Main Unit)
• Insulated Cooler Bag
• Internal Support Plates/Dividers
• Mounting Straps and Hardware

This image displays the KEMMIMOTO UTV Cargo Box, a three-compartment soft-shell storage unit, alongside a separate insulated cooler bag. The cargo box features external pockets and securing straps.

4. Persediaan dan Pemasangan

Follow these steps to install the KEMMIMOTO UTV Cargo Box on your Can-Am Maverick R:

1. Prepare the Cargo Box: Unfold the cargo box and insert the internal support plates into their designated slots to give the box its rigid structure. Ensure all dividers are correctly positioned if you wish to compartmentalize the storage space.

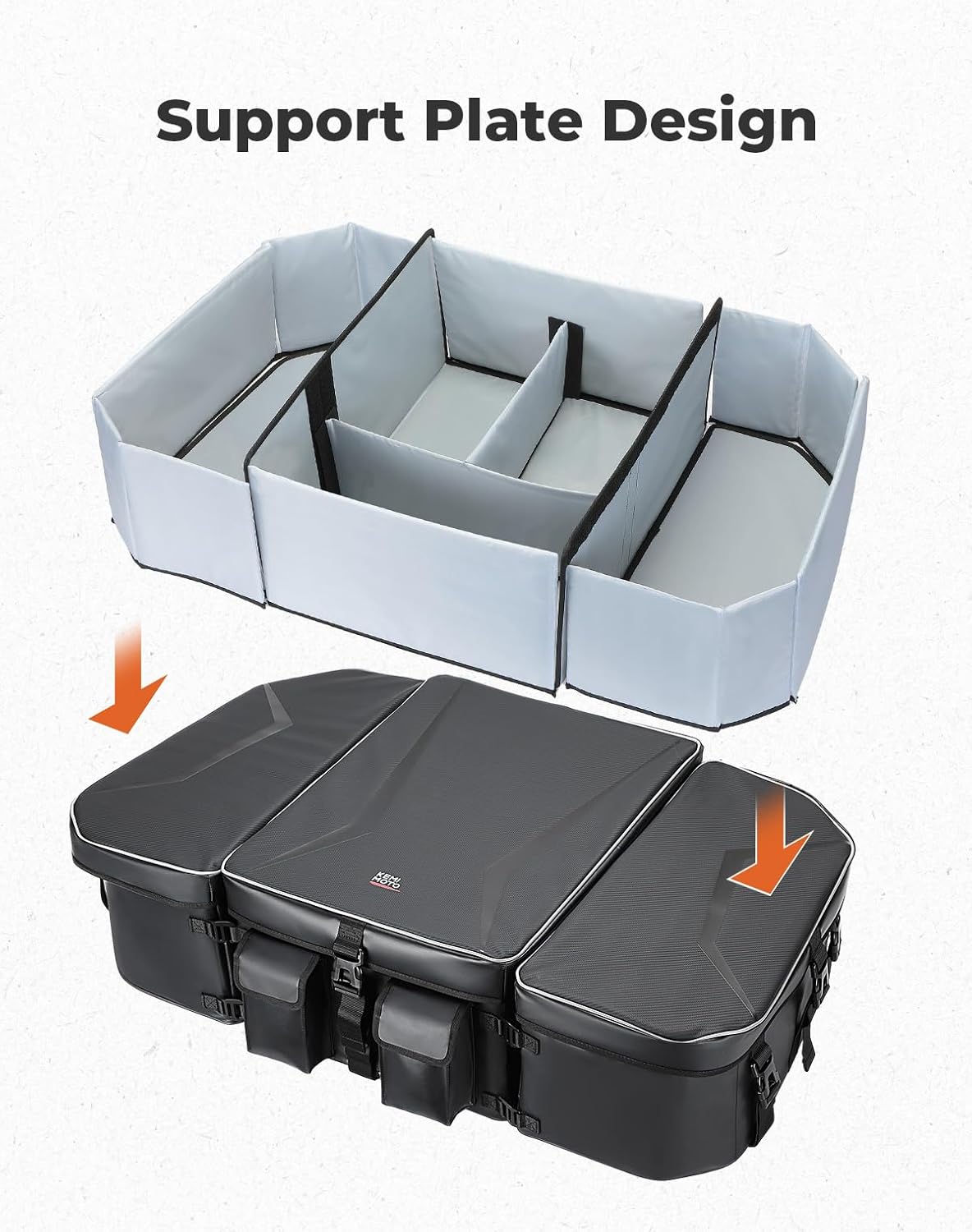

This image shows the internal support plate design, which provides structural integrity and allows for internal organization within the cargo box. The plates are inserted into the soft-shell structure.

2. Position on UTV: Place the assembled cargo box onto the rear rack of your Can-Am Maverick R. Ensure it is centered and does not obstruct any essential vehicle functions or lights.
3. Selamat dengan Tali: Utilize the provided mounting straps. Thread the straps through the designated loops on the cargo box and secure them to the UTV's rear rack attachment points. Pull all straps tightly to eliminate any movement of the cargo box. Double-check all connections.
4. Semakan Akhir: Gently attempt to move the cargo box by hand to confirm it is firmly attached and does not shift.

This image shows the KEMMIMOTO UTV Cargo Box securely mounted on the rear rack of a Can-Am Maverick R, illustrating its fitment and appearance when installed.

5. Arahan Operasi

The KEMMIMOTO UTV Cargo Box offers versatile storage for your adventures:

• Main Storage Compartments: The cargo box features multiple compartments for organizing gear. The total volume is approximately 125 liters (33 gallons).


This image illustrates the internal dimensions and overall capacity of the UTV cargo box. It highlights the main compartment's depth and width, indicating a total volume of 125 liters (33 gallons).

• Cooler Bag Use: The included insulated cooler bag can be placed within one of the cargo box compartments or used separately. It has a capacity of 16 liters (4.2 gallons), capable of holding approximately twenty-seven 355 ml cans.

This image focuses on the included cooler bag, demonstrating its capacity to hold approximately twenty-seven 355 ml cans. The cooler bag has a 16-liter (4.2-gallon) capacity.
• Dust-proof and Water-resistant Cover: The cargo box is designed with a dust-proof and water-resistant cover to protect your belongings from elements like rain and dust. Ensure all zippers and flaps are properly closed for maximum protection.

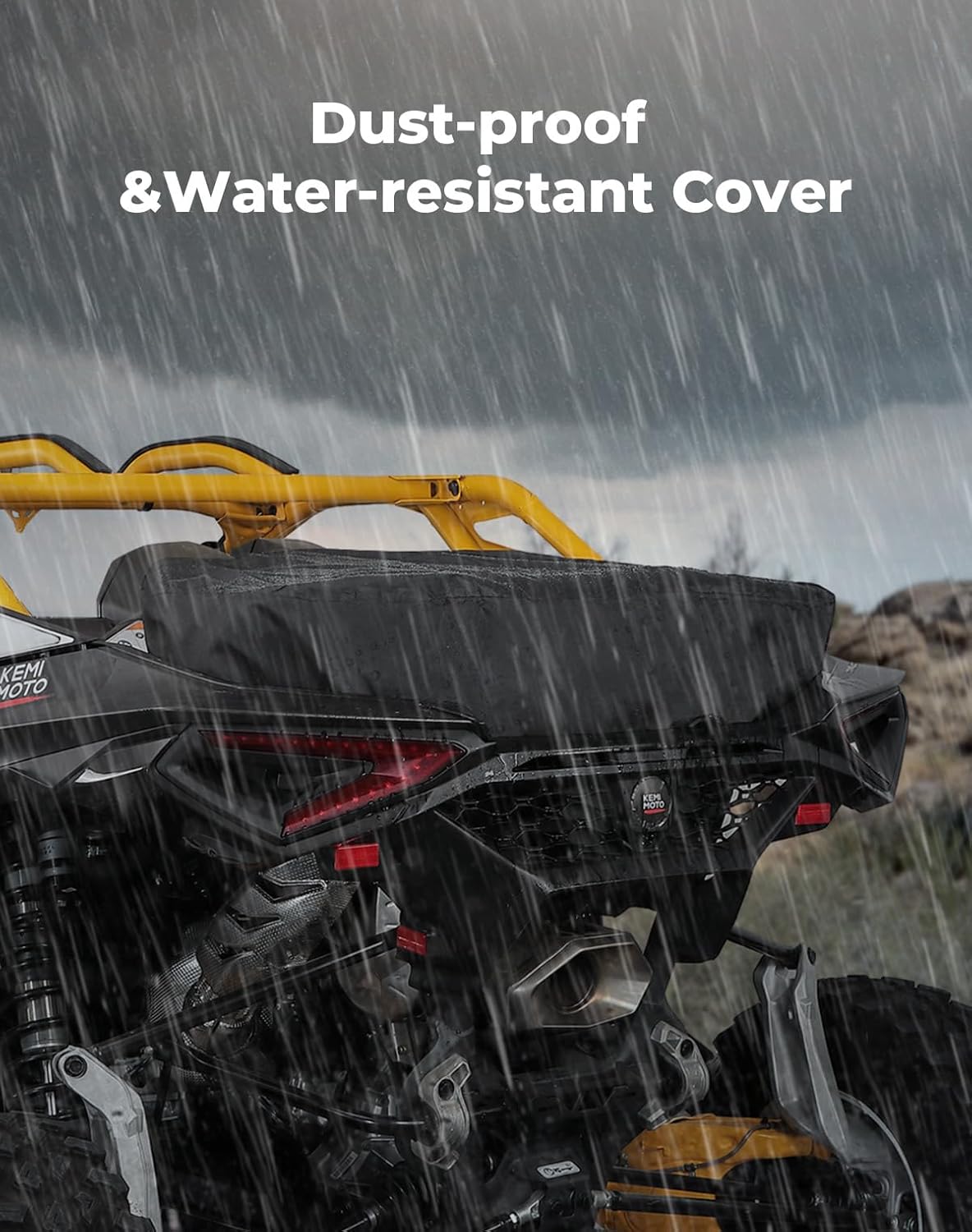

This image demonstrates the dust-proof and water-resistant cover protecting the cargo box on a UTV during rainfall, highlighting its protective features against outdoor elements.

• Jalur Reflektif: The cargo box features integrated reflective strips for enhanced visibility during low-light conditions, contributing to safer operation.


This image showcases the reflective strips integrated into the design of the cargo box, enhancing visibility during low-light conditions for improved safety.

• External Pockets and MOLLE Webbing: Utilize the external pockets and MOLLE webbing for quick access to smaller items or for attaching additional gear.

This composite image provides close-up views of various features: internal securing straps, the insulated lining of the cooler compartment, external MOLLE webbing for additional attachments, and robust buckles for secure closure.

6. Penyelenggaraan

• Pembersihan: Clean the exterior of the cargo box with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the material. For the interior, wipe with a damp cloth and allow to air dry completely before closing.
• Storan: When not in use, store the cargo box in a cool, dry place away from direct sunlight to prolong its lifespan.
• Pemeriksaan: Periodically inspect the cargo box for any signs of wear, tear, or damage to the fabric, zippers, buckles, and straps. Replace any damaged components as necessary.

7. Penyelesaian masalah

• Cargo Box Not Fitting Properly: Ensure the cargo box is correctly aligned with the UTV's rear rack. Verify that the internal support plates are fully inserted and not causing any distortion.
• Contents Getting Wet: Confirm that all zippers are fully closed and the water-resistant cover is properly secured. Check for any tears or punctures in the fabric that may compromise its water resistance.
• Cargo Box Shifting During Ride: Re-tighten all mounting straps. Ensure they are routed correctly through the attachment points on both the cargo box and the UTV rack. Avoid overloading the box, which can affect stability.

8. Spesifikasi

9. Waranti dan Sokongan

KEMMIMOTO products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official KEMMIMOTO website. If you encounter any issues or require technical assistance, please contact KEMMIMOTO customer support through their official channels.
