Cable Matters 20Gbps USB-C Switch (Model 201343) User Manual

1. Produk Lebihview

The Cable Matters 20Gbps USB-C Switch (Model 201343) allows you to share a single USB-C or Thunderbolt 4 monitor or docking station between up to three computers. This device supports high-speed data transfer, video resolutions up to 8K@30Hz on Windows, and 4K@60Hz on macOS, along with 140W Power Delivery charging for the active device. It is designed to streamline your workspace by enabling seamless switching between multiple host devices.

Image: The Cable Matters 20Gbps USB-C Switch, a compact silver device with three input ports and a pigtail output cable, shown alongside its remote control.

Ciri-ciri Utama:

• 20 Gbps Data Transfer: Supports high-speed data transfer for demanding applications.
• Resolusi Video 8K: Up to 8K@30Hz on Windows, 4K@60Hz on macOS.
• Penghantaran Kuasa 140W: Provides fast charging to the active connected laptop.
• 3-in-1-Out Switching: Connects up to three computers to one USB-C peripheral.
• Alat kawalan jauh RF: Conveniently switch between devices without additional software.

2. Persediaan dan Pemasangan

Follow these steps to set up your Cable Matters 20Gbps USB-C Switch.

Kandungan Pakej:

• 1 x Cable Matters 20Gbps USB-C Switch (Model 201343) with 1.6ft Pigtail Cable
• 3 x USB4 20Gbps Cables (3.3ft)
• 1 x Kawalan Jauh RF
• 2 x Hook-and-Loop Pads
• 1 x Contact Card
• 1 x Kotak

Image: A visual representation of all items included in the product package, including the switch, three USB4 cables, remote control, and documentation.

Arahan Sambungan:

1. Connect the Switch to your Peripheral: Connect the pigtail cable from the USB-C Switch to your USB-C or Thunderbolt 4 monitor or docking station.
2. Sambungkan Komputer: Use the included USB4 20Gbps cables to connect each of your three computers to the input ports (labeled 1, 2, 3) on the USB-C Switch.
3. Penghantaran Kuasa (Pilihan): If your monitor or docking station provides Power Delivery, the switch will pass up to 140W of power to the currently active computer. Ensure your peripheral is connected to a power source.

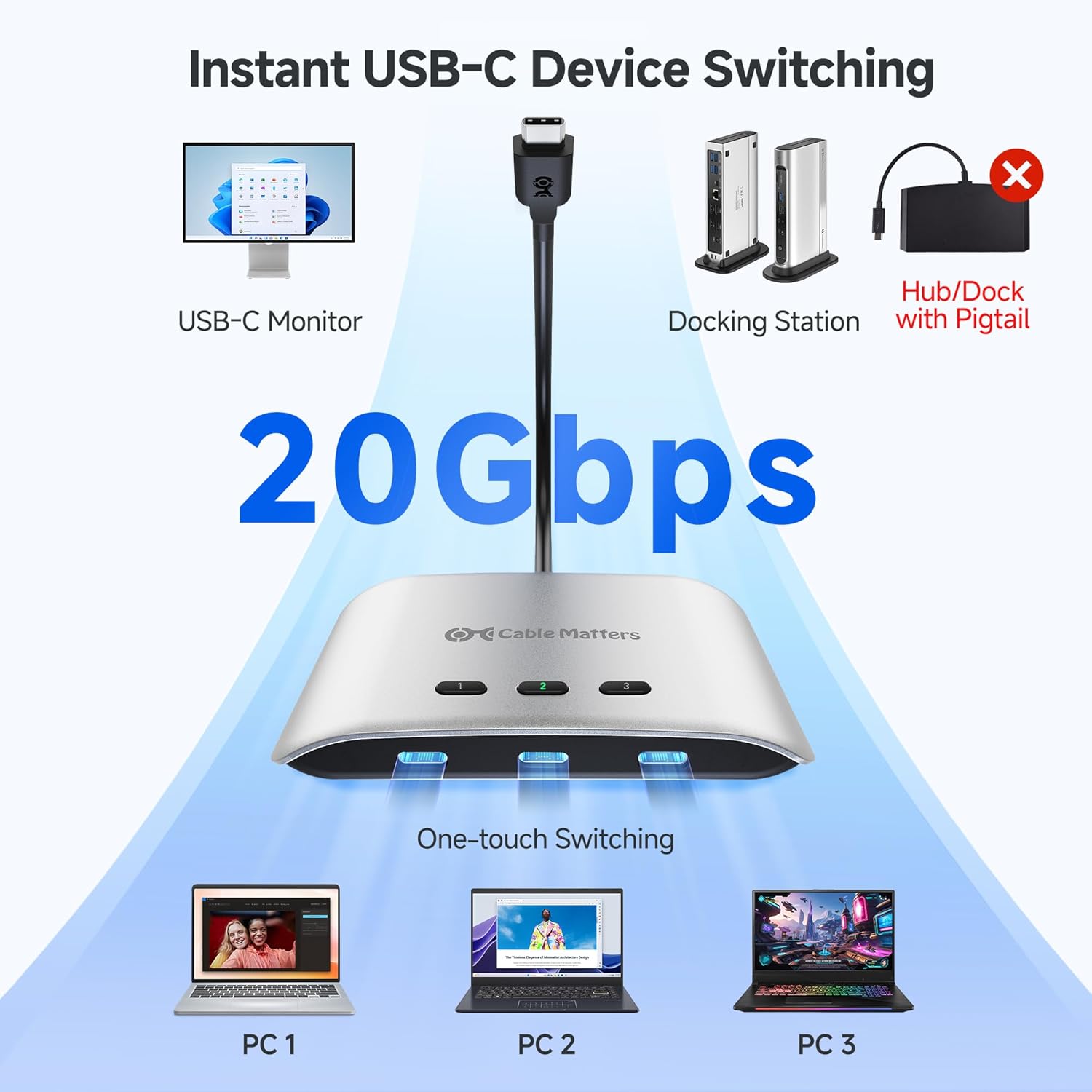

Image: A diagram illustrating the connection flow: three PCs connect to the USB-C switch, which then connects to a USB-C monitor or docking station, enabling one-touch switching.

Nota Keserasian Penting:

• guna only the included USB4 20 Gbps cables. Do not use Thunderbolt 3/4/5 cables as this may cause compatibility issues.
• The switch works with USB4 and Thunderbolt 4 docks. However, its 20 Gbps bandwidth (compared to 40 Gbps for most docks) may limit the number of displays or the maximum resolution/refresh rate.
• macOS only supports one external display through this switch.
• Avoid USB-C docks with built-in pigtail/captive cables to prevent compatibility issues.

Image: A comparison diagram showing that Windows/Linux (11th Gen CPU or higher) supports dual 4K@60Hz expansion via a docking station, while macOS supports only one monitor expansion (4K@60Hz).

Image: A diagram illustrating that when using a Thunderbolt 3 device (monitor, laptop, or dock) with the switch, only one external display is supported, and output is limited to 4K@60Hz with a Thunderbolt 3 dock.

3. Mengendalikan Suis

The USB-C Switch offers both manual and remote control options for switching between connected computers.

Penukaran Manual:

Press the numbered buttons (1, 2, or 3) on the top of the switch to select the desired computer. The corresponding LED indicator will illuminate.

Alat kawalan jauh RF:

Use the included RF remote control for convenient switching from a distance.

• Press buttons 1, 2, or 3 on the remote to select the corresponding computer.
• The 'Next' button cycles through the connected computers sequentially.

Pairing a New Remote:

To pair a new remote, connect the switch to a computer. Press and hold the 'Pair' button on the remote for 5 seconds until the LED on the switch stops flashing.

Imej: Dari dekat view of the USB-C switch connected to a monitor, with the remote control shown in the foreground, indicating how to pair a new remote by pressing and holding the 'Pair' button.

Power Delivery Functionality:

The switch supports up to 140W Power Delivery. Note that only the currently selected (active) computer receives charging power. Other connected devices will not charge simultaneously.

Image: A laptop connected to a docking station via the USB-C switch, showing the laptop charging with a 90% charge indicator, highlighting the 140W pass-through Power Delivery feature.

4. Penyelenggaraan

To ensure optimal performance and longevity of your USB-C Switch, follow these maintenance guidelines:

• Simpan peranti di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan suhu yang melampau.
• Clean the exterior with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials.
• Pastikan semua kabel disambungkan dengan selamat untuk mengelakkan kehilangan isyarat atau isu terputus-putus.
• Do not attempt to disassemble or repair the device yourself. Refer to qualified service personnel if needed.

5. Penyelesaian masalah

If you encounter issues with your USB-C Switch, refer to the following common problems and solutions:

No Display or Intermittent Video:

• Pemeriksaan Kabel: Ensure you are using the included USB4 20Gbps cables. Verify all connections are secure.
• Keserasian: Confirm your monitor and computer support the selected resolution and refresh rate. Remember macOS supports only one external display.
• Bandwidth Limitation: If using a docking station, the switch's 20Gbps bandwidth may limit the number of displays or maximum resolution compared to a direct 40Gbps connection.
• Kitaran Kuasa: Disconnect and reconnect all cables, then restart your computers and monitor.

No Data Transfer or Peripheral Functionality:

• Active Port: Ensure the correct input port is selected on the switch.
• Integriti Kabel: Inspect USB4 cables for damage.
• Docking Station Type: Avoid USB-C docks with built-in pigtail/captive cables, as these can cause compatibility issues.

Tiada Pengecasan:

• Active Computer: Only the currently selected computer receives Power Delivery. Ensure the desired computer is active.
• Sumber Kuasa: Verify your monitor or docking station is properly powered and capable of providing Power Delivery.

Alat Kawalan Jauh RF Tidak Berfungsi:

• Bateri: Periksa dan gantikan bateri alat kawalan jauh jika perlu.
• Berpasangan: Re-pair the remote control with the switch as described in the 'Operating the Switch' section.

6. Spesifikasi

7. Waranti dan Sokongan

Maklumat Waranti:

Cable Matters products typically come with a limited warranty. Please refer to the warranty card included in your product packaging or visit the official Cable Matters webtapak untuk terma dan syarat waranti terperinci khusus untuk wilayah anda.

Sokongan Pelanggan:

For technical assistance, troubleshooting, or product inquiries, please contact Cable Matters customer support through their official webtapak atau maklumat hubungan yang diberikan dalam dokumentasi produk anda.

Anda juga boleh melawat Cable Matters Store on Amazon untuk maklumat dan sumber produk tambahan.
