1. Produk Lebihview
The HITBOX HBMC270 is a versatile 6-in-1 multi-process welding machine designed for a wide range of metalworking applications. It integrates high-frequency TIG, MMA (Stick), MIG (Gas/Gasless), Plasma Cutting, and Spot welding functions into a single, compact unit. Featuring a large LED display and synergy mode, this welder offers precise control and ease of use for both beginners and experienced users. Its robust design includes comprehensive protection features for reliable and safe operation.
Figure 1.1: HITBOX HBMC270 Multi-Process Welder and included accessories.
2. Langkah-langkah Keselamatan
Always prioritize safety when operating welding and cutting equipment. Failure to follow these guidelines can result in serious injury or death.
- Keselamatan Elektrik: Ensure the machine is properly grounded. Do not operate in wet conditions. Always disconnect power before performing maintenance or changing accessories.
- Perlindungan Mata dan Muka: Always wear a welding helmet with appropriate shade lenses and safety glasses with side shields.
- Perlindungan Badan: Wear flame-resistant clothing, welding gloves, and protective footwear. Avoid loose clothing.
- Pengudaraan: Ensure adequate ventilation to remove welding fumes and gases, which can be hazardous to your health.
- Pencegahan Kebakaran: Keep a fire extinguisher nearby. Remove all flammable materials from the work area. Welding sparks can travel.
- Silinder Gas: Secure gas cylinders properly to prevent tipping. Handle with care and ensure connections are leak-free.
- Permukaan Panas: Welding equipment and materials become extremely hot. Allow them to cool before handling.
Figure 2.1: The HBMC270 features multiple safety protections including overvoltage, overcurrent, overload, and overheating protection.
3. Persediaan dan Sambungan
Before operating the HBMC270, ensure all connections are secure and correct for the desired welding or cutting process.
- Sambungan Kuasa: Connect the machine to a stable 220V power supply. Ensure the power outlet is rated for the machine's current draw.
- Tanah Clamp: Pasang tanah tanahamp cable to the appropriate terminal on the machine (usually marked "-" or "EARTH"). Securely attach the clamp to the workpiece or a clean, bare metal part of the welding table.
- Sambungan Obor MIG: For MIG welding, connect the MIG torch to the designated MIG output terminal. Install the appropriate wire spool and feed the wire through the torch liner.
- TIG Torch Connection: For HF TIG welding, connect the TIG torch to the TIG output terminal. If using gas, connect the gas hose from the torch to the gas regulator on the machine.
- Plasma Cutting Torch Connection: For plasma cutting, connect the plasma torch to the CUT output terminal. Connect the air hose from the torch to the air regulator on the machine and ensure a compressed air supply is connected.
- Electrode Holder (Stick/MMA): For Stick welding, connect the electrode holder cable to the appropriate terminal (usually marked "+" or "MMA").
- Gas Supply (for Gas MIG/TIG/Plasma): Connect the gas regulator to your shielding gas cylinder (e.g., CO2, Argon, or Argon/CO2 mix for MIG; Argon for TIG). Connect the gas hose from the regulator to the machine's gas inlet. For plasma cutting, connect the air compressor to the machine's air inlet.

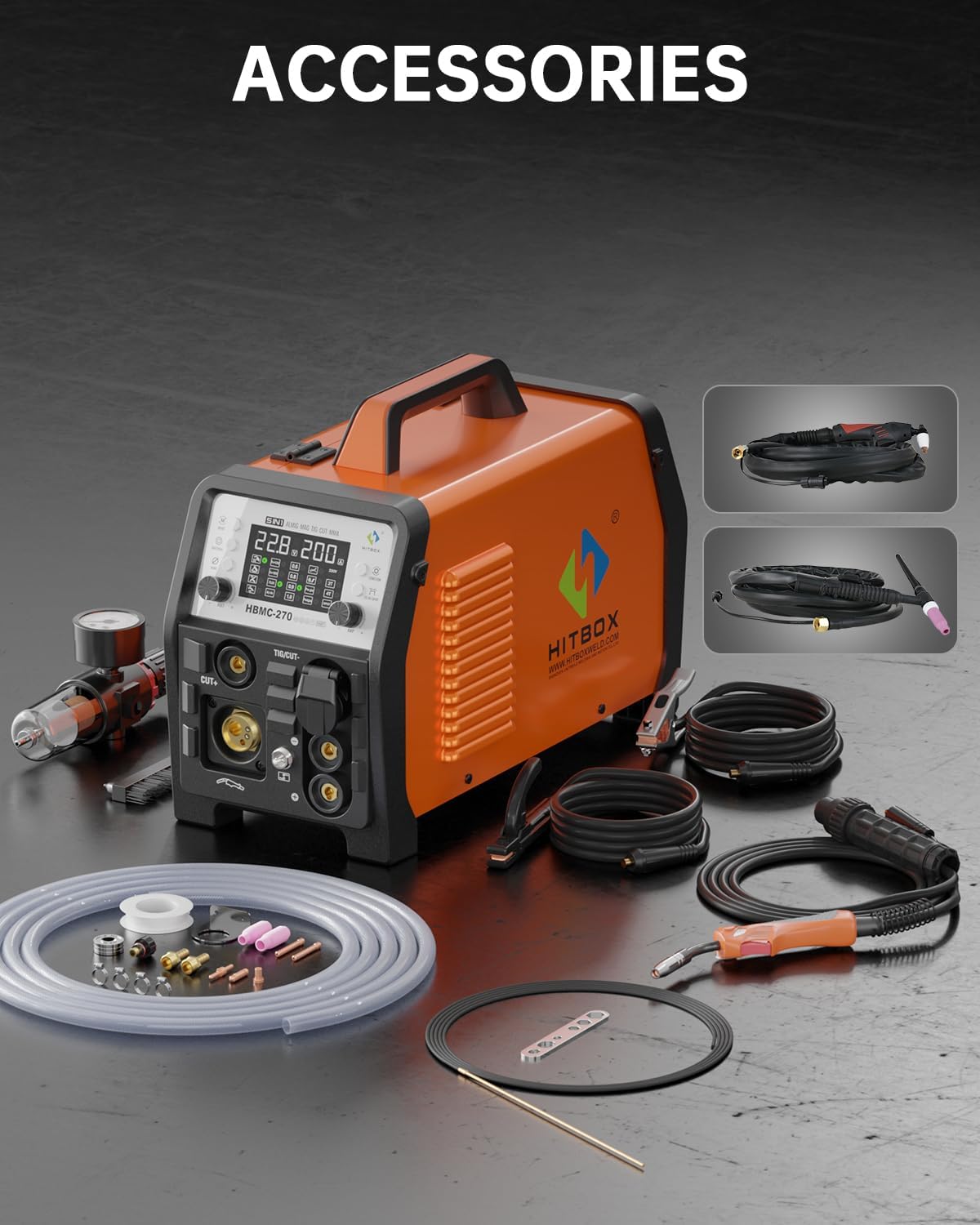

Gambar 3.1: Lebihview of the HBMC270 and its various accessories, illustrating connection points.
4. Arahan Operasi
The HBMC270 offers multiple welding and cutting processes. Select the desired mode and adjust parameters using the intuitive LED display.
4.1. Synergy Mode & LED Display
The large LED display provides clear feedback on parameters. In Synergy (SYN) mode, the machine intelligently auto-matches voltage and current based on selected electrode size, metal thickness, and welding mode, simplifying setup for beginners.
- Select SYN Mode: Press the mode button to activate synergy.
- Pilih Bahan: Choose the type of material you are welding (e.g., Fe+CO2, Fe+MIX, FLUX, AL+Ar).
- Select Wire Size: Input the diameter of your welding wire.
- The machine will suggest optimal voltage and current settings. Fine-tune as needed.

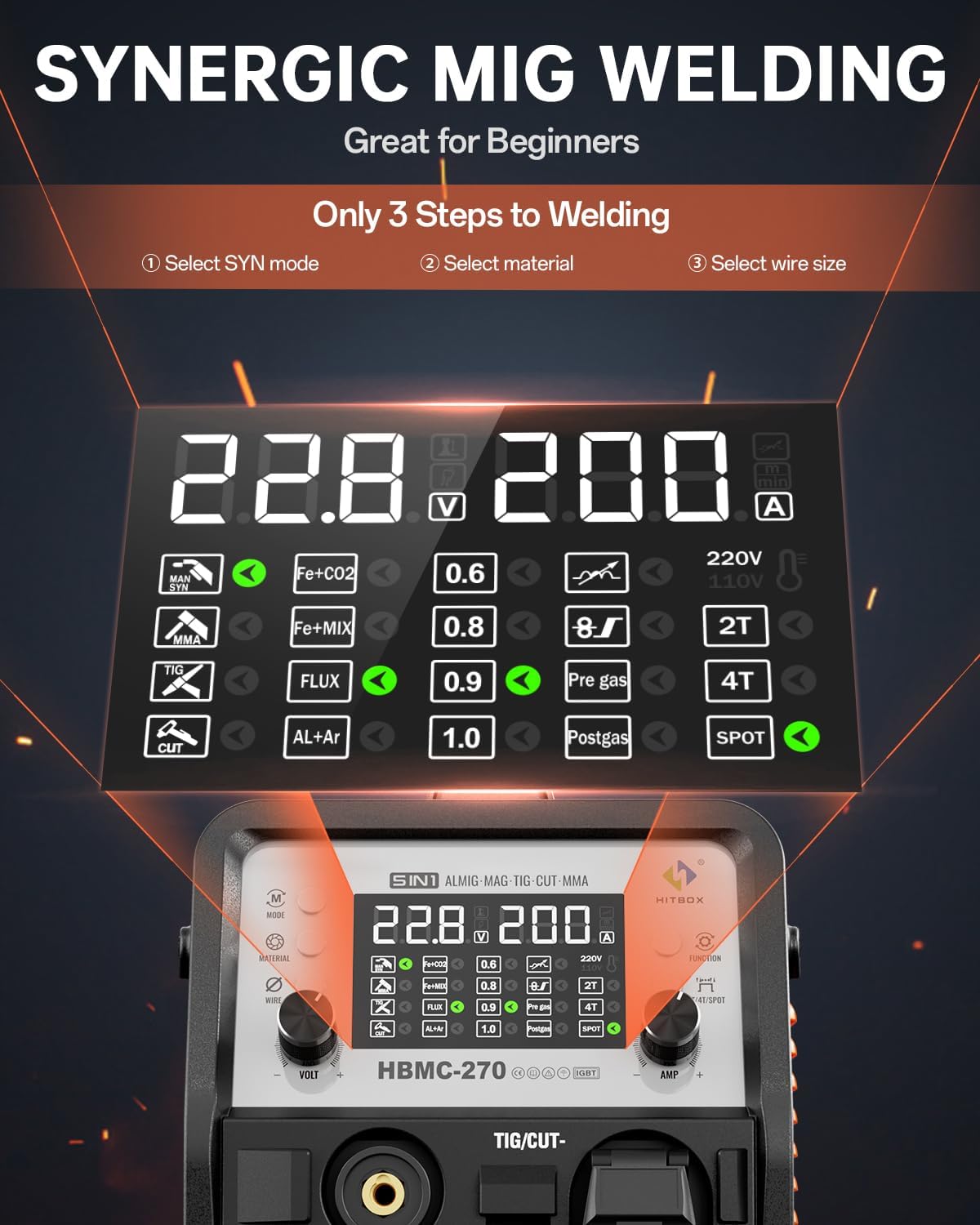

Figure 4.1: Synergic MIG Welding interface, showing material and wire size selection.
4.2. Welding and Cutting Processes
The HBMC270 supports the following processes:
- MIG (Gas/Gasless): For general fabrication, auto repair, and home projects. Supports .023"/.030"/.035"/.039" solid/flux core wires and .039" aluminum wire.
- HF TIG: High-frequency arc ignition for precise welding of aluminum, magnesium alloys, thin plates, and titanium alloys.
- Plasma Cutter: Capable of cutting quality 12mm (1/2") and maximum 18mm (2/3") thickness.
- Kayu (MMA): For welding thicker materials and outdoor repairs. Supports 6011, 6013, and 7018 welding rods (1/16"-1/8").
- Kimpalan Titik: Ideal for metal sheet and automated welding applications.
Figure 4.2: Visual representation of the 6-in-1 capabilities: HF TIG, Gas MIG, Gasless MIG, CUT, STICK, and MIG Spot Welding.
4.3. Fungsi 2T/4T
- 2T (Dua Sentuhan): Press and hold the trigger to weld, release to stop. Suitable for short welds and tacking.
- 4T (Empat Sentuhan): Press and release the trigger to start welding, press and release again to stop. Ideal for long, continuous welds, reducing operator fatigue.
5. Penyelenggaraan
Regular maintenance ensures the longevity and optimal performance of your HBMC270 welder.
- Pembersihan: Periodically clean the machine's exterior with a dry cloth. Use compressed air to blow out dust and debris from cooling vents.
- Consumables Check: Regularly inspect and replace worn-out MIG contact tips, nozzles, TIG collets, electrodes, and plasma cutting tips/electrodes.
- Sistem Suapan Kawat: Clean the wire feed rollers and check the wire liner for blockages or wear. Ensure proper tension on the wire feed rollers.
- Tanah Clamp & Cables: Inspect all cables for cuts, fraying, or damage. Ensure the ground clamp makes good contact with the workpiece.
- Air Filter (Plasma Cutter): If applicable, clean or replace the air filter for the plasma cutting system to ensure clean air supply.
6. Penyelesaian masalah
Bahagian ini menangani isu biasa yang mungkin anda hadapi semasa operasi.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| No Arc / No Output | No power, poor ground connection, machine in protection mode. | Periksa bekalan kuasa, pastikan pembumian terjagaamp is clean and secure, allow machine to cool if overheated. |
| Kualiti Kimpalan Lemah | Incorrect parameters, dirty workpiece, wrong gas/wire, worn consumables. | Laraskan voltage/amperage, clean workpiece, verify gas/wire type, replace contact tip/nozzle. |
| Isu Pemakanan Wayar (MIG) | Incorrect roller tension, clogged liner, wrong roller size, tangled wire. | Adjust tension, clean/replace liner, ensure correct roller for wire size, untangle wire spool. |
| Mesin Terlalu Panas | Exceeded duty cycle, poor ventilation, blocked cooling vents. | Allow machine to cool, ensure adequate airflow, clear any obstructions from vents. |
| Plasma Cutter Not Cutting | No air pressure, worn consumables, incorrect settings. | Check air supply and pressure, replace plasma tip/electrode, adjust cutting current. |
7. Spesifikasi
Detailed technical specifications for the HITBOX HBMC270 Multi-Process Welder.
| Ciri | Perincian |
|---|---|
| Model | HBMC270 |
| Input Voltage (V) | AC220V±10%, 50/60Hz |
| MMA Welding Current Range (A) | 20-270 |
| MIG Current Range (A) | 80-270 |
| CUT Current Range (A) | 15-40 |
| MIG VoltagJulat e (V) | 17-27.5 |
| TIG Current Range (A) | 15-270 |
| Tanpa Beban Voltage (V) | MIG: 55, MMA: 55, CUT: 290 |
| Kelajuan Suapan Wayar (m/min) | 0.5-13 |
| Electrode Diameter Applicable (mm) | 0.8/1.0 |
| Kitaran Tugas Dinilai | 60% |
| Kecekapan (%) | 85 |
| Faktor Kuasa | 0.73 |
| Kelas Perlindungan | IP21S |
| Kelas Penebat | F |
| Berat Barang | 41.2 paun |
| Dimensi Pakej | 20.5 x 14.75 x 14.75 inci |
8. Waranti dan Sokongan
HITBOX provides reliable quality and offers 2 years of quality service for this welding equipment. Every unit undergoes rigorous professional testing to meet high standards before leaving the factory.
For technical assistance, warranty claims, or further inquiries, please refer to the contact information provided with your purchase documentation or visit the official HITBOX website. When contacting support, please have your model number (HBMC270) and purchase date ready.
