1. Pengenalan
Thank you for choosing the CREATE Warm Towel Advance Electric Towel Warmer with Heater and WiFi. This device is designed to provide both warm towels and supplemental heating for your bathroom or other suitable rooms. It features advanced PTC heating technology, app control, and an LCD display for convenient operation. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

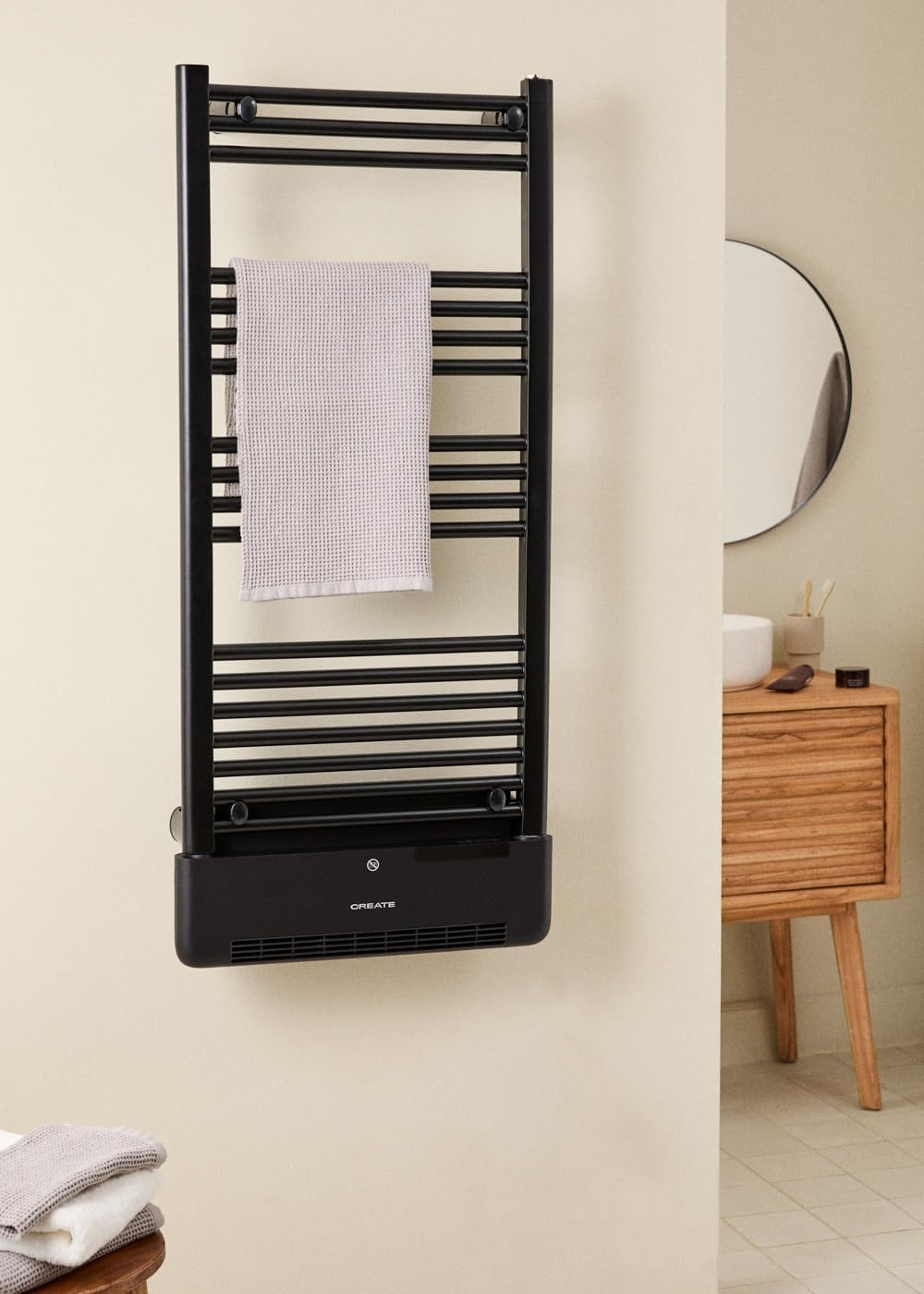

Image 1.1: The CREATE Warm Towel Advance electric towel warmer installed in a bathroom setting.
2. Maklumat Keselamatan
Before using the appliance, please read these safety instructions carefully and keep them for future reference. Incorrect use may result in electric shock, fire, or injury.
- Pastikan bekalan kuasa voltage sepadan dengan label penilaian pada perkakas.
- Jangan rendam perkakas, kord, atau palam ke dalam air atau cecair lain.
- Perkakas ini bertujuan untuk kegunaan domestik sahaja. Jangan gunakannya di luar rumah.
- Jauhkan perkakas daripada kanak-kanak dan haiwan peliharaan.
- Jangan kendalikan perkakas dengan kord atau palam yang rosak.
- Sentiasa cabut plag perkakas apabila tidak digunakan dan sebelum membersihkan.
- Do not cover the appliance during operation to prevent overheating.
- Pastikan pengudaraan yang betul di sekeliling unit.
- The appliance has an IP24 protection rating, making it splash-proof. However, avoid direct water jets.
- Do not install the appliance directly below a socket outlet.
3. Produk Lebihview dan Ciri
The CREATE Warm Towel Advance combines a towel warmer with a ceramic heater, offering versatile functionality for your home.
Ciri-ciri Utama:
- Dual Power Output: 750W for towel warming bars and 1000W for the ceramic heater.
- Kesambungan WiFi: Control and program the device remotely via the CREATE app.
- Paparan LCD: Intuitive on-device control and temperature display.
- PTC Technology: Self-regulating ceramic heating element for energy efficiency and consistent heat.
- Pengesanan Tetingkap Terbuka: Automatically switches off heating if a sudden temperature drop is detected, saving energy.
- Perlindungan Terlalu Panas: Built-in safety mechanism to prevent overheating.
- Perlindungan IP24: Splash-proof design suitable for bathroom environments.
- Liputan: Effective heating for rooms up to 20m².
Imej 3.1: Terperinci view of the integrated LCD control panel.
Image 3.2: Remote control via the CREATE mobile application.
4. Pemasangan dan Persediaan
Proper installation is crucial for the safe and efficient operation of your towel warmer. It is recommended that installation be performed by a qualified professional.
4.1. Memasang Unit
The towel warmer is designed for wall mounting. Ensure the mounting surface is sturdy and capable of supporting the unit's weight (approximately 17.2 kg). Refer to the dimensions diagram for precise measurements and mounting points.

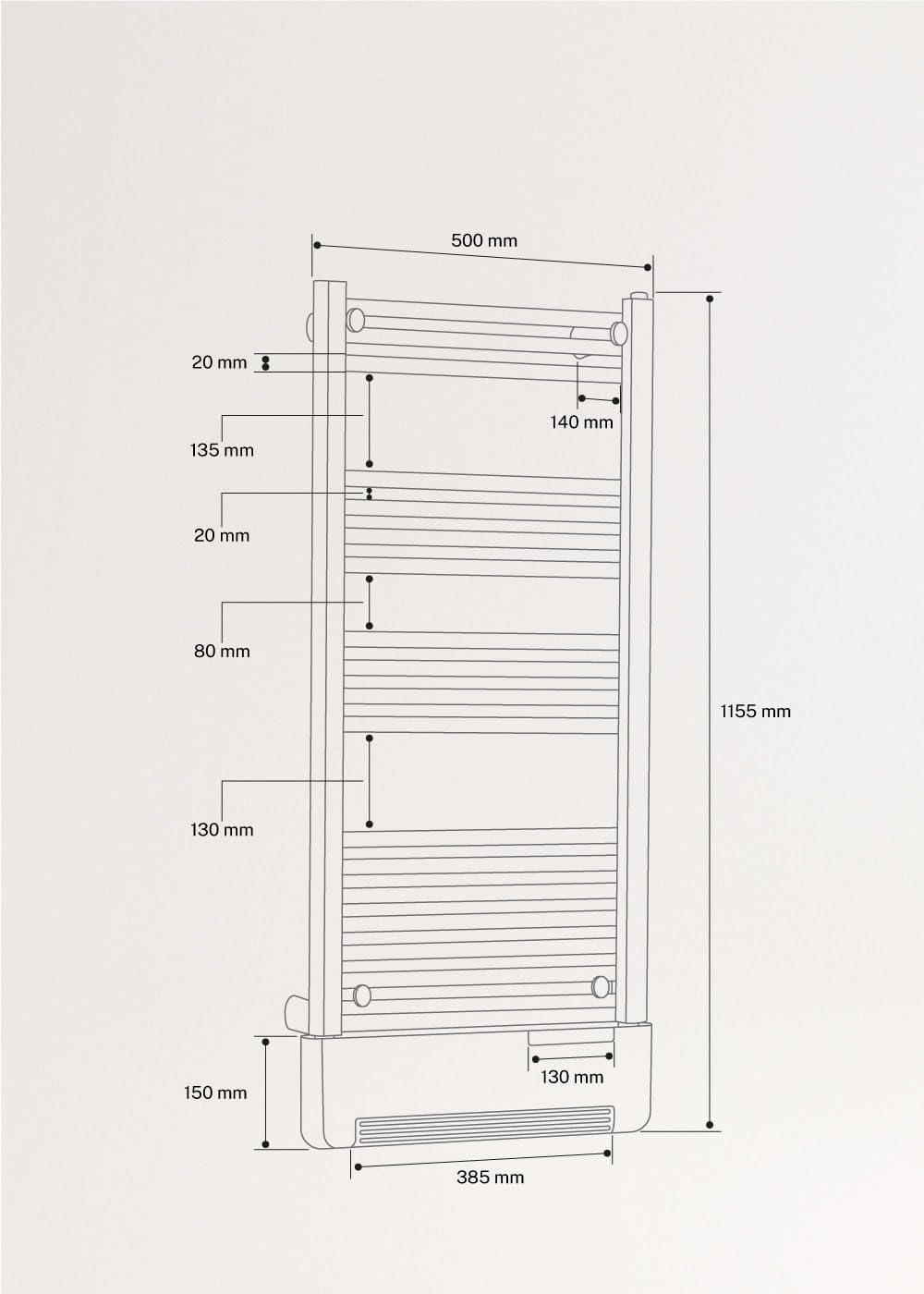

Imej 4.1: Dimensi produk untuk perancangan pemasangan.
- Mark the drilling points on the wall according to the provided template or dimensions.
- Gerudi lubang dan masukkan palam dinding yang sesuai.
- Secure the mounting brackets to the wall.
- Carefully attach the towel warmer to the mounting brackets.
- Ensure the unit is level and securely fastened.
4.2. Sambungan elektrik
Connect the appliance to a suitable grounded power outlet. Ensure the outlet is easily accessible for disconnection if needed. Do not use extension cords or adapters.
4.3. WiFi Connection (App Control)
To utilize the smart features, connect your device to the CREATE app.
- Download the CREATE app from your smartphone's app store.
- Register or log in to your CREATE account.
- Ensure your smartphone is connected to a 2.4 GHz WiFi network. The device may not connect to 5 GHz networks.
- Follow the in-app instructions to add a new device. This typically involves putting the towel warmer into pairing mode (refer to the device's LCD display or manual for specific button presses).
- Once connected, you can control and program the towel warmer remotely.
5. Arahan Operasi
The CREATE Warm Towel Advance can be operated via its integrated LCD display or through the CREATE mobile app.
5.1. Menggunakan Paparan LCD
The LCD display and control buttons are located on the front of the unit's base.
Image 5.1: Control panel for manual operation.
- Butang Kuasa: Tekan untuk menghidupkan / mematikan unit.
- Butang Mod: Cycle through different operating modes (e.g., Towel Warming, Heater, Auto).
- Pelarasan Suhu: Use '+' and '-' buttons to set the desired temperature (up to 35°C).
- Timer/Schedule: Access timer or scheduling functions (refer to specific icons on the display).
- Penunjuk WiFi: Menunjukkan status sambungan WiFi.
5.2. Using the CREATE App
The CREATE app provides comprehensive control and scheduling features.
Image 5.2: App interface for remote control.
- Jauh HIDUP/MATI: Turn the unit on or off from anywhere.
- Kawalan Suhu: Laraskan suhu sasaran.
- Pemilihan Mod: Choose between towel warming (750W) and ceramic heating (1000W) modes.
- Penjadualan: Create custom heating schedules for different days and times.
- Pengesanan Tetingkap Terbuka: Enable or disable this energy-saving feature.
- Fungsi Anti-Fros: Maintain a minimum temperature to prevent freezing.
6. Penyelenggaraan
Regular maintenance ensures the longevity and optimal performance of your towel warmer.
6.1. Pembersihan
- Sentiasa cabut plag perkakas sebelum membersihkan.
- Lap permukaan luar dengan lembut, damp kain.
- Jangan gunakan pembersih yang melelas, pelarut atau bahan kimia yang keras, kerana ini boleh merosakkan kemasan.
- Ensure no water enters the control panel or ventilation openings.
- Clean the air intake and outlet vents periodically to prevent dust buildup, which can affect heating efficiency.
6.2. Penyimpanan
If storing the unit for an extended period, ensure it is clean and dry. Store it in a cool, dry place, protected from dust and direct sunlight.
7. Penyelesaian masalah
If you encounter issues with your CREATE Warm Towel Advance, refer to the following common problems and solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan. | Tiada bekalan kuasa. | Check if the power cord is securely plugged in and the wall outlet is functional. |
| Tiada keluaran haba. | Temperature setting too low; Overheating protection activated. | Increase the target temperature. Unplug the unit, wait 30 minutes, and plug it back in. Ensure vents are not blocked. |
| Sambungan WiFi gagal. | Incorrect WiFi band (5GHz); Incorrect password; Router too far. | Ensure your router is set to 2.4 GHz. Re-enter the WiFi password carefully. Move the unit closer to the router or use a WiFi extender. |
| Open Window Detection activates unexpectedly. | Sudden draft or temperature drop. | This is normal operation. If persistent, check for drafts or disable the feature via the app if not desired. |
| Paparan LCD tidak berfungsi. | Power issue; Internal fault. | Check power supply. If the problem persists, contact customer support. |
If the problem persists after attempting these solutions, please contact CREATE customer support for assistance.
8. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Jenama | CIPTA |
| Model | Warm Towel Advance |
| warna | Hitam |
| Dimensi (L x W x H) | 51.5 x 11 x 115.5 cm |
| Berat badan | 17.2 kg |
| Power (Towel Bars) | 750 W |
| Power (Ceramic Heater) | 1000 W |
| bahan | Steel / ABS |
| Maks. Suhu | 35°C |
| Penilaian Perlindungan | IP24 |
| Ketersambungan | WiFi (2.4 GHz) |
| Kawalan | LCD Display, Mobile App |
9. Waranti dan Sokongan
CREATE products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact CREATE customer service. Contact details can typically be found on the CREATE webtapak atau pada dokumentasi pembelian anda.
