1. Pengenalan
This manual provides essential information for the assembly, operation, and maintenance of your VilroCaz L-Shaped Twin Over Twin Bunk Bed. This bed system features a twin-size loft bed with a staircase, a twin-size platform bed, a built-in desk, and integrated storage compartments and shelves. Please read these instructions thoroughly before assembly and use to ensure safe and correct operation.

Image 1.1: Fully assembled VilroCaz L-Shaped Twin Over Twin Bunk Bed with integrated desk and staircase, shown in a natural wood finish within a bedroom environment.
2. Amaran Keselamatan Penting
- Sentiasa ikut arahan pemasangan dengan teliti.
- Do not exceed the maximum weight capacity of 250 lbs per bed.
- Be cautious of pinch points and sharp edges during assembly and use.
- Pastikan semua sambungan diketatkan dengan kukuh sebelum digunakan. Periksa dan ketatkan semula perkakasan secara berkala mengikut keperluan.
- Katil atas tidak sesuai untuk kanak-kanak di bawah umur enam tahun.
- Use only mattresses that meet the specified dimensions to prevent entrapment or falls.
- Jangan pasang atau gantung barang pada mana-mana bahagian katil dua tingkat yang tidak direka untuk digunakan dengan katil; contohnyaample, tetapi tidak terhad kepada, cangkuk, tali pinggang atau tali lompat.
- Always use the provided guardrails on the top bunk.
- Prohibit more than one person on the top bunk.
3. Kandungan Pakej
Your VilroCaz L-Shaped Twin Over Twin Bunk Bed is shipped in multiple packages (typically 3). Upon receipt, carefully unpack all boxes and verify that all components and hardware are present and undamaged. Refer to the detailed parts list provided in the separate assembly guide for a complete inventory.
If any parts are missing or damaged, do not proceed with assembly. Contact customer service immediately for assistance.
4. Arahan Perhimpunan
Assembly of this bunk bed requires two adults and approximately 6-7 hours. Follow the step-by-step pictorial instructions provided in the separate assembly manual. Ensure you have adequate space for assembly and keep all small parts out of reach of children.
4.1 Pertimbangan Pemasangan Utama
- Orientasi: The staircase can be assembled on either the left or right side of the bed. Carefully review the assembly manual's diagrams to determine the correct orientation for your desired setup. Note that some parts may need to be rotated or switched depending on the chosen side.
- Perkakasan: All screws and hardware are labeled. Match them carefully to the corresponding steps in the assembly guide.
- Alatan: Basic tools for assembly are typically included. Ensure you have a Phillips head screwdriver and possibly a rubber mallet for gentle tapping.
- Mengetatkan: Do not fully tighten all bolts until the entire section is assembled, then go back and tighten all connections securely. Over-tightening can damage wood.

Image 4.1: Dimensional diagram of the VilroCaz L-Shaped Twin Over Twin Bunk Bed, illustrating overall length, width, height, and specific measurements for the loft bed, platform bed, desk, and staircase storage.

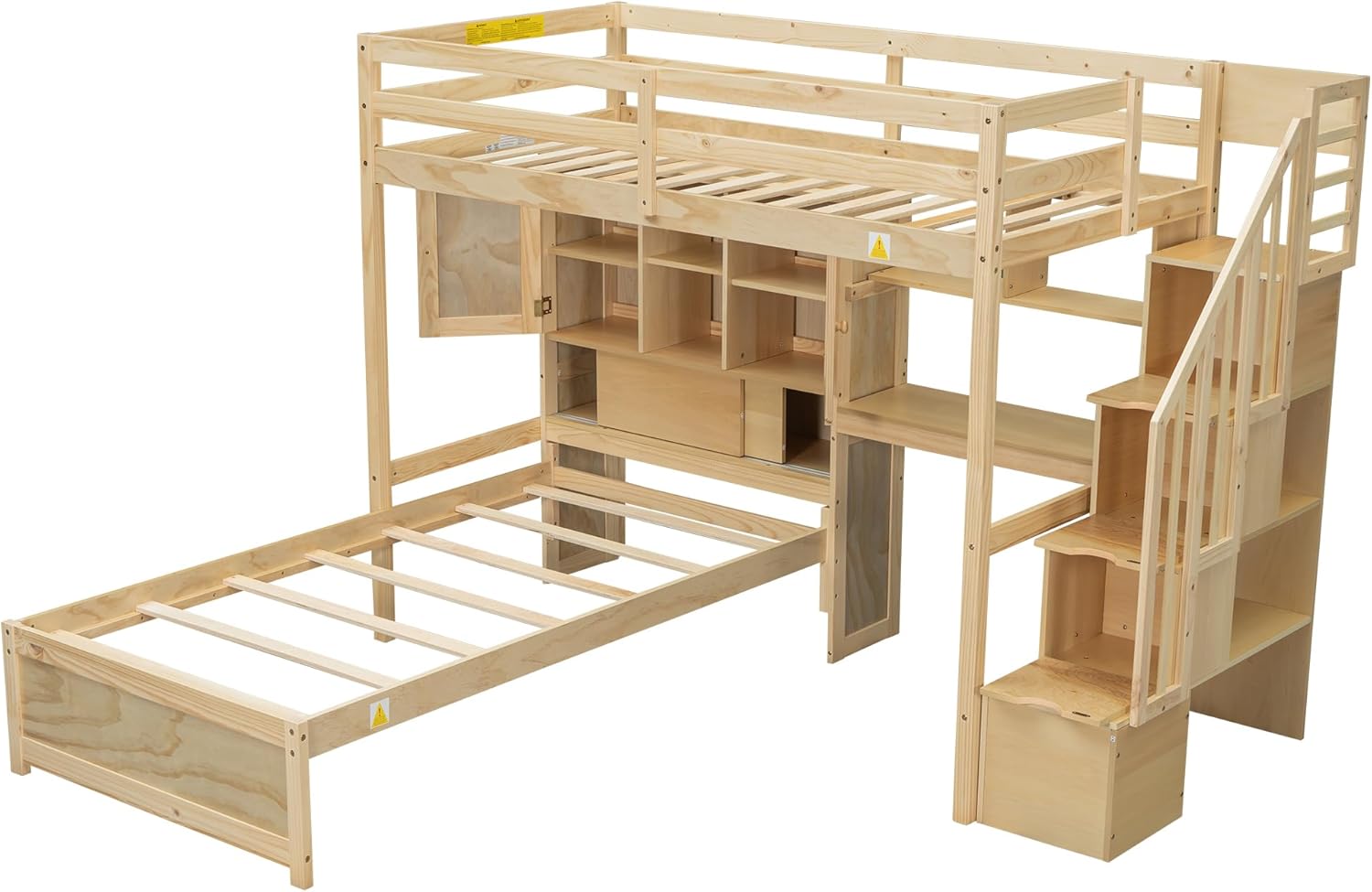

Imej 4.2: Bersudut view of the bunk bed frame, highlighting the slat support system for both the loft and platform beds, along with the integrated desk and staircase storage units.
5. Operasi dan Penggunaan
5.1 Bed Usage
- Keperluan tilam: The loft bed requires a twin mattress with a maximum thickness of 6 inches. The platform bed accommodates a twin mattress with a thickness of 8-10 inches. Ensure mattresses fit snugly to prevent gaps.
- Akses: Use the built-in staircase for safe access to the top bunk. Do not use chairs or other furniture for climbing.
- Kapasiti Berat: Each bed has a weight capacity of 250 lbs. Do not exceed this limit.
5.2 Desk and Storage
- Built-in Desk: The integrated desk provides a dedicated workspace. Avoid placing excessively heavy items on the desk surface.
- Storage Compartments and Shelves: Utilize the various shelves and compartments within the headboard and staircase for organizing books, personal items, and decor. Distribute weight evenly within storage areas.

Imej 5.1: Depan view of the VilroCaz bunk bed, showcasing the built-in desk area and the closed storage cabinets and drawers integrated into the structure.

Imej 5.2: Depan view of the bunk bed with storage doors open, illustrating the internal shelving and compartments available for organization.

Image 5.3: Close-up of the staircase, detailing the integrated drawers and open shelves built into each step for additional storage.
6. Penyelenggaraan
- Pembersihan: Lap permukaan dengan lembut, damp kain. Elakkan bahan kimia yang keras atau pembersih yang kasar yang boleh merosakkan kemasan kayu.
- Pemeriksaan perkakasan: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten as necessary to maintain structural integrity and safety.
- Penjagaan Kayu: As this product is made from pine wood and MDF, avoid prolonged exposure to direct sunlight or extreme humidity to prevent warping or cracking.
7. Penyelesaian masalah
7.1 Isu dan Penyelesaian Biasa
| Isu | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Bed feels shaky or unstable. | Sambungan perkakasan longgar. | Inspect all bolts and screws. Tighten any loose connections securely. Ensure the bed is on a level surface. |
| Bahagian yang hilang atau komponen yang rosak semasa ketibaan. | Kerosakan penghantaran atau kesilapan pembungkusan. | Do not proceed with assembly. Contact VilroCaz customer service immediately with your purchase details and a list of missing/damaged parts. |
| Difficulty aligning parts during assembly. | Incorrect orientation of parts or not following instructions precisely. | Review the assembly manual diagrams carefully, especially for parts that can be oriented differently (e.g., staircase). Ensure not all bolts are fully tightened until sections are aligned. |
| Bunyi-bunyi berdecit. | Loose connections or friction between wood components. | Re-tighten all hardware. If squeaking persists, apply a small amount of paraffin wax or silicone spray to contact points between wood components (avoiding areas that bear weight directly). |
8. Spesifikasi Produk
| Ciri | Perincian |
|---|---|
| Bed Material | Kayu Pain + MDF |
| Saiz | Twin/Twin |
| Dimensi Produk Keseluruhan | 94.4''P x 92''L x 67.5''T |
| Loft Bed Dimension | 76'' x 39.3'' |
| Platform Bed Dimension | 76'' x 39.3'' |
| Jumlah Tinggi | 67.5'' |
| Number of Slats (Loft/Platform) | 14 / 7 pcs |
| Berat Produk Keseluruhan | 280.6 lb |
| Upper/Down Bed Weight Capability | 250 lbs / 250 lbs |
| Upper Bed Mattress Thickness | Max 6'' |
| Down Bed Mattress Thickness | 8''-10'' |
| Perhimpunan Diperlukan | ya |
| warna | Semulajadi |
9. Waranti dan Sokongan
For any questions regarding assembly, missing parts, or product defects, please contact VilroCaz customer service. Refer to your purchase documentation for specific warranty details and contact information. Please have your model number (L-Shaped Twin Over Twin Bunk Bed) and purchase date available when contacting support.
