Maklumat Keselamatan Penting
Please read and understand this entire instruction manual before attempting to assemble, operate, or install the product. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- This electric log set is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Berhati-hati yang amat diperlukan apabila mana-mana pemanas digunakan oleh atau berhampiran kanak-kanak atau orang yang tidak sah dan apabila pemanas dibiarkan beroperasi dan tanpa pengawasan.
- Jangan mengendalikan pemanas dengan kabel atau palam yang rosak atau setelah kerosakan pemanas, jatuh atau rosak dengan cara apa pun.
- Jangan gunakan di luar rumah.
- Untuk memutuskan sambungan pemanas, matikan kawalan, kemudian tanggalkan palam dari alur keluar.
- Jangan masukkan atau benarkan objek asing memasuki mana-mana pengudaraan atau bukaan ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pemanas.
- Untuk mengelakkan kebakaran yang mungkin berlaku, jangan sekat saluran masuk atau ekzos udara dalam apa jua cara. Jangan gunakan pada permukaan lembut, seperti katil, di mana bukaan mungkin tersumbat.
- This product is equipped with Overheat Protection, which automatically shuts it down if temperatures spike.
Imej: Selesaiview of safety features and certifications, including CSA certification, LED energy saving, multi-function remote, overheat protection, timer, and low noise operation.
Ciri-ciri Produk
- Realistic Flame Ambiance: Features adjustable 4-level flame brightness and a realistic ember bed to create an authentic fire ambiance.
- Pemanasan yang cekap: Equipped with 2 infrared quartz heating elements, providing supplemental 5000 BTU heat for rooms up to 400 sq ft.
- Reka Bentuk Klasik: An elegant and simple design that serves as a focal point in various home settings.
- Mudah Digunakan: Includes a user manual for straightforward installation and a remote control for convenient operation.
- Selamat & Boleh Dipercayai: Certified to CSA/UL standards with overheat protection and no open flames, ensuring safety for households with children and pets.
Persediaan
This Innoflame Electric Fireplace Log Set Heater requires no assembly. Simply place the unit in your desired location, ensuring it is on a stable, level surface and away from flammable materials. Plug the power cord into a standard 120V AC outlet.
Pemasangan Bateri Kawalan Jauh
The remote control requires 2 AAA batteries (not included). Open the battery compartment on the back of the remote and insert the batteries, observing the correct polarity (+/-). Close the compartment securely.
Arahan Operasi
The electric fireplace log set can be operated using the control panel on the unit or the included remote control.
Panel Kawalan & Fungsi Jauh
Image: A visual guide to the control panel and remote control, illustrating buttons for power, heater, flame brightness, timer, and temperature adjustment.
- Hidupkan/Mati Kuasa: Tekan butang kuasa untuk menghidupkan atau mematikan unit.
- Heater On/Off: Press the heater button to activate or deactivate the heating function. The digital display will show the set temperature.
- Kecerahan Api: Cycle through 4 levels of flame brightness (L1-L4) using the flame brightness button. L4 is the brightest, L1 is the lowest.
- Pemasa: Tetapkan pemasa tutup automatik daripada 1 hingga 9 jam.
- Kawalan Suhu: Adjust the desired room temperature between 64°F and 82°F. The heater will cycle on and off to maintain the set temperature.
Kesan Nyalaan Realistik
Image: Depiction of the four adjustable flame brightness levels (L1-L4) for customized ambiance.
Fungsi Pemanasan
Image: Visual representation of the heater emitting warmth into a room, highlighting its heating capability.
Video Demonstrasi Produk
Video: A brief demonstration of the 23-inch electric log set with heater, showcasing its remote control operation, digital display, adjustable flame brightness, timer function, and safe-to-touch logs.
Penyelenggaraan
Regular maintenance ensures optimal performance and longevity of your electric fireplace log set.
- Pembersihan: Always disconnect the power before cleaning. Use a soft, damp kain untuk mengelap permukaan luar. Jangan gunakan pembersih atau semburan yang kasar.
- Penyingkiran habuk: Periodically vacuum or dust the air intake and exhaust vents to prevent dust buildup, which can affect heating efficiency.
- Storan: If storing the unit for an extended period, unplug it and store it in a dry, cool location.
Menyelesaikan masalah
If you experience issues with your electric fireplace log set, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan. | Tiada kuasa kepada unit. | Pastikan kord kuasa dipasang dengan selamat ke soket yang berfungsi. Periksa pemutus litar. |
| Tiada keluaran haba. | Heater function is off or thermostat is set too low. | Activate the heater function and increase the thermostat setting. Ensure air vents are not blocked. |
| Api tidak kelihatan atau malap. | Flame brightness setting is too low. | Adjust the flame brightness to a higher level (L2, L3, or L4). |
| Alat kawalan jauh tidak berfungsi. | Bateri mati atau halangan. | Gantikan bateri alat kawalan jauh. Pastikan tiada halangan antara alat kawalan jauh dan unit. |
| Unit ditutup tanpa diduga. | Perlindungan terlalu panas diaktifkan. | Unplug the unit, allow it to cool for 10-15 minutes, then plug it back in. Ensure air vents are clear. |
Spesifikasi

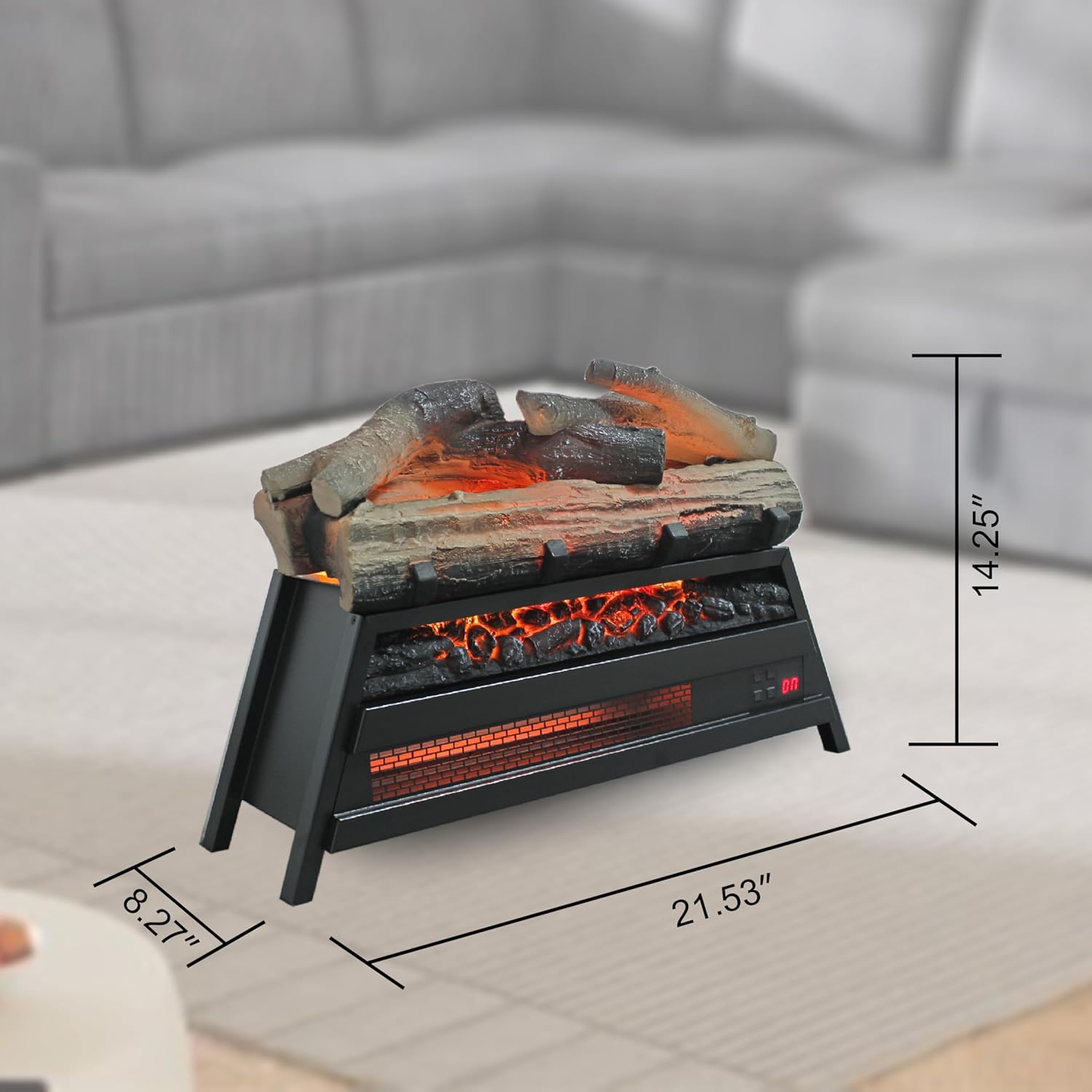

Image: Detailed dimensions of the Innoflame Electric Fireplace Log Set Heater.
| Ciri | Perincian |
|---|---|
| Jenama | Innoflame |
| Nama Model | KD100-23 |
| Dimensi Produk | 8.27"D x 21.53"W x 14.25"H |
| Sumber Kuasa | Elektrik Bertali |
| Keluaran Haba | 1500 Watts (5000 BTU) |
| Liputan Pemanasan | Sehingga 400 kaki persegi |
| bahan | logam |
| Jenis Pemasangan | Freestanding |
| Ciri Khas | Adjustable Flame, Infrared, Overheat Protection, Portable, Timer |
| Berat Barang | 11.4 paun |
| Komponen yang Disertakan | 1 Fireplace, 1 Remote control, 1 Manual, 1 bag Screws |
| Bateri Diperlukan | 2 AAA batteries for remote |
| Pensijilan | CSA/UL standards |
Waranti
This Innoflame Electric Fireplace Log Set Heater comes with a Waranti 1 Tahun from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, alteration, or improper installation.
Sokongan
For further assistance, technical support, or warranty inquiries, please contact Innoflame customer service. Refer to the contact information provided on the product packaging or visit the official Innoflame webtapak untuk mendapatkan butiran sokongan yang paling terkini.
