pengenalan
This manual provides essential information for the safe and efficient operation of your RecPro RV 30" Recessed Electric Fireplace. Please read all instructions carefully before installation and use. Keep this manual for future reference.
Depan view of the RecPro RV 30-inch Recessed Electric Fireplace, showcasing the realistic log and flame effects through the glass panel.
Maklumat Keselamatan Penting
AMARAN: Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan, baca semua arahan sebelum menggunakan perkakas ini.
- Pastikan pendiangan disambungkan ke alur keluar yang dibumikan dengan betul.
- Jangan kendalikan perapian dengan kord atau palam yang rosak.
- Jauhkan bahan mudah terbakar sekurang-kurangnya 3 kaki (0.9 meter) dari hadapan pendiangan.
- Jangan masukkan atau benarkan objek asing memasuki sebarang pengudaraan atau bukaan ekzos.
- This fireplace is equipped with Zero Clearance Safety Technology, including proximity and thermal cut-off sensors. These sensors automatically shut down the unit if safety is compromised due to overheating or obstruction.
- Always unplug the fireplace before cleaning or performing maintenance.
Persediaan dan Pemasangan
The RecPro RV Electric Fireplace is designed for Recess Dipasang installation. Proper installation is crucial for safety and performance.
Dimensi dan Keperluan Potongan
Detailed diagram illustrating the product dimensions (8"D x 30"W x 21.75"H) and the required wall cutout size (26.25"W x 20.5"H with a minimum 6" depth).
- Dimensi Produk: 8"D x 30"W x 21.75"H
- Wall Cutout Size: 26.25"W x 20.5"H
- Minimum Cutout Depth: 6 inches. Ensure sufficient depth from the wall surface to the back of the cutout.
Sambungan Kuasa
This unit operates on 120 Volt electric power. Ensure the electrical supply meets the fireplace's requirements (1500 Watts heat output) and is installed by a qualified electrician if necessary.

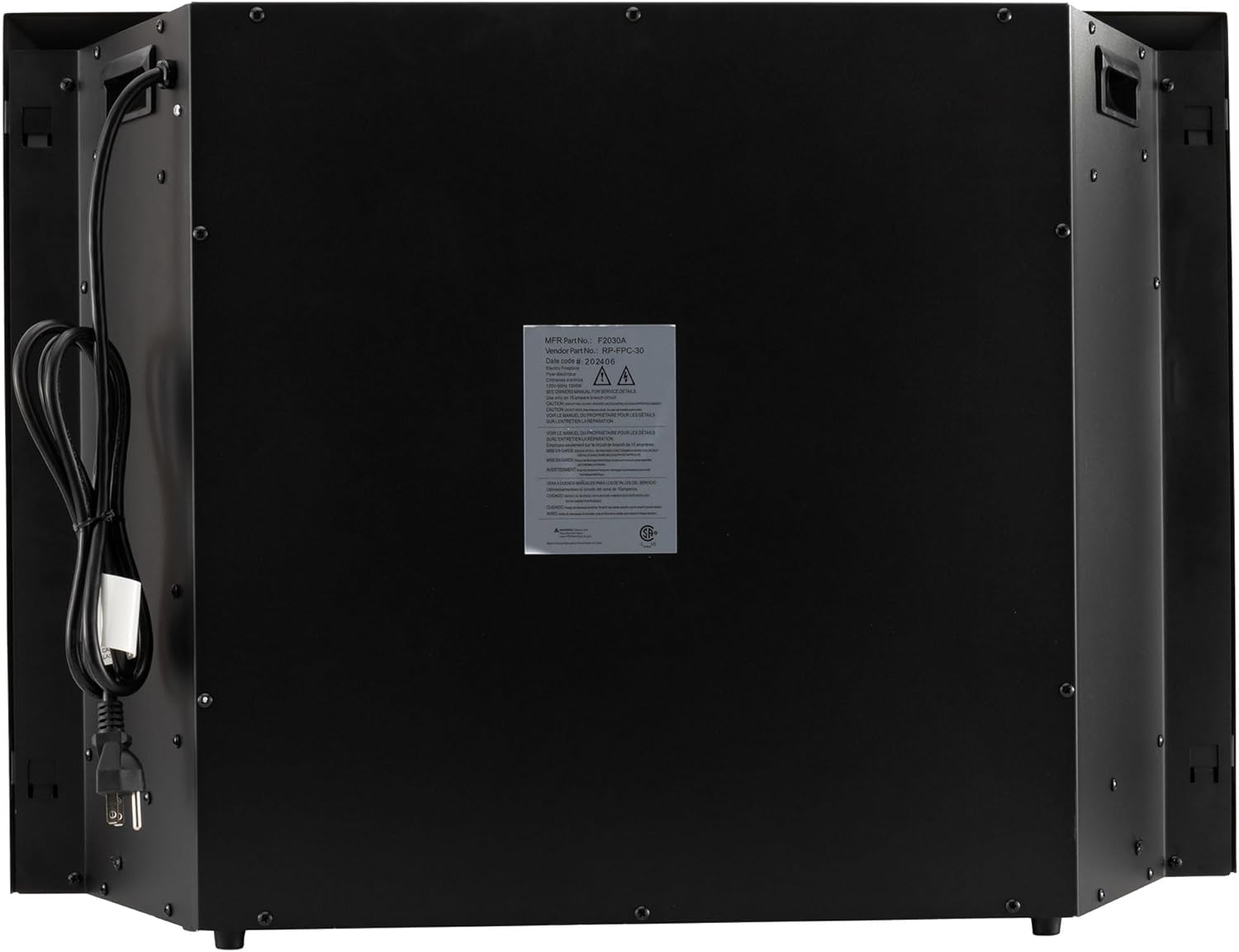

belakang view of the fireplace, displaying the power cord connection and product information label.
Arahan Operasi
Your RecPro Electric Fireplace can be controlled using the included remote control or the intuitive LED touch panel on the unit.
Fungsi Kawalan Jauh

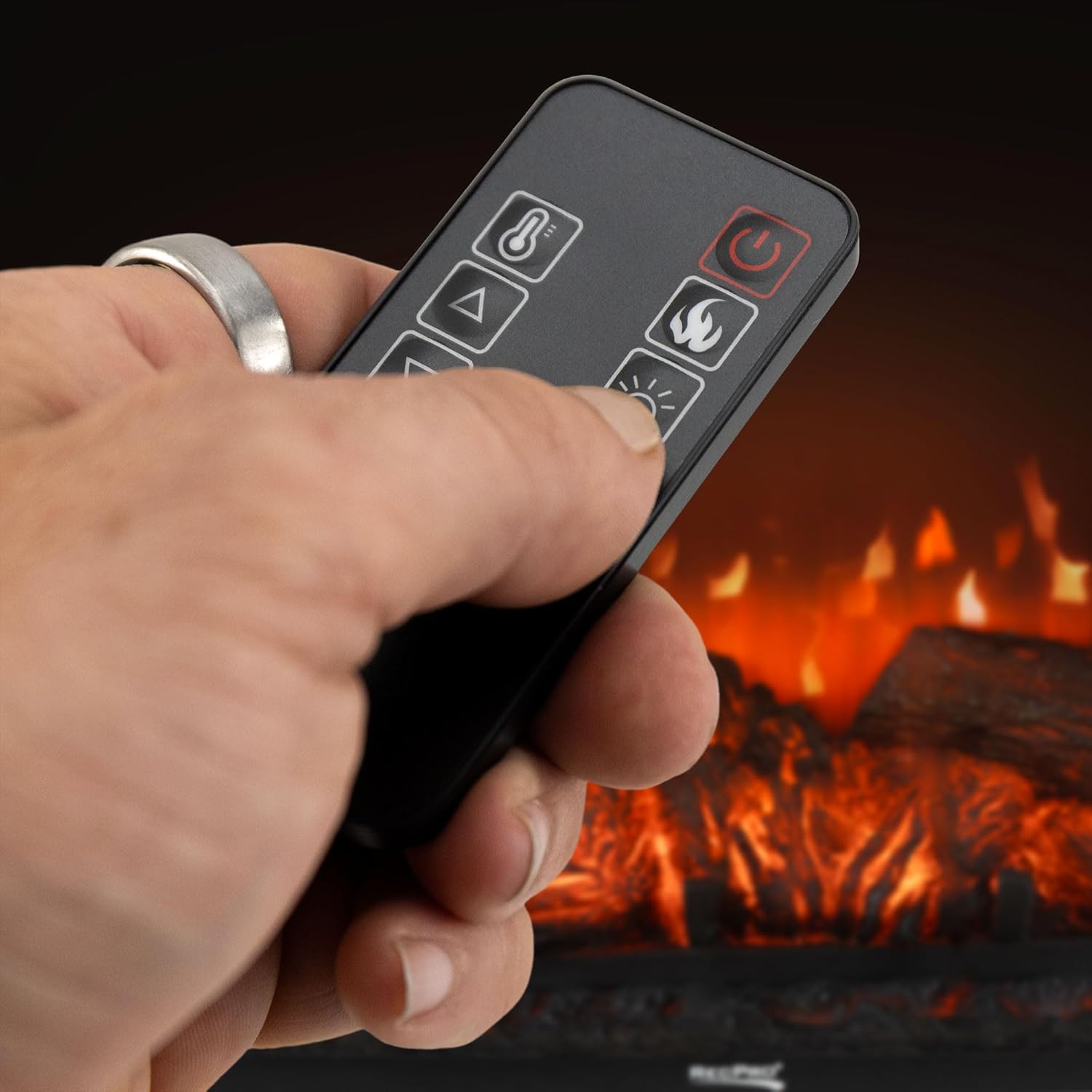

A hand operating the remote control, with buttons for power, temperature, flame effects, and timer visible.
- Butang Kuasa: Menghidupkan/Mematikan pendiang api.
- Kawalan Suhu: Adjusts the heat output. The fireplace offers 8 heat settings, ranging from 68°F to 82°F.
- Flame Color Modes: Cycles through four distinct flame color options: Orange, Blue, Orange + Blue, and Cycle (automatically transitions through colors).
- Kawalan Kecerahan: Adjusts the intensity of the flame effect.
- Fungsi Pemasa: Menetapkan pemasa penutupan automatik.
Panel Sentuh LED
The LED touch panel on the fireplace unit provides access to the same functions as the remote control. Gently press the icons to adjust settings.

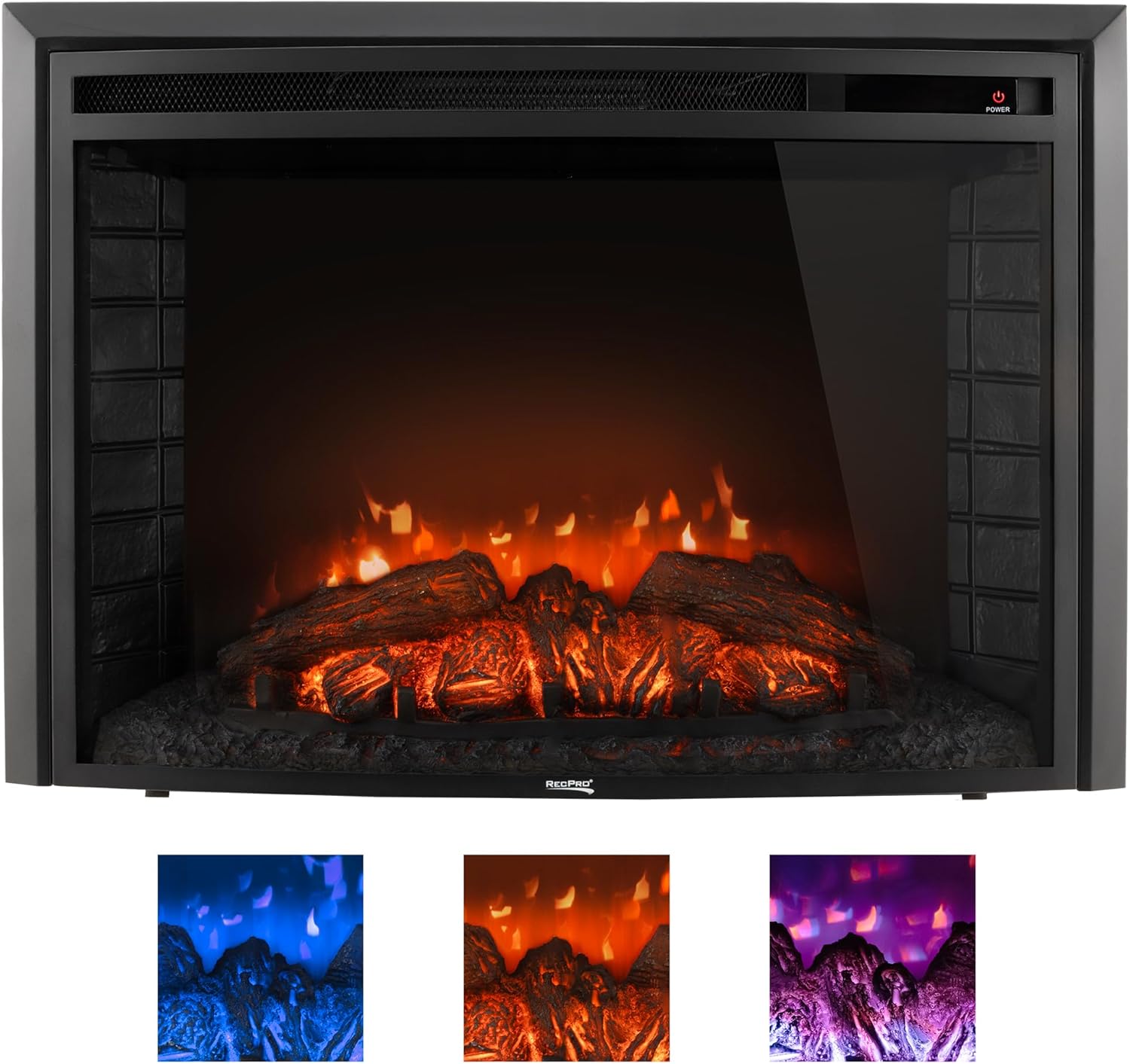

The fireplace showcasing different flame color modes, including blue, orange, and a combination of both.
Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum perapian elektrik anda.
Pembersihan
- Sentiasa cabut plag unit sebelum membersihkan.
- The curved tempered glass panel is designed for easy cleaning. Use a soft, damp cloth to wipe the glass and exterior surfaces. Avoid abrasive cleaners or sprays directly on the unit.
- Periodically check the air intake and exhaust vents for dust or obstructions. Use a vacuum cleaner with a soft brush attachment to remove any buildup.
Penyimpanan
If storing the fireplace for an extended period, ensure it is clean and dry. Store in a cool, dry place, preferably in its original packaging to protect it from dust and damage.
Menyelesaikan masalah
Jika anda mengalami masalah dengan pendiang api elektrik anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perapian tidak menyala. | No power supply; Power cord not plugged in; Circuit breaker tripped; Thermal cut-off activated. | Check power outlet; Ensure cord is securely plugged in; Reset circuit breaker; Allow unit to cool down and reset. |
| Tiada keluaran haba. | Heat function not activated; Temperature setting too low; Heater element malfunction. | Activate heat function via remote/panel; Increase temperature setting; Contact customer support if issue persists. |
| Kesan nyalaan tidak berfungsi. | Flame effect turned off; LED light malfunction. | Turn on flame effect via remote/panel; Contact customer support if issue persists. |
| Alat kawalan jauh tidak berfungsi. | Bateri mati; Halangan antara alat kawalan jauh dan unit. | Replace batteries; Ensure clear line of sight to the fireplace sensor. |
If the problem persists after attempting these solutions, please contact RecPro customer support.
Spesifikasi
- Jenama: RecPro
- Nama Model: RP-FPC-30
- Sumber Kuasa: Elektrik
- Voltage: 120 Volt
- Dimensi Produk: 8"D x 30"W x 21.75"H
- Bahan: Keluli Aloi
- Jenis Selesai: Steel Construction with Black Finish
- Jenis Pemasangan: Recess Dipasang
- Keluaran Haba: 1500 Watt
- Ciri Khas: LED Flame, Multicolor Flame, Thermal cut-off sensors, Timer
- gaya: moden
- warna: Hitam
- Jenis Pengudaraan: Vent percuma
- Komponen yang Disertakan: Alat Kawalan Jauh
- Kegunaan Khusus Untuk Produk: Indoor, Recreational Vehicle
- Berat Barang: 55 paun
- UPC: 193652104346
Sokongan Pelanggan
For any questions, technical assistance, or warranty inquiries regarding your RecPro RV 30" Recessed Electric Fireplace, please contact RecPro customer support.
