Manual Pengguna

1. Produk Lebihview

The ZYWELL ZY908 is an 80mm thermal receipt printer designed for various business environments, including small businesses, retail stores, and restaurants. It features an auto-cutter and supports multiple operating systems for versatile connectivity.

Figure 1: ZYWELL ZY908 Thermal Receipt Printer. This image displays the compact white thermal receipt printer with a receipt emerging from the top slot.

2. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• ZY908 Thermal Receipt Printer
• Kord Kuasa
• Gulungan Kertas
• penggelek
• Manual Pengguna (dokumen ini)
• Kabel USB

3. Arahan Persediaan

3.1. Menyambungkan Pencetak

The ZY908 printer supports both USB and LAN (Ethernet) connections. Choose the appropriate connection method based on your system requirements.

Rajah 2: Belakang view of the ZY908 printer showing the Power Supply Port, Ethernet Port, USB Port, Cash Drawer Port, and Power Switch.

1. Connect the power cord to the printer's Power Supply Port (1) and plug it into a power outlet.
2. For USB connection: Connect the USB cable from the printer's USB Port (3) to your computer.
3. For LAN/Ethernet connection: Connect an Ethernet cable from the printer's Ethernet Port (2) to your network router or switch.
4. If using a cash drawer, connect it to the Cash Drawer Port (4).
5. Turn on the printer using the Power Switch (5).

3.2. Driver Installation and Compatibility

The printer comes with a USB flash drive containing the necessary drivers. Ensure you install the correct driver for your operating system.

Nota Keserasian:

• USB connection supports Android, Mac, Windows, and Linux.
• LAN (Ethernet) connection supports iOS (for Square Stand), Android, Mac, Windows, and Linux.
• This printer is not compatible with Ubereats, Grubhub, Doordash, Lightspeed, Postmates, Clover, or Shopify.
• Bluetooth and Wi-Fi connectivity are not supported.

Figure 3: Compatibility matrix showing supported POS systems and operating systems for USB and LAN connections. Note that iOS devices require a LAN connection for Square.

3.3. Mac Driver Installation via Ethernet

For Mac users connecting via Ethernet, follow these steps to install the driver and set up the printer:

1. Locate the driver installation package on the provided USB flash drive or download it from the official ZYWELL support webtapak.
2. Run the installer and follow the on-screen prompts to complete the driver installation.
3. Open "System Preferences" on your Mac.
4. Navigate to "Printers & Scanners."
5. Click the "+" button to add a new printer.
6. Select the "IP" tab.
7. Enter the printer's IP address (which can be found using the "Printer Tool" application, as shown in the video).
8. Choose "HP Jetdirect - Socket" as the protocol.
9. Select "POS-80" from the "Use" dropdown menu for the printer software.
10. Click "Add" to complete the setup.

3.4. Cash Drawer Setup

To enable cash drawer functionality with Square, follow these steps:

1. Connect your computer to the printer via USB.
2. Download and install the appropriate system driver from the provided USB flash drive.
3. After driver installation, open the "Printer Test V5.2C" tool.
4. Click on "Advanced" within the tool.
5. Locate "Cutter with Cash Drawer" and select "ON."
6. A successful setup will be indicated by a printer beep.

4. Mengendalikan Pencetak

4.1. Basic Printing Operations

The ZY908 printer is designed for efficient thermal printing with a speed of up to 230mm/s and features an automatic cutter for clean receipt separation.

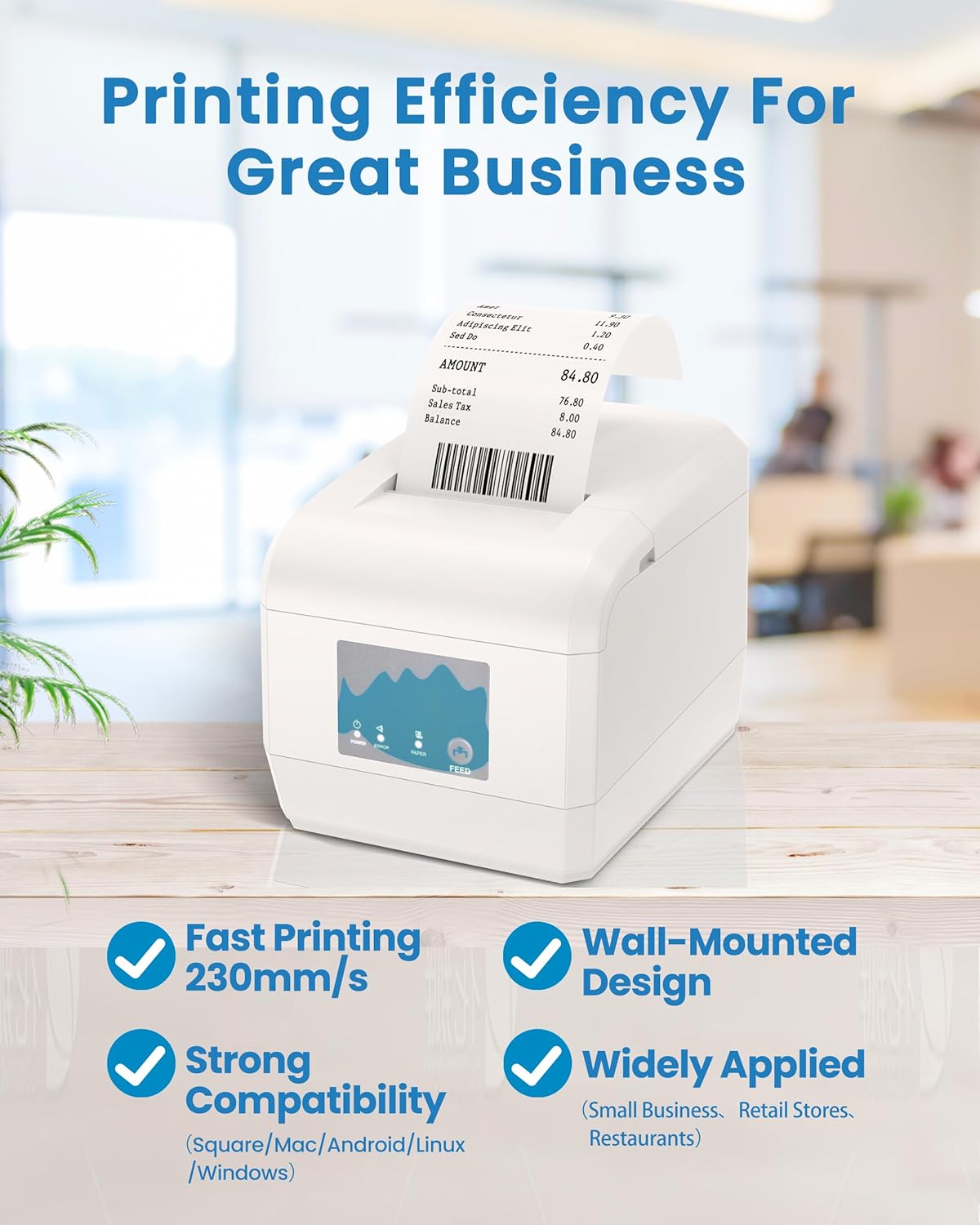

Figure 4: The ZY908 printer in operation, highlighting its fast printing speed and suitability for various business environments. It also mentions wall-mounted design and strong compatibility.

Komponen Pencetak:

Rajah 5: Atas view of the ZY908 printer, indicating the Paper Cutter, Feed Button, Paper LED Indicator, Error LED Indicator, Power LED Indicator, and Cover Button.

• Pemotong kertas: Secara automatik memotong resit selepas dicetak.
• Butang Suapan: Press to advance paper manually.
• Penunjuk LED: Provide status updates for Power, Paper, and Error conditions.
• Butang Penutup: Used to open the paper compartment for loading or maintenance.

4.2. Loading Paper Rolls

The ZY908 printer is designed for use with 80mm wide thermal paper rolls.

1. Press the Cover Button to open the paper compartment.
2. Insert the 80mm thermal paper roll with the paper feeding from the bottom.
3. Pull a small amount of paper out past the paper cutter.
4. Tutup penutup petak kertas dengan kuat sehingga ia terkunci pada tempatnya.

4.3. Pemasangan Dipasang di Dinding

The printer features two hanging holes at the bottom for optional wall-mounting, which can help save space and maintain a tidy workspace.

Figure 6: The ZY908 printer shown in a wall-mounted configuration, demonstrating its space-saving design.

To wall-mount the printer, use appropriate screws and anchors (not included) to secure it to a sturdy surface via the designated hanging holes on the base.

5. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan jangka hayat pencetak anda.

• Pembersihan: Periodically clean the printer's exterior with a soft, damp kain. Elakkan pembersih atau pelarut yang melelas.
• Pembersihan Kepala Cetak: If print quality degrades, clean the thermal print head using a specialized thermal printer cleaning pen or isopropyl alcohol on a cotton swab. Ensure the printer is off and cooled down before cleaning.
• Auto-Cutter Maintenance: Keep the auto-cutter area free from paper dust and debris to prevent jams and ensure smooth operation.

6. Penyelesaian masalah

This section addresses common issues you might encounter with the ZY908 printer.

7. Spesifikasi

8. Waranti dan Sokongan

The ZYWELL ZY908 Thermal Receipt Printer comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included in your product packaging or contact ZYWELL customer support.

For technical assistance, troubleshooting, or further inquiries, please visit the official ZYWELL website or contact their customer service department. Contact information can typically be found in the included user manual or on the manufacturer's webtapak.

Anda juga boleh melawat ZYWELL Store on Amazon untuk mendapatkan maklumat lanjut dan sumber sokongan.
