1. Pengenalan
This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your HITBOX ARC200D MINI3 Ultra Mini Inverter Welder. Please read this manual thoroughly before operating the device to ensure proper usage and to prevent injury or damage.
Langkah-langkah Keselamatan
- Always wear appropriate personal protective equipment (PPE), including welding helmet, gloves, and protective clothing.
- Ensure adequate ventilation in the work area to disperse welding fumes.
- Jangan kendalikan mesin kimpal diamp atau keadaan basah.
- Putuskan sambungan kuasa sebelum melakukan sebarang penyelenggaraan atau pelarasan.
- Jauhkan kanak-kanak dan kakitangan yang tidak dibenarkan dari kawasan kimpalan.
2. Produk Lebihview
The HITBOX ARC200D MINI3 is a compact and portable 2-in-1 inverter welder, capable of both MMA (Stick) welding and Lift TIG welding. It features a digital display for easy parameter adjustment and various safety protections.
Ciri-ciri Utama:
- 2-in-1 Welding: Supports MMA (Stick) and Lift TIG welding modes.
- Paparan Digital: Clear LCD display for welding current indication and alarm lights.

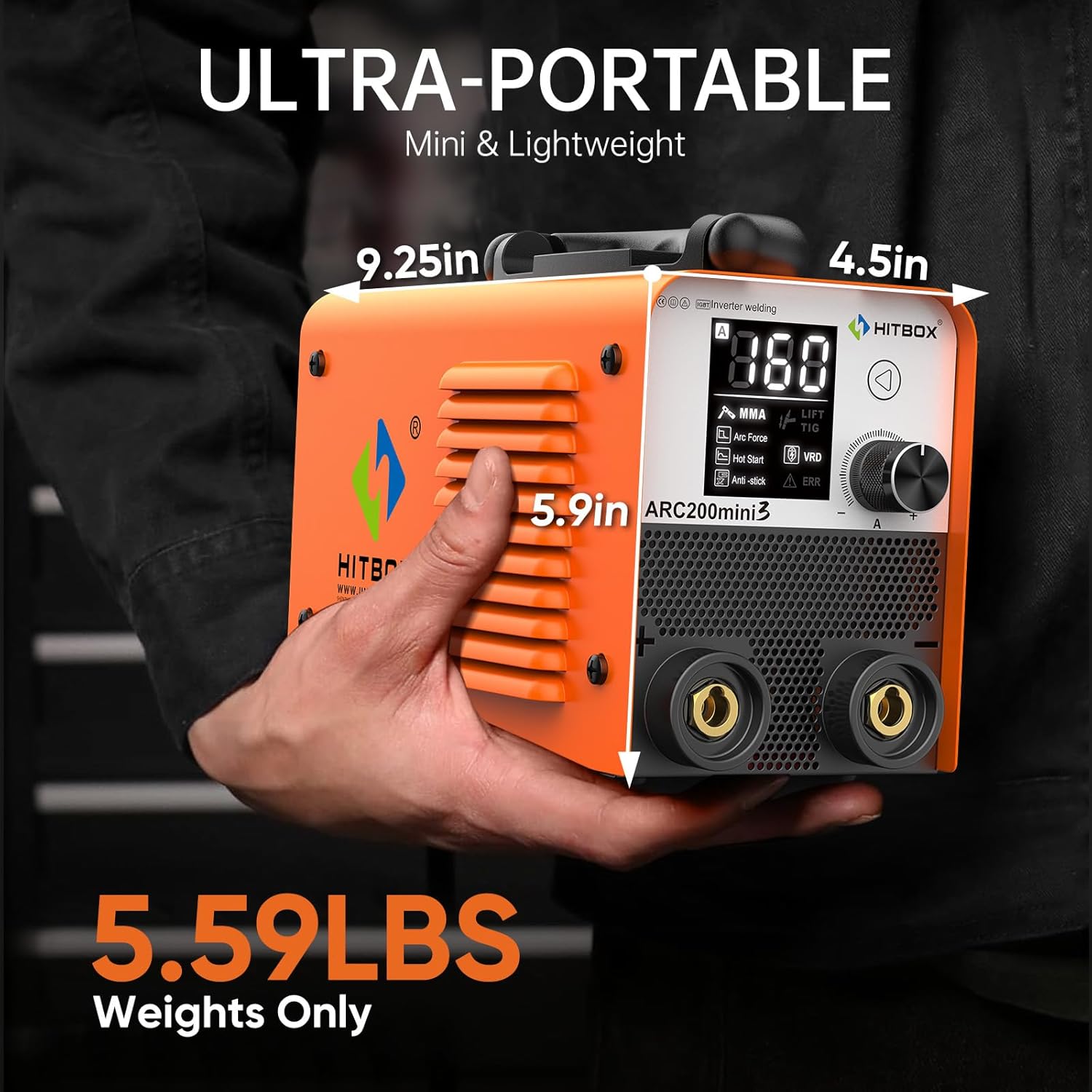

- Reka Bentuk Mudah Alih: Compact and lightweight (2.1kg) with an adjustable shoulder strap.
- Synergistic Technology: Automatically adjusts current intensity based on material thickness (for specific modes).
- Quick Arc Ignition: Facilitates easy priming of 3.2mm electrodes (E7018/E6013 compatible).
- Perlindungan Keselamatan: Internal protection devices against overheating and over-current.

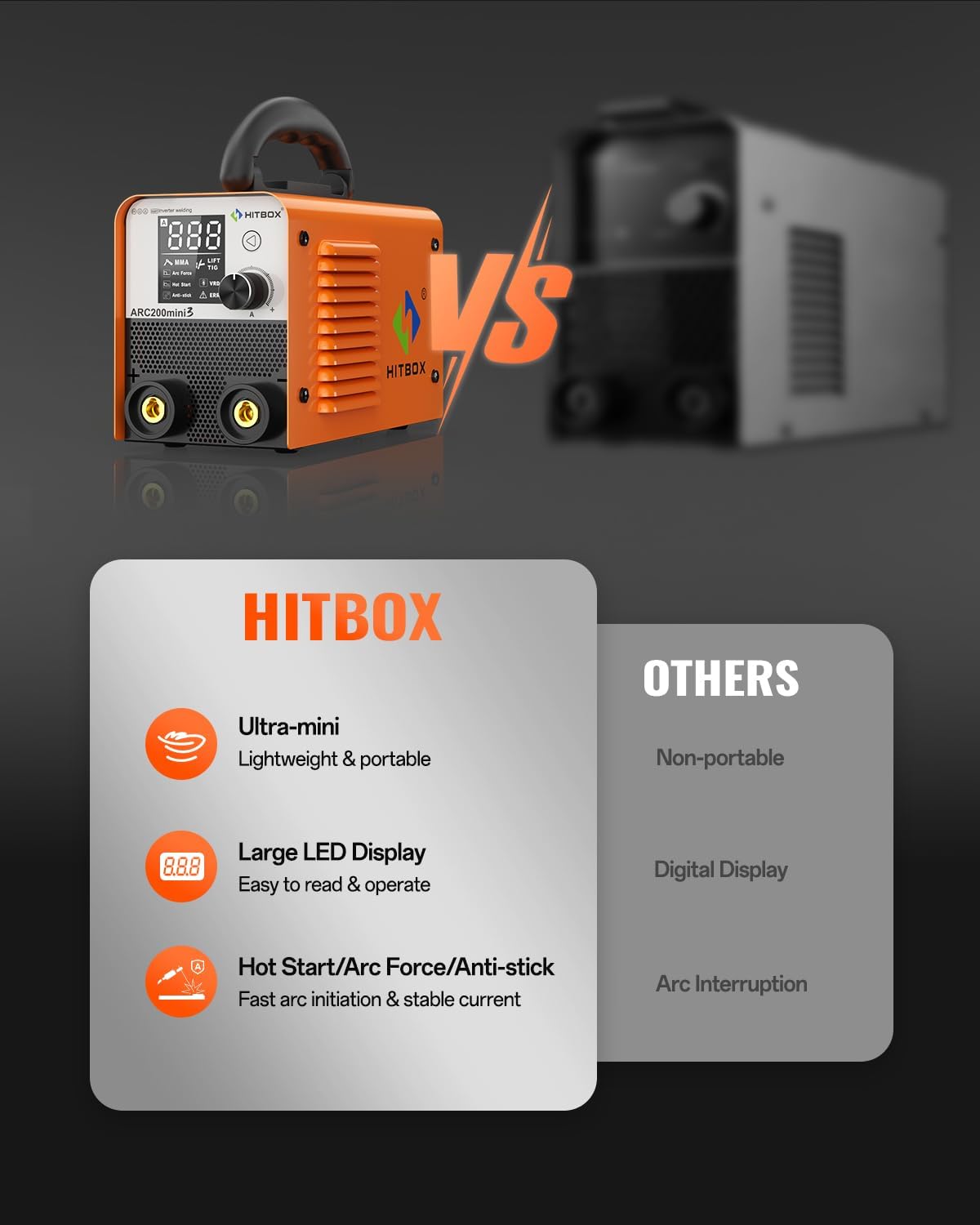

- Optimized Display: Improved internal structure and clearer parameter panel for enhanced user experience.
Komponen:
- Welding Machine Unit
- Kabel Pemegang Elektrod
- Tanah Clamp kabel
- Shoulder Strap (pre-attached or included)
3. Persediaan
3.1 Sambungan Kuasa
Connect the welder to a suitable power supply. The unit operates on 230 Volts. Ensure the power source is stable and can provide the necessary current without fluctuations.
3.2 Sambungan Kabel
- Sambungkan tanah clamp cable to the negative (-) terminal on the welder. Secure the ground clamp ke bahan kerja, memastikan sentuhan elektrik yang baik.
- Connect the electrode holder cable to the positive (+) terminal on the welder for MMA welding. Insert the welding electrode into the holder.
- For Lift TIG welding, connect the TIG torch (purchased separately) to the appropriate terminal as per the torch's instructions, typically the negative (-) terminal for DC TIG.
4. Arahan Operasi
4.1 Menghidupkan dan Pemilihan Mod
- Turn on the main power switch located on the rear of the unit.

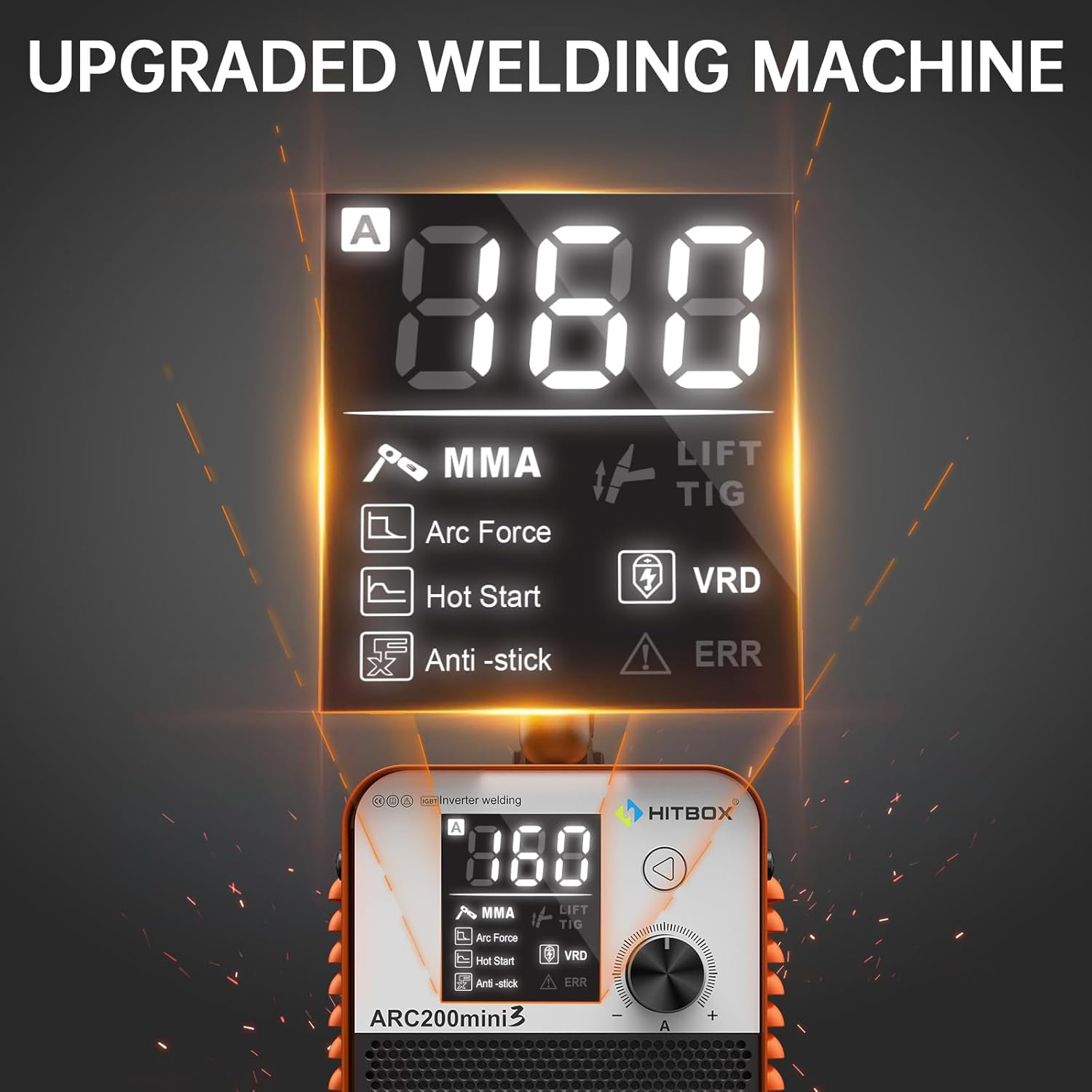

- The digital display will illuminate. Use the mode selection button (if available, or the main knob) to choose between MMA (Stick) or Lift TIG welding.
4.2 Kimpalan MMA (Stik).
- Pilih mod MMA.
- Adjust the welding current using the control knob. Refer to electrode manufacturer specifications for recommended current settings. The digital display shows the current.
- The welder features Hot Start for easier arc ignition, Arc Force for stable arc performance, and Anti-stick to prevent electrodes from sticking.
- Begin welding, maintaining proper arc length and travel speed.
4.3 Angkat Kimpalan TIG
- Select Lift TIG mode. (Note: A WP17V TIG torch needs to be purchased separately for this function).
- Adjust the welding current as required for the material and tungsten electrode size.
- To initiate the arc, gently touch the tungsten electrode to the workpiece and then lift it slightly. The arc will ignite.
- Kekalkan panjang arka dan rod pengisi suapan yang konsisten mengikut keperluan.
4.4 Keserasian Bahan
The HITBOX ARC200D MINI3 is suitable for welding various materials, including:
- Keluli Lembut
- Lembaran Logam
- Paip Persegi
- Besi tuang
- Sangkar Logam
- Keluli Tahan Karat
5. Penyelenggaraan
5.1 Pembersihan
- Regularly clean the exterior of the welder with a dry, soft cloth.
- Periodically use compressed air to blow out dust and debris from the ventilation openings. Ensure the power is disconnected before cleaning.
5.2 Penyimpanan
- Store the welder in a dry, dust-free environment.
- Lindungi unit daripada suhu dan kelembapan yang melampau.
6. Penyelesaian masalah
Bahagian ini membincangkan isu-isu biasa yang mungkin anda hadapi. Untuk masalah yang tidak disenaraikan di sini, sila hubungi khidmat pelanggan.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kimpalan tidak boleh dihidupkan | No power supply; faulty power cable; internal fuse blown. | Check power connection and outlet; inspect power cable; contact service if fuse is suspected. |
| No arc ignition | Sambungan pembumian yang lemah; tetapan arus yang salah; damp electrode; faulty electrode holder. | Ensure solid ground connection; adjust current; use dry electrodes; check electrode holder. |
| Arc is unstable or stops | vol input rendahtage; incorrect current/arc force settings; overheating. | Check power supply; adjust settings; allow welder to cool down if protection light is on. |
| "ERR" indicator on display | Internal error; overheating; over-current. | Turn off the welder, allow it to cool. If the error persists, contact customer service. |
7. Spesifikasi
| Spesifikasi | Nilai |
|---|---|
| Nombor Model | ARC200D MINI3 |
| Pengeluar | HITBOX |
| Dimensi Produk | 23.4 x 11.4 x 15 cm |
| Berat Barang | 2.7 kg (5.95 lbs) |
| Sumber Kuasa | Hand-powered (requires external electrical supply) |
| Voltage | 230 Volt |
| Mod Kimpalan | MMA (Stick), Lift TIG |
| Electrode Compatibility | E7018/E6013 (up to 3.2mm) |
| Working Thickness | Sehingga 5mm |
| Komponen yang Disertakan | Welding machine, electrode holder cable, ground clamp kabel |
8. Waranti dan Sokongan
For any issues or questions regarding your HITBOX ARC200D MINI3 welder, please contact HITBOX customer service. Refer to your purchase documentation for specific warranty terms and conditions.
Perkhidmatan Pelanggan: Please feel free to contact us if you have any problems during use.
You can often find support contact information on the official HITBOX webtapak atau melalui peruncit anda.
