Manual Arahan Bateri Basikal Elektronik Rak Belakang Varstrom 48V 17.5Ah

pengenalan

This manual provides essential instructions for the safe and efficient use of your Varstrom 48V 17.5Ah Rear Rack Ebike Battery. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your battery.

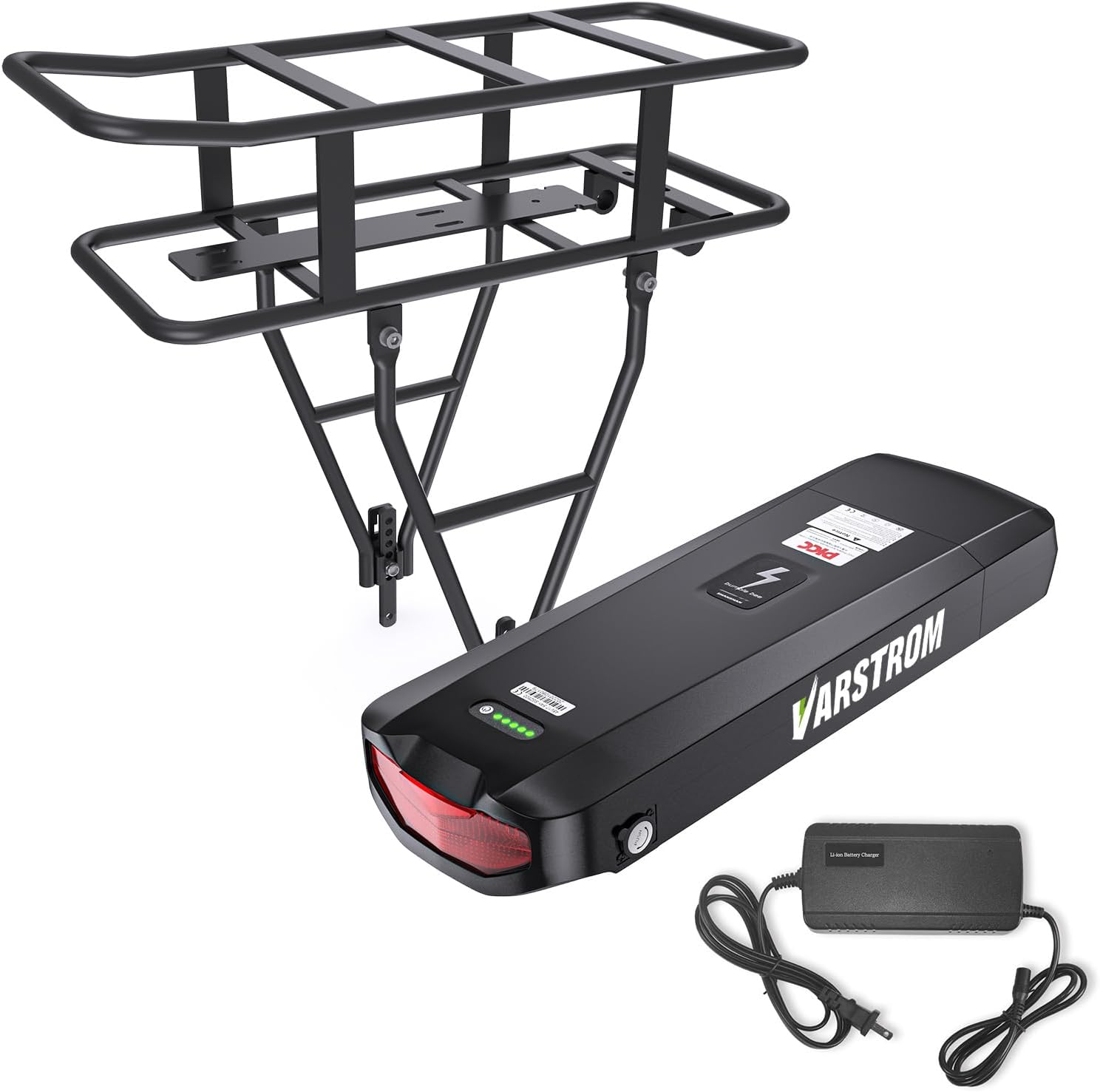

Image: The Varstrom 48V 17.5Ah Rear Rack Ebike Battery, its dedicated charger, and the accompanying rear rack for mounting.

Maklumat Keselamatan

Keselamatan anda adalah yang utama. Patuhi garis panduan berikut:

• Avoid Short-Circuiting: Never short-circuit the battery terminals. This can cause permanent damage to the battery and pose a fire hazard.
• Amalan Mengecas: Recharge the battery before it is completely depleted for optimal life. Disconnect the charger once the indicator turns green to prevent overcharging.
• Perlindungan Bersepadu: The battery features a Battery Management System (BMS) for overcurrent, overvoltage, overload, overcharge, overdischarge, temperature, and short-circuit protection. Each cell is also equipped with a fuse.
• Pemasangan selamat: Ensure the battery is securely locked onto the rear rack to prevent theft and accidental dislodgement during operation.
• Keadaan Persekitaran: Avoid exposing the battery to extreme temperatures, direct sunlight for prolonged periods, or moisture.

Image: Visual representation of the Varstrom Rear Rack Battery highlighting its multiple safety features, including overcurrent, overvoltage, overload, overcharge, overdischarge, temperature, short circuit protection, and cell voltage mengimbangi.

Produk Selesaiview dan Ciri

The Varstrom 48V 17.5Ah Rear Rack Ebike Battery is designed for electric bike motor kits ranging from 50W to 1200W. It offers reliable power and integrated safety features.

Ciri-ciri Utama:

• Keserasian: Suitable for 0-1200W electric bike motor kits (e.g., BAFANG, Voilamart, AW, Ebikeling, Pexmor, L-Fater).
• Kapasiti Tinggi: 48V 17.5Ah (840Wh) for extended range.
• Hayat Kitaran Panjang: Retains ≥80% capacity after 800 cycles, with an estimated lifespan of up to 5 years.
• Integrated Lock System: Secures the battery to the rack and deters theft.
• Suis kuasa: Helps conserve power when the battery is not in use.
• Petunjuk Kuasa LED: Provides real-time battery charge status.
• Reka Bentuk Boleh Tanggal: Allows for convenient charging off the bike.
• XT60 Female Discharge Connector: Standard connector for motor kits.
• 6-Pin Battery Base: For secure connection to the rack.
• Port USB: Untuk mengecas peranti luaran.

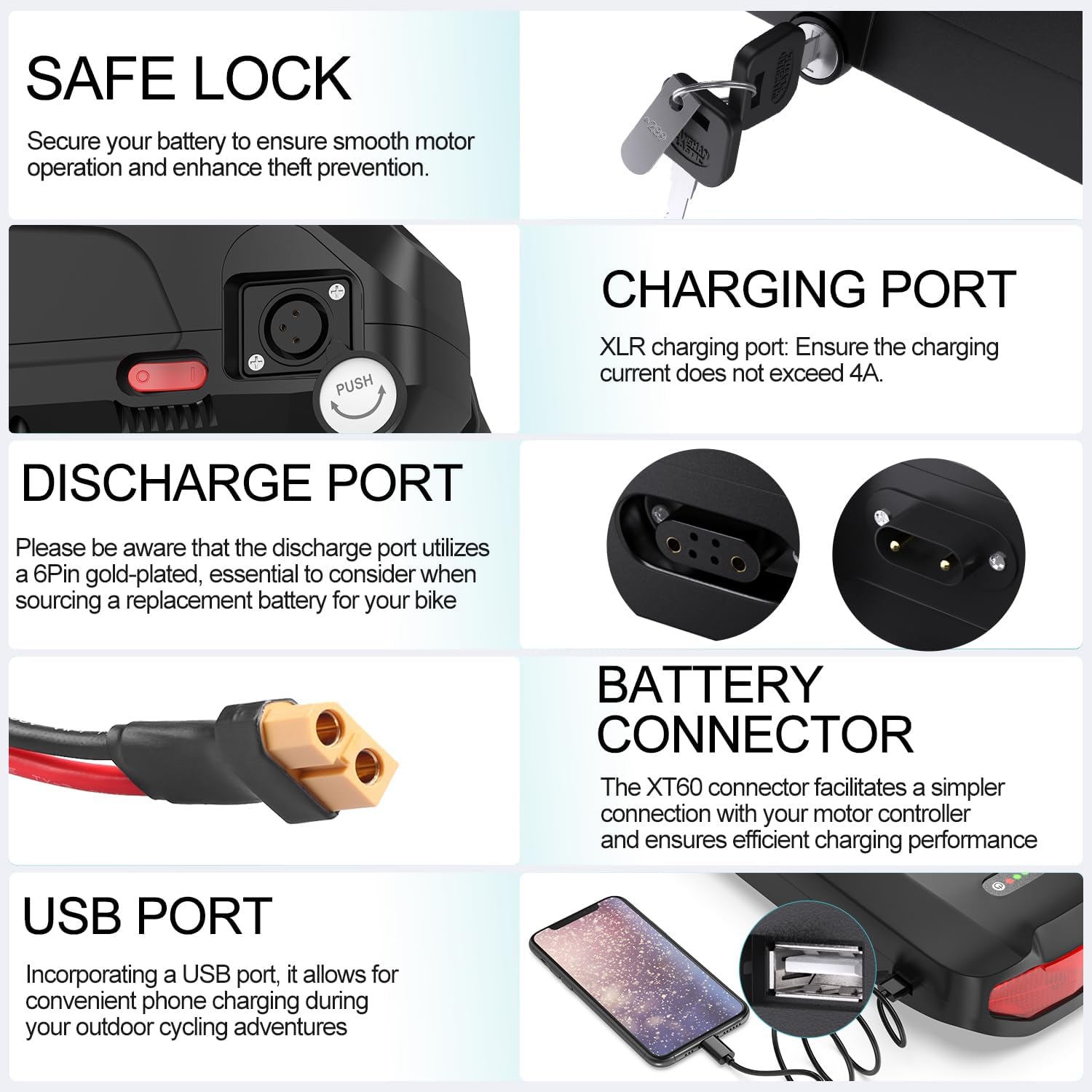

Imej: Terperinci views of the battery's components: the secure lock with keys, the XLR charging port, the 6-pin gold-plated discharge port, the XT60 battery connector, and the integrated USB port for device charging.

Imej: Meletup view diagram illustrating the internal shockproof shell structure and the secure cell holder designed to protect the battery cells.

Spesifikasi

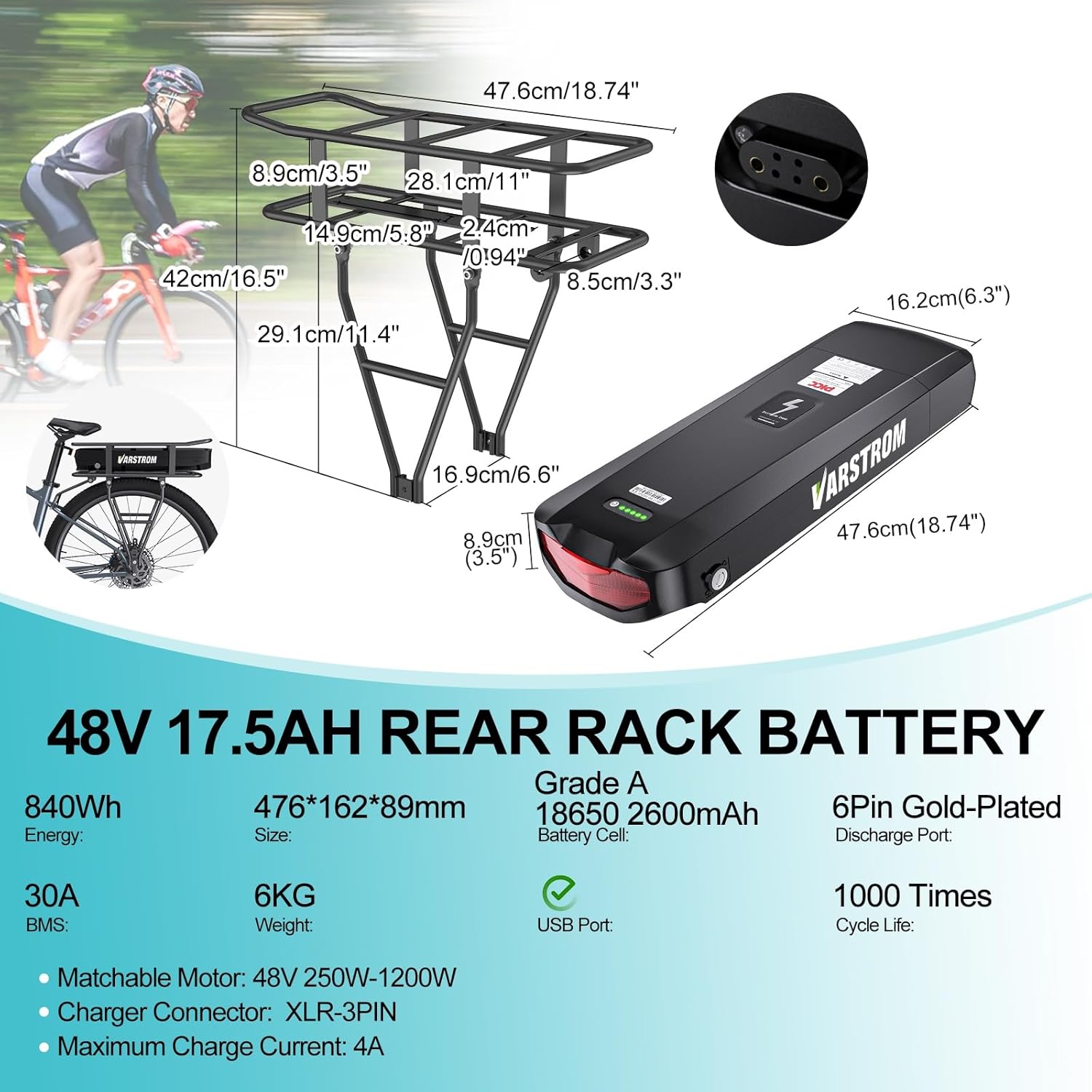

Image: Detailed diagram illustrating the dimensions of the Varstrom 48V 17.5Ah Rear Rack Ebike Battery and its mounting rack, along with key specifications like energy, cell type, discharge port, and cycle life.

Persediaan dan Pemasangan

Follow these steps to properly install your Varstrom Rear Rack Ebike Battery and its accompanying rack.

Senarai Pembungkusan:

• 1 * 48V 17.5Ah Rear Rack Battery
• 1 * Battery Fix Plate
• 1 * Rear Rack
• 1 * Pengecas
• 2 * Keys
• 1 * 50A Fuse
• 1 * Manual Pengguna (dokumen ini)
• Accessories (mounting hardware)

Langkah Pemasangan:

1. Step 1: Assemble the Rear Rack. Attach the support arms to the main rack frame using the provided hardware. Ensure all connections are secure.
2. Step 2: Mount the Rack to your Bicycle. Securely attach the assembled rear rack to your bicycle's seat stays and dropout eyelets. Adjust the rack to be level and stable.
3. Step 3: Install the Battery Fix Plate. Mount the battery fix plate onto the rear rack. This plate will serve as the base for the battery.
4. Langkah 4: Sambungkan Pendawaian. Route the battery's discharge cable and any other necessary wiring (e.g., for the brake light) from the battery fix plate to your motor controller. Ensure the XT60 connector is accessible for connection to your motor.
5. Step 5: Slide in the Battery. Carefully slide the battery onto the fix plate on the rear rack. Ensure it clicks into place.
6. Step 6: Lock the Battery. Use the provided key to lock the battery onto the rack. This prevents theft and secures the battery during riding.

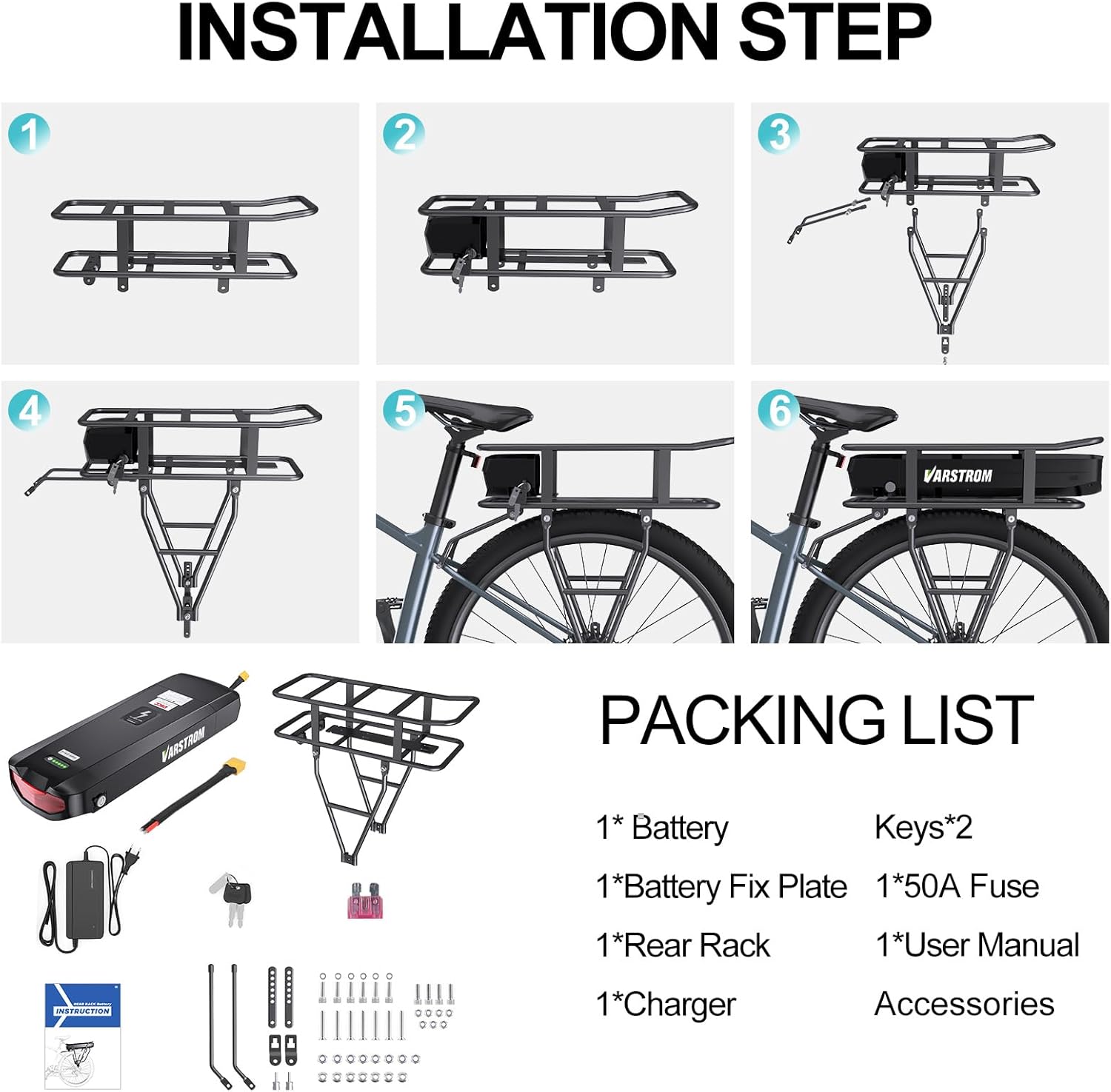

Image: A step-by-step visual guide demonstrating the installation process of the Varstrom Rear Rack Ebike Battery, from assembling the rack to securing the battery on the bicycle.

Arahan Operasi

Mengecas Bateri:

1. Ensure the battery's power switch is in the "OFF" position.
2. Connect the charger to a standard AC power outlet. The charger's indicator light will typically show red.
3. Connect the charger's output plug (XLR-3PIN) to the charging port on the battery.
4. The charger indicator light will turn green when the battery is fully charged. Disconnect the charger from the battery and then from the power outlet.
5. Nota: The maximum charge current is 4A. Do not use chargers exceeding this specification.

Menggunakan Bateri:

1. Ensure the battery is securely locked onto the rear rack.
2. Turn the battery's power switch to the "ON" position. The LED power indicator lights will illuminate, showing the current charge level.
3. Connect the XT60 discharge connector from the battery to your ebike motor controller.
4. Operate your ebike as per its specific instructions.
5. When finished riding, turn the battery's power switch to the "OFF" position to conserve power.

Port Pengecasan USB:

The integrated USB port allows for convenient charging of small electronic devices (e.g., smartphones) during your ride. Simply connect your device's USB cable to the port on the battery.

Penyelenggaraan

• Pengecasan Biasa: For optimal battery life, avoid completely depleting the battery. Recharge it regularly, even if not fully discharged.
• Storan: If storing the battery for an extended period, charge it to approximately 50-60% capacity. Store in a cool, dry place away from direct sunlight and extreme temperatures. Recharge every 2-3 months to prevent deep discharge.
• Pembersihan: Bersihkan bateri casing with a soft, dry cloth. Do not use water or cleaning agents directly on the battery or its ports.
• Pemeriksaan Penyambung: Periodically inspect the charging and discharge connectors for any signs of wear, corrosion, or damage.
• Pengurusan Suhu: Avoid operating or charging the battery in extremely hot or cold conditions. Optimal operating temperature is typically between 0°C and 45°C (32°F and 113°F).

Menyelesaikan masalah

This section addresses common issues you might encounter with your ebike battery.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Varstrom customer support.

Waranti dan Sokongan

Penerangan Waranti: Varstrom offers a 30-day return policy and a 365-day repair or replacement warranty for this product.

For warranty claims, technical support, or any questions regarding your Varstrom 48V 17.5Ah Rear Rack Ebike Battery, please refer to the contact information provided with your purchase or visit the official Varstrom webtapak.

Sila simpan bukti pembelian anda untuk pengesahan waranti.
