MechMaxx SBE50 270CC 9HP Gasoline Folding Board Edger Instruction Manual

pengenalan

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MechMaxx SBE50 Gasoline Folding Board Edger. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage to the equipment.

Arahan Keselamatan

AMARAN: Kegagalan mematuhi arahan keselamatan ini boleh mengakibatkan kecederaan serius atau kematian.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy gloves.
• Pastikan kawasan kerja bebas daripada orang ramai, kanak-kanak dan haiwan peliharaan.
• Operate the edger on a stable, level surface.
• Keep hands and feet away from moving parts, especially the saw blade and rollers.
• Never operate the edger under the influence of drugs, alcohol, or medication that may impair judgment.
• Familiarize yourself with the location and function of all controls, including the engine stop switch.
• The anti-kickback fingers are a critical safety feature; ensure they are properly installed and maintained to prevent boards from being ejected towards the operator.
• Before performing any maintenance or adjustments, always turn off the engine and disconnect the spark plug wire to prevent accidental starting.

Produk Selesaiview

The MechMaxx SBE50 is a versatile gasoline-powered folding board edger designed for portability and efficiency. It features a powerful engine, adjustable cutting capabilities, and integrated safety mechanisms.

Komponen dan Ciri Utama:

• 270cc 9HP 4-stroke Single Cylinder Air-Cooled OHV Gasoline Engine: Provides reliable and efficient power. Features recoil starting.
• 10" Carbide Alloy Saw Blade: Designed for precise and efficient board edging.
• Adjustable Pull Handle: Easily adjusts to any board width in 2-inch increments, up to 12 inches.
• Skala Bersepadu: Allows the operator to measure and edge boards accurately.
• Multiple Table Rollers: Facilitate smooth movement of material through the edger.
• Anti-Kickback Fingers: Protect the operator by preventing boards from being kicked out.
• Kaki Lipat: The legs of the discharge table can be folded flat for easy storage and transportation. The engine can also be easily removed for storage and transport.

Rujukan Visual:

Rajah 1: Secara keseluruhan view of the MechMaxx SBE50 Folding Board Edger.

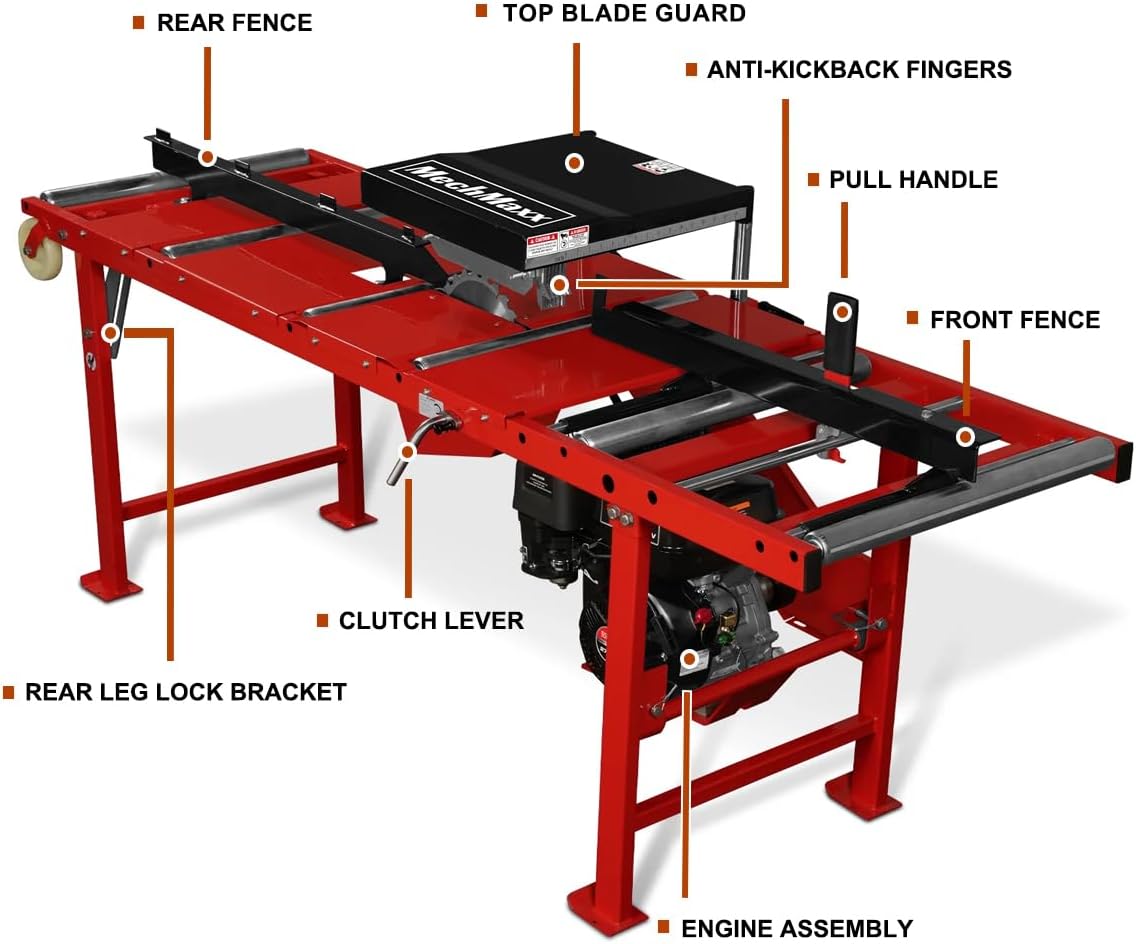

Figure 2: Labeled diagram highlighting key components such as the rear fence, top blade guard, anti-kickback fingers, pull handle, front fence, clutch lever, rear leg lock bracket, and engine assembly.

Figure 3: Product dimensions showing length (87.7"), width (34.5"), and height (39.6").

Persediaan

Carefully unpack all components and ensure all parts are present according to the packing list. Assembly is required. Refer to the detailed assembly instructions provided in the separate assembly guide for step-by-step procedures.

Initial Engine Preparation:

1. Ensure the engine is securely mounted to the edger frame.
2. Fill the engine crankcase with the recommended type and amount of engine oil (refer to the engine manual for specifics).
3. Isi tangki bahan api dengan petrol segar tanpa plumbum. Jangan penuhkan.
4. Check the air filter and ensure it is clean and properly installed.

Blade Installation and Adjustment:

• Ensure the 10-inch carbide alloy saw blade is correctly installed and tightened.
• Adjust the blade height to the desired cutting depth (0.25" - 2.25" range).

Figure 4: Close-up of the DUCAR 270cc 9HP 4-stroke engine, highlighting the air filter and recoil start mechanism.

Arahan Operasi

Memulakan Enjin:

1. Ensure the engine stop switch is in the "ON" position.
2. Move the choke lever to the "CHOKE" position (if the engine is cold).
3. Tarik pemegang starter undur dengan kuat sehingga enjin dihidupkan.
4. Setelah enjin dihidupkan, gerakkan tuil pencekik secara beransur-ansur ke kedudukan "RUN".

Operasi Tepi:

1. Adjust the pull handle to set the desired board width (2"-12" in 2" increments).
2. Use the scale on the in-feed table to accurately measure the board.
3. Engage the clutch lever to start the saw blade rotation.
4. Carefully feed the board into the edger, ensuring it is guided by the fences and rollers. The 10" carbide alloy saw blade removes one side of the board with each pass.
5. Always maintain a firm grip on the material and keep hands clear of the blade.
6. The multiple table rollers will assist in moving the material smoothly.

Figure 5: Detail of the 10-inch carbide alloy saw blade and the integrated measurement scale for precise cuts.

Figure 6: The adjustable pull handle for setting board width and the anti-kickback fingers for operator safety.

Penyelenggaraan

Regular maintenance is crucial for the longevity and safe operation of your MechMaxx SBE50 edger.

Penyelenggaraan Enjin:

• Perubahan Minyak: Refer to the engine manual for recommended oil change intervals and procedures.
• Penapis Udara: Bersihkan atau ganti penapis udara dengan kerap, terutamanya dalam keadaan berdebu.
• Palam Pencucuh: Inspect and clean or replace the spark plug as recommended by the engine manufacturer.

Penyelenggaraan Bilah:

• Inspect the saw blade for sharpness and damage before each use.
• Sharpen or replace the blade as needed to ensure clean and efficient cuts.

Penyelenggaraan Umum:

• Keep the edger clean and free of sawdust and debris.
• Lubricate moving parts as specified in the assembly guide.
• Check all fasteners for tightness periodically and tighten as necessary.

Menyelesaikan masalah

This section provides solutions to common operational issues. For problems not listed here, please contact customer support.

Spesifikasi

• Jenama: MechMaxx
• Nombor Model: SBE50
• Sumber Kuasa: Dikuasakan Gas
• Enjin: DUCAR 270cc 9HP 4-stroke single cylinder air-cooled OHV gasoline engine
• Mod Operasi: Manual
• Lebar pemotongan: 2" - 12" (adjustable in 2" increments)
• Saiz Bilah: 10 Inches (Carbide Alloy Saw Blade)
• Ketinggian Pemotongan Boleh Laras Maksimum: 2.25 Inci
• Ketinggian Keratan Boleh Laras Minimum: 0.25 Inci
• Dimensi Produk (D x W x H): 87.7" x 34.5" x 39.6"
• Berat Barang: 265 paun
• Perhimpunan Diperlukan: ya

Figure 7: Detailed dimensions of the edger for planning workspace and storage.

Figure 8: The edger with its legs folded and engine removed, demonstrating its compact form for easy storage and transportation.

Maklumat Waranti

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or contact MechMaxx customer support for specific details regarding coverage and duration. Extended protection plans may also be available for purchase.

Sokongan Pelanggan

For technical assistance, parts, or warranty inquiries, please contact MechMaxx customer support. You can find contact information on the product packaging or by visiting the official MechMaxx webtapak.

Thank you for choosing MechMaxx. We are committed to providing reliable and efficient equipment.
