Hooke Road Front Bumper with Grille Guard and Winch Plate

1. Pengenalan

Thank you for choosing the Hooke Road Front Bumper with Grille Guard and Winch Plate. This product is designed to enhance the off-road capability and aesthetic appeal of your vehicle. This manual provides essential information for proper installation, safe operation, and effective maintenance.

This front bumper is compatible with:

• Jeep Wrangler JL 2/4 Door models (2018-2024)
• Jeep Gladiator JT models (2018-2024)

The bumper features a robust tubular design, providing enhanced front-end protection against brush, rocks, and other trail debris. It includes a winch plate, two 25W LED spotlights, a foldable license plate holder, and two 3/4 inch 9 lb D-rings. Constructed from heavy-duty 11-gauge steel for the main body and durable steel tubes for the grille guard, it ensures long-lasting performance and corrosion resistance with its textured black powder coat and premium E-coat finish.

Figure 1.1: Hooke Road Front Bumper installed on a Jeep Gladiator JT, showcasing its robust design and integrated grille guard.

2. Maklumat Keselamatan

Please read and understand all instructions and safety warnings before installation and use. Failure to follow these instructions may result in property damage, personal injury, or death.

• Pemasangan Profesional Disyorkan: While designed for DIY installation, professional installation is recommended for optimal safety and performance.
• Pakai Alat Keselamatan: Sentiasa pakai peralatan pelindung diri yang sesuai, termasuk cermin mata keselamatan dan sarung tangan, semasa pemasangan.
• Kenderaan Selamat: Ensure the vehicle is parked on a level surface, the parking brake is engaged, and the engine is off before beginning any work.
• Objek Berat: The bumper is heavy (approximately 92 lbs). Use proper lifting techniques or seek assistance to prevent injury.
• Sambungan Elektrik: Exercise caution when working with vehicle electrical systems. Disconnect the battery if necessary.
• Periksa Pengikat: Regularly inspect all fasteners to ensure they remain tight. Re-tighten as needed.

3. Kandungan Pakej

Verify that all components listed below are present and undamaged before beginning installation. If any parts are missing or damaged, contact Hooke Road customer support immediately.

Rajah 3.1: Meletup view showing all individual components of the Hooke Road Front Bumper kit, including the main bumper body, grille guard tubes, D-ring mounts, LED lights, winch plate, and hardware.

Komponen yang Disertakan:

• Main Bumper Body
• Grille Guard Tubes (Upper and Lower sections)
• Winch Plate (supports up to 12,000 lbs)
• 2 x 25W LED Spotlights
• Foldable License Plate Holder
• 2 x 3/4 inch 9 lb D-Rings
• Mounting Brackets and Hardware Kit
• Wiring Harness for LED Spotlights

Rajah 3.2: Jarak dekat view of key bumper accessories, including the 10x4.5 inch winch plate, two 25W LED spotlights, the flip-up license plate mount, and high-strength D-rings.

4. Alatan Diperlukan

The following basic hand tools are typically required for installation:

• Set Kunci Soket
• Set Sepana Hujung Terbuka
• Sepana Tork
• Tang
• Wire Strippers/Crimpers (for LED lights)
• Pemutar Skru Kepala Leper dan Phillips
• Pita Pengukur
• Penanda atau Pensel
• Cutting Tool (if minor trimming is unexpectedly required, though not typically needed)

5. Persediaan dan Pemasangan

This bumper is designed for a direct bolt-on installation to factory mounting points, requiring no cutting, drilling, or modification to your vehicle.

5.1. Langkah Pra-Pemasangan

1. Park your vehicle on a flat, level surface and engage the parking brake.
2. Matikan enjin dan keluarkan kunci dari pencucuhan.
3. Disconnect the negative terminal of the vehicle's battery to prevent electrical shorts during wiring.
4. Buka semua komponen dengan berhati-hati dan sahkannya dengan senarai kandungan pakej.

5.2. Removing the Factory Bumper

1. Locate and disconnect any fog light wiring or other electrical connections attached to the factory bumper.
2. Remove all bolts and fasteners securing the factory bumper to the vehicle frame. Keep track of all hardware.
3. With assistance, carefully remove the factory bumper from the vehicle.

5.3. Assembling the Hooke Road Bumper

Rujuk kepada yang meletup view diagram (Figure 3.1) for component identification.

1. Attach the winch plate to the main bumper body using the provided hardware. Ensure it is securely fastened.
2. Install the two 25W LED spotlights into their designated housings on the bumper.
3. Assemble the upper and lower grille guard tubes and attach them to the main bumper body. Do not fully tighten hardware at this stage.
4. Attach the D-ring mounts to the bumper.
5. Install the foldable license plate holder.

5.4. Mounting the New Bumper

1. With assistance, carefully lift the assembled Hooke Road bumper and align it with the factory mounting points on the vehicle frame.
2. Insert the provided mounting bolts through the bumper and frame. Hand-tighten all bolts to allow for minor adjustments.
3. Once the bumper is properly aligned and centered, fully tighten all mounting hardware to the manufacturer's recommended torque specifications.

5.5. Wiring LED Spotlights

1. Connect the wiring harness to the LED spotlights.
2. Route the wiring harness along the vehicle frame, securing it with zip ties to prevent chafing or interference with moving parts.
3. Connect the wiring harness to a suitable power source (e.g., auxiliary switch, existing fog light wiring). Consult your vehicle's wiring diagram if unsure.
4. Sambung semula terminal bateri negatif.
5. Test the LED spotlights to ensure they function correctly.

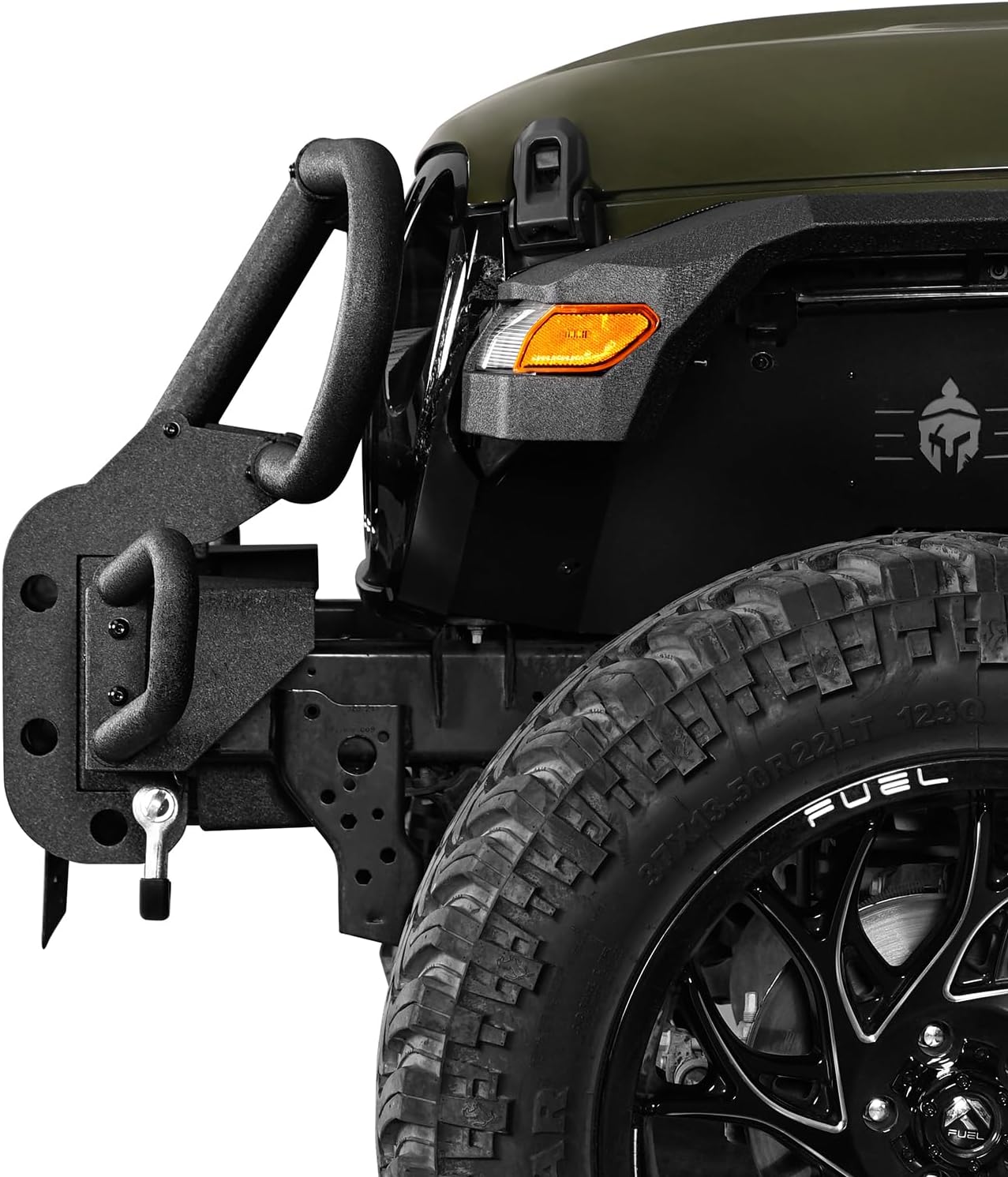

Figure 5.1: Detail of the bumper's side attachment, highlighting the secure bolt-on installation and the integration with the vehicle's fender.

6. Ciri-ciri Operasi

6.1. D-Rings

The integrated D-ring mounts are designed for recovery operations. Always use the provided 3/4 inch 9 lb D-rings or equivalent rated shackles. Ensure D-rings are properly secured before any recovery attempt. Never exceed the rated capacity of the D-rings or the bumper.

6.2. Plat Win

The winch plate is designed to accommodate most standard winches up to 12,000 lbs. Follow the winch manufacturer's instructions for proper installation and operation. Ensure the winch is securely bolted to the plate and all electrical connections are properly made and protected.

6.3. LED Spotlights

The 25W LED spotlights provide additional illumination for off-road driving. Operate them according to local laws and regulations. Avoid using them on public roads if they are not compliant with street-legal lighting requirements.

6.4. Foldable License Plate Holder

The license plate holder can be folded up to allow access to the winch fairlead or for aesthetic purposes when off-road. Ensure it is securely fastened in the down position when driving on public roads to comply with vehicle registration laws.

7. Penyelenggaraan

Regular maintenance will ensure the longevity and performance of your Hooke Road Front Bumper.

• Pemeriksaan Berkala: Periodically inspect the bumper, mounting hardware, and D-rings for any signs of damage, corrosion, or loose fasteners.
• Ketatkan Pengikat: Re-tighten all bolts and nuts as necessary, especially after off-road use.
• Pembersihan: Clean the bumper regularly with mild soap and water to remove dirt, mud, and road grime. Avoid abrasive cleaners or harsh chemicals that could damage the powder coat finish.
• Penjagaan Salutan: The textured black powder coat and E-coat finish provide excellent corrosion resistance. If the coating is scratched or damaged, touch it up promptly to prevent rust.
• Sambungan Elektrik: Check LED light wiring for any signs of wear, fraying, or loose connections. Ensure all connections are waterproof.

Figure 7.1: Illustration of the bumper's construction, featuring carbon steel material, an E-coat layer for internal protection, and a textured black powder coat finish for external durability and corrosion resistance.

8. Penyelesaian masalah

8.1. Bumper Does Not Fit Correctly

• Semak Keserasian: Ensure your vehicle's make, model, and year match the product's compatibility (Jeep Wrangler JL & Gladiator JT 2018-2024).
• Perkakasan longgar: Ensure all mounting bolts are loose enough to allow for adjustment during initial fitment.
• Halangan: Check for any factory components or aftermarket accessories that might be interfering with the bumper's fit.

8.2. LED Spotlights Not Working

• Semak Sambungan: Verify all electrical connections are secure and properly seated.
• Sumber Kuasa: Ensure the power source (e.g., fuse, switch) is functioning correctly.
• Sambungan Tanah: Confirm that the ground wire is properly connected to a clean, unpainted metal surface on the vehicle chassis.
• Fius: Check if any inline fuses in the wiring harness or vehicle's fuse box have blown.

8.3. Rattling or Vibrations

• Ketatkan Semua Pengikat: Re-check and tighten all bumper mounting bolts and any accessory fasteners (e.g., grille guard, D-rings, winch).
• Inspect for Contact: Look for any part of the bumper or its accessories making contact with the vehicle body or other components. Adjust as needed.

9. Spesifikasi

Rajah 9.1: Terperinci view of the bumper's heavy-duty construction, indicating the 11-gauge (1/8 inch) steel plate for the main body and the dimensions of the 1.89" x 0.06" and 1.50" x 0.06" steel tube construction for the grille guard.

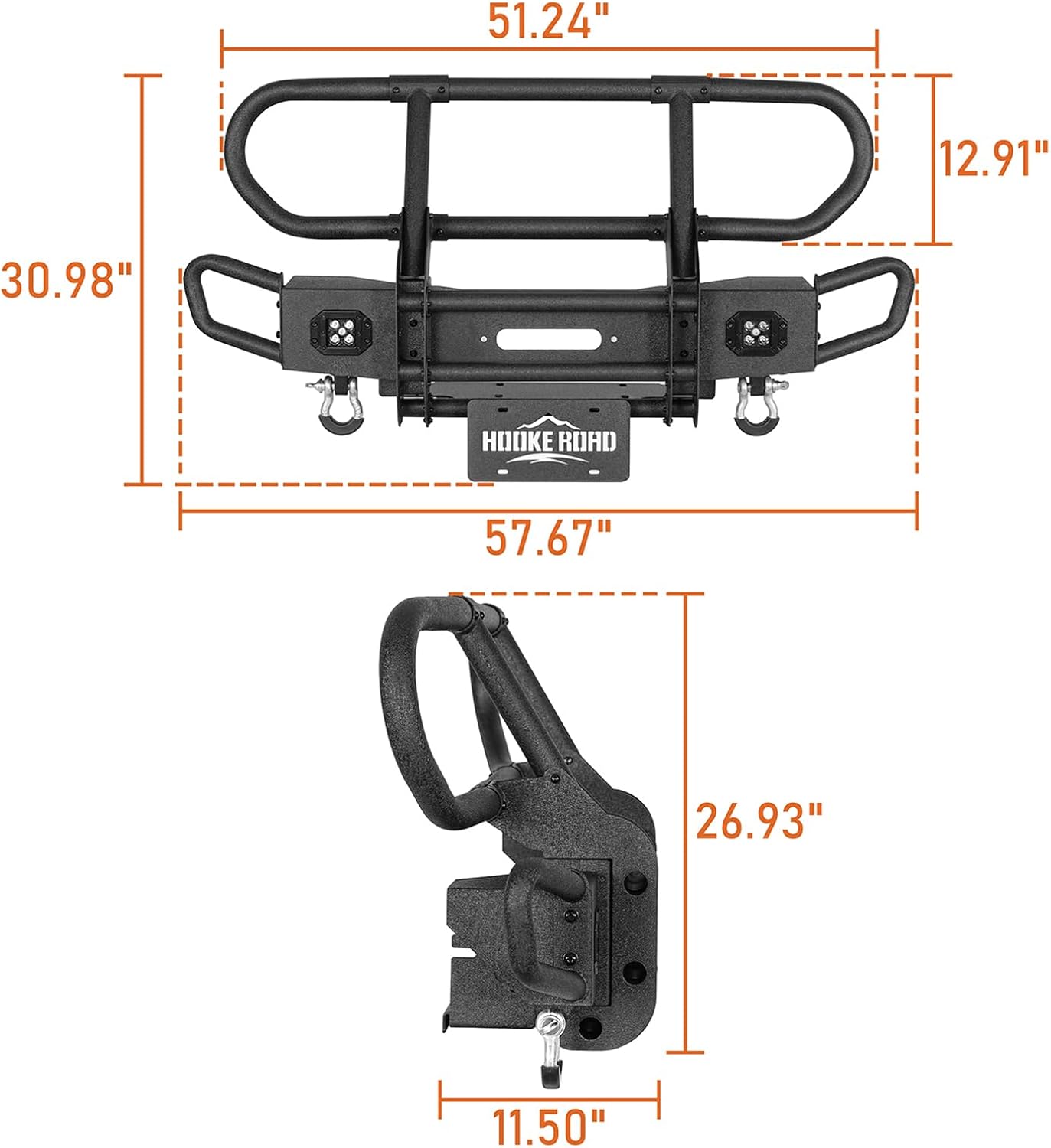

Figure 9.2: Dimensional drawing providing key measurements of the bumper, including its overall width of 57.67 inches, height of 30.98 inches, and grille guard width of 51.24 inches.

10. Waranti dan Sokongan

10.1. Waranti Pengeluar

This Hooke Road product is covered by a Waranti pengilang selama 2 tahun from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accidents, or unauthorized modifications.

10.2. Sokongan Pelanggan

Hooke Road provides sokongan pelanggan seumur hidup for this product. If you have any questions regarding installation, operation, maintenance, or warranty claims, please contact Hooke Road customer service through the retailer where the product was purchased or visit the official Hooke Road webtapak untuk maklumat hubungan.
