COOLGEEK Portable Stereo CD Player Boombox User Manual

1. Pengenalan

Terima kasih kerana membeliasing the COOLGEEK Portable Stereo CD Player Boombox. This versatile device combines a vertical CD player, Bluetooth speaker, and FM radio into a single, stylish unit. Designed for both home and outdoor use, it offers high-fidelity audio and extended battery life. Please read this manual carefully to ensure proper operation and to maximize your enjoyment of the product.

Image: The COOLGEEK Portable Stereo CD Player Boombox, showcasing reka bentuknya yang padat dan pemegang bersepadunya.

2. Apa yang ada di dalam Kotak

• Vintage CD Player (Main Unit)
• Penyesuai Kuasa
• Manual Arahan

3. Produk Lebihview

Familiarize yourself with the various components and controls of your COOLGEEK Boombox.

3.1 Panel Hadapan dan Kawalan

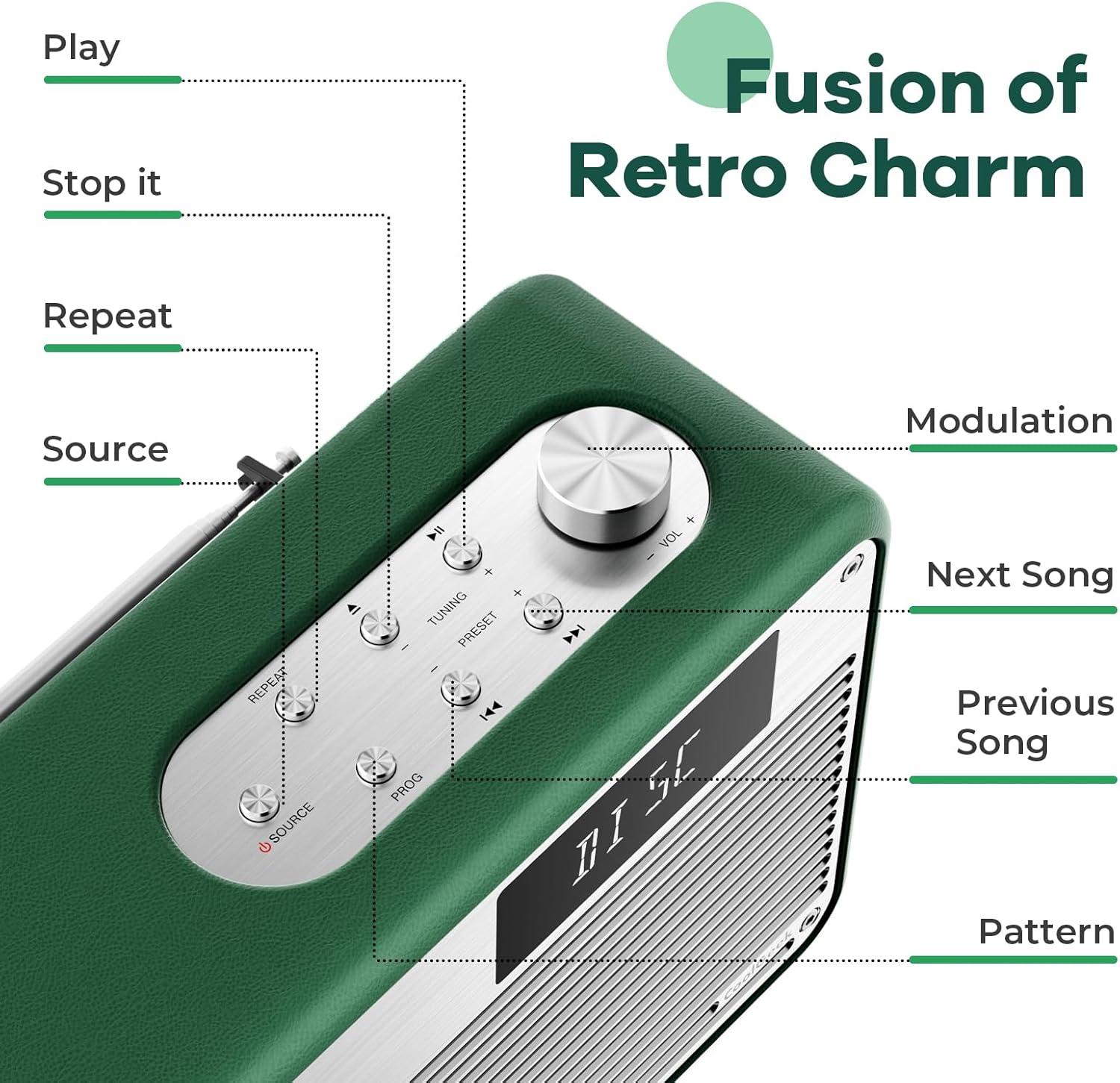

Imej: Terperinci view of the control panel, highlighting buttons for Play, Stop, Repeat, Source, Modulation, Next Song, Previous Song, and Pattern.

• Slot CD: Vertical slot for inserting CDs.
• Skrin Paparan: Shows current mode, track number, time, FM frequency, and Bluetooth status.
• Tombol Kelantangan: Putar untuk melaraskan kelantangan.
• Butang Sumber: Press to switch between CD, FM, and Bluetooth modes.
• Butang Main/Jeda: Memulakan atau menjeda main balik.
• Butang Berhenti: Menghentikan main balik.
• Butang Ulang: Toggles repeat modes for CD playback.
• Tuning Buttons (+/-): For FM radio tuning.
• Preset Buttons (+/-): For navigating saved FM radio presets.
• Butang Trek Sebelumnya/Seterusnya: Skips to the previous or next track on CD, or changes FM frequency/preset.
• Butang PROG: For programming CD playback order.

3.2 Rear Panel and Features

Image: Close-up of the boombox's leather handle and aluminum shell, highlighting the premium materials.

• Antena FM: Extendable antenna for improved FM radio reception.
• Input Kuasa: DC 12V/3A input for the power adapter.
• Rear Phase Inverter Hole: Enhances bass performance for a richer sound experience.

4. Persediaan

4.1 Mengecas Peranti

Before first use, fully charge the boombox. Connect the provided power adapter to the DC 12V/3A input on the rear of the unit and plug it into a wall outlet. A full charge takes approximately 2.5 hours and provides over 18 hours of wireless playback.

Image: The boombox highlighting its long battery life for extended use.

4.2 Penempatan Awal

Place the boombox on a stable, flat surface. For optimal sound, especially bass, consider placing it near a wall or in a corner. Ensure adequate ventilation around the unit.

5. Arahan Operasi

5.1 Hidupkan/Mati Kuasa

Tekan dan tahan butang Sumber butang untuk menghidupkan atau mematikan unit.

5.2 Pemilihan Mod

Tekan ke Sumber button repeatedly to cycle through the available modes: CD, FM Radio, and Bluetooth (BT).

5.3 Main Semula CD

Untuk memainkan CD:

1. Ensure the unit is in CD mode (display shows "DISC" or "READING").
2. Carefully insert a CD into the vertical CD slot. The disc will automatically begin to spin and read.
3. Gunakan Main/Jeda, Berhenti, Trek Sebelumnya / Seterusnya, dan ulang butang untuk mengawal main balik.

The boombox supports various types of CDs. For optimal performance, handle CDs by their edges to avoid scratches.

5.4 Operasi Radio FM

Untuk mendengar radio FM:

1. Tukar kepada mod FM menggunakan Sumber button (display shows "FM" and frequency).
2. Extend the FM antenna on the rear of the unit for better reception.
3. Gunakan Tuning (+/-) butang untuk menala secara manual kepada frekuensi yang dikehendaki.
4. To save a preset, press and hold the PROG butang, kemudian gunakan Preset (+/-) butang untuk memilih nombor pratetap, dan tekan PROG sekali lagi untuk mengesahkan.
5. Gunakan Preset (+/-) butang untuk menavigasi stesen yang disimpan.

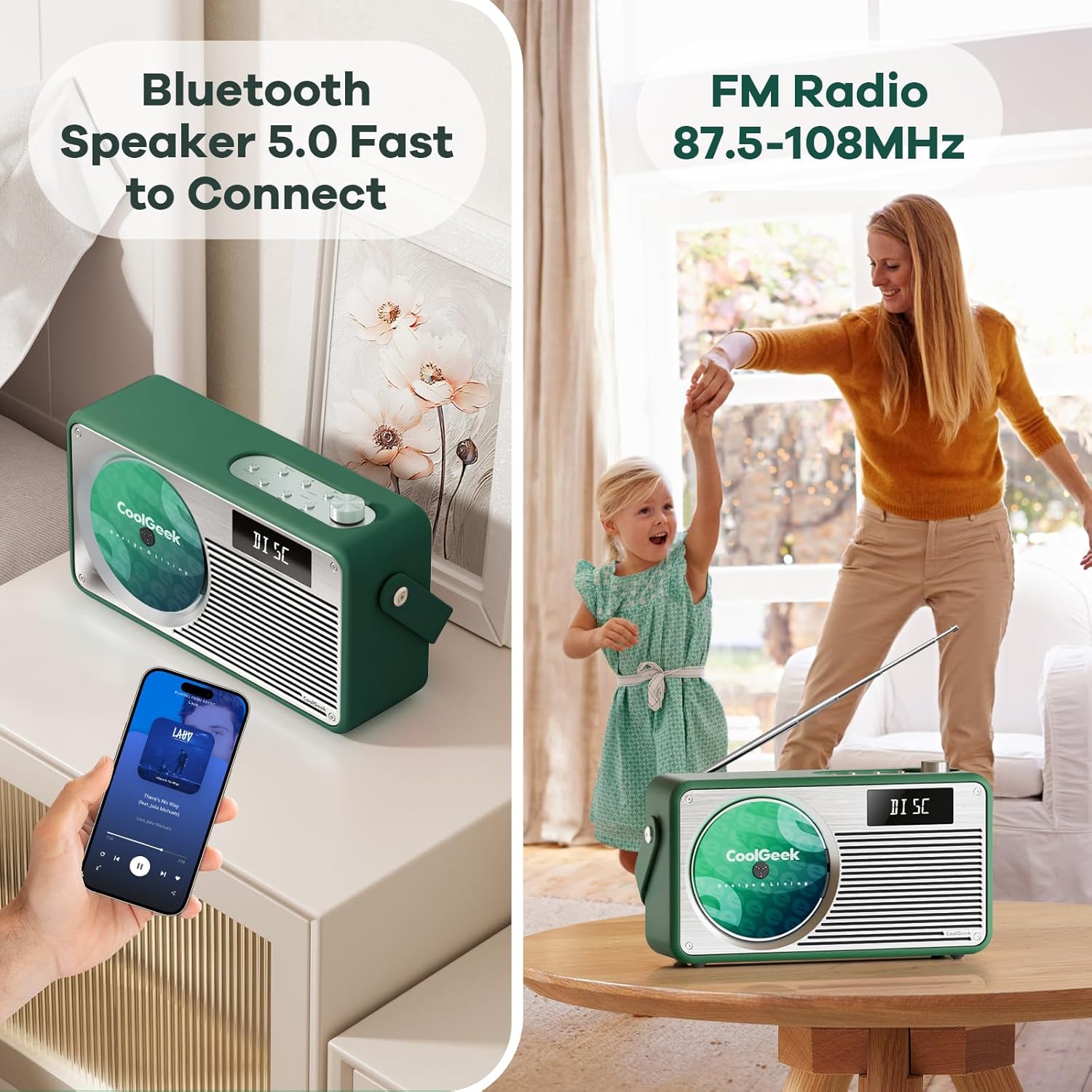

Image: The boombox displaying its Bluetooth and FM radio capabilities, showing a phone connected via Bluetooth and the FM antenna extended.

5.5 Mod Bluetooth

Untuk menyambung melalui Bluetooth:

1. Tukar kepada mod Bluetooth menggunakan Sumber button (display shows "BT"). The unit will automatically enter pairing mode.
2. On your mobile device, enable Bluetooth and search for "CoolGeek VS-02" (or similar).
3. Select the device to pair. Once connected, the display will indicate a successful connection.
4. You can now play audio from your device through the boombox. Use your device or the boombox's Main/Jeda dan Trek Sebelumnya / Seterusnya butang untuk mengawal main balik.

5.6 Kawalan Kelantangan

Putar Tombol Kelantangan mengikut arah jam untuk meningkatkan kelantangan dan lawan arah jam untuk mengurangkan kelantangan.

6. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar unit. Jangan gunakan pembersih cecair atau bahan kasar.
• Penjagaan CD: Always handle CDs by their edges. Store them in their cases to prevent scratches and dust accumulation.
• Storan: Apabila tidak digunakan untuk tempoh yang lama, simpan boombox di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Bateri: Untuk memanjangkan hayat bateri, elakkan daripada kerap mencas sepenuhnya bateri. Caskannya secara berkala, walaupun tidak digunakan secara berterusan.

7. Penyelesaian masalah

8. Spesifikasi

9. Waranti dan Sokongan

COOLGEEK is committed to customer satisfaction. If you encounter any issues with your product or have questions, please contact our customer support team directly. We will do our best to resolve any problems you may have.

For support, please refer to the contact information provided on the product packaging or the official COOLGEEK webtapak.
