1. Pengenalan
This manual provides comprehensive instructions for the installation, operation, and maintenance of your NU Aqua Tankless Reverse Osmosis (RO) System. This advanced 4-stage UV filtration system is designed to provide high-quality purified water directly from your tap. Please read this manual thoroughly before installation and retain it for future reference.
Image 1.1: The NU Aqua Tankless Reverse Osmosis System, including the main unit, external UV filter, and smart faucet.
2. Maklumat Keselamatan
Observe the following safety precautions to prevent injury and damage to the system:
- Pastikan semua sambungan selamat untuk mengelakkan kebocoran.
- Do not expose the system to freezing temperatures.
- Use only genuine NU Aqua replacement filters.
- Disconnect power before performing any maintenance or filter changes.
- The system operates under water pressure; turn off the water supply before any disconnections.
3. Ciri dan Komponen Produk
The NU Aqua Tankless RO System offers several key features for efficient water purification:
- Space-Saving Tankless Design: Compact unit fits easily under most sinks, eliminating the need for a bulky storage tank.
- 600 GPD Fast Flow: Provides up to 600 gallons per day of purified water, ensuring quick access without waiting.
- Paip LED Pintar: Features a color-changing LED indicator for filter status and water quality.
- 4-Stage Filtration with UV: Effectively removes up to 99% of contaminants, including a UV bulb for harmful particles.

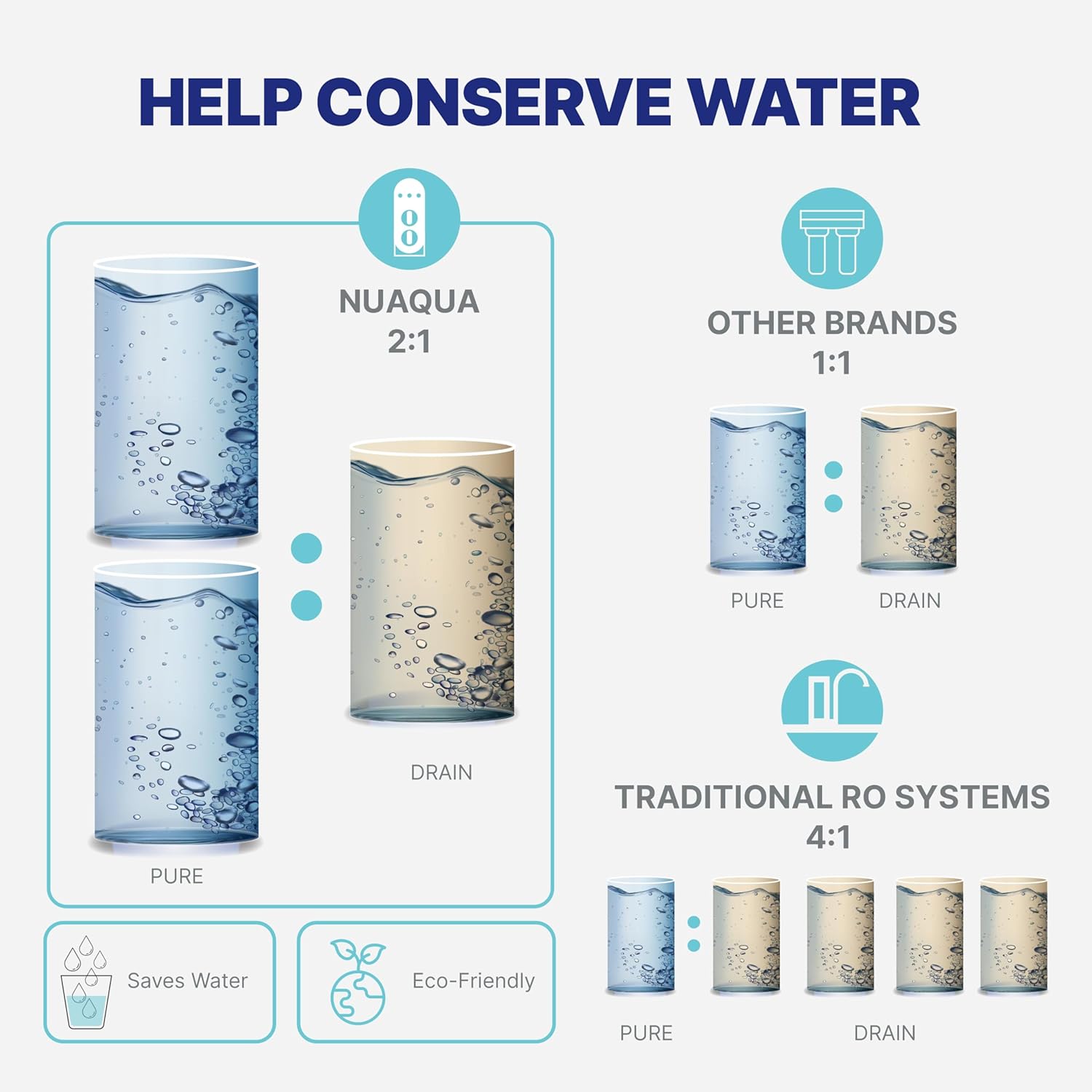

- 2:1 Pure to Waste Water Ratio: Highly efficient, producing more pure water and less waste compared to traditional RO systems.
Imej 3.1: Selesaiview of the system's primary features.
3.1 Penapisan Stages
The system utilizes a multi-stage proses penapisan:
- PP + CB Carbon Filter (Stage 1): Removes sediment, rust, chlorine, volatile organic compounds (VOCs), unpleasant tastes, and odors.
- Reverse Osmosis (RO) Membrane (Stage 2): Filters out PFAS, atrazine, salts, and heavy metals such as copper, chromium, and lead.
- UV Bulb (Stage 3, integrated): Removes harmful particles like bacteria and viruses.
Imej 3.2: Terperinci view of the 6-Stage PP + CB Filter, highlighting its function in removing suspended particles and improving water taste.
Imej 3.3: Terperinci view of the 600GPD Reverse Osmosis Membrane, illustrating its effectiveness against various contaminants.
Image 3.4: Illustration of the optional UV filter, demonstrating its role in eliminating 99% of harmful particles.
3.2 Smart LED Faucet
The included smart faucet provides visual cues regarding filter status and water quality:
- Biru Pepejal: Indicates excellent water quality.
- Biru Berkelip: Indicates good water quality, but filter replacement may be approaching.
- Merah Berkelip: Indicates fair water quality, filter replacement is recommended soon.
- Merah Pepejal: Indicates poor water quality, filter replacement is required immediately.
Image 3.5: Visual guide to the Smart LED Faucet's color indicators for water quality and filter status.
4. Pemasangan dan Persediaan
The NU Aqua Tankless RO System is designed for straightforward installation. While professional help is not typically required, basic plumbing knowledge is beneficial. Refer to the detailed installation video guide for visual assistance.
4.1 Senarai Semak Pra-Pemasangan
- Pastikan semua komponen ada seperti dalam senarai pembungkusan.
- Ensure adequate space under your sink for the main unit and faucet. Dimensions: 15.5"L x 5.5"W x 13.5"H.
- Locate a cold water supply line and a drain line for connection.
- Gather necessary tools: drill, wrench, screwdriver, Teflon tape.

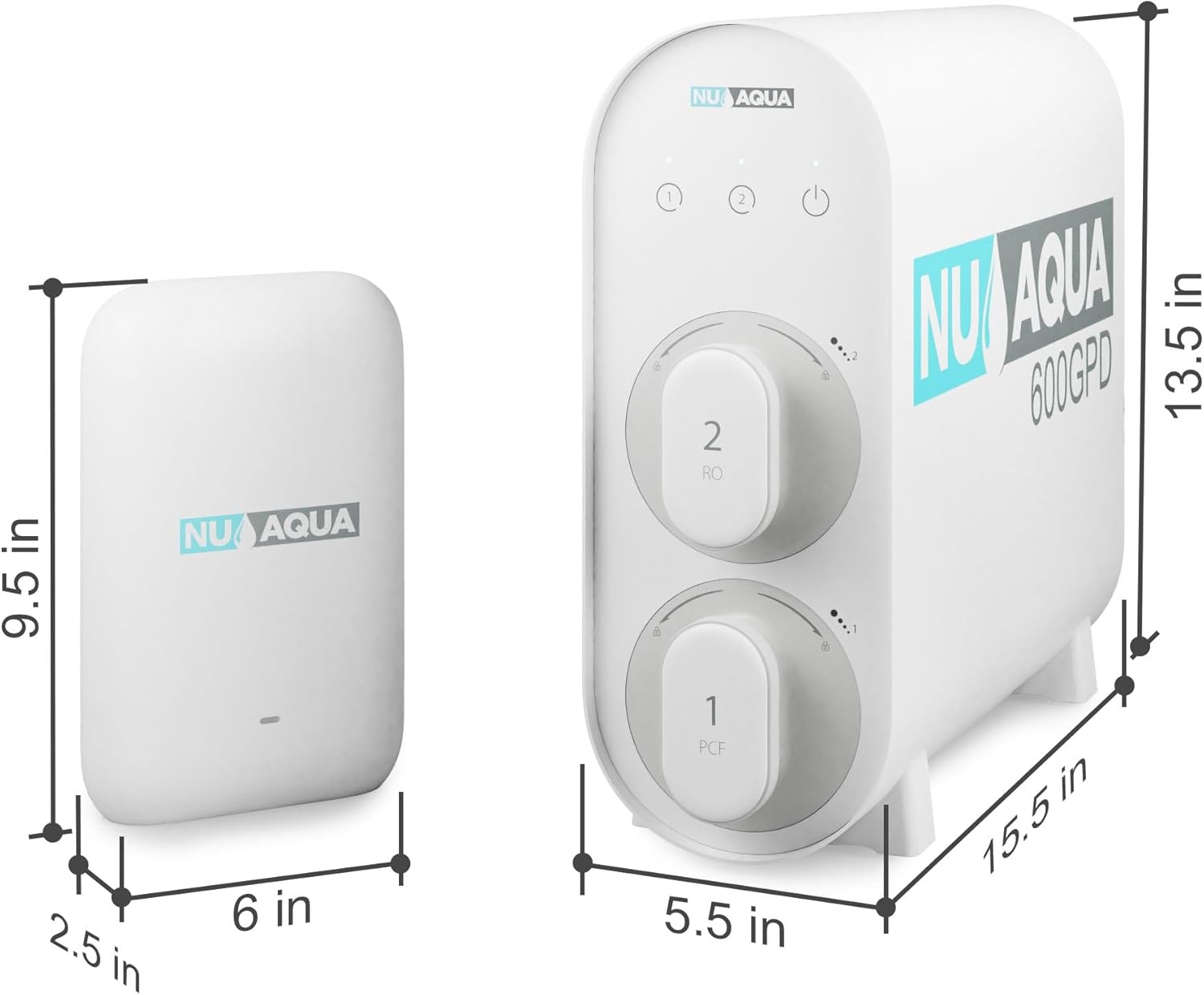

Image 4.1: Product dimensions for planning under-sink space.
4.2 Langkah Pemasangan Umum (Ringkasan)
- Turn off the cold water supply and relieve pressure.
- Install the smart faucet on your countertop or sink.
- Sambungkan penyesuai air suapan ke saluran air sejuk anda.
- Install the drain saddle on the drain pipe.
- Mount the main RO unit and external UV filter under the sink.
- Connect all tubing (inlet, outlet, drain) to the appropriate ports on the system and faucet.
- Insert the filters into their respective slots.
- Perlahan-lahan hidupkan bekalan air sejuk dan periksa kebocoran.
- Pasangkan penyesuai kuasa.
- Flush the system as per the initial startup instructions.
Image 4.2: The system is designed for easy installation, often completed within 30 minutes without professional assistance.
5. Operasi
Once installed and flushed, operating your NU Aqua RO system is simple:
- Open the smart faucet handle to dispense purified water. The system will automatically activate.
- Observe the LED indicator on the faucet for real-time water quality and filter status.
- The tankless design ensures a continuous flow of water without storage, providing fresh water on demand.
Image 5.1: The compact tankless design saves significant under-sink space compared to traditional RO systems.
6. Penyelenggaraan
Regular filter replacement is crucial for maintaining optimal water quality and system performance. The smart LED faucet will indicate when filter changes are due.
6.1 Jadual Penggantian Penapis
| Jenis Penapis | Penggantian yang disyorkan |
|---|---|
| PP + CB Carbon Filter | Setiap 12 bulan |
| Membran Osmosis Songsang | Setiap 12 bulan |
| Mentol UV | Setiap 12 bulan |
Nota: Jangka hayat penapis sebenar mungkin berbeza-beza berdasarkan kualiti dan penggunaan air tempatan.
6.2 Quick Filter Replacement
The system features a user-friendly design for quick and easy filter changes, typically requiring only one hand and minimal time.
- Turn off the water supply to the RO system.
- Twist the old filter cartridge counter-clockwise to unlock and remove it.
- Insert the new filter cartridge and twist clockwise to lock it into place.
- Hidupkan bekalan air dan periksa kebocoran.
- Flush the system for a few minutes to remove any air or carbon fines.
Image 6.1: The tankless system allows for quick and easy filter replacement, significantly faster than traditional tank systems.
7. Penyelesaian masalah
If you encounter issues with your system, refer to the table below for common problems and solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Aliran air perlahan dari keran | Penapis tersumbat, tekanan air rendah, tiub bengkok. | Check LED faucet indicator for filter status; replace filters if needed. Verify water supply pressure. Inspect tubing for kinks. |
| Water has unusual taste/odor | Expired filters, improper flushing. | Replace PP + CB Carbon Filter. Ensure proper initial flushing or flush after filter replacement. |
| Kebocoran pada sambungan | Loose fittings, damaged O-rings, incorrect tubing insertion. | Turn off water supply. Tighten all connections. Inspect O-rings and tubing; replace if damaged. Ensure tubing is fully inserted into quick-connect fittings. |
| Smart LED Faucet shows red | Filters require immediate replacement. | Replace the indicated filter cartridges (PP+CB, RO membrane, or UV bulb). |
If the problem persists after attempting these solutions, please contact NU Aqua customer support.
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | NU Aqua |
| Nama Model | KF-600GPD-UV-2FTL |
| Penapisan Stages | 4 Stage (PP+CB, RO Membrane, UV) |
| Kadar Pengeluaran Air | 600 Gelen Sehari (GPD) |
| Pure to Waste Ratio | 2:1 |
| Dimensi Produk (Unit Utama) | 15.5"L x 5.5"W x 13.5"H |
| Berat Barang | 25 paun |
| Ciri Khas | Compact Design, Easy to Install, Fast 600GPD, Removes 99% Of Contaminants, Smart LED Faucet |
| UPC | 023591215233 |
9. Waranti dan Sokongan
NU Aqua offers a lifetime warranty for this system, which typically requires registration for a replacement filter service. For specific warranty terms, registration details, or technical support, please refer to the official NU Aqua webtapak atau hubungi perkhidmatan pelanggan mereka secara langsung.
Sokongan Pelanggan: Sila layari NU Aqua Store on Amazon atau pegawai mereka weblaman web untuk maklumat hubungan dan bantuan lanjut.
