1. Pengenalan
Thank you for choosing the LUTEC Outdoor Solar Lamp Post Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new solar light. Please read these instructions thoroughly before use and retain them for future reference.
2. Maklumat Keselamatan
- Pastikan panel solar menerima cahaya matahari langsung untuk pengecasan yang optimum.
- Do not attempt to disassemble or modify the product, as this may void the warranty and pose safety risks.
- Jauhkan produk daripada api terbuka atau sumber haba yang melampau.
- Buang bateri mengikut peraturan tempatan.
- Produk ini direka bentuk untuk kegunaan luar dan kalis air IP65. Walau bagaimanapun, elakkan daripada merendamnya di dalam air.
3. Kandungan Pakej
Pastikan semua komponen ada sebelum pemasangan:
- 1 x Solar Post Light
- 3 x E12 Bulb
- 1 x Manual Pengguna
Image: Contents of the LUTEC Solar Post Light package.
4. Ciri-ciri Produk
- Berkuasa Suria: Equipped with 4 larger solar panels for efficient charging.
- Sensor Senja hingga Fajar: Dihidupkan secara automatik pada waktu senja dan padam pada waktu subuh.
- Kecerahan: 300 Lumens with 2700K warm white light.
- Pembinaan Tahan Lama: Made from die-cast aluminum with 4 high-quality glass panels.
- tahan cuaca: IP65 rated for outdoor use in all weather conditions (heat, frost, wind, anti-rust).
- Replaceable E12 Bulbs: Includes 3 E12 bulbs with a lifespan of 50,000+ hours.
- Bateri Boleh Ganti: Features a replaceable Lithium Ion battery (3.7V).
Image: The light features a built-in dusk-to-dawn sensor for automatic operation.
Image: The IP65 waterproof design ensures durability in various weather conditions.
Image: Details on the included E12 bulbs and replaceable battery.
5. Pemasangan
The LUTEC Solar Lamp Post Light offers two mounting options: pole mount and pier mount. Both require a 3-inch diameter base (not included).
Pra-Pemasangan:
- Before initial use, place the solar light in direct sunlight for at least 6-8 hours to fully charge the battery.
- Ensure the ON/OFF switch (located on the fixture) is in the "ON" position for automatic operation.
Pilihan Pemasangan:
- Pemasangan tiang: Secure the light head onto a standard 3-inch lamp post (not included).
- Pier Mount: Attach the light head to a 3-inch pier or flat surface using appropriate hardware (not included).
Image: Dimensions and compatibility for 3-inch pole or pier mounting.
Image: Visual guide for pier and pole mounting options.
6. Arahan Operasi
- Operasi automatik: Once fully charged and the switch is ON, the light will automatically turn on at dusk and turn off at dawn.
- mengecas: The solar panels require 6-8 hours of direct sunlight for a full charge.
- Tempoh Pencahayaan: A full charge provides approximately 6-8 hours of illumination at night.
- Suis ON / OFF: Use the integrated ON/OFF button to manually control the light if desired, without worrying about power consumption.

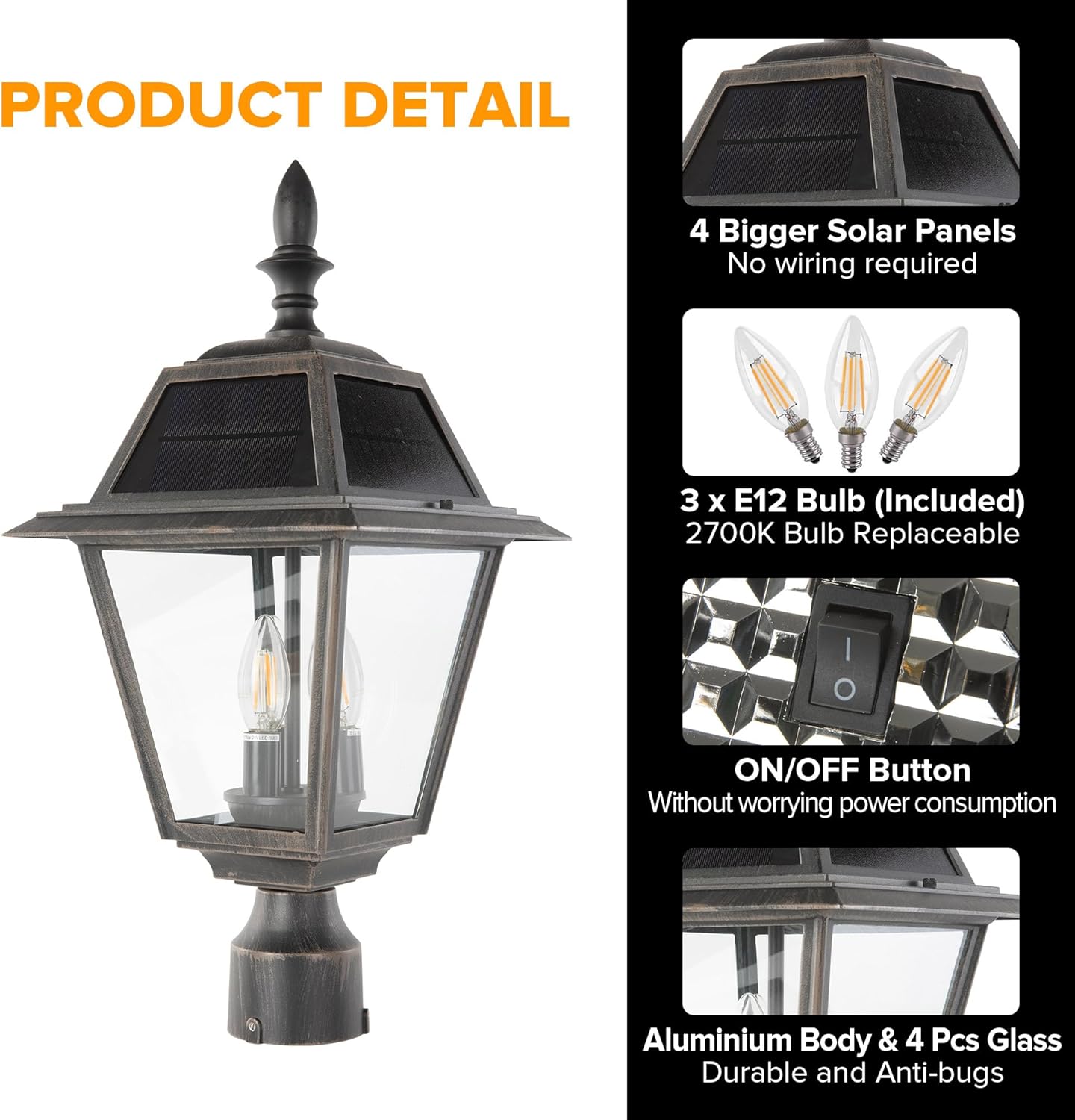

Image: Location of the ON/OFF button and internal components.
7. Penyelenggaraan
- Pembersihan: Lap panel solar secara berkala dengan kain lembutamp cloth to remove dust, dirt, or debris. This ensures optimal charging efficiency.
- Penggantian mentol: The E12 bulbs are replaceable. If a bulb fails, replace it with a compatible E12 LED bulb.
- Penggantian Bateri: The internal Lithium Ion battery is replaceable. If the light's performance diminishes significantly, consider replacing the battery. Refer to the product specifications for battery type.
8. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Lampu tidak menyala pada waktu malam. |
|
|
| Light is dim or stays on for a short duration. |
|
|
| Cahaya berkelip-kelip. |
|
|
9. Spesifikasi
| Jenama | LITEC |
| Nombor Model | 6936704213 |
| Dimensi | 9.84"L x 9.84"W x 20.67"H |
| bahan | Aluminum (body), Glass (shade) |
| warna | coklat |
| Sumber Kuasa | Berkuasa Suria |
| Jenis Sumber Cahaya | LED (E12 Bulb Base) |
| Kecerahan | 300 Lumen |
| Warna Cerah | 2700K Putih Hangat |
| Bateri | 1 Lithium Ion battery required (included, replaceable) |
| Tahap Ketahanan Air | IP65 Kalis Air |
| Jenis Pemasangan | Pole Mount, Pier Mount (fits 3" base) |
10. Waranti dan Sokongan
LUTEC provides 7*24h after-sales service. If you encounter any issues or have questions regarding your product, please contact our customer support team for assistance.
For warranty information, please refer to the specific terms provided at the time of purchase or contact LUTEC customer service.
