ASUSTOR Lockerstor 6 Gen3 AS6806T NAS Instruction Manual

1. Pengenalan

The ASUSTOR Lockerstor 6 Gen3 AS6806T is a high-performance 6-bay Network Attached Storage (NAS) device designed for video and content creators. Powered by an AMD Ryzen Quad-Core 2.3GHz CPU and 16GB ECC DDR5 RAM, it offers robust data storage and management capabilities. Key features include four M.2 NVMe slots for doubled performance with PCIe 4.0, dual 5GbE and 10GbE ports for high-speed networking, and versatile USB4 ports for external storage. This manual provides essential information for setting up, operating, and maintaining your AS6806T NAS.

Ciri-ciri Utama:

• Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
• DDR5 ECC RAM support
• Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
• Two USB4 ports at 40 Gbps. 3x USB 3.2 Gen 2 Type-A at 10 Gbps. 2x 10-Gigabit Ethernet. 2x 5-Gigabit Ethernet.
• Supports Wake on LAN and Wake on WAN

2. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• AS6806T Unit x1
• Kabel Kuasa AC x1
• 10GbE LAN Cable (Cat 6a) x4
• Flat Head Screws for 3.5" HDD x24
• Flat Head Screws for 2.5" HDD x24
• Panduan Pemasangan Pantas x1

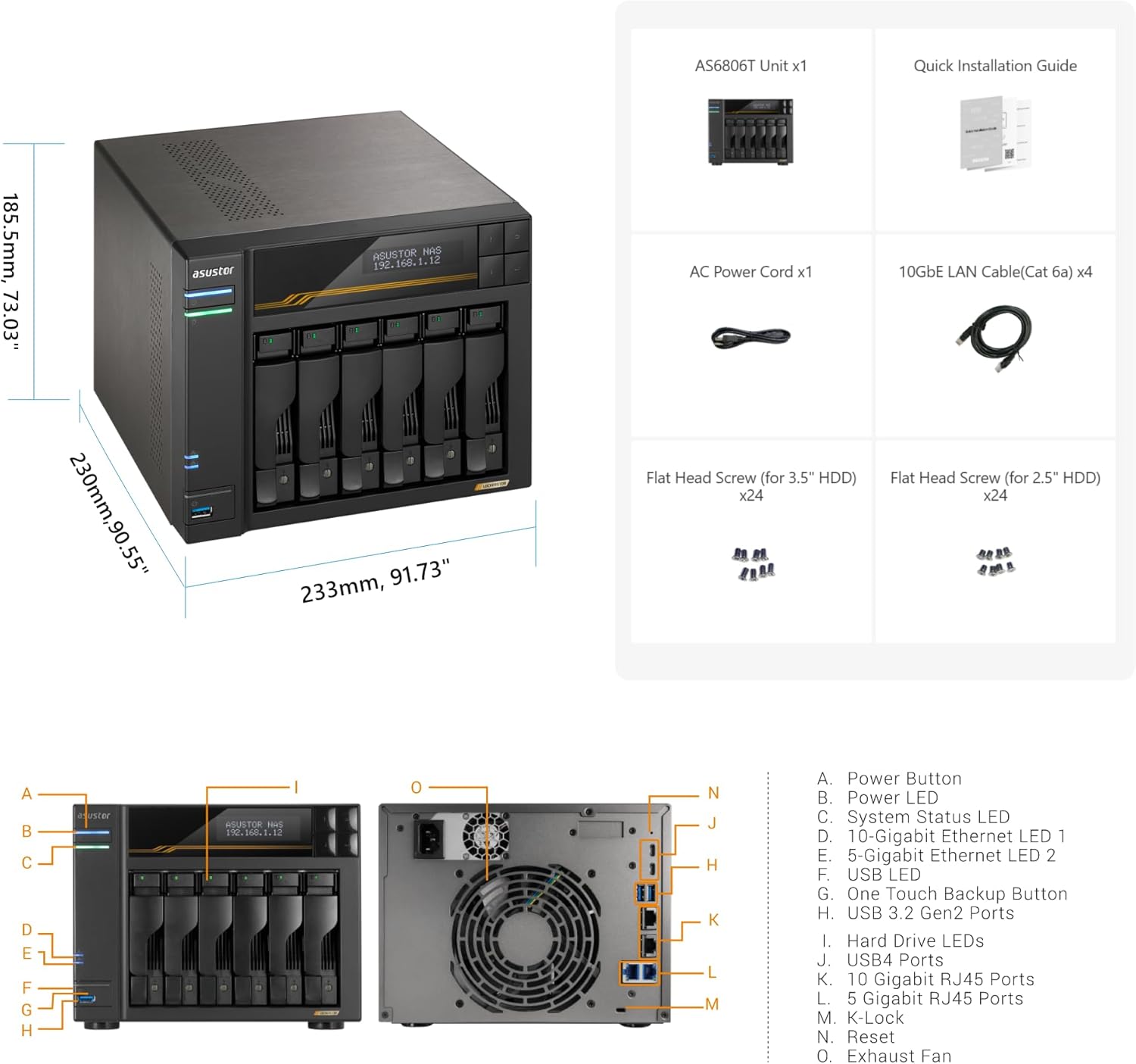

Imej: ASUSTOR Lockerstor 6 Gen3 AS6806T package contents and dimensions. This image displays the NAS unit, power cord, LAN cables, various screws, and the quick installation guide. It also shows the device dimensions: 185.5mm (7.303 inches) height, 230mm (9.055 inches) depth, and 233mm (9.173 inches) width.

3. Perkakasan Terlaluview

Panel belakang:

Imej: Rear panel of the ASUSTOR Lockerstor 6 Gen3 AS6806T NAS. This view highlights the various ports and cooling fan on the back of the device.

Pengenalan Komponen:

Imej: Diagram illustrating the port identification on the ASUSTOR Lockerstor 6 Gen3 AS6806T. The image shows the DC power input, Reset button, USB4 ports, USB 3.2 Gen 2 Type-A ports, 5-Gigabit Ethernet ports, and 10-Gigabit Ethernet ports.

• Input DC: Port sambungan kuasa.
• Butang Tetapkan Semula: Used to reset the device settings.
• Port USB4: Two 40 Gbps USB4 ports for high-speed data transfer.
• Port USB 3.2 Gen 2 Jenis-A: Three 10 Gbps USB 3.2 Gen 2 Type-A ports.
• 5-Gigabit Ethernet Ports: Two 5GbE ports for network connectivity.
• 10-Gigabit Ethernet Ports: Two 10GbE ports for high-speed network connectivity.

4. Persediaan

4.1. Installing M.2 NVMe SSDs

The Lockerstor 6 Gen3 AS6806T features four M.2 NVMe slots for high-speed storage. Follow these steps to install M.2 SSDs:

1. Power off the NAS and disconnect all cables.
2. Keluarkan bahagian luar casing of the NAS to access the M.2 slots.
3. Carefully insert the M.2 NVMe SSD into an available slot at an angle.
4. Gently push down the SSD until it clicks into place or can be secured with a screw.
5. Gantikan c luarasing and reconnect all cables.

Imej: Diagram showing the location of the M.2 NVMe SSD slots inside the ASUSTOR Lockerstor 6 Gen3 AS6806T. The image indicates four M.2 slots, supporting PCIe Gen4x1 and Gen4x2.

4.2. Replacing RAM

The Lockerstor 6 Gen3 AS6806T supports DDR5 ECC RAM. Follow these steps to replace or upgrade the RAM modules:

1. Power off the NAS and disconnect all cables.
2. Keluarkan bahagian luar casing of the NAS to access the RAM slots.
3. Gently push the clips on both sides of the RAM module outwards to release it.
4. Carefully remove the old RAM module.
5. Align the notch on the new RAM module with the slot and insert it at an angle.
6. Push down firmly until the clips snap into place, securing the module.
7. Gantikan c luarasing and reconnect all cables.

Imej: Diagram showing the location of the RAM slots inside the ASUSTOR Lockerstor 6 Gen3 AS6806T. The image highlights the DDR5 ECC RAM modules.

4.3. Installing Hard Disk Drives (HDDs)

The Lockerstor 6 Gen3 AS6806T supports 3.5-inch and 2.5-inch SATA HDDs/SSDs. Follow these steps to install your drives:

1. Gently pull the drive tray handle to release and slide out a drive tray.
2. For 3.5-inch HDDs, align the drive with the tray and secure it using the provided screws. For 2.5-inch HDDs/SSDs, use the appropriate screw holes on the tray.
3. Slide the populated drive tray back into the empty bay until it clicks into place.
4. Ulangi untuk semua pemacu yang dikehendaki.

5. Operating System (ADM)

The ASUSTOR Lockerstor 6 Gen3 AS6806T runs on ASUSTOR Data Master (ADM), ASUSTOR's intuitive and feature-rich operating system. ADM provides a user-friendly interface for managing your NAS, files, and applications. Key functionalities include:

• File Pengurusan: Easily organize, access, and share your data across various platforms.
• Sandaran & Pulihkan: Comprehensive backup solutions to protect your valuable data.
• Aplikasi Multimedia: Stream media, manage photos, and enjoy your digital content.
• Pusat Apl: Expand NAS functionality with a wide range of apps for various needs.
• Keselamatan: Robust security features, including real-time virus protection and powerful firewalls.

Post-Quantum Cryptography (PQC) Ready

The ASUSTOR Lockerstor Gen3 NAS is PQC Ready, offering enhanced security against future quantum computing threats. This ensures your data remains protected with advanced cryptographic algorithms.

6. Penyelenggaraan

Regular maintenance ensures the optimal performance and longevity of your ASUSTOR NAS.

6.1. Kemas Kini Perisian

• Regularly check for and install ADM updates via the Control Panel to ensure you have the latest features, security patches, and bug fixes.

6.2. Drive Health Monitoring

• Utilize ADM's built-in tools to monitor the health of your HDDs and SSDs (e.g., S.M.A.R.T. status).
• Replace drives promptly if any warnings or errors are detected to prevent data loss.

6.3. System Reboot

• Consider scheduling weekly reboots to maintain system stability and clear temporary data.

7. Spesifikasi

8. Waranti & Sokongan

For detailed warranty information, please refer to the documentation included with your product or visit the official ASUSTOR website. ASUSTOR may offer extended protection plans separately.

Sumber Sokongan:

• ASUSTOR Webtapak: Visit the official ASUSTOR website for the latest drivers, firmware updates, FAQs, and support articles.
• Sokongan Teknikal: Contact ASUSTOR technical support for assistance with any issues or questions regarding your NAS.
