HITBOX HBM200 Flux Core Welder Instruction Manual

1. Pengenalan

Thank you for choosing the HITBOX HBM200 Flux Core Welder. This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your new welding machine. The HBM200 is a compact and intelligent welding solution, ideal for various applications including metal lap welding, butt welding, automotive sheet metal repair, and duct construction. It is designed for ease of use with its One-Knob intelligent control system and is compatible with E71T-GS flux cored wire.

2. Maklumat Keselamatan

Sentiasa utamakan keselamatan semasa mengendalikan peralatan kimpalan. Kegagalan mematuhi garis panduan keselamatan boleh mengakibatkan kecederaan serius atau kerosakan pada peralatan.

• Pastikan pengudaraan yang betul di kawasan kerja untuk mengelakkan terhidu asap kimpalan.
• Pakai peralatan pelindung diri (PPE) yang sesuai, termasuk topi keledar kimpalan, sarung tangan, pakaian pelindung, dan kasut keselamatan.
• Jangan kendalikan mesin kimpal diamp atau keadaan basah.
• Jauhkan bahan mudah terbakar dari kawasan kimpalan.
• The HITBOX HBM200 features built-in overcurrent, overvoltage, and overheating protection. The machine will automatically shut down in case of overheating or overload. Do not bypass these safety features.
• Allow the machine to cool down after prolonged use. The internal fan cooling system helps reduce dust ingress and extends service life.
• Sentiasa putuskan bekalan elektrik sebelum melakukan sebarang penyelenggaraan atau pelarasan.

3. Produk Lebihview

The HITBOX HBM200 is a versatile welding machine designed for efficiency and user-friendliness.

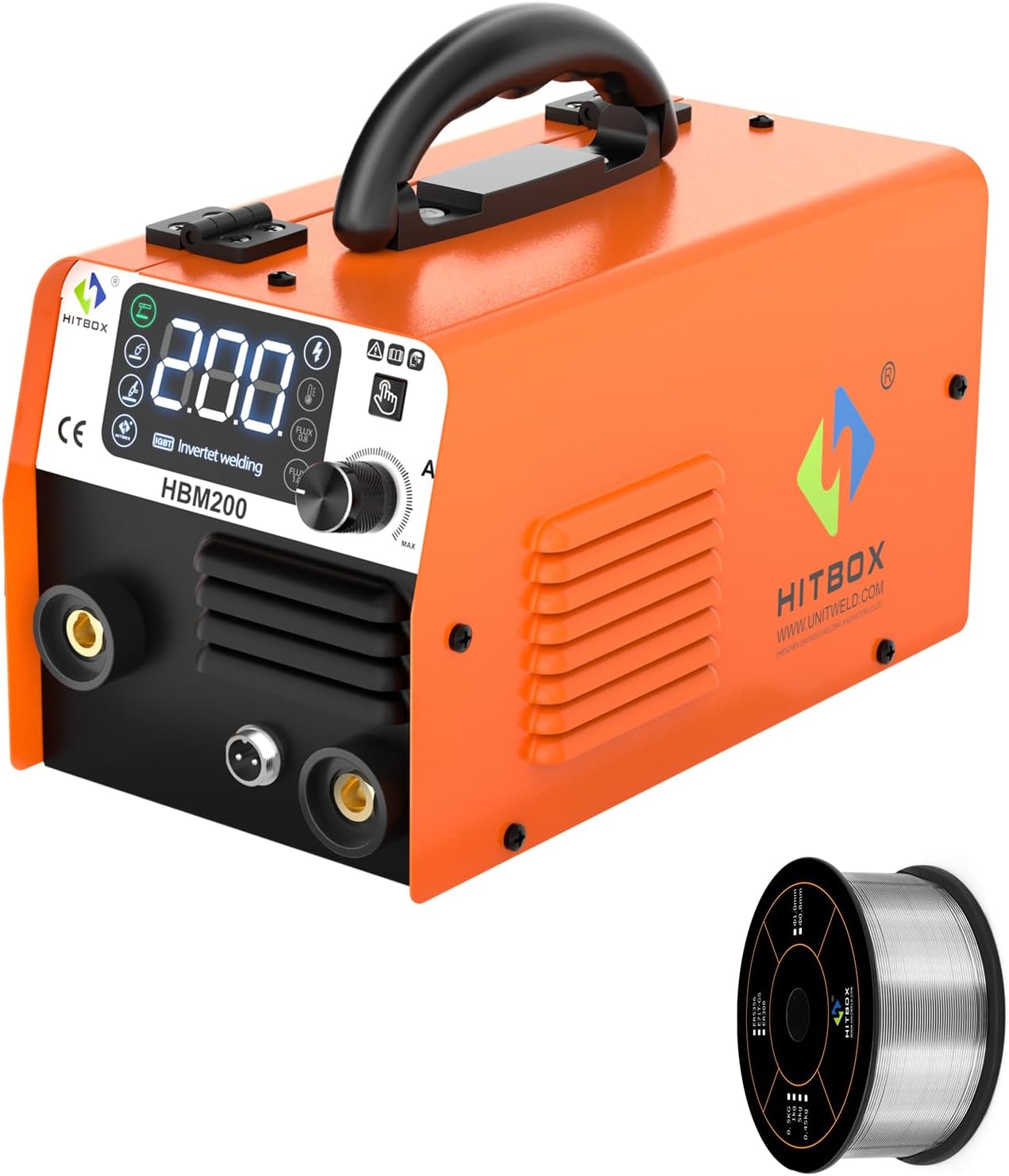

Figure 3.1: The HITBOX HBM200 Flux Core Welder with included 0.030"/0.8MM E71T-GS Flux Core Wire.

Figure 3.2: The HBM200 welder shown with its standard accessories, including the ground clamp, electrode holder, MIG torch, and various consumables.

Ciri-ciri Utama:

• Synergic & Compact Design: One-Knob intelligent control system automatically compensates and adjusts welding current for optimal welds. Lightweight and portable.
• Adjustable Welding Speed: Output current range of 30-200A (actual welding effect 140A). Current adjustment knob for precise control over flux cored welding of various steel thicknesses.
• Perlindungan Keselamatan: Arus lampau terbina dalam, voltan lampautage, and overheating protection with automatic shutdown. Fan cooling system for extended service life.
• Multi-Process Capability: Supports MMA (Stick), Flux MIG, and Lift TIG welding (WP17V TIG Torch needs to be purchased separately).

Figure 3.3: The HBM200 supports multiple welding processes, including MMA, Flux MIG, and Lift TIG.

Figure 3.4: Performance and security features of the HBM200, including smooth arc, fast cooling, VRD, and robust protection systems.

4. Persediaan

Follow these steps for initial setup of your HITBOX HBM200 welder:

1. Membongkar: Keluarkan pengimpal dan semua aksesori dengan berhati-hati dari pembungkusan. Periksa untuk sebarang kerosakan penghantaran.
2. Sambungan Kuasa: Connect the welder to a suitable power supply. Ensure the voltage sepadan dengan keperluan mesin.
3. Tanah Clamp Sambungan: Pasang tanah tanahamp cable to the appropriate terminal on the welder and secure the clamp to your workpiece or welding table, ensuring good electrical contact.
4. Sambungan Obor MIG: Connect the MIG torch to the designated port on the front panel.
5. Pemasangan Kili Wayar: Open the wire feed compartment. Place the 1kg (2.2lb) 0.030"/0.8MM E71T-GS flux cored wire spool onto the spindle. Ensure the wire unwinds smoothly.
6. Pemakanan Wayar: Thread the wire through the wire feeder mechanism. The HBM200 features an automatic wire feeder that activates when the torch switch is pressed. Ensure the K-groove roller is set for 0.030" (0.8mm) flux-cored wire.

Figure 4.1: The automatic wire feeder mechanism, showing the wire path and the K-groove roller for 0.030"/0.039" flux-cored wire.

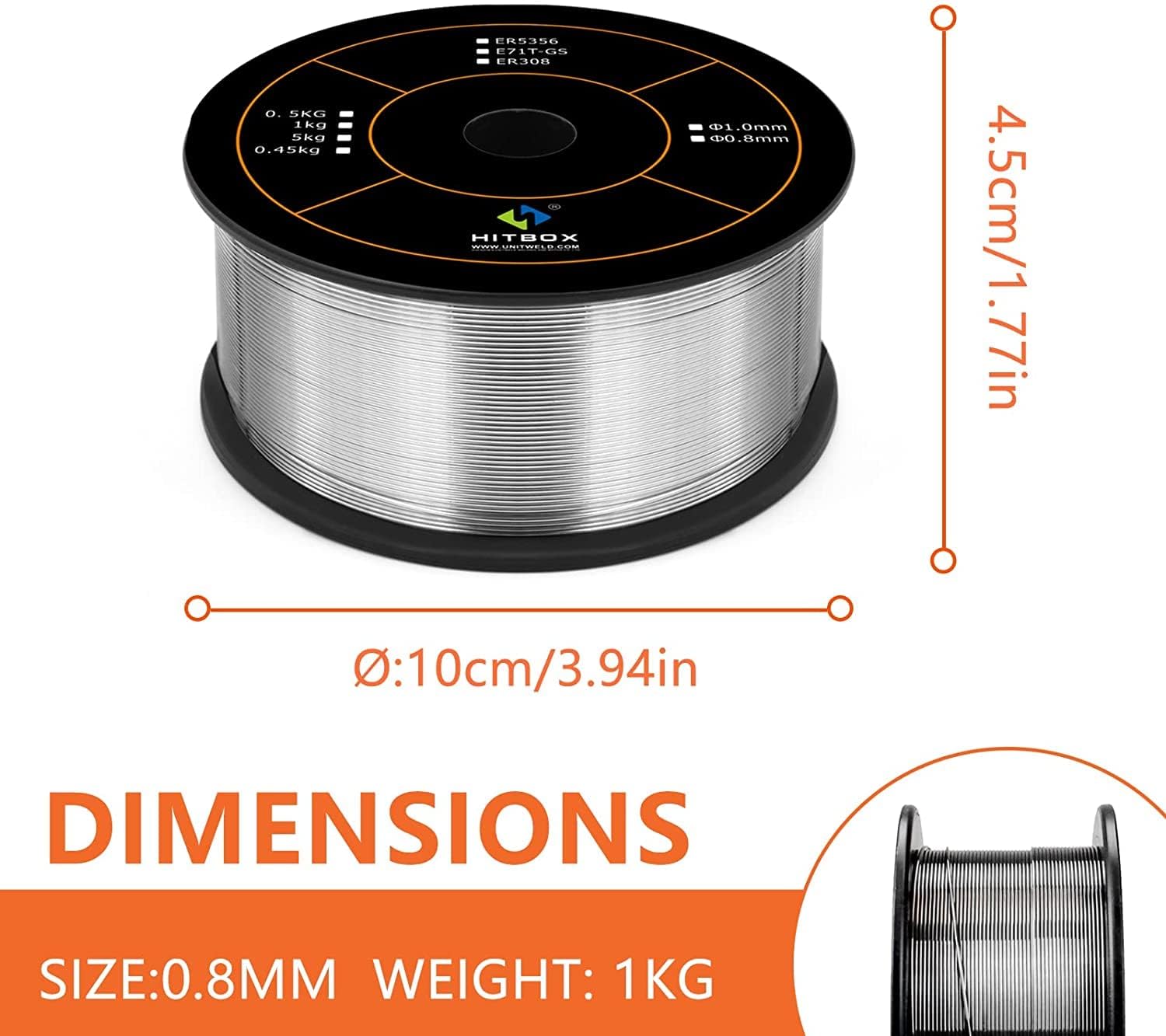

Figure 4.2: Dimensions of the 1kg (2.2lb) 0.030"/0.8MM E71T-GS flux core wire spool.

5. Arahan Operasi

The HBM200 features an intelligent display and a single knob for synergistic control, making it user-friendly for both beginners and experienced welders.

Figure 5.1: The intelligent digital display provides clear feedback on welding parameters.

5.1. Hidupkan Kuasa dan Pemilihan Mod

• Turn on the power switch located on the rear of the machine.
• The intelligent display will illuminate. Use the mode selection button (if available, or the main knob for multi-function) to select your desired welding process: Flux MIG, MMA, or Lift TIG.

5.2. Adjusting Welding Parameters

• The HBM200 features a One-Knob intelligent control system. Rotate the main knob to adjust the welding current and wire feed speed simultaneously for Flux MIG welding. The machine automatically compensates for optimal settings.
• For MMA and Lift TIG modes, the knob will primarily control the welding current.
• The display shows the rated output current (up to 200A, with an actual welding effect of 140A). Adjust the current based on the thickness of the material and the type of weld.

5.3. Proses Kimpalan

• Ensure your workpiece is clean and properly grounded.
• Position the MIG torch or electrode appropriately.
• Press the torch trigger (for MIG) or strike an arc (for MMA/TIG) to begin welding.
• Maintain a consistent travel speed and arc length for a smooth and stable weld.

6. Penyelenggaraan

Penyelenggaraan berkala memastikan jangka hayat dan prestasi optimum pengimpal HITBOX HBM200 anda.

• Pembersihan: Periodically clean the exterior of the machine with a dry cloth. Use compressed air to blow out dust from the cooling vents, ensuring the fan cooling system operates efficiently. This reduces dust entering the machine and extends its service life.
• Pemeriksaan Pengumpan Wayar: Check the wire feeder rollers for wear and tear. Ensure they are clean and free of debris to prevent wire feeding issues.
• Pemeriksaan Obor dan Kabel: Periksa obor MIG, tanah clamp, and electrode holder cables for any damage, cuts, or loose connections. Replace damaged components immediately.
• Bahan habis pakai: Regularly check and replace worn contact tips and nozzles on the MIG torch.
• Storan: Store the welder in a dry, clean environment away from excessive dust and moisture when not in use.

7. Penyelesaian masalah

Bahagian ini membincangkan isu biasa yang mungkin anda hadapi dengan mesin kimpal HBM200 anda.

8. Spesifikasi

Technical specifications for the HITBOX HBM200 Flux Core Welder.

Figure 8.1: The compact and portable design of the HBM200, highlighting its dimensions and weight.

9. Waranti dan Sokongan

HITBOX products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official HITBOX website. For technical support, troubleshooting assistance, or spare parts, please contact HITBOX customer service through their official channels. Please have your model number (HBM200) and purchase information ready when contacting support.
