VILTROX EF-M1 Pro Auto Focus Lens Adapter User Manual

1. Pengenalan

The VILTROX EF-M1 Pro Auto Focus Lens Adapter is designed to allow Canon EF/EF-S series lenses to be used on Micro Four Thirds (M4/3) series cameras. This adapter facilitates electronic communication between the lens and camera body, supporting auto-focus, aperture control, EXIF signal transmission, and image stabilization functions. It features a robust metal construction and a secure rotating lock design for reliable performance.

Image 1.1: VILTROX EF-M1 Pro Lens Mount Adapter highlighting Auto Focus, Anti-Shake Function, Aperture Control, EXIF, Lightweight design, and Wide Compatibility.

2. Langkah-langkah Keselamatan

• Do not expose the adapter to water or extreme humidity.
• Elakkan daripada menjatuhkan atau meletakkan penyesuai kepada kesan yang kuat.
• Keep the electronic contacts clean and free from dust or debris.
• Do not attempt to disassemble or modify the adapter, as this may void the warranty and cause damage.
• Store the adapter in a dry, cool place when not in use, preferably with protective caps installed.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• VILTROX EF-M1 Pro Auto Focus Lens Adapter
• Cap Lensa Depan
• Cap Lensa Belakang
• Manual Pengguna (dokumen ini)

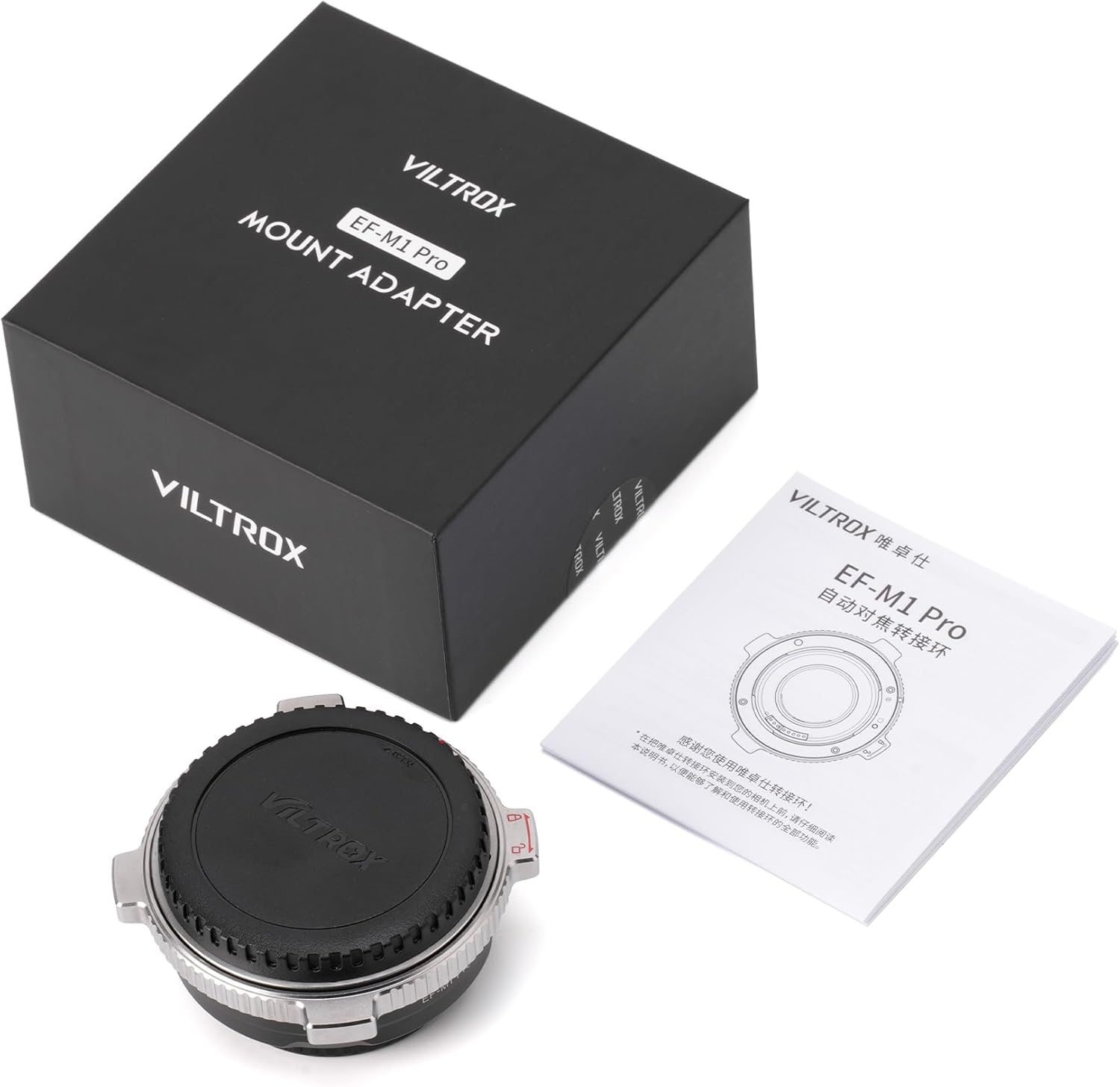

Image 3.1: The VILTROX EF-M1 Pro Lens Adapter, protective caps, and user manual as typically found in the product packaging.

4. Produk Lebihview

Familiarize yourself with the components of the VILTROX EF-M1 Pro adapter:

Imej 4.1: Perincian view of the VILTROX EF-M1 Pro Auto Focus Lens Adapter, showing its metal construction and electronic contacts.

Image 4.2: Diagram illustrating the various parts of the VILTROX EF-M1 Pro adapter, including camera installation mark, USB Type-C upgrade interface, lens lock red dot, lens lock switch, EF lens installation mark, EF-S lens installation mark, locking pin, and contacts for both lens and camera ends.

• Metal Material Ring Body: Durable construction with surface electroplating treatment.
• Metal Electronic Contacts: Ensures reliable communication between lens and camera for parameter information.
• Precision Bayonet Design: Guarantees accurate and secure matching between lens and camera.
• Port USB Jenis-C: Untuk naik taraf perisian tegar.
• Rotating Lock Design: Secures the lens to the adapter, preventing accidental detachment.

5. Persediaan

5.1 Attaching the Adapter to the Camera

1. Ensure both your camera and the adapter are powered off.
2. Remove the body cap from your M4/3 camera and the rear cap from the VILTROX EF-M1 Pro adapter.
3. Align the red dot on the adapter with the corresponding red dot on your camera's lens mount.
4. Insert the adapter into the camera mount and rotate it clockwise until it clicks into place, indicating it is securely locked.

5.2 Attaching the Lens to the Adapter

1. Remove the rear cap from your Canon EF/EF-S lens and the front cap from the VILTROX EF-M1 Pro adapter.
2. Align the red dot on the lens with the red dot on the adapter's lens mount.
3. Insert the lens into the adapter mount and rotate it clockwise until it clicks into place.
4. Engage the rotating lock buckle on the adapter to further secure the lens. This prevents accidental detachment during use.

Image 5.1: Visual representation of connecting an EF/EF-S lens to a Micro Four Thirds camera using the VILTROX EF-M1 Pro adapter.

Image 5.2: The rotating lock design ensures the lens is securely fastened to the adapter, preventing movement during operation.

6. Beroperasi

6.1 Auto Focus and Aperture Control

The VILTROX EF-M1 Pro adapter features strengthened copper electronic contacts that enable fast and smooth auto-focusing with compatible EF/EF-S lenses on your M4/3 camera. Aperture adjustments can be made directly through your camera body, just as with native M4/3 lenses.

Image 6.1: The adapter supports accurate and automatic identification for quick and easy portrait focusing, including eye focus.

6.2 EXIF Signal Transmission

Gold-plated contacts ensure excellent signal transmission, allowing EXIF information (such as aperture, shutter speed, ISO, and exposure compensation) from the lens to be accurately recorded by the camera body.

Image 6.2: The adapter facilitates seamless EXIF data transmission, displaying aperture, shutter, ISO, and exposure compensation on the camera screen.

6.3 Image Stabilization (IS) Function

The adapter supports the Image Stabilization function of compatible lenses, helping to prevent blur caused by camera shake and ensuring clearer, higher-quality images and video.

Image 6.3: A visual comparison demonstrating the effectiveness of the anti-shake function supported by the VILTROX EF-M1 Pro adapter, resulting in sharper images.

7. Keserasian

The VILTROX EF-M1 Pro adapter is compatible with a wide range of Canon EF/EF-S lenses and Micro Four Thirds cameras. Please refer to the lists below for specific models.

7.1 Kamera Serasi

• panasonic: GH4, GH5, GH6, GH5S, GF5, GF1, GX9, G9, GX7, GF7, GM5
• Olympus: OM-D E-M1 II, E-M5 III, E-M10 III, E-PL5
• Lain-lain: BMPCC4K, Z CAM E2

Nota: Continuous focus and video focus are not supported yet on some models. BMPCC4K camera does not support 1.4 aperture lenses.

Imej 7.1: Cthamples of M4/3 series cameras compatible with the VILTROX EF-M1 Pro lens adapter.

7.2 Compatible Lenses

The adapter supports a wide range of Canon EF/EF-S lenses, as well as select Tamron, Sigma, and Tokina lenses. For a comprehensive list, please refer to the images below.

Image 7.2: The VILTROX EF-M1 Pro adapter allows the use of a wide array of Canon EF/EF-S lenses on M4/3 cameras.

Image 7.3: Detailed compatibility list for Canon Prime and Zoom lenses with the VILTROX EF-M1 Pro adapter.

Image 7.4: Detailed compatibility list for Tamron, Sigma, and Tokina lenses with the VILTROX EF-M1 Pro adapter.

8. Penyelenggaraan

• Pembersihan: Use a clean, dry microfiber cloth to wipe the exterior of the adapter. For electronic contacts, use a clean cotton swab with a small amount of lens cleaning solution, ensuring no residue is left behind.
• Storan: When not in use, attach the front and rear caps to the adapter to protect the mounts and electronic contacts from dust and damage. Store in a cool, dry environment.
• Elakkan Bahan cemar: Prevent dust, dirt, and moisture from entering the adapter, as this can affect performance and longevity.

9. Penyelesaian masalah

• Lens not recognized / No electronic communication:
  • Ensure the adapter and lens are securely mounted and locked.
  • Clean the electronic contacts on both the adapter and the lens with a clean, dry cloth.
  • Mulakan semula kamera.
  • Check for available firmware updates for the adapter.
• Auto-focus is slow or inaccurate:
  • Ensure sufficient lighting conditions.
  • Verify that the lens is compatible with the adapter's auto-focus function (refer to compatibility lists).
  • Kemas kini firmware penyesuai kepada versi terkini.
• Image Stabilization not working:
  • Confirm that the lens itself has an IS function and it is enabled.
  • Check camera settings for image stabilization.
• Lens feels loose on the adapter:
  • Ensure the lens is fully rotated and clicked into place.
  • Verify that the rotating lock buckle is engaged.

10. Kemas Kini Perisian Tegar

The VILTROX EF-M1 Pro adapter is equipped with a USB Type-C port for continuous software upgrades. Firmware updates can improve compatibility, fix bugs, and enhance performance with new lenses and camera models.

1. Visit the official VILTROX website to download the latest firmware for the EF-M1 Pro adapter.
2. Connect the adapter to your computer using a USB Type-C cable.
3. Follow the instructions provided with the firmware download to complete the update process.

Image 10.1: The USB Type-C port on the VILTROX EF-M1 Pro adapter, used for firmware upgrades.

11. Spesifikasi

12. Waranti dan Sokongan

VILTROX products are covered by a limited warranty. For detailed warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official VILTROX webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
