SHREYANS SRS58-201 Monochrome Label + Receipt Printer User Manual

1. Pengenalan

The SHREYANS SRS58-201 is a portable monochrome thermal printer designed for printing labels and receipts. It features Bluetooth and USB connectivity, an auto-cutter function, and is compatible with various mobile and desktop applications. This manual provides detailed instructions for setting up, operating, and maintaining your printer.

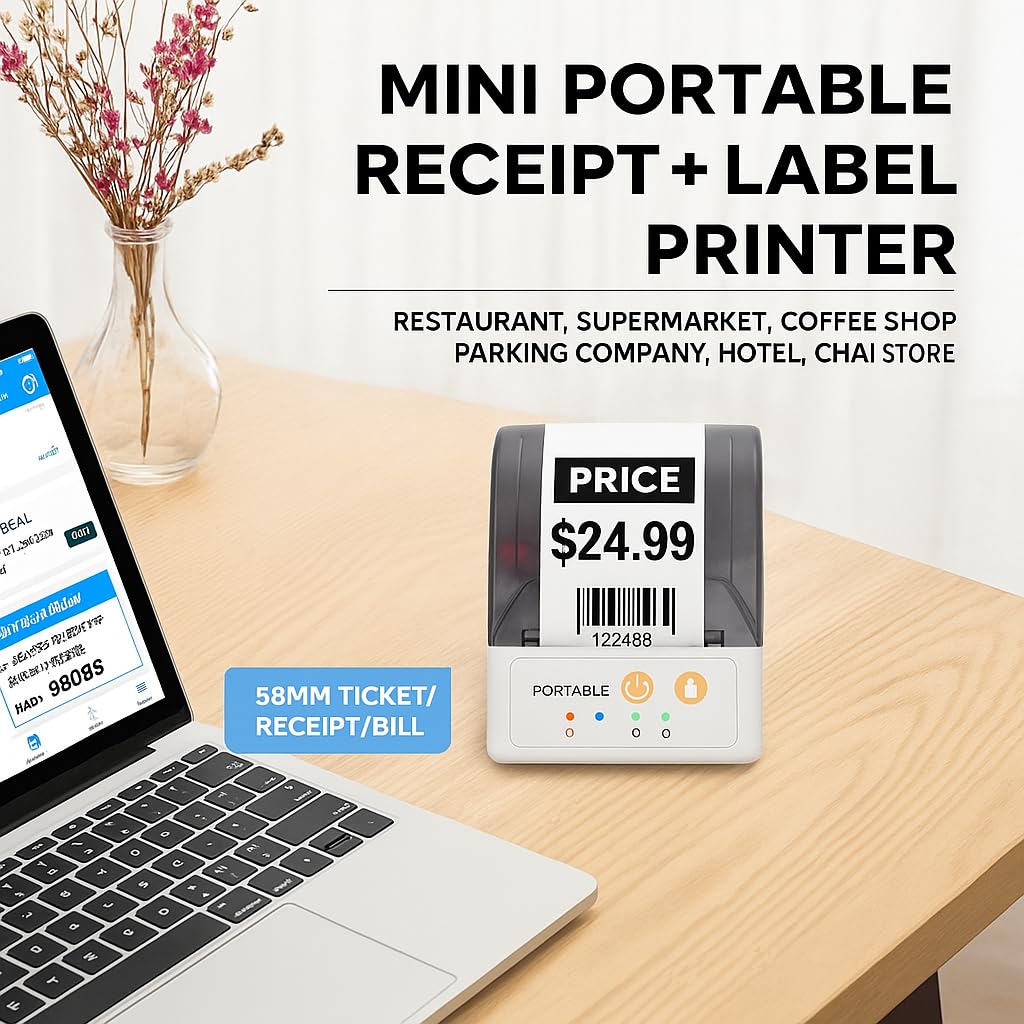

Image: The SHREYANS SRS58-201 printer on a desk, illustrating its compact size and versatility for various business environments like restaurants, supermarkets, and coffee shops.

Image: The SHREYANS SRS58-201 printer being carried in a pocket, highlighting its portability and ease of transport.

Image: The SHREYANS SRS58-201 printer held in a hand, demonstrating its lightweight and mini body design for convenient carrying.

2. Maklumat Keselamatan

Please read all safety instructions before using the printer to ensure safe and proper operation.

• Do not disassemble or modify the printer. This may cause damage or electric shock.
• Jauhkan pencetak daripada air, kelembapan dan cahaya matahari langsung.
• Gunakan hanya penyesuai kuasa dan bateri yang dinyatakan.
• Elakkan daripada menjatuhkan pencetak atau mendedahkannya kepada hentaman yang kuat.
• Do not touch the print head immediately after printing, as it may be hot.
• Ensure proper ventilation when operating the printer.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• SHREYANS SRS58-201 Printer
• Kabel USB
• Gulungan Kertas Termal (pemula)
• Manual Pengguna

4. Produk Lebihview

Familiarize yourself with the main components of the SHREYANS SRS58-201 printer.

4.1. Komponen Pencetak

1. Paper Cover Release Button: Opens the paper compartment.
2. Petak Kertas: Holds the thermal paper roll.
3. Butang Kuasa: Turns the printer on/off.
4. Butang Suapan: Menyuapkan kertas secara manual.
5. Petunjuk Status: LEDs indicating power, Bluetooth, and error status.
6. Port USB: For charging and data connection to a computer.
7. Kepala Cetak: Generates thermal prints.
8. Pemotong Auto: Automatically cuts the paper after printing.

5. Persediaan

5.1. Mengecas Bateri

The printer is equipped with a 1500mAh lithium battery. Before first use, fully charge the printer.

• Connect the USB cable to the printer's USB port and the other end to a power adapter (not included) or a computer's USB port.
• Lampu penunjuk pengecasan akan menyala.
• A full charge typically takes 2-3 hours. The indicator light will change or turn off when charging is complete.

Image: The SHREYANS SRS58-201 printer next to a battery icon, detailing battery capacity (1500mAh), charging time (2-3 hrs), standby time (7 days), and continuous printing time (7 hrs).

5.2. Loading Paper/Labels

1. Press the paper cover release button to open the paper compartment.
2. Insert a 58mm thermal paper roll, ensuring the printing side faces the print head.
3. Tarik sedikit kertas keluar melepasi pemotong.
4. Tutup penutup kertas dengan kuat sehingga ia terkunci pada tempatnya.

5.3. Connecting via Bluetooth (Mobile Devices)

The printer connects to smartphones and tablets via Bluetooth using the "Shreyans Label Edit" app.

1. Ensure the printer is powered on. The Bluetooth indicator light should be blinking.
2. Download and install the "Shreyans Label Edit" app from your device's app store (Android/iOS).
3. Dayakan Bluetooth pada peranti mudah alih anda.
4. Open the "Shreyans Label Edit" app and navigate to the printer connection settings.
5. Cari untuk available Bluetooth devices and select "SRS58-201" or a similar name.
6. If prompted, enter the pairing PIN (usually 0000 or 1234).
7. Once connected, the Bluetooth indicator light on the printer will become solid.

Image: A smartphone displaying a label editing app connected via Bluetooth to the SHREYANS SRS58-201 printer, demonstrating wireless label editing capabilities.

5.4. Installing Drivers (Windows System PC)

To use the printer with a Windows computer, you need to install the printer driver.

• Sambungkan pencetak ke PC anda menggunakan kabel USB yang disediakan.
• Obtain the latest printer driver from the SHREYANS official website or the provided installation CD (if applicable).
• Ikut arahan pada skrin untuk melengkapkan pemasangan pemacu.
• After installation, the printer should appear in your device manager.

6. Arahan Operasi

6.1. Menghidupkan/Mematikan

• Untuk Menghidupkan: Press and hold the Power button until the power indicator light illuminates.
• Untuk Mematikan: Press and hold the Power button until the power indicator light turns off.

6.2. Printing Labels/Receipts

• Ensure the printer is connected to your device (via Bluetooth or USB) and has paper loaded.
• Open your desired application (e.g., "Shreyans Label Edit" app, POS software, or a document editor on PC).
• Create or select the label/receipt you wish to print.
• Initiate the print command from the application. The printer will automatically print and cut the output.

6.3. Using the Auto-Cutter

The SRS58-201 features an integrated auto-cutter for clean and precise cuts.

• The auto-cutter activates automatically after each print job is completed.
• This feature enhances efficiency and provides a professional finish to your labels and receipts.

Image: The SHREYANS SRS58-201 printer showing a printed receipt with a barcode and QR code, highlighting the auto-cut feature for clean separation of documents. Example links: Volcora test QRcode, VolcoraTest128, 1234567891231, 0123456789128.

6.4. Compatible POS Software

The SHREYANS SRS58-201 supports various POS software for seamless integration:

• Vyappar
• Mybillbook
• Zomato
• Swiggy
• PayTM
• PhonePay
• Gpay
• And other custom applications.

7. Penyelenggaraan

7.1. Membersihkan Pencetak

Pembersihan berkala membantu mengekalkan kualiti cetakan dan memanjangkan jangka hayat pencetak.

• Turn off the printer and disconnect it from power before cleaning.
• Gunakan kain yang lembut dan tidak berbulu dampdicairkan dengan alkohol isopropil untuk mengelap kepala cetak dengan lembut.
• Bersihkan laluan kertas dan penggelek untuk membuang sebarang habuk atau serpihan kertas.
• Allow all components to dry completely before re-using the printer.

7.2. Penjagaan Bateri

• Elakkan menyahcas sepenuhnya bateri dengan kerap.
• Store the printer in a cool, dry place if not used for extended periods.
• Charge the battery periodically (e.g., every 3 months) to prevent deep discharge.

8. Penyelesaian masalah

Rujuk jadual di bawah untuk isu biasa dan penyelesaiannya.

9. Spesifikasi

10. Waranti dan Sokongan

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official SHREYANS website. Contact details for customer service are typically available on the product packaging or the brand's online portal.
