Manual Arahan Sisipan Perapian Elektrik Innoflame 26"

Arahan Keselamatan Penting

Please read and understand this entire instruction manual before attempting to assemble, operate, or install this product. Failure to do so could result in fire, electric shock, or serious personal injury.

• Sentiasa cabut plag perapian apabila tidak digunakan.
• Jangan kendalikan mana-mana pendiang api dengan kord atau palam yang rosak, atau jika pemanas telah rosak, terjatuh atau rosak dalam apa jua cara.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace and away from the sides and rear.
• Perapian ini panas apabila digunakan. Untuk mengelakkan luka terbakar, jangan biarkan kulit terdedah menyentuh permukaan panas.
• Amat berhati-hati adalah perlu apabila mana-mana pemanas digunakan oleh atau berhampiran kanak-kanak atau orang yang tidak sah dan apabila pendiangan dibiarkan beroperasi dan tanpa pengawasan.
• The unit is equipped with an overheat protection switch that automatically cuts off power at high temperatures, along with a fuse for added safety.
• This product is CSA/UL certified, ensuring compliance with safety standards.

Produk Selesaiview

The Innoflame 26" Electric Fireplace Insert provides a realistic flame effect and supplemental heating for indoor spaces. It features a log set, adjustable flame brightness, and a digital display for easy control.

Rajah 1: Depan view of the Innoflame 26" Electric Fireplace Insert with remote control.

Ciri-ciri Utama:

• Realistic flame effect with log set and adjustable 4 flame brightness levels.
• Efficient heating with 5000 BTU heat output, warming rooms up to 400 sq ft.
• Built-in thermostat for temperature control from 64°F-82°F.
• Easy-to-use controls via included remote control or integrated control panel.
• Overheat protection and fuse for enhanced safety.
• Integrated timer function (1-8 hours).

Spesifikasi

Persediaan dan Pemasangan

This electric fireplace insert is designed for recessed installation into furniture such as TV stands, sideboards, or bookshelves. Ensure the furniture has an opening that matches the recommended dimensions for proper fit and ventilation.

Measuring Opening Dimensions:

Figure 2: Guide for measuring the furniture opening.

• Ukur Ketinggian: Use a measuring tape to determine the height of the opening from the bottom to the top.
• Ukur Lebar: Use a measuring tape to determine the width of the opening from the left side to the right side.
• The recommended opening dimensions are approximately W 26 3/16" x H 17 5/8".

Langkah Pemasangan:

1. Carefully unpack the fireplace insert and all components. Verify that all included components (fireplace unit, remote control, screws, manual) are present.
2. Position the furniture where the fireplace will be installed. Ensure there is adequate space for ventilation around the unit.
3. Slide the electric fireplace insert into the prepared opening in your furniture. The unit is typically installed from the back of the furniture.
4. Secure the fireplace insert using the provided screws, if applicable, to prevent movement.
5. Plug the power cord into a grounded 120V AC outlet. Ensure the outlet is easily accessible.

Figure 3: Dimensions and typical recessed installation.

Arahan Operasi

The Innoflame Electric Fireplace Insert can be operated using the included remote control or the control buttons located on the unit.

Remote Control and Control Panel:

Fungsi:

• Hidupkan/Mati Kuasa: Press the power button on the remote or control panel to turn the unit on or off.
• Pelarasan Kecerahan Api: The fireplace features 4 adjustable flame brightness levels (L1, L2, L3, L4). Use the flame button on the remote or control panel to cycle through the brightness settings.

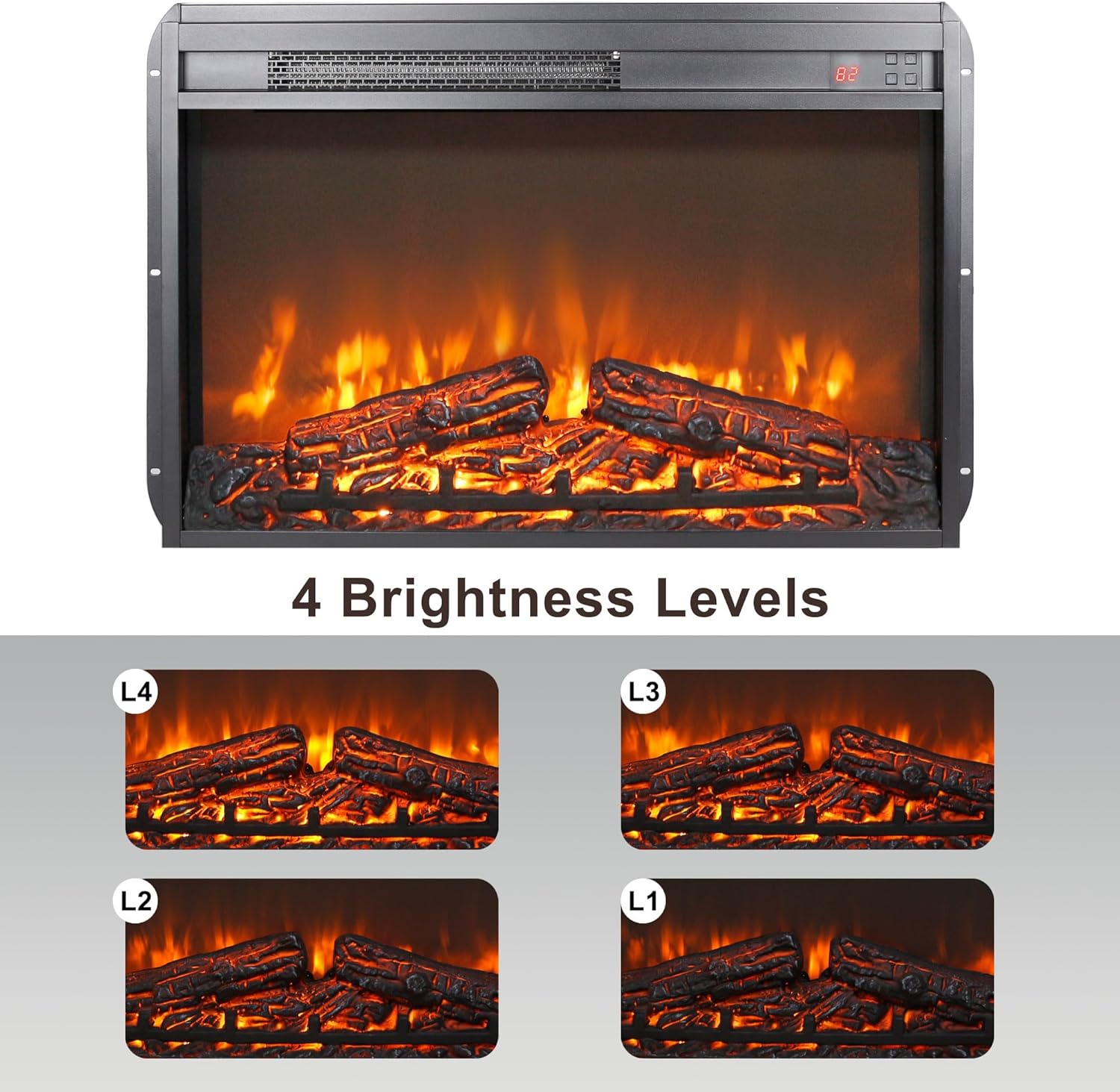

Figure 4: Visual representation of the 4 flame brightness levels.

• Tetapan Suhu: Adjust the desired room temperature using the thermostat controls. The temperature can be set between 64°F and 82°F. The unit will automatically turn the heater on or off to maintain the set temperature.
• Fungsi Pemasa: Set the operating time for the fireplace from 1 to 8 hours using the timer button. The unit will automatically shut off after the set time has elapsed.
• Flame Only Mode: The flame effect can be operated independently without the heater function, providing ambiance without heat.
• Flame and Heat Mode: Both the flame effect and heater can be operated simultaneously to provide both visual appeal and warmth.

Figure 5: Comparison of Flame and Heat mode versus Flame Only mode.

Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your electric fireplace insert.

• Pembersihan: Sentiasa cabut plag unit sebelum membersihkan. Gunakan yang lembut, damp kain untuk mengelap permukaan luar. Jangan gunakan pembersih atau semburan yang kasar.
• Pengudaraan: Ensure that the air intake and exhaust vents are clear of any obstructions to maintain proper airflow and prevent overheating.
• Mentol lampu: The flame effect uses LED technology, which typically does not require replacement. If issues arise, consult the troubleshooting section or contact customer support.

Menyelesaikan masalah

If you experience issues with your electric fireplace insert, refer to the following common problems and solutions:

• Unit tidak dihidupkan:
  • Check if the power cord is securely plugged into a grounded outlet.
  • Verify that the wall outlet is functioning by plugging in another appliance.
  • Ensure the main power switch on the unit (if present) is in the 'ON' position.
  • Check the remote control batteries and replace if necessary.
• Tiada haba yang dikeluarkan:
  • Confirm that the heater function is activated (not in flame-only mode).
  • Check the thermostat setting; ensure it is set higher than the current room temperature.
  • Ensure air vents are not blocked. The overheat protection may have activated. Unplug the unit, wait 10-15 minutes, and plug it back in.
• Flame effect is not working:
  • Pastikan unit dihidupkan.
  • Adjust the flame brightness setting.
• Alat kawalan jauh tidak berfungsi:
  • Replace the batteries (2 AAA batteries required).
  • Pastikan tiada halangan antara alat kawalan jauh dan penderia unit.

If the problem persists after attempting these solutions, please contact Innoflame customer support.

Waranti dan Sokongan

Maklumat Waranti:

This Innoflame Electric Fireplace Insert comes with a Waranti Terhad. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact Innoflame customer support.

Sokongan Pelanggan:

For technical assistance, troubleshooting, or warranty inquiries, please contact Innoflame customer support. Contact information can typically be found in the product packaging or on the official Innoflame webtapak.
