1. Pengenalan
Terima kasih kerana membeliasing the Innoflame 18-inch Electric Fireplace Insert. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new electric fireplace. Please read all instructions carefully before use and retain this manual for future reference.

Rajah 1: Depan view of the Innoflame 18-inch Electric Fireplace Insert.
2. Maklumat Keselamatan Penting
WARNING: Read and understand all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- This electric fireplace is CSA/UL listed, ensuring compliance with safety standards.
- Always connect this appliance to a properly grounded outlet.
- Jangan kendalikan mana-mana pendiangan dengan kord atau palam yang rosak, atau jika pemanas tidak berfungsi atau terjatuh/rosak.
- Pastikan bahan mudah terbakar, seperti perabot, bantal, cadar, kertas, pakaian dan langsir berada sekurang-kurangnya 3 kaki (0.9 m) dari bahagian hadapan pemanas.
- The fireplace features dual safety protection, including an overheat protection switch that automatically cuts off power at high temperatures to prevent overheating. If this occurs, unplug the unit, wait 10 minutes, and plug it back in.
- Jangan masukkan atau benarkan objek asing memasuki mana-mana pengudaraan atau bukaan ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pemanas.
- This fireplace is designed for supplemental heating only and cannot be a primary heating device.
3. Kandungan Pakej
Selepas membuka pakej, sahkan bahawa semua komponen ada dan tidak rosak:
- 1 x Innoflame 18-inch Electric Fireplace Insert
- 1 x Manual Pengguna (dokumen ini)
4. Spesifikasi Produk
| Ciri | Spesifikasi |
|---|---|
| Jenama | Innoflame |
| Nama Model | RV18V80L-NR |
| Sumber Kuasa | Elektrik Bertali |
| Dimensi Produk (D x W x H) | 5"D x 19.2"W x 18.1"H |
| bahan | Logam, Kaca Tempered |
| Jenis Pemasangan | Terselit |
| Keluaran Haba | 1400 Watts (5000 BTU) |
| Liputan Pemanasan | Sehingga 400 kaki persegi |
| Ciri Khas | Realistic Flame Effect, LED Flame, Overheat Protection, Safety Shut Off |
| warna | Hitam |
| Berat Barang | 17.2 paun |
| UPC | 706511990327 |
5. Pemasangan dan Persediaan
This electric fireplace insert is designed for recessed installation into a compatible mantel, TV stand, or cabinet. Ensure the opening dimensions match the fireplace insert for a secure fit.
5.1. Senarai Semak Prapemasangan
- Verify the mantel opening size: Width 18 3/16" x Height 17 5/8".
- Ensure a grounded 120V, 60Hz, 15 Amp circuit is available.
- Keep the power cord clear of hot surfaces and away from foot traffic.

Figure 2: Product dimensions and recommended mantel opening size for installation.
5.2. Langkah Pemasangan
- Carefully remove the fireplace insert from its packaging.
- Position the fireplace insert into the prepared opening. Ensure it sits flush and securely.
- Plug the power cord into a grounded 120V outlet. The power cord is approximately 6 feet long.

Rajah 3: Sisi view illustrating the power cord connection.

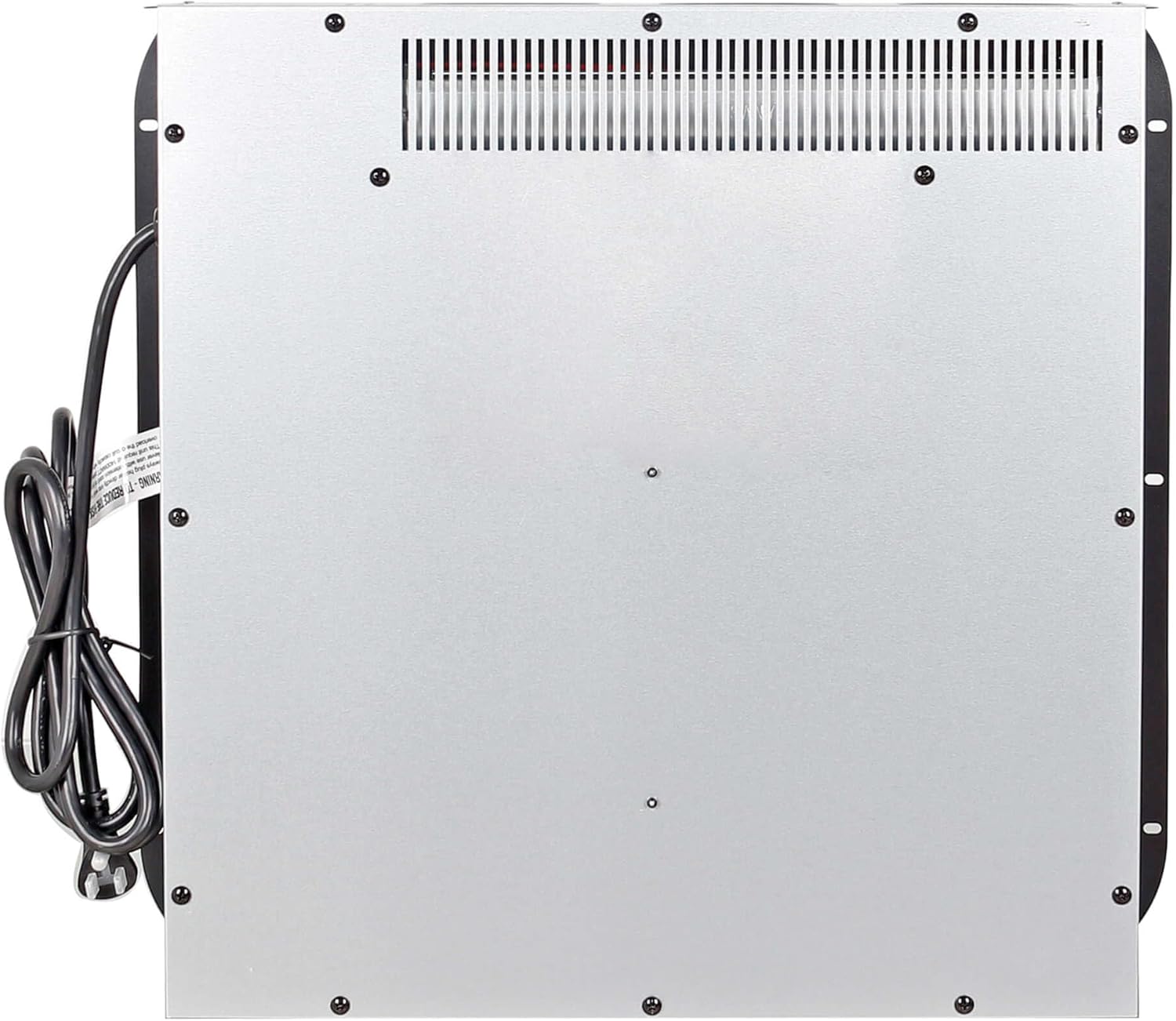

Rajah 4: Belakang view of the fireplace insert, showing ventilation and mounting points.
6. Arahan Operasi
This electric fireplace insert features simple manual controls located on the unit. It does not include a remote control.
6.1. Panel Kawalan
The control panel consists of two rocker switches:
- Flame ON/OFF Switch: Controls the realistic flame effect.
- Heater ON/OFF Switch: Mengaktifkan atau menyahaktifkan fungsi pemanasan.

Figure 5: Manual control switches for flame and heater functions.
6.2. Using the Fireplace
- Ensure the fireplace is properly installed and plugged into a grounded outlet.
- To activate the flame effect, flip the "Flame ON/OFF" switch to the "ON" position.
- To activate the heater, flip the "Heater ON/OFF" switch to the "ON" position. The heater can be operated independently or concurrently with the flame effect.
- To turn off either function, flip the respective switch to the "OFF" position.
Nota: The flame effect can be enjoyed without the heating function, providing ambiance year-round.
7. Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum perapian elektrik anda.
7.1. Pembersihan
- Sentiasa cabut plag perkakas sebelum membersihkan.
- Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau semburan yang kasar.
- Periodically check the air intake and exhaust vents for dust or debris and clean as necessary to ensure proper airflow.
7.2. Penyimpanan
Jika menyimpan perapian untuk tempoh yang lama, cabut plag dan simpan di lokasi yang kering dan bebas habuk.
8. Penyelesaian masalah
Jika anda mengalami masalah dengan pendiang api elektrik anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa kepada unit. | Not plugged in, circuit breaker tripped, or power switch off. | Ensure the unit is securely plugged into a working outlet. Check the household circuit breaker. Verify both Flame and Heater switches are in the ON position. |
| Heater stops working, but flames are still on. | Perlindungan terlalu panas diaktifkan. | Unplug the unit for 10 minutes to allow it to reset. Ensure vents are not blocked. Plug back in. |
| Api tidak kelihatan. | Flame switch is off. | Ensure the Flame ON/OFF switch is in the ON position. |
| Bunyi yang tidak biasa. | Habuk atau serpihan di dalam kipas. | Unplug the unit and carefully clean the vents. If the noise persists, contact customer support. |
Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.
9. Waranti dan Sokongan Pelanggan
9.1. Waranti Terhad
This Innoflame electric fireplace insert comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. Keep your proof of purchase for warranty claims.
9.2. Sokongan Pelanggan
For technical assistance, replacement parts, or any questions regarding your Innoflame electric fireplace, please contact our customer support team. Contact information can typically be found on the product packaging or the official Innoflame webtapak.
10. Penggunaan Cthamples
The Innoflame 18-inch Electric Fireplace Insert is designed to seamlessly integrate into various furniture pieces, enhancing the aesthetic and warmth of your living space.

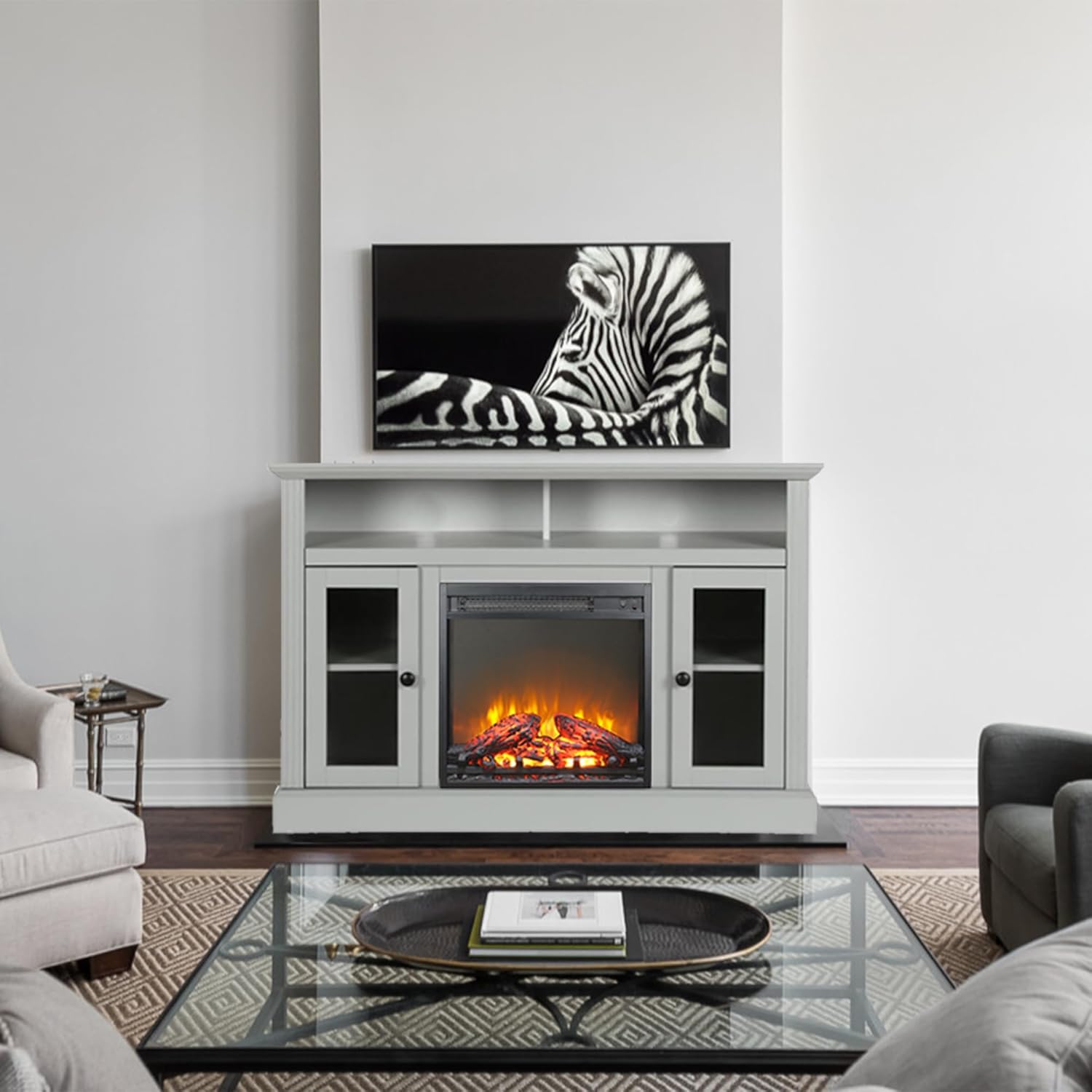

Gambar 6: Cthample of the fireplace insert installed in a TV stand.
