Xtorm Rugged Powerbank User Manual
Model: XR204
Jenama: Xtorm
1. Pengenalan
Thank you for choosing the Xtorm Rugged Powerbank. This robust and versatile power bank is designed to provide reliable power in challenging environments, featuring a high capacity, fast charging capabilities, and an integrated flashlight. This manual provides essential information for the safe and efficient use of your device.
2. Ciri-ciri Produk
- Tahan Lama dan Tahan Cuaca: Shockproof, dustproof, and water-resistant with an IP64 rating, making it ideal for outdoor use.
- Lampu suluh pelbagai fungsi: Features four modes including spotlight, tent lighting, SOS, and flash function.
- Kapasiti Tinggi: 40,000 mAh internal battery with three USB ports and 100W Ultra FastCharge for laptops and other devices.
- Operasi yang mudah: Pass-through charging function for simultaneous charging of the power bank and connected devices.
- Paparan Lanjutan: Provides real-time charging times and battery percentage.
- Xtorm Quality: Durable, safe, made from recycled plastic, and features a 6-layer safety check.

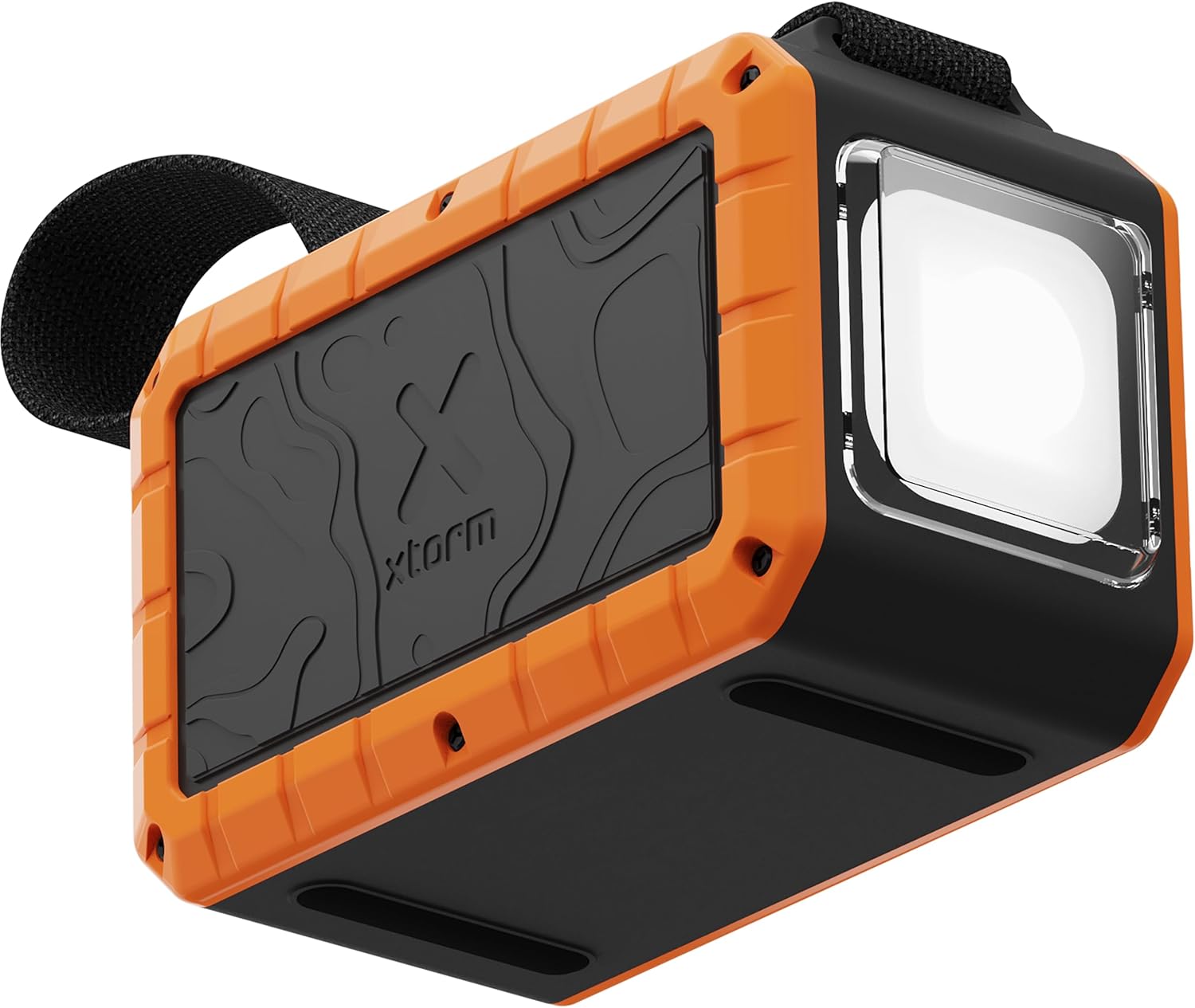

Image: The Xtorm Rugged Powerbank, showcasing its robust orange and black design with the integrated flashlight.
Image: The power bank demonstrating its IP64 water resistance, with water splashing around it and the flashlight illuminated.
3. Persediaan dan Pengecasan Awal
Before first use, it is recommended to fully charge your Xtorm Rugged Powerbank.
- Mengecas Powerbank: Connect the power bank to a suitable USB-C power adapter (not included) using a USB-C to USB-C cable. The power bank supports up to 65W input for fast recharging.
- Caj Pemantauan: The advanced display will show the current battery percentage dan anggaran masa untuk cas penuh.
- Petunjuk Caj Penuh: The display will indicate 100% when fully charged.
Image: The power bank connected to and charging multiple devices, illustrating its multi-charge capability.
4. Arahan Operasi
4.1 Mengecas Peranti Luaran
The Xtorm Rugged Powerbank features multiple output ports to charge various devices simultaneously.
- Sambungkan Peranti: Use appropriate USB cables to connect your smartphone, tablet, laptop, or other compatible devices to the power bank's USB-C or USB-A output ports.
- Pengecasan Cepat: The USB-C ports support up to 100W Ultra FastCharge, ideal for power-hungry devices like laptops.
- Pengecasan Laluan: You can charge the power bank itself while it simultaneously charges connected devices.
Image: The power bank charging a smartphone in an outdoor setting, demonstrating its portability and utility.
Image: The power bank charging a laptop in an outdoor setting, highlighting its 100W output capability.
4.2 Using the Integrated Flashlight
The power bank features a powerful integrated flashlight with multiple modes.
- Mengaktifkan Lampu Suluh: Locate the flashlight button (refer to diagram in packaging if available). Press once to turn on.
- Menukar Mod: Press the flashlight button repeatedly to cycle through the four modes: Spotlight, Tent Lighting, SOS, and Flash.
- Mematikan: Press and hold the flashlight button for a few seconds to turn it off.
Image: The power bank with its integrated flashlight shining brightly, demonstrating its utility as a light source.
5. Penyelenggaraan
- Pembersihan: Lap bank kuasa dengan kain lembut dan kering. Jangan gunakan bahan kimia yang keras atau bahan yang melelas.
- Storan: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the power bank to approximately 50-70% every 3-6 months to preserve battery health.
- Pendedahan Air: While IP64 rated, avoid prolonged submersion in water. Ensure all ports are dry before charging.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Power bank tidak dicas | Cable or adapter issue; power bank fully charged; internal fault. | Try a different USB-C cable and power adapter. Ensure the adapter meets the power bank's input requirements. |
| Peranti tidak mengecas daripada bank kuasa | Cable issue; device not compatible; power bank depleted; incorrect port. | Ensure the power bank is charged. Try a different cable. Verify device compatibility and use the correct output port. |
| Lampu suluh tidak berfungsi | Bateri lemah; butang rosak. | Charge the power bank. Ensure the button is pressed correctly (short press for on/mode, long press for off). |
| Paparan tidak menunjukkan maklumat | Bank kuasa dimatikan; bateri lemah. | Ensure the power bank is turned on or connected for charging. Charge the power bank. |
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | XR204 |
| Kapasiti Bateri | 40,000 mAh |
| Kuasa Output Maks | 100W (USB-C) |
| Kuasa Input Maks | 65W (USB-C) |
| Pelabuhan | Multiple USB-C and USB-A |
| Tahan Air | IP64 (Dustproof, Water-resistant) |
| Dimensi (L x W x H) | 13.5 x 6.5 x 8.7 cm |
| Berat badan | 809 g |
| bahan | Thermoplastic polyurethane (partially recycled plastic) |
| Ciri Khas | Integrated Flashlight (4 modes), Pass-through Charging, Advanced Display |
8. Maklumat Keselamatan
The Xtorm Rugged Powerbank is designed with a 6-layer safety check to ensure safe operation. Please observe the following:
- Kawalan Suhu: Mencegah terlalu panas.
- Perlindungan Lebihan: Protects against overcharging and irregular battery discharge.
- Secured Power Management: Selects correct and safe charging load, distributes power efficiently.
- Perlindungan Litar pintas: Automatically interrupts circuit if short circuit detected.
- A-Class Battery Cells: Uses only best battery cells for fast charging and safety.
- Kecekapan Tinggi: Designed for efficient power delivery with minimal energy loss.
Langkah Keselamatan Am:
- Jangan buka, buka atau carik pek bateri.
- Jangan dedahkan bank kuasa kepada haba atau api. Elakkan penyimpanan di bawah cahaya matahari langsung.
- Jangan litar pintas bateri.
- Jangan dedahkan bank kuasa kepada kejutan mekanikal.
- In the event of a battery leak, do not allow the liquid to come into contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Pastikan bank kuasa bersih dan kering.
- Do not leave a fully charged battery on charge when not in use.
- Dispose of the power bank according to local regulations. Do not dispose of with household waste.

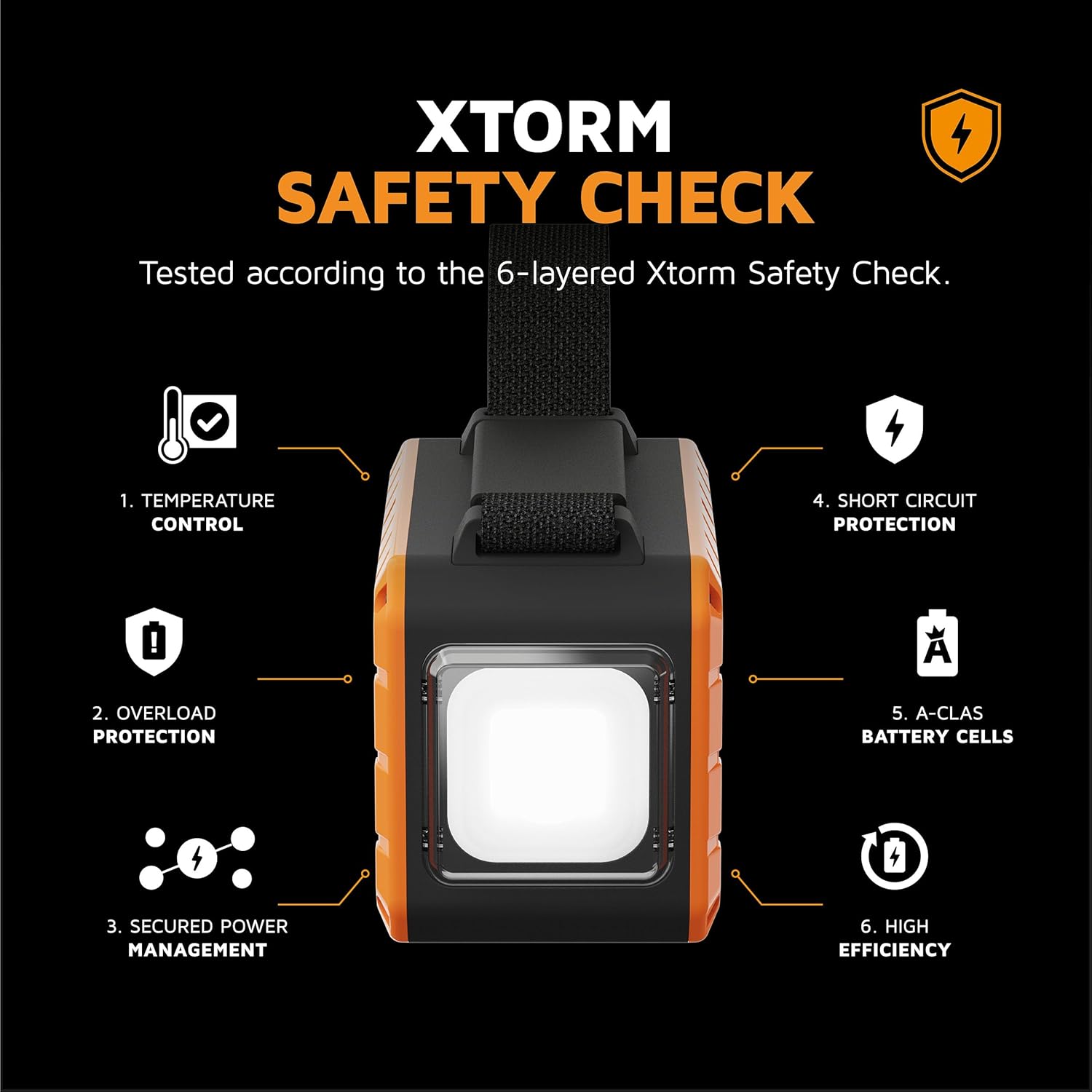

Image: Visual representation of Xtorm's 6-layer safety check, detailing features like temperature control and short circuit protection.
9. Waranti dan Sokongan
Xtorm products are manufactured to the highest quality standards. For information regarding warranty, returns, or technical support, please refer to the official Xtorm webtapak atau hubungi perkhidmatan pelanggan mereka secara langsung. Simpan bukti pembelian anda untuk tuntutan waranti.
Untuk bantuan lanjut, layari: www.xtorm.eu
