1. Pengenalan
Thank you for choosing the BOOSANT 60-inch Ceiling Fan, Model 7406. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before installation and retain them for future reference.
This image shows the BOOSANT 60-inch Matte Black Ceiling Fan installed on a covered outdoor patio, demonstrating its modern design and suitability for various environments.
2. Maklumat Keselamatan
Untuk mengurangkan risiko kejutan elektrik, kebakaran atau kecederaan diri, sentiasa ikuti langkah berjaga-jaga keselamatan asas ini:
- Baca semua arahan sebelum memasang kipas.
- Ensure the installation site is structurally sound and can support the fan's weight (approximately 16.12 lbs / 7.33 kg).
- Semua pendawaian mesti mengikut kod elektrik kebangsaan dan tempatan. Rujuk juruelektrik yang berkelayakan jika anda tidak pasti tentang prosedur pendawaian.
- Putuskan kuasa pada pemutus litar utama sebelum pemasangan atau servis.
- Do not operate the fan with damaged parts. Replace any damaged components immediately.
- Jauhkan tangan, pakaian dan objek lain daripada bilah kipas apabila kipas beroperasi.
- This fan is suitable for both indoor and covered outdoor usage.
3. Kandungan Pakej
Sahkan bahawa semua komponen yang disenaraikan di bawah disertakan dalam pakej anda:
- Pemasangan Motor Kipas
- Fan Blades (3) - Solid Wood
- Down-rods (5", 10", 15")
- Pendakap Pemasangan
- Kanopi
- Alat Kawalan Jauh
- Pek Perkakasan (skru, pencuci, kacang dawai)
- Manual Arahan
4. Pemasangan
Most of the installation procedures have been pre-completed for your convenience. Follow these steps for a smooth installation:
4.1. Bersedia untuk Pemasangan
- Matikan kuasa pada pemutus litar.
- Ensure the mounting location is secure and can support the fan.
4.2. Mount the Bracket and Down-rod
- Selamatkan pendakap pelekap pada kotak simpang siling.
- Select the appropriate down-rod (5", 10", or 15") based on your ceiling height. For high ceilings, longer down-rods (36", 48") are available separately.
- Feed the electrical wires from the fan motor through the chosen down-rod.
- Attach the down-rod to the fan motor assembly.
This diagram illustrates the various down-rod lengths (5", 10", 15") included for installation, demonstrating how the fan can be adapted for high, medium, and low ceiling heights. Longer down-rods (36", 48") are shown as sold separately.
4.3. Pendawaian
- Gantungkan pemasangan kipas pada braket pelekap.
- Connect the fan wires to the household electrical wires according to the wiring diagram provided in the detailed instructions. Use the included wire nuts.
4.4. Attach Blades and Canopy
- Attach the three solid wood fan blades to the motor housing. Ensure all screws are tightened securely.
- Slide the canopy up and secure it to the mounting bracket, covering the wiring connections.
This image depicts the installation process, emphasizing that most procedures are pre-completed and that the fan comes with multiple down-rod options for flexible mounting.
5. Arahan Operasi
Your BOOSANT ceiling fan is equipped with a remote control for convenient operation.
5.1. Fungsi Alat Kawalan Jauh
- Hidupkan/Mati Kuasa: Tekan untuk menghidupkan atau mematikan kipas.
- Kawalan Kelajuan: Adjust between 6 wind speeds.
- Arah angin: Change the fan's rotation direction (forward/reverse).
- Fungsi Pemasa: Tetapkan kipas untuk dimatikan secara automatik selepas 1, 2 atau 4 jam.
This image emphasizes the fan's quiet operation, rated at 30dB, and provides recommendations for using different speed settings (1-2 for sleep, 3-4 for night, 5-6 for daytime activities) to suit various needs.
5.2. Motor DC Boleh Balik
Kipas mempunyai motor DC boleh balik untuk keselesaan sepanjang tahun:
- Mod Musim Panas (Aliran Udara Ke Bawah): Bilah kipas berputar lawan arah jam, menolak udara ke bawah untuk menghasilkan angin penyejuk.
- Mod Musim Sejuk (Aliran Udara Ke Atas): The fan blades rotate clockwise, drawing air upwards to circulate warm air trapped near the ceiling, distributing it evenly throughout the room.
This diagram explains the fan's reversible motor function, showing how downward airflow provides a cooling effect in summer and upward airflow helps circulate warm air for even heat distribution in winter.
6. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan jangka hayat kipas siling anda.
- Pembersihan: Lap bilah kipas dan perumah motor secara berkala dengan kain lembutamp kain. Jangan gunakan pembersih atau pelarut yang melelas.
- Ketatkan Skru: Check all screws on the fan blades and mounting hardware annually to ensure they are secure.
- Tiada Pelinciran Diperlukan: Motor DC dilincirkan secara kekal dan tidak memerlukan minyak tambahan.
7. Penyelesaian masalah
Jika anda mengalami masalah dengan kipas anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kipas tidak bermula | Tiada kuasa kepada kipas; Sambungan wayar longgar; Bateri kawalan jauh lemah. | Periksa pemutus litar; Sahkan semua sambungan wayar selamat; Gantikan bateri kawalan jauh. |
| Kipas bergoyang | Skru bilah longgar; Bilah yang tidak seimbang; Pendakap pelekap longgar. | Tighten all blade screws; Ensure blades are balanced (use balancing kit if necessary); Secure mounting bracket. |
| Operasi bising | Loose screws; Motor housing rubbing. | Check and tighten all screws; Ensure no parts are rubbing against each other. |
| Alat kawalan jauh tidak berfungsi | Battery low or incorrectly installed; Remote not paired. | Replace battery, ensuring correct polarity; Refer to remote pairing instructions (if applicable). |
8. Spesifikasi
- Jenama: BOOSANT
- Nama Model: 7406-BK-60-21 (Base Model: 7406)
- Saiz: 60 INCI
- warna: Hitam Matte
- Bilangan bilah: 3 (Solid Wood)
- Jenis Motor: DC Motor (Pure Copper Core)
- Sumber Kuasa: AC/DC
- Voltage: 120 Volt
- Wattage: 62 watt (Maksimum)
- Kelajuan: Up to 230 RPM (6 Power Levels)
- Tahap Bunyi: < 28 dB
- Dimensi Produk: 6"D x 6"W x 20"H (approximate, varies with down-rod)
- Berat Barang: 16.12 paun (7.33 Kilogram)
- Kaedah Kawalan: Kawalan Jauh
- Penggunaan Dalaman/Luar: Dalaman, Luaran (Tertutup)
- Pensijilan: Diperakui ETL
This diagram details the fan's performance, including high airflow (280% CFM), quiet operation (under 28 dB), and suitability for rooms over 400 sq ft, emphasizing its superior engineering.

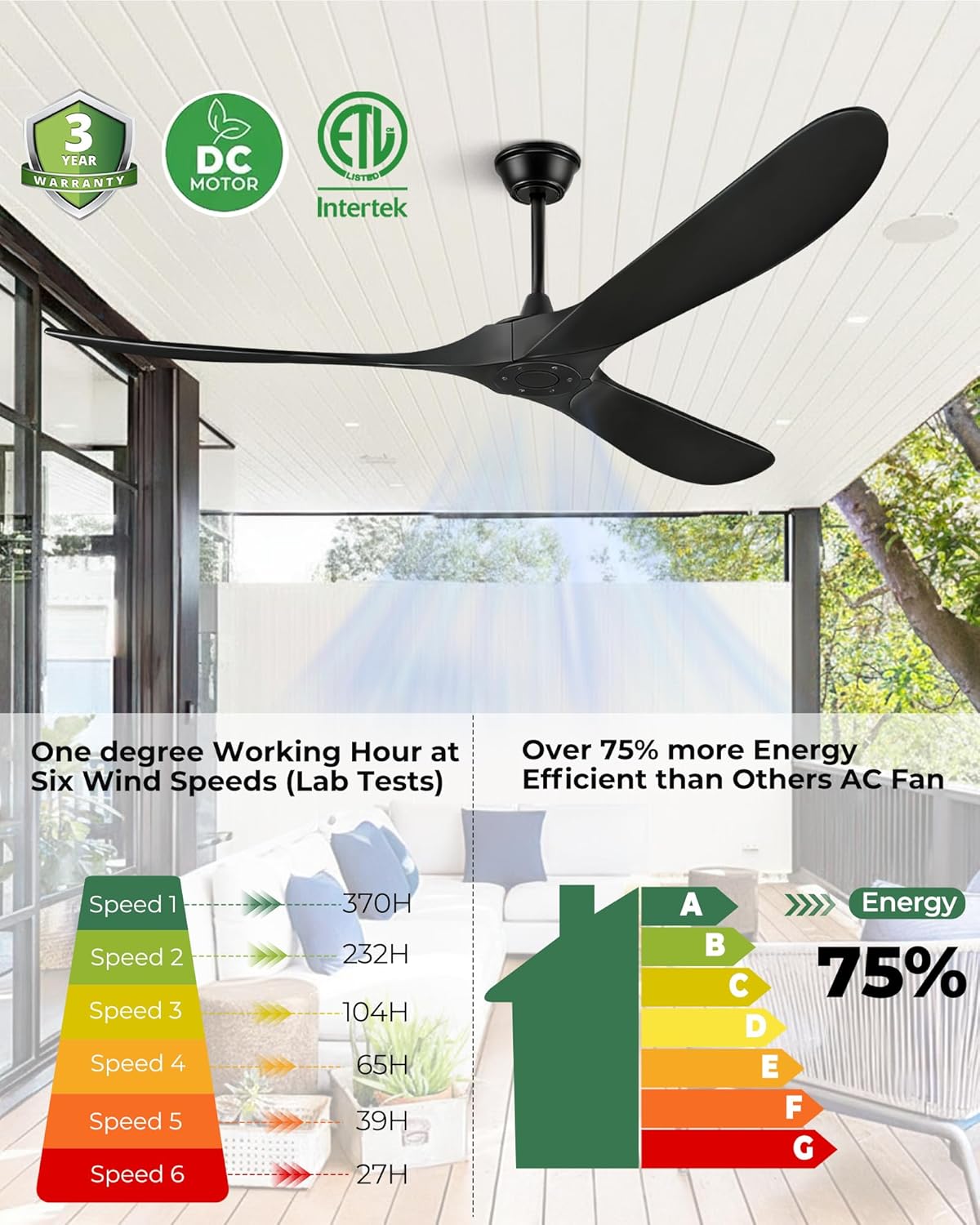

This chart illustrates the energy efficiency of the DC motor, showing how many hours the fan can operate on 1 kWh at each of its six speed settings, highlighting its 75% greater efficiency compared to traditional AC fans.
9. Waranti dan Sokongan
BOOSANT is committed to providing high-quality products and customer satisfaction.
- Waranti: BOOSANT provides a 2-year worry-free warranty for free replacement of parts such as remotes, blades, and screws. A lifetime warranty is provided for the motor.
- Sokongan Pelanggan: If you have any questions or require assistance with shipping, product, or usage issues, please contact us.
This image outlines the product's warranty details, offering a 2-year free replacement for parts and a lifetime warranty for the motor.
This section provides contact details for customer support, including a phone number and operating hours for assistance with shipping, product, or usage issues.
