pengenalan
This manual provides essential information for the proper installation, operation, and maintenance of your Hertz HRC 02 Remote Sub Level Control. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
Maklumat Keselamatan
- Sentiasa putuskan sambungan bateri kenderaan sebelum melakukan sebarang kerja elektrik.
- Ensure all wiring is correctly routed and secured to prevent damage or interference.
- Do not install the control in a location that obstructs the driver's view atau mengganggu operasi kenderaan.
- Rujuk pemasang profesional jika anda tidak pasti tentang sebarang langkah pemasangan.
Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- Hertz HRC 02 Remote Sub Level Control Unit
- Pendakap Pemasangan
- Skru Pemasangan
- Adhesive Tape (for surface mounting)
Persediaan dan Pemasangan
The Hertz HRC 02 offers versatile mounting options:
- Sambungan ke Amplebih hidup:
Locate the remote level control input on your compatible Hertz Deici Power Amplifier. Connect the cable from the HRC 02 control unit to this input. Ensure the connector is fully seated.
Rajah 2: The HRC 02 control unit with its integrated connection cable, ready to be plugged into a compatible amplebih hidup. - Surface Mounting with Tape:
Clean the desired mounting surface thoroughly. Apply the provided adhesive tape to the back of the HRC 02 control unit or its mounting bracket. Press firmly onto the surface for secure adhesion.
- Surface Mounting with Screws:
Position the mounting bracket in the desired location. Mark the screw holes. Drill pilot holes if necessary, then secure the bracket using the provided screws. Attach the HRC 02 control unit to the secured bracket.
- Pemasangan Flush:

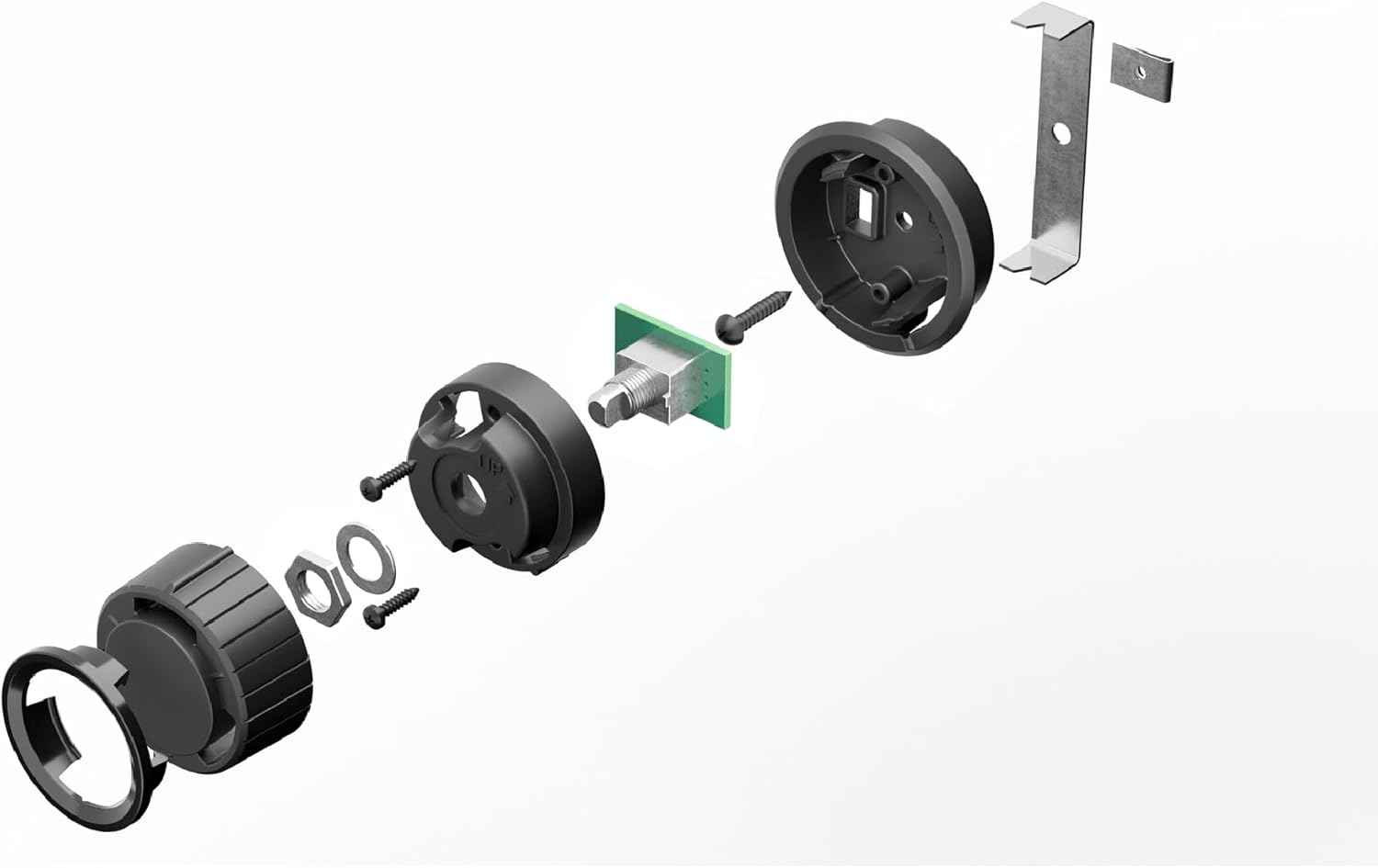

For a clean, integrated look, the HRC 02 can be flush mounted. This requires cutting an appropriate-sized hole in the mounting surface. Insert the control unit into the hole and secure it from behind using the provided hardware (e.g., retaining ring, screws, or bracket as shown in Figure 1).
Rajah 3: An illustration demonstrating the flush mounting method for the HRC 02, where the control knob sits neatly within the mounting surface.
Arahan Operasi
The Hertz HRC 02 is designed for simple operation:
- Adjusting Subwoofer Level: Rotate the knob clockwise to increase the subwoofer output level (bass).
- Rotate the knob counter-clockwise to decrease the subwoofer output level (bass).
Penyelenggaraan
To ensure the longevity and proper function of your HRC 02:
- Clean the control unit periodically with a soft, dry cloth.
- Elakkan menggunakan bahan kimia yang keras atau pembersih yang kasar.
- Ensure the control is not exposed to excessive moisture or extreme temperatures.
Menyelesaikan masalah
- Tiada Output Subwufer:
- Check the connection cable between the HRC 02 and the amplebih hidup.
- Memastikan amppenyambung dihidupkan dan berfungsi dengan betul.
- Verify the HRC 02 knob is not turned completely down.
- Kawalan Berselang-seli:
- Inspect the connection cable for any damage or loose connections.
- Ensure the control unit is securely mounted and not experiencing excessive vibration.
Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Nombor Model Item | HRC 02 |
| Dimensi Produk | 4.33 x 3.15 x 2.17 inci |
| Berat Barang | 4.6 auns |
| Pengeluar | Hertz |
Waranti dan Sokongan
The Hertz HRC 02 comes with a 1-Year Manufacturer Warranty. For warranty claims or technical support, please contact your authorized Hertz dealer or visit the official Hertz webtapak untuk bantuan lanjut.
