aigo AF12 3-in-1 ARGB Fan Kit Instruction Manual

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your aigo AF12 3-in-1 ARGB Fan Kit. Please read this manual thoroughly before use to ensure proper functionality and longevity of the product.

Ciri-ciri Produk

The aigo AF12 3-in-1 ARGB Fan Kit offers efficient cooling and customizable lighting for your computer system. Key features include:

• model: AF123IN1-BK
• Kuantiti Kipas: 3 x 120mm fans
• Kelajuan Kipas: 800-2000 RPM (±10%)
• Fan Noise Level: ≤30dBA
• Aliran Udara: 86.6 CFM
• Tekanan Statik: 1.27mm-H²O
• Working Current (Motor): ≤0.2A (12V)
• Working Current (Light): ≤0.48A (5V)
• Dimensi: 120 x 120 x 25 mm
• Pencahayaan ARGB: Addressable RGB lighting for customizable effects.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 3 x aigo AF12 ARGB Fans
• Skru Pemasangan
• ARGB Controller (if included in kit)
• Cables (Power, ARGB Sync)

Panduan Pemasangan

Follow these steps to properly install your aigo AF12 ARGB fans into your computer case.

1. Sediakan Sistem Anda: Power off your computer and disconnect it from the power source. Open your computer case.
2. Kenal pasti Lokasi Pemasangan: Determine the desired locations for your fans (e.g., front, top, rear, bottom of the case). Ensure proper airflow direction.
3. Pasang Kipas: Position each fan in its chosen location. Use the provided mounting screws to secure the fans to the case. Ensure the fan blades are not obstructed.

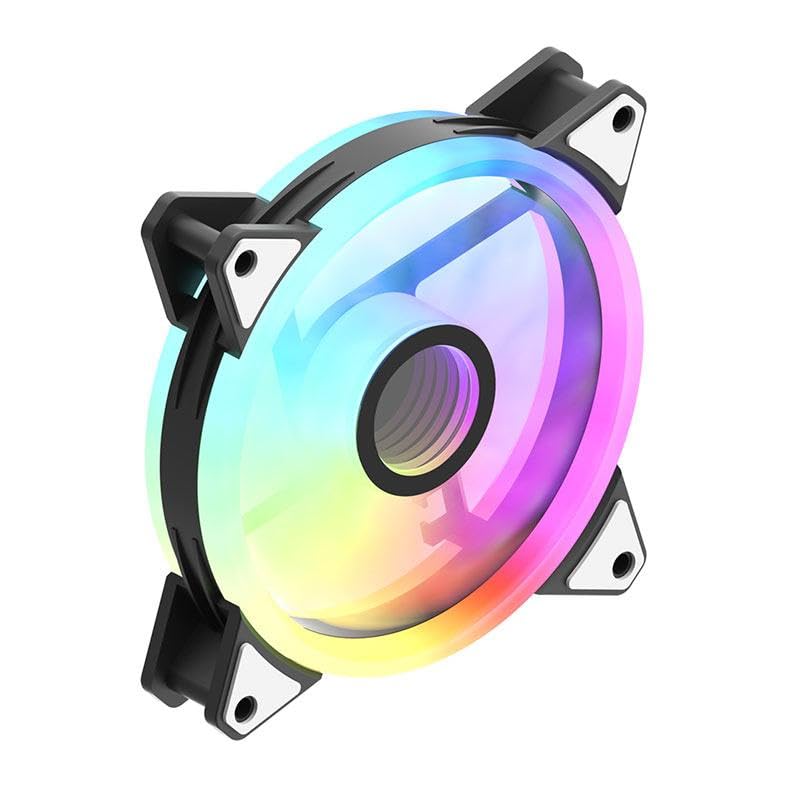

   Image: An aigo AF12 fan viewed from an angle, highlighting the mounting points on its corners. This illustrates how the fan is secured.
4. Sambungkan Kabel Kuasa: Connect the 3-pin power connector from each fan to an available fan header on your motherboard or fan controller.
5. Sambungkan Kabel ARGB: Connect the ARGB cable from each fan to the ARGB controller (if applicable) or directly to a compatible 5V 3-pin ARGB header on your motherboard. Ensure correct pin orientation to avoid damage.

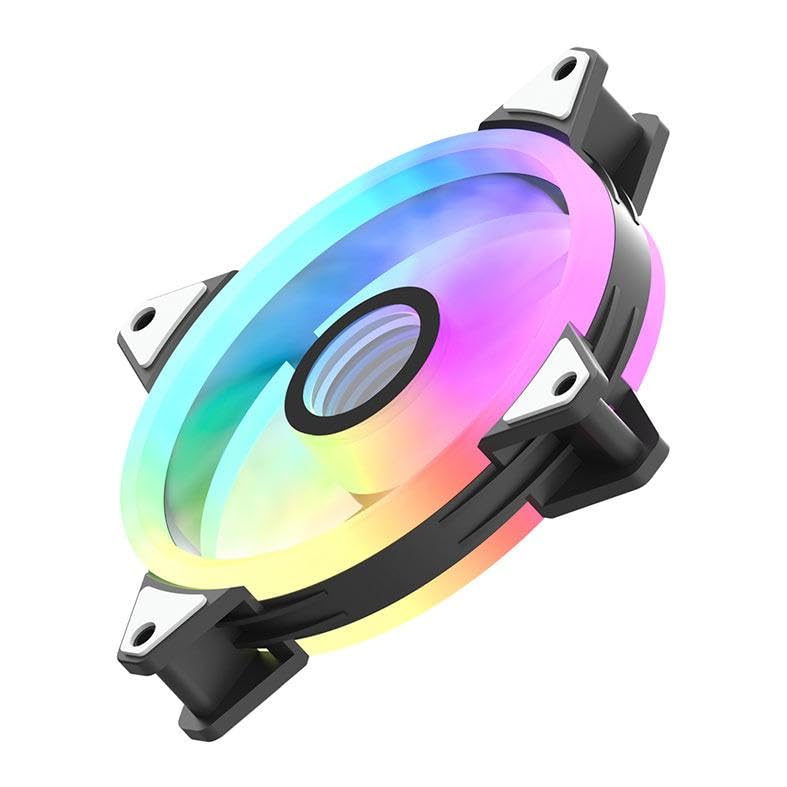

   Imej: Pro sampinganfile of the aigo AF12 fan, illustrating the thickness and potential locations for cable connections on the frame.

6. Pengurusan Kabel: Route cables neatly to prevent interference with other components and to improve airflow.
7. Tutup Sarung dan Hidupkan: Close your computer case, reconnect the power, and power on your system.

Arahan Operasi

Once installed, your aigo AF12 ARGB fans will operate automatically based on your system's fan control settings. The ARGB lighting can be controlled via your motherboard's software or a dedicated ARGB controller.

Kawalan Kelajuan Kipas

Fan speed can typically be adjusted through your motherboard's BIOS/UEFI settings or through fan control software provided by your motherboard manufacturer. Refer to your motherboard manual for specific instructions.

Kawalan Pencahayaan ARGB

If connected to a 5V 3-pin ARGB header on your motherboard, use your motherboard's ARGB synchronization software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, ASRock Polychrome Sync) to customize lighting effects, colors, and patterns.

If using a dedicated ARGB controller (often included with fan kits), refer to the controller's specific instructions for lighting adjustments.

Penyelenggaraan

Regular maintenance ensures optimal performance and extends the lifespan of your fans.

• Pembersihan Habuk: Periodically clean dust from the fan blades and housing using compressed air or a soft brush. Ensure the system is powered off before cleaning.
• Pemeriksaan Kabel: Verify that all cables are securely connected and free from damage.
• Pemantauan Bunyi: Listen for unusual noises, which may indicate a fan bearing issue or obstruction.

Menyelesaikan masalah

If you encounter issues with your aigo AF12 ARGB fans, refer to the following common solutions:

Kipas Tidak Berputar

• Semak Sambungan Kuasa: Ensure the fan's 3-pin power connector is securely plugged into the motherboard or controller.
• Semak Tetapan BIOS: Verify that fan headers are enabled in your motherboard's BIOS/UEFI settings.
• Test Another Header: Try connecting the fan to a different fan header to rule out a faulty header.

ARGB Lights Not Working

• Check ARGB Connection: Ensure the 5V 3-pin ARGB connector is correctly and securely plugged into the motherboard or controller. Verify the pin orientation.
• Check Software: Confirm that your motherboard's ARGB software is installed and configured correctly.
• Keserasian: Ensure your motherboard has a compatible 5V 3-pin ARGB header. This product is not compatible with 12V 4-pin RGB headers.

Bunyi Berlebihan

• Semak halangan: Ensure no cables or other components are touching the fan blades.
• Skru Pemasangan: Verify that all mounting screws are tightened to prevent vibrations.
• Pengumpulan habuk: Clean any dust from the fan blades.

Spesifikasi Teknikal

Waranti dan Sokongan

This aigo product comes with a Waranti 12 bulan dari tarikh pembelian, meliputi kecacatan pembuatan.

For technical support, warranty claims, or further assistance, please visit the official aigo store or contact their customer service through the details provided on their webtapak.
