User Manual: Povasee 3000A & 5000A Jump Starter Bundle

1. Pengenalan dan Lebihview

Thank you for choosing the Povasee 3000A and 5000A Jump Starter Bundle. This comprehensive manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your new jump starters. Please read this manual thoroughly before use to ensure optimal performance and safety.

Image: The Povasee 3000A (red and black) and 5000A (black with orange display) jump starters displayed together.

2. Ciri-ciri Produk

The Povasee Jump Starter Bundle offers advanced features designed for reliability and versatility:

• Dual-Power Protection: Includes both 3000A and 5000A jump starters for unmatched power, capable of starting vehicles in various situations.
• Keserasian Serbaguna: Designed to jump-start a wide range of vehicles, from compact cars to large diesel trucks.
• Reka bentuk pelbagai fungsi: Each unit features additional functionalities such as USB charging ports for electronic devices, integrated LED flashlights, and SOS signal modes for emergencies.
• Padat dan Mudah Alih: Both units are lightweight and designed for easy storage in a trunk or glove box, ensuring readiness for immediate use.
• Value-Added Bundle: Provides two high-quality jump starters at a significant saving compared to individual purchases.

Image: The Povasee 5000A jump starter connected via USB cables to a smartphone, smartwatch, and wireless earbuds, demonstrating its charging capabilities.

Image: The Povasee 3000A jump starter shown with icons representing various USB-chargeable devices like game consoles, phones, iPads, drones, earphones, and cameras, highlighting its 74WH capacity for charging two devices simultaneously.

Image: A close-up of the Povasee 5000A jump starter's LED display showing "100% OUT" and "QC 3.0 5.0V 2.4A", indicating full charge and output specifications. The 3000A unit's display is also visible in the background.

3. Apa yang ada di dalam Kotak

Your Povasee Jump Starter Bundle includes the following components:

• 1 x Povasee 5000A Jump Starter Unit
• 1 x Povasee 3000A Jump Starter Unit
• 1 x Smart Jumper Cables (for 5000A unit)
• 1 x Smart Jumper Cables (for 3000A unit)
• 2 x Kabel Pengecas USB
• 1 x 12V DC Car Charger Adapter (for 5000A unit)
• 2 x Storage Cases
• 2 x Manual Pengguna

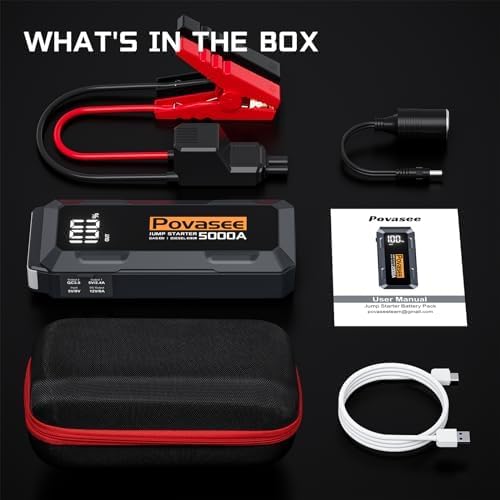

Image: The contents of the Povasee 5000A jump starter package, including the jump starter unit, smart jumper cables, a 12V DC car charger adapter, a USB charging cable, a user manual, and a protective storage case.

Image: The contents of the Povasee 3000A jump starter package, including the jump starter unit, smart jumper cables, a USB charging cable, a user manual, and a protective storage case.

4. Persediaan dan Pengecasan

Before first use, fully charge your Povasee Jump Starter. It is recommended to charge the unit every 3-6 months to maintain battery health, even if not in use.

1. Caj Permulaan: Connect the jump starter to a USB wall adapter (not included) or a car charger using the provided USB cable. The LED display will indicate charging progress.
2. Petunjuk Caj Penuh: The display will show "100%" when fully charged.
3. Storan: Simpan jump starter dalam bekas pelindungnya di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.

5. Arahan Pengendalian: Menghidupkan Kenderaan Secara Langsung

Ikuti langkah-langkah ini dengan teliti untuk menghidupkan kenderaan anda:

1. Sediakan Kenderaan: Pastikan enjin kenderaan dimatikan dan semua aksesori (lampu, radio, penghawa dingin) dimatikan. Tekan brek parkir.
2. Sambungkan Kabel Jumper ke Jump Starter: Insert the blue plug of the smart jumper cables into the jump starter's 12V output port. Ensure a firm connection.
3. Sambungkan ke Bateri Kereta:
   • Sambungkan MERAH clamp to the vehicle's positive battery terminal (+).
   • Sambungkan HITAM clamp to the vehicle's negative battery terminal (-).

   Note: Ensure clamps make good contact with the battery terminals. Avoid touching the clamps together once connected to the battery.

4. Semak Lampu Penunjuk: The indicator light on the smart jumper cable will turn solid green, indicating a correct and safe connection. If it's red or flashing, check connections and troubleshoot.
5. Mulakan Kenderaan: Return to your vehicle and start the engine. If it doesn't start on the first attempt, wait 30 seconds before trying again. Do not crank for more than 3 seconds per attempt.
6. Putuskan Sambungan Kabel: Sebaik sahaja kenderaan dihidupkan, putuskan sambungan dengan segera HITAM clamp from the negative battery terminal, then disconnect the MERAH clamp from the positive battery terminal. Finally, disconnect the jumper cable plug from the jump starter.
7. Store Jump Starter: Pack the jump starter and cables back into their case.

Image: The Povasee 3000A jump starter with its smart jumper cables connected to a car battery, illustrating the process of jump-starting a vehicle. The image highlights the 12-volt, 60-start, lithium-powered capabilities for 10L gas and 8.0L diesel engines.

Image: The Povasee 5000A jump starter connected to a car battery within an engine bay, demonstrating its use. The image highlights its 5000A peak current, 12-volt, 60-start capability for all gas and 10L diesel engines.

6. Langkah-langkah Keselamatan

Your Povasee Jump Starter is equipped with multiple safety features. Always adhere to the following precautions:

• Jangan benarkan cl merah dan hitamamps to touch each other once connected to the battery.
• Jangan mulakan bateri beku.
• Do not use the jump starter if the battery voltage berada di bawah 10V.
• Do not attempt to jump-start a vehicle with a severely damaged or leaking battery.
• Pastikan pengudaraan yang betul semasa beroperasi di ruang tertutup.
• Jauhkan daripada kanak-kanak.
• Jangan buka unit.
• Elakkan daripada mendedahkan unit kepada air atau suhu yang melampau.

The smart jumper cables provide the following protections:

• Perlindungan lebihan semasa
• Perlindungan Litar pintas
• Lebih-Voltage Perlindungan
• Perlindungan Over-Charge
• Perlindungan Lebihan Caj
• Perlindungan Kekutuban Songsang
• Spark-Resistance
• Perlindungan Terlalu Panas
• Reverse-Connection Protection
• Perlindungan Suhu Melampau

Image: A visual representation of the various safety protections integrated into the Povasee jump starters, including over-current, short-circuit, over-voltage, over-charge, over-discharge, reverse-polarity, spark-resistance, over-heat, reverse-connection, and extreme temperature protection.

7. Penyelenggaraan

Proper maintenance ensures the longevity and reliability of your jump starter:

• Isi semula secara berkala: Recharge the unit every 3-6 months, even if not used, to prevent deep discharge and prolong battery life.
• Kebersihan: Simpan unit dan clamps clean and free of dirt, dust, and moisture. Use a dry cloth for cleaning.
• Storan: Store in a cool, dry environment, ideally between 0°C and 40°C (32°F and 104°F).
• Periksa Kabel: Periksa kabel jumper dan kli secara berkalaampuntuk sebarang tanda kerosakan, keruntuhan atau kakisan. Gantikan jika perlu.

8. Penyelesaian masalah

Jika anda menghadapi masalah, rujuk petua penyelesaian masalah biasa berikut:

9. Spesifikasi

10. Waranti dan Sokongan

Povasee products are designed for reliability and performance. For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Povasee webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.

For further assistance, you may contact Povasee customer service via their Amazon store page: Povasee Store on Amazon.
