1. Produk Lebihview
The Yottamaster M.2 NVMe SATA Enclosure is a high-performance external storage solution designed for M.2 NVMe PCIe and SATA M-Key / B+M SSDs. Featuring a 10Gbps USB 3.2 Gen2 USB-C interface and UASP acceleration protocol, it ensures rapid data transfer. Its tool-free design and aluminum alloy casing provide convenient installation and efficient heat dissipation. The enclosure supports various SSD sizes (2230, 2242, 2260, 2280) and is compatible with a wide range of devices.
Figure 1: Yottamaster M.2 NVMe SATA Enclosure. This image displays the sleek, gray aluminum enclosure, highlighting its compact and portable design.
2. Apa yang ada di dalam Kotak
- M.2 NVMe SATA Enclosure
- Kabel Data USB-C ke USB-C
- USB-C to USB-A Adapter (integrated with cable)
- Pad Terma
- Silicone Screw/Fastener
- Manual Pengguna
3. Persediaan dan Pemasangan
The Yottamaster M.2 NVMe SATA Enclosure features a tool-free design for quick and easy SSD installation.
- Buka Kandang: Press the release button on the back of the enclosure and slide out the internal tray.
- Masukkan SSD: Gently insert your M.2 NVMe or SATA SSD into the M.2 slot on the internal tray. Ensure the SSD is fully seated.
- SSD selamat: Use the provided silicone screw/fastener to secure the end of the SSD to the tray. This prevents movement and ensures proper contact.
- Sapukan Pad Termal (Pilihan tetapi Disyorkan): Remove the protective film from the thermal pad and place it directly onto the SSD's chips. This aids in heat dissipation.
- Tutup Kandang: Luncurkan dulang dalaman semula ke dalam aluminium casing sehingga ia mengklik dengan selamat ke tempatnya.
Figure 2: Visual guide for the tool-free installation of an M.2 SSD into the enclosure. The image shows the steps: pressing the release button, sliding out the tray, inserting the SSD, and reassembling the enclosure.

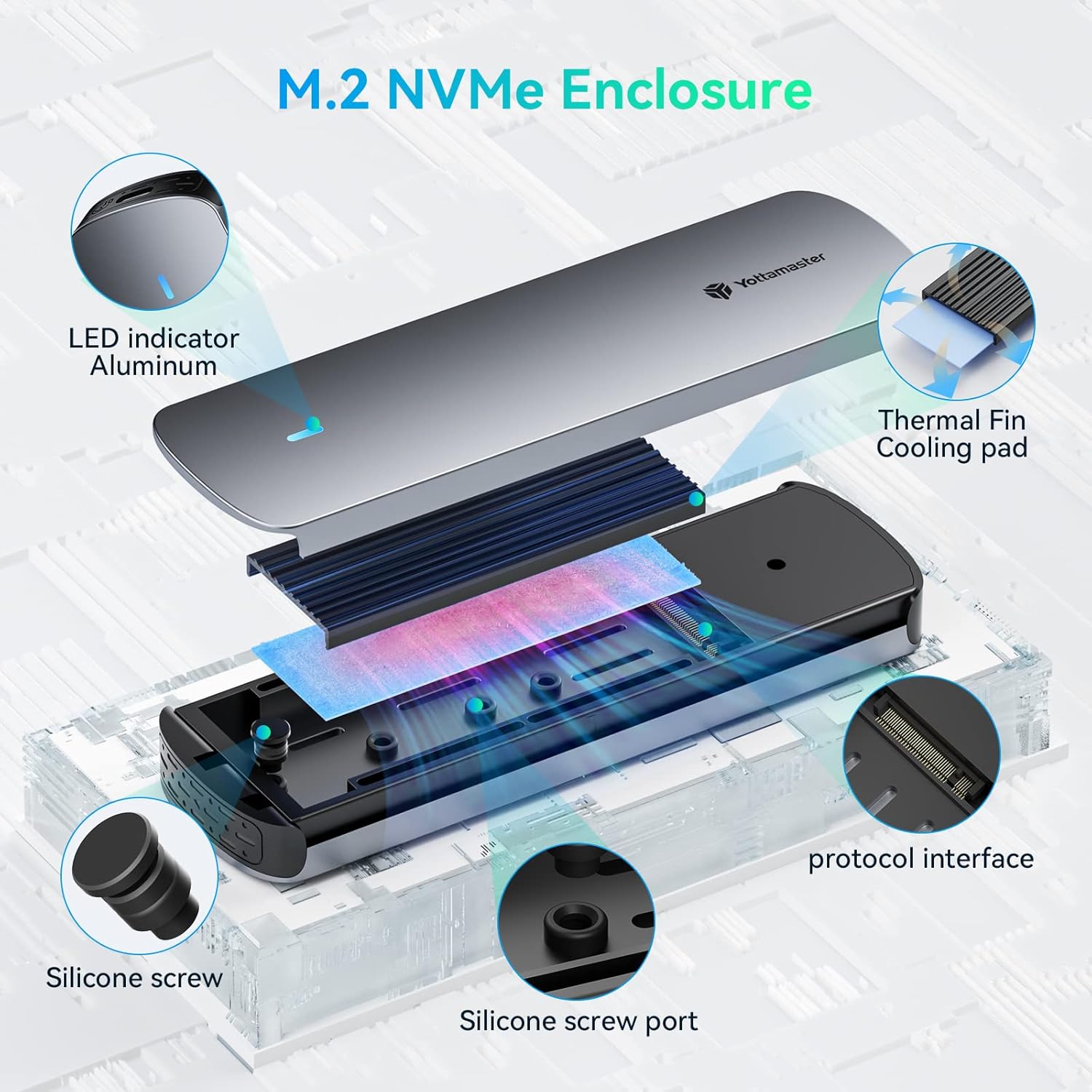

Rajah 3: Satu meletup view illustrating the internal components of the enclosure, including the aluminum top cover, LED indicator, thermal fin, cooling pad, protocol interface, silicone screw, and silicone screw port.
Video 1: Official Yottamaster video demonstrating the M.2 NVMe SATA Enclosure, including its features and ease of use. This video provides a visual overview of the product and its functionality.
4. Arahan Operasi
4.1 Ketersambungan
Connect the enclosure to your device (PC, smartphone, laptop, smart TV, router, gaming console) using the provided USB-C to USB-C data cable. The cable also includes a USB-A adapter for broader compatibility.
Figure 4: The included 2-in-1 USB-C to USB-C/USB-A data cable, along with examples of compatible devices such as smartphones, tablets, game consoles (Switch, PS5/PS4), and laptops (MacBook, ASUS, Lenovo).
4.2 Ciri Pintar
- Intelligent Sleep Technology: The enclosure automatically enters sleep mode after 10 minutes of inactivity. This conserves energy and extends the lifespan of your SSD.
- Penunjuk LED: A built-in LED indicator provides clear visual monitoring of the SSD's status, allowing you to stay informed at a glance.
5. Keserasian
The enclosure is compatible with NVMe PCIe and SATA M-Key / B+M connectors M.2 SSDs. It supports SSD sizes of 2230, 2242, 2260, and 2280. It is suitable for use with PCs, smartphones, laptops, smart TVs, routers, and gaming consoles.
Figure 5: A detailed chart showing compatibility with NVMe M Key, NVMe B+M Key, and SATA B+M Key interfaces, as well as supported SSD sizes (2230, 2242, 2260, 2280).
6. Prestasi
Equipped with a 10Gbps main control scheme and supporting the UASP acceleration protocol, this enclosure ensures rapid data transfer. The external USB 3.2 Gen2 USB-C output interface provides a maximum transfer rate of 10Gbps, delivering exceptional speed and efficiency for various tasks including working, shooting, and gaming.
Figure 6: Graphic illustrating the 10Gbps high-speed transfer capability of the enclosure, emphasizing its efficiency compared to slower USB standards.
Figure 7: Depiction of various usage scenarios for the enclosure, including working on a laptop, professional video shooting, and gaming, highlighting its versatility.
7. Spesifikasi
- Jenama: Yottamaster
- Nombor Model: nvme1
- warna: Kelabu
- Antara muka perkakasan: USB Jenis C
- Kelajuan Pemindahan Data: 10Gbps (USB 3.2 Gen2)
- Compatible SSD Types: NVMe PCIe M-Key / B+M, SATA B+M M.2 SSDs
- Saiz SSD yang Disokong: 2230, 2242, 2260, 2280
- Ciri Khas: Fast Data Transfer, Indicator Light, Lightweight, Plug and Play, Portable, Intelligent Sleep Technology
- Peranti Serasi: Desktops, Laptops, Smartphones, Smart TVs, Routers, Gaming Consoles
- Berat Barang: 4.6 auns
- Dimensi Pakej: 7.24 x 4.25 x 1.1 inci
8. Penyelesaian masalah
- Pemanduan Tidak Dikesan:
- Ensure the SSD is correctly inserted and secured in the enclosure.
- Verify the USB cable is securely connected to both the enclosure and the host device.
- Try connecting to a different USB port or a different host device.
- For new SSDs, ensure they are initialized and partitioned in your operating system's Disk Management (Windows) or Disk Utility (macOS).
- Kelajuan Pemindahan Lambat:
- Ensure you are using a USB 3.2 Gen2 (10Gbps) compatible port on your host device. Older USB 2.0 or 3.0 ports will result in slower speeds.
- Verify your SSD itself supports 10Gbps speeds.
- Check the integrity of the USB cable.
- Ensure the thermal pad is correctly installed to prevent thermal throttling.
- Enclosure Overheating:
- Ensure the thermal pad is correctly installed between the SSD and the aluminum casing.
- Avoid prolonged heavy data transfers in poorly ventilated areas.
- Penunjuk LED Tidak Menyala:
- Periksa semua sambungan kabel.
- Ensure the host device is powered on and providing sufficient power to the USB port.
9. Waranti dan Sokongan
For warranty information, technical support, or further assistance, please refer to the official Yottamaster webtapak atau hubungi perkhidmatan pelanggan mereka secara langsung. Simpan resit pembelian anda untuk tuntutan waranti.
